Summary of Contents for Dynascan DI100ST2-M

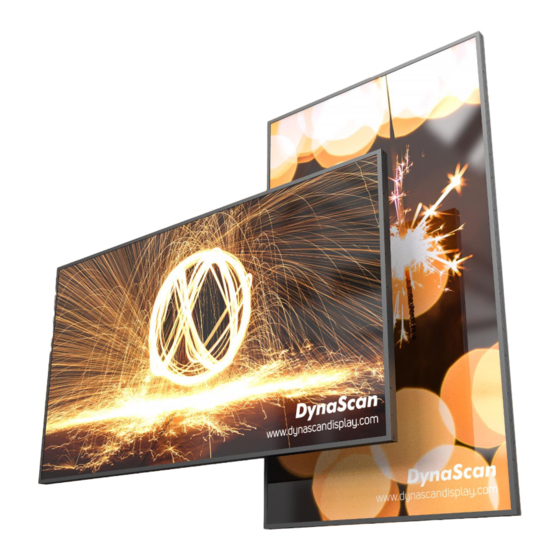

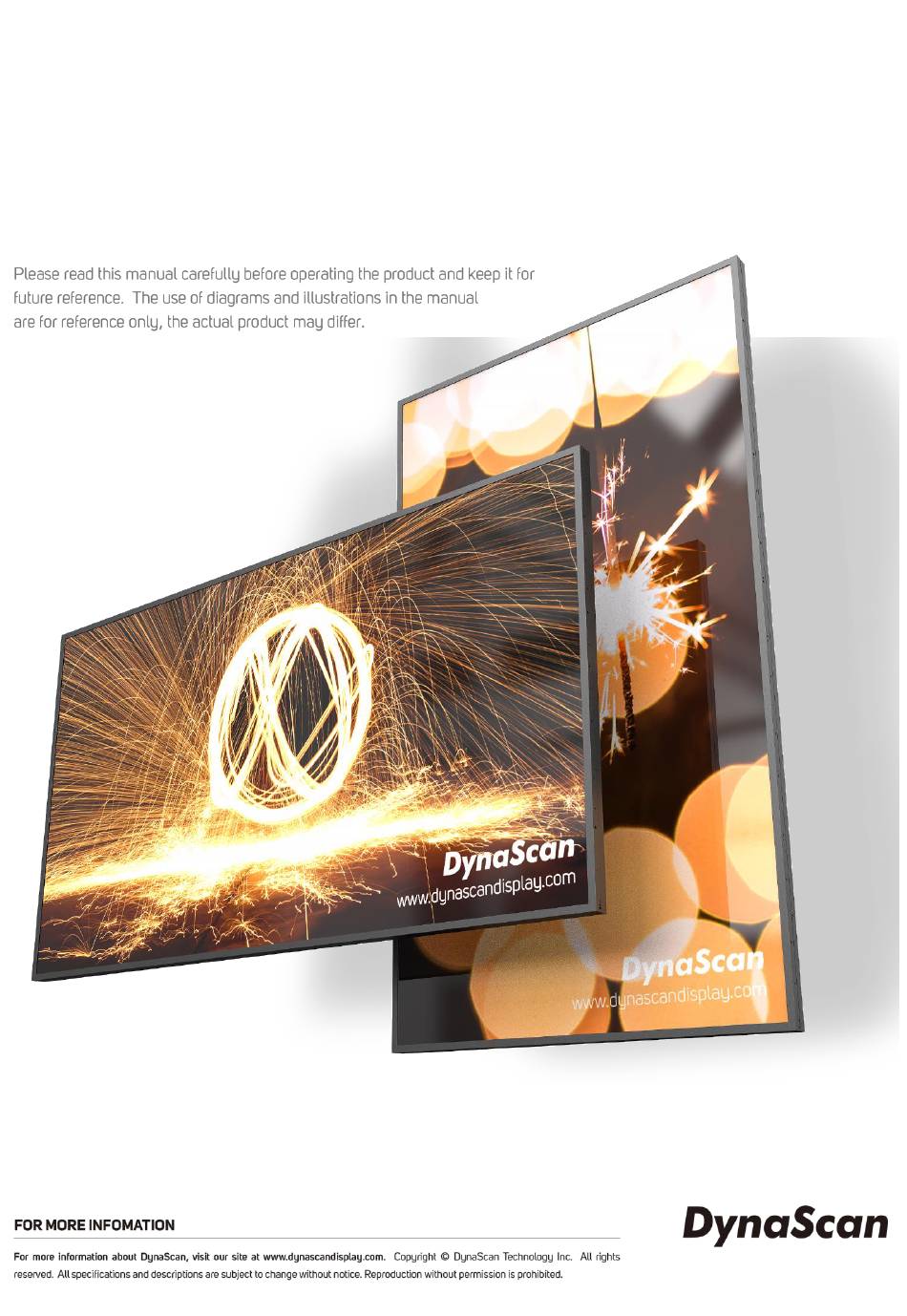

- Page 1 DI100ST2-M USER MANUAL 100” Fanless UHD 4K Premium Indoor LCD Intel® SDM Ready 65406 | V2.11...
-
Page 2: Table Of Contents
Specifications ............................22 Input Mode ............................23 Pin Assignments ........................... 24 RS-232 Input ............................ 24 Troubleshooting ............................ 25 About DSM365 ............................. 26 About SDM ............................27 Install SDM on the display ........................ 27 Switch to SDM ..........................28 DI100ST2-M User Manual... -
Page 3: Material Contents Declaration
SJ/T-11363-2006 and EU 2011/65/EC. Recycling and Energy Information DynaScan is firmly committed to its environmental protection efforts and we believe that reducing our products’ impact on the environment is of the utmost importance. We are dedicated to meet the latest environmental protection regulations. -
Page 4: Declaration Of Conformity
Community. Article (a) Article (b) EN 62368-1:2014+A11:2017 EN 55032:2015/AC:2016 Class A IEC 62368-1 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 55035:2017 - Frequency bands and Powers a. WIFI 2.4G-2412~2462MHz. b. Maximum radio-frequency power transmitted in the 2.4GHz is 50mW. DI100ST2-M User Manual... -
Page 5: Safety Precautions
In order to avoid burn-in, avoid prolonged display of static or fixed images on the screen. Power supply cord must not be attached to the building surface, nor run through walls, ceilings, floors and similar openings in the building structure. Power cord shall be connected to a socket-outlet with earthing connection. DI100ST2-M User Manual... -
Page 6: Important Safety Information
Handle the LCD with care. Save the packaging materials for transport later. Clean the LCD backside at least once a month for dust and other particles. Unplug the LCD immediately and contact a DynaScan certified service professional as soon as possible when any of the following situations occurs: ... -
Page 7: Getting Started
Confirm that the accessories below are shipped along with the display. If any item is missing, please contact your dealer. The color and shape of the accessories may vary with the products. DI100ST2-M Professional LCD. Power cable x1 pc. ... -
Page 8: Installation
The LCD must be properly installed using a wall mount. Incorrect installation may cause injury or damage the equipment. Product warranty does not cover the damage caused by improper installation and DynaScan shall not be held responsible in such incident. Refer to the mount manufacturer’s instructions for proper installation. - Page 9 When used in the portrait orientation, the LCD should be rotated clockwise when looking at the front of the display such that the left edge becomes the top edge. <Front> Portrait mode: Rotate the set clockwise 90° (mandatory) DI100ST2-M User Manual...
- Page 10 Leave clearance around the outer edge of the LCD (or video wall matrix) from other objects to ensure proper ventilation. For installations with screens inset into the wall, refer to section: Enclosures for cooling and ventilation considerations. Single display DI100ST2-M User Manual...
-
Page 11: Wall Mounting
A wall mount is not included. Please purchase a VESA Standard wall mount to secure the LCD. DynaScan is not responsible for damages caused by using non-standard wall mounts. Verify that the mounting location can support the weight of the LCD before installation. -
Page 12: Connecting To A Power Source
DP-IN (or HDMI 1-IN, HDMI 2-IN) which shown in the diagram below. Connect the other end of the DP cable (HDMI cable) to the DP output (or HDMI output) of the video source. Refer to your video device’s manual for additional information. DI100ST2-M User Manual... -
Page 13: Input / Output Terminals
SDM Slot: Install SDM, please refer to P.27 *USB 3.0 port: A standardized port to connect a variety of devices like mouse, keyboard, and flash drive. Support USB storage devices formatted with NTFS, FAT32 (32G) file system. DI100ST2-M User Manual... -
Page 14: Operating Instructions
Powering On/Off the Display To turn on/off the display, press the power switch on the side of the display as shown in the diagram below. NOTE: The remote control only works when the power switch is ON. DI100ST2-M User Manual... -
Page 15: Using The Remote Control
IR receiver as shown below. Meanwhile, the IR receiver on the display will be disabled. The operating range of the remote control is 2.5 meters (8 feet). NOTE: Ambient light may affect the performance of the remote control. Avoid fluorescent or neon lights in the vicinity. DI100ST2-M User Manual... - Page 16 Exit the current selection. RIGHT Select the highlighted item. DOWN Move the cursor down or change the setting of selected item. Enter (for DSM365 only) BACK Return to the last page. (for DSM365 only) DI100ST2-M User Manual...
-
Page 17: Using The Built-In Keypad
OSD On / Off, Power On / Off. Move the cursor up or change the setting of selected item. DOWN Move the cursor down or change the setting of selected item. LEFT Exit the current selection. RIGHT Select the highlighted item. DI100ST2-M User Manual... -
Page 18: Navigating The On Screen Display (Osd) Menu
Failover 4 DSM365 Set the Failover 4 input to display. Only effective in Main input source. If the display didn’t get both of commend Command Detection and the input signal, it will change to Failover1 input. 2. Picture DI100ST2-M User Manual... - Page 19 Set the day of week. (Monday to Sunday) Time Time Zone Set the Time Zone. Power Control Automatic power on / off schedule function. Timer On Time 08:00 Set turn-on time. Off Time 18:00 Set turn-off time. DI100ST2-M User Manual...
- Page 20 Adjusts the highest brightness level. High Level Range 0 – 100. Adjusts the lowest brightness level. Low Level Range 0 – 100. High Level Time 08:00 Set high level time. Low Level Time 18:00 Set low level time. DI100ST2-M User Manual...
- Page 21 Enable/disable the remote control for Menu. Note: When disabled, the remote control function can be enabled again from IR Control the control panel on the display or through the DynaScan “Display Manager” application. Standby: Background processes are still running, and remote control in normal operation.
- Page 22 67°C = Brightness 50%. Protection 69°C = Brightness 25%. When the temperature is decreased to exit the protection, the brightness will restore to 100% and Over Heat Protection is disabled. Some functions may not be available for all models. DI100ST2-M User Manual...
-
Page 23: Specifications
Audio OUT *1 I/O Ports USB 3.0 IN *1 RJ-45 IN *2 Micro SD Slot IN *1 SDM Slot IN *1 Mini USB IN *1 (ESK only) Fuse Design and specifications are subject to change without notice. DI100ST2-M User Manual... -
Page 24: Input Mode
1050 60 Hz 1440 60 Hz 1600 1200 60 Hz 1680 1050 60 Hz 1920 60 Hz 1920 1080 60 Hz 1920 1200 60 Hz 1920 1440 60 Hz 2560 1440 60 Hz 3840 2160 60 Hz DI100ST2-M User Manual... -
Page 25: Pin Assignments
Pin Assignments RS-232 Input PIN No. NAME Connected to 7&8 Connected to 6 Connected to 4 Connected to 1&8 Connected to 1&7 DI100ST2-M User Manual... -
Page 26: Troubleshooting
Cannot control the display Check whether the RS-232 cable is connected properly. remotely via RS-232. If you are still having trouble with your DynaScan DS² Professional LCD, contact your dealer or DynaScan directly for more assistance. DI100ST2-M User Manual... -
Page 27: About Dsm365
Press the MENU button on either the rear panel control or remote control to show the OSD. Use the navigation arrows to select and adjust the Input Source. [Input Source → Main → DSM365] ITEM DESCRIPTION APPS Show the Installed APPS. DI100ST2-M User Manual... -
Page 28: About Sdm
Install SDM on the display 1. Loosen screws and remove the SDM cover from the display. 2. Insert the SDM module into the display and fasten screws. Make sure the SDM properly installed to avoid causing the devise destruction. DI100ST2-M User Manual... -
Page 29: Switch To Sdm
Switch to SDM Press the MENU button on either the rear panel control or remote control to show the OSD. Use the navigation arrows to select and adjust the Input Source. [ Input Source →Main →SDM ] DI100ST2-M User Manual... - Page 30 Copyright © DynaScan Technology, Inc. All Rights Reserved. DI100ST2-M User Manual...
