Summary of Contents for Dynascan DS851LR4-1

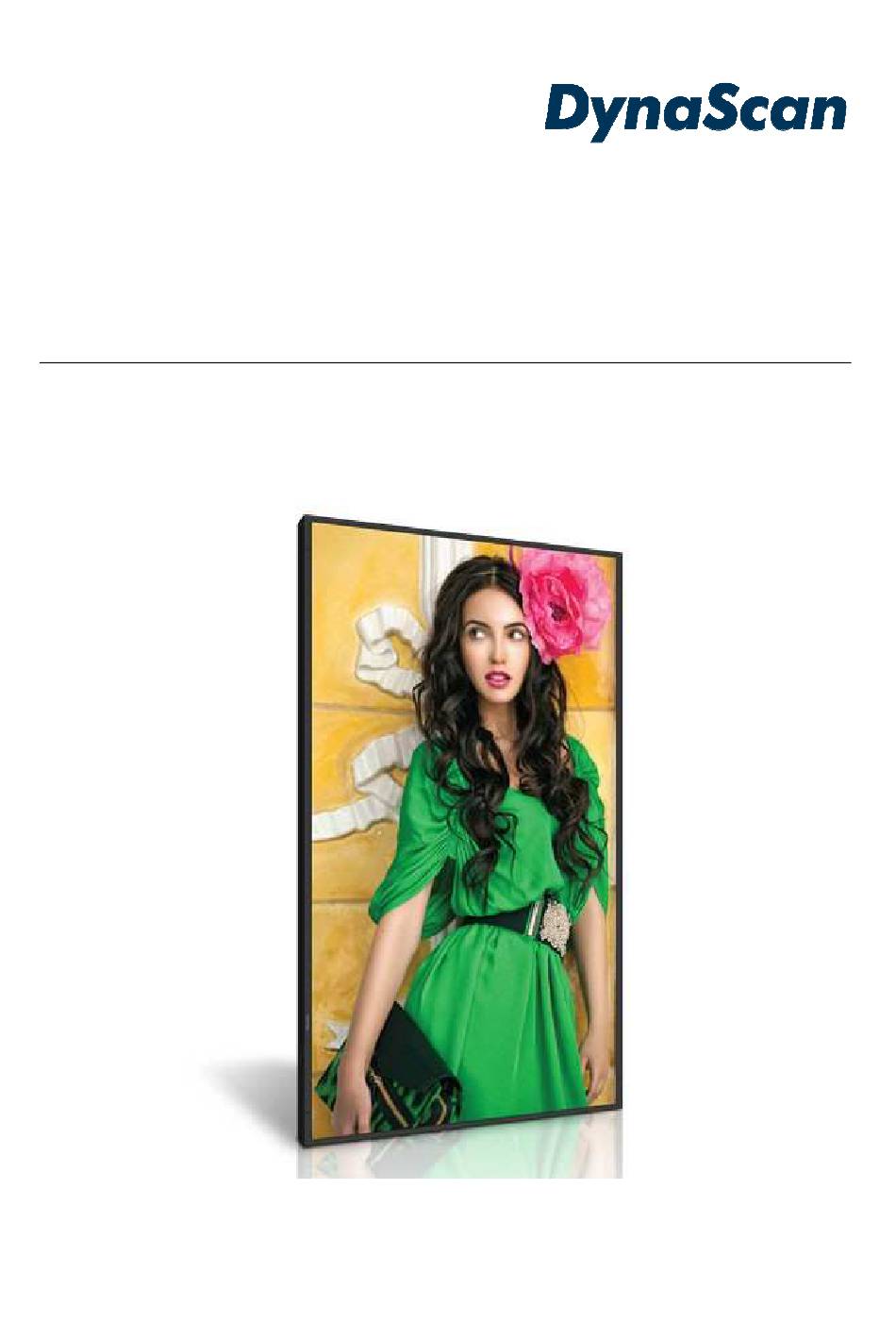

- Page 1 User Manual DS851LR4-1 Version 2.03 The use of diagrams and illustrations in the manual are for reference only. The actual product may be different. Product design and specifications are subject to change without notice...
-
Page 2: Table Of Contents
Powering On/Off the Display ......................13 Using the Remote Control ......................14 Using the built-in keypad ......................16 Navigating the On Screen Display (OSD) Menu ................17 Specifications...........................22 Input Mode............................23 Pin Assignments ..........................24 RS-232 Output ..........................24 RS-232 Input..........................24 Troubleshooting ..........................25 About DSM365 ..........................26 DS851LR4-1 User Manual... -
Page 3: Material Contents Declaration
SJ/T-11363-2006 and EU 2005/618/EC. Recycling and Energy Information DynaScan is firmly committed to its environmental protection efforts and we believe that reducing our products’ impact on the environment is of the utmost importance. We are dedicated to meet the latest environmental protection regulations. -
Page 4: Declaration Of Conformity
( Device certification standard: EN 300 328 / EN 301 489-1/-17 / EN 55032 / EN 55024 / EN 60950-22 / EN 62311 ) - Frequency bands and Powers a. WIFI 2.4G-2412~2462MHz. b. Maximum radio-frequency power transmitted in the 2.4GHz is 50mW. DS851LR4-1 User Manual... -
Page 5: Safety Precautions
In order to avoid burn-in, avoid prolonged display of static or fixed images on the screen. Power supply cord must not be attached to the building surface, nor run through walls, ceilings, floors and similar openings in the building structure. DS851LR4-1 User Manual... -
Page 6: Important Safety Information
Clean the LCD backside at least once a month for dust and other particles. • Unplug the LCD immediately and contact a DynaScan certified service professional as soon as possible when any of the following situations occurs: Damaged power cord or power plug. -
Page 7: Getting Started
Confirm that the accessories below are shipped along with the display. If any item is missing, please contact your dealer. The color and shape of the accessories may vary with the products. DS851LR4-1 Professional LCD. Power cable x1 pc. •... -
Page 8: Installation
The LCD must be properly installed using a wall mount. Incorrect installation may cause injury or damage the equipment. Product warranty does not cover the damage caused by improper installation and DynaScan shall not be held responsible in such incident. Refer to the mount manufacturer’s instructions for proper installation. - Page 9 Leave clearance around the outer edge of the LCD (or video wall matrix) from other objects to • ensure proper ventilation. For installations with screens inset into the wall, refer to section: Enclosures for cooling and • ventilation considerations. DS851LR4-1 User Manual...
- Page 10 Inspect the fasteners regularly for signs of loosening or deformation. Please perform • appropriate corrective measures when a problem is identified. Neglecting the problem may worsen the situation. Increase the inspection frequency on areas where previous maintenance had occurred to ensure • the problems do not occur again. DS851LR4-1 User Manual...
-
Page 11: Wall Mounting
A wall mount is not included. Please purchase a VESA Standard wall mount to secure the LCD. • DynaScan is not responsible for damages caused by using non-standard wall mounts. Verify that the mounting location can support the weight of the LCD before installation. -
Page 12: Connecting An External Video Source
DP-IN (or HDMI 1-IN, HDMI 2-IN) on the back of the display shown the in the diagram below. Connect the other end of the DP cable (HDMI cable) to the DP output (or HDMI output) of the video source. Refer to your video device’s manual for additional information. DS851LR4-1 User Manual... -
Page 13: Input / Output Terminals
Thermal: Extension Connector for optional Extension thermal kit (ETK202). Extension Connector: Extension Connector for optional IR Extension sensor kit (ESK302). RS-232 (IN): RS232C network input connection for remote control from PC. RS-232 (OUT): RS232C control function for the daisy chain application. DS851LR4-1 User Manual... -
Page 14: Operating Instructions
Powering On/Off the Display To turn on/off the display, press the power switch on the back of the display as shown in the diagram below. NOTE: The remote control only works when the power switch is ON. DS851LR4-1 User Manual... -
Page 15: Using The Remote Control
Connect the ESK302 cable to the mini USB port on the bottom of the display, aim the remote at the IR receiver as shown below. Meanwhile, the IR receiver on the display will be disabled. NOTE: Ambient light may affect the performance of the remote control. Avoid fluorescent or neon lights in the vicinity. DS851LR4-1 User Manual... - Page 16 Move the cursor up or change the setting of selected item. LEFT Exit the current selection. RIGHT Select the highlighted item. DOWN Move the cursor down or change the setting of selected item. Enter (for DSM365 only) BACK Return to the last page. (for DSM365 only) DS851LR4-1 User Manual...
-
Page 17: Using The Built-In Keypad
OSD On / Off, Power On / Off. Move the cursor up or change the setting of selected item. DOWN Move the cursor down or change the setting of selected item. LEFT Exit the current selection. RIGHT Select the highlighted item. DS851LR4-1 User Manual... -
Page 18: Navigating The On Screen Display (Osd) Menu
Set the Main input to display. Failover 1 Set the Failover 1 input to display. Input Source Failover 2 HDMI 2 Set the Failover 2 input to display. Failover 3 DSM365 Set the Failover 3 input to display. 2. Picture DS851LR4-1 User Manual... - Page 19 Set the day of week. (Monday to Sunday) Time Daylight Saving Turn on / off DST setting. Power Control Automatic power on / off schedule function. Timer Power On Time 08:00 Set turn-on time. Power Off Time 18:00 Set turn-off time. DS851LR4-1 User Manual...
- Page 20 High Level Time 08:00 Set high level time. Low Level Time 18:00 Set low level time. Adjusts the contrast. High is the highest Local Dimming Medium contrast. Off is the lowest contrast. (Off, Low, Medium and High) DS851LR4-1 User Manual...
- Page 21 Enable/disable the remote control for Menu. Note: When disabled, the remote control function can be enabled again from IR Control the control panel on the display or through the DynaScan “Display Manager” application. Set volume. Volume Range 100 – 0.
- Page 22 The hours accumulated during the display Running Time executing. Some functions may not be available for all models. *Adjusted value: Each R/G/B value for this product has been individually adjusted during production to a preset color temperature of 6500K. DS851LR4-1 User Manual...
-
Page 23: Specifications
IN *1, OUT *1 Audio OUT *1 I/O Ports USB port IN *1, Upgrade *1 RJ-45 IN *1 SD card IN *1 Mini USB IN *1 (ESK only) Fuse 12.5A Design and specifications are subject to change without notice. DS851LR4-1 User Manual... -
Page 24: Input Mode
1280 60 Hz 1280 1024 60 Hz 1366 60 Hz 1440 60 Hz 1600 1200 60 Hz 1920 1080 60 Hz 1920 1200 60 Hz 2560 1440 60 Hz 2560 1600 60 Hz 3840 2160 60 Hz DS851LR4-1 User Manual... -
Page 25: Pin Assignments
PIN No. NAME Connected to 7&8 Connected to 6 Connected to 4 Connected to 1&8 Connected to 1&7 RS-232 Input PIN No. NAME Connected to 7&8 Connected to 6 Connected to 4 Connected to 1&8 Connected to 1&7 DS851LR4-1 User Manual... -
Page 26: Troubleshooting
Cannot control the display Check whether the RS-232 cable is connected properly. remotely via RS-232. If you are still having trouble with your DynaScan DS² Professional LCD, contact your dealer or DynaScan directly for more assistance. DS851LR4-1 User Manual... -
Page 27: About Dsm365
How to Switch to DSM365 Press the MENU button on either the rear panel control or remote control to show the OSD. • Use the navigation arrows to select and adjust the Input Source. • [Input Source → Main → DSM365] DS851LR4-1 User Manual... - Page 28 ITEM DESCRIPTION APPS Show the Installed APPS. SETTINGS Enter the setting menu. DS851LR4-1 User Manual...
- Page 29 Copyright © DynaScan Technology, Inc. All Rights Reserved. DS851LR4-1 User Manual...
