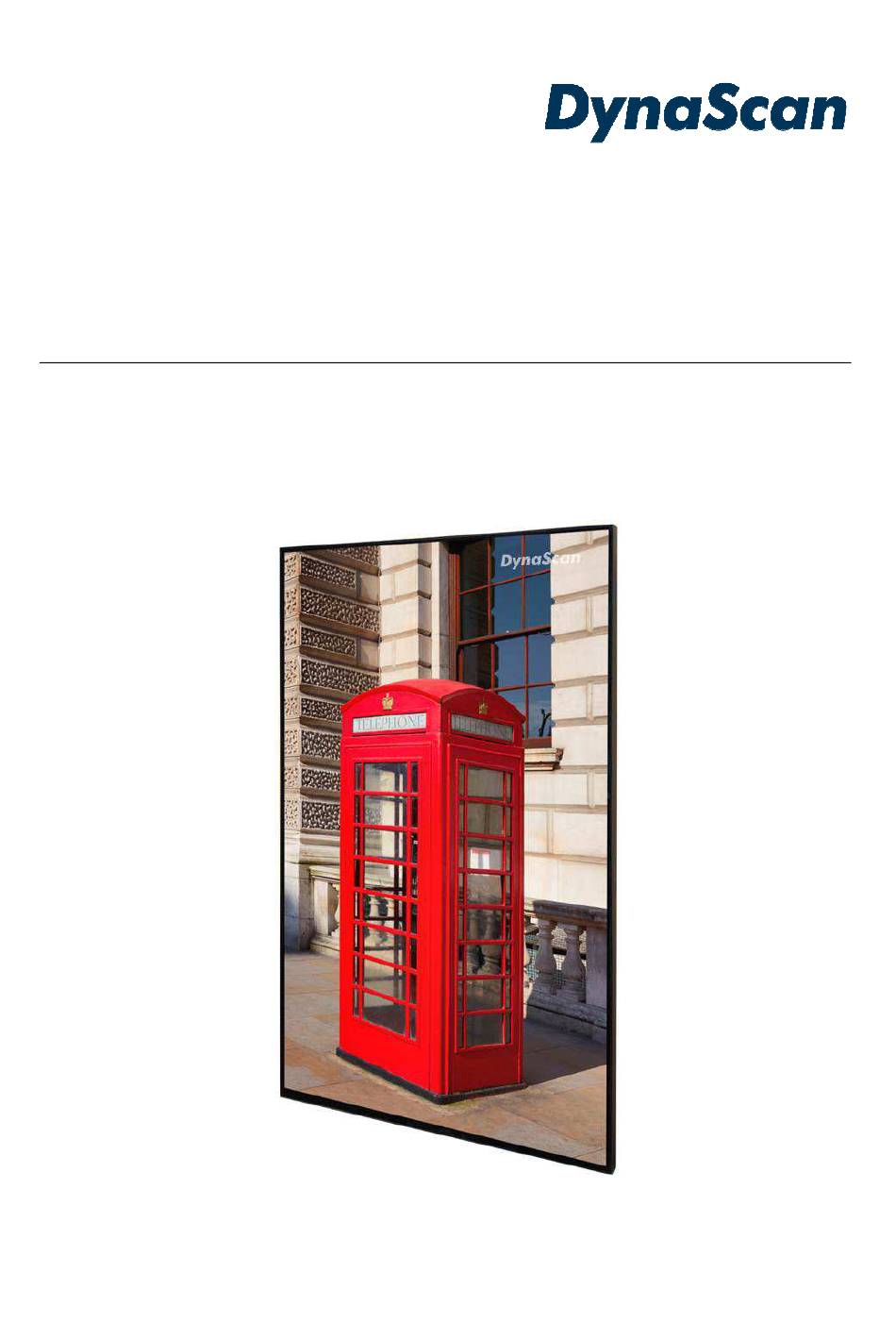

- Page 1 User Manual DS752LR4 Version 2.06 The use of diagrams and illustrations in the manual are for reference only. The actual product may be different. Product design and specifications are subject to change without notice...
-
Page 2: Table Of Contents
Powering On/Off the Display ......................13 Using the Remote Control ......................14 Using the Rear Panel Controls .....................16 Navigating the On Screen Display (OSD) Menu ................17 Specifications...........................21 Input Mode............................22 Pin Assignments ..........................23 RS-232 Output ..........................23 RS-232 Input..........................23 Troubleshooting ..........................24 About DSM365 ..........................25 DS752LR4 User Manual 1... -
Page 3: Material Contents Declaration
SJ/T-11363-2006 and EU 2005/618/EC. Recycling and Energy Information DynaScan is firmly committed to its environmental protection efforts and we believe that reducing our products’ impact on the environment is of the utmost importance. We are dedicated to meet the latest environmental protection regulations. -
Page 4: Declaration Of Conformity
( Device certification standard: EN 300 328 / EN 301 489-1/-17 / EN 55032 / EN 55024 / EN 60950-22 / EN 62311 ) - Frequency bands and Powers a. WIFI 2.4G-2412~2462MHz. b. Maximum radio-frequency power transmitted in the 2.4GHz is 50mW. DS752LR4 User Manual 3... -
Page 5: Safety Precautions
In order to avoid burn-in, avoid prolonged display of static or fixed images on the screen. Power supply cord must not be attached to the building surface, nor run through walls, ceilings, floors and similar openings in the building structure. DS752LR4 User Manual 4... -
Page 6: Important Safety Information
Clean the LCD backside at least once a month for dust and other particles. • Unplug the LCD immediately and contact a DynaScan certified service professional as soon as possible when any of the following situations occurs: Damaged power cord or power plug. -
Page 7: Getting Started
Do not touch the leaked substance from the batteries in case of a battery leakage. Doing so • may hurt human skin. Note: If the remote control is not going to be used for a long time, we recommend removing the batteries from the remote control. DS752LR4 User Manual 6... -
Page 8: Installation
The LCD must be properly installed using a wall mount. Incorrect installation may cause injury or damage the equipment. Product warranty does not cover the damage caused by improper installation and DynaScan shall not be held responsible in such incident. Refer to the mount manufacturer’s instructions for proper installation. - Page 9 <Front> Portrait mode: Rotate the set clockwise 90° (mandatory) The orientation sticker can be found on the rear of display, which is for distinguishing the direction • of installation. DS752LR4 User Manual 8...
- Page 10 • appropriate corrective measures when a problem is identified. Neglecting the problem may worsen the situation. Increase the inspection frequency on areas where previous maintenance had occurred to ensure • the problems do not occur again. DS752LR4 User Manual 9...
-
Page 11: Wall Mounting
A wall mount is not included. Please purchase a VESA Standard wall mount to secure the LCD. • DynaScan is not responsible for damages caused by using non-standard wall mounts. Verify that the mounting location can support the weight of the LCD before installation. -
Page 12: Connecting An External Video Source
DP-IN (or HDMI 1-IN, HDMI 2-IN) on the back of the display shown the in the diagram below. Connect the other end of the DP cable (HDMI cable) to the DP output (or HDMI output) of the video source. Refer to your video device’s manual for additional information. DS752LR4 User Manual 11... -
Page 13: Input / Output Terminals
Thermal: Extension Connector for optional Extension thermal kit (ETK202). Extension Connector: Extension Connector for optional IR Extension sensor kit (ESK302). RS-232 (IN): RS232C network input connection for remote control from PC. RS-232 (OUT): RS232C control function for the daisy chain application. DS752LR4 User Manual 12... -
Page 14: Operating Instructions
Powering On/Off the Display To turn on/off the display, press the power switch on the back of the display as shown in the diagram below. NOTE: The remote control only works when the power switch is ON. DS752LR4 User Manual 13... -
Page 15: Using The Remote Control
When using the remote control, aim the remote at the IR receiver on the display. The IR receiver • on the DS752LR4 model is at the front of the display with a receiving angle of 30° from the left and right. The IR receiver configurations of the model are shown in the figure below. - Page 16 Move the cursor up or change the setting of selected item. LEFT Exit the current selection. RIGHT Select the highlighted item. DOWN Move the cursor down or change the setting of selected item. Enter (for DSM365 only) BACK Return to the last page. (for DSM365 only) DS752LR4 User Manual 15...
-
Page 17: Using The Rear Panel Controls
OSD On / Off, Power On / Off. Move the cursor up or change the setting of selected item. DOWN Move the cursor down or change the setting of selected item. LEFT Exit the current selection. RIGHT Select the highlighted item. DS752LR4 User Manual 16... -
Page 18: Navigating The On Screen Display (Osd) Menu
Adjust the contrast level. Range 0 – 100. Adjusts the Gamma value. (Native, 2.2, 2.4 Gamma Native and sGamma) Selects the black level to adjust the screen Black Level RGB Full gray scale. "Limited" for video source uses DS752LR4 User Manual 17... - Page 19 When ambient light is bright, the screen will adjust to the HIGH LEVEL brightness value set; when ambient light is dark, the screen will adjust to the LOW LEVEL brightness value set. When the Timer mode is set, the DS752LR4 User Manual 18...
- Page 20 Memory: Display will back to the last state when the power back after an outage. Select to upgrade the firmware version; the USBUpdate corresponding I/O position for USB port, please refer to p.12 - K. DS752LR4 User Manual 19...
- Page 21 The hours accumulated during the display Running Time executing. Some functions may not be available for all models. *Adjusted value: Each R/G/B value for this product has been individually adjusted during production to a preset color temperature of 6500K. DS752LR4 User Manual 20...
-
Page 22: Specifications
OUT *1 I/O Ports USB port IN *1, Upgrade *1 RJ-45 IN *1 SD card IN *1 Extension Connector IN *1 (ESK only) (Mini USB) Fuse 12.5A Design and specifications are subject to change without notice. DS752LR4 User Manual 21... -
Page 23: Input Mode
60 Hz 1280 1024 60 Hz 1366 60 Hz 1440 60 Hz 1600 1200 60 Hz 1920 1080 60 Hz 1920 1200 60 Hz 2560 1440 60 Hz 2560 1600 60 Hz 3840 2160 60 Hz DS752LR4 User Manual 22... -
Page 24: Pin Assignments
NAME Connected to 7&8 Connected to 6 Connected to 4 Connected to 1&8 Connected to 1&7 RS-232 Input PIN No. NAME Connected to 7&8 Connected to 6 Connected to 4 Connected to 1&8 Connected to 1&7 DS752LR4 User Manual 23... -
Page 25: Troubleshooting
(refer to section “Pin Assignments”, p.23). To ensure that RS-232 port is not in use by other software. If you are still having trouble with your DynaScan DS² Professional LCD, contact your dealer or DynaScan directly for more assistance. DS752LR4 User Manual 24... -
Page 26: About Dsm365
Press the MENU button on either the rear panel control or remote control to show the OSD. • Use the navigation arrows to select and adjust the Input Source. • [Input Source → Main → DSM365] ITEM DESCRIPTION APPS Show the Installed APPS. SETTINGS Enter the setting menu. DS752LR4 User Manual 25... - Page 27 Copyright © DynaScan Technology, Inc. All Rights Reserved. DS752LR4 User Manual 26...
