User Manual
DI100ST2
Version 2.06
The use of diagrams and illustrations in the manual are for reference only. The actual product may be different.
Product design and specifications are subject to change without notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DI100ST2-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dynascan DI100ST2-1

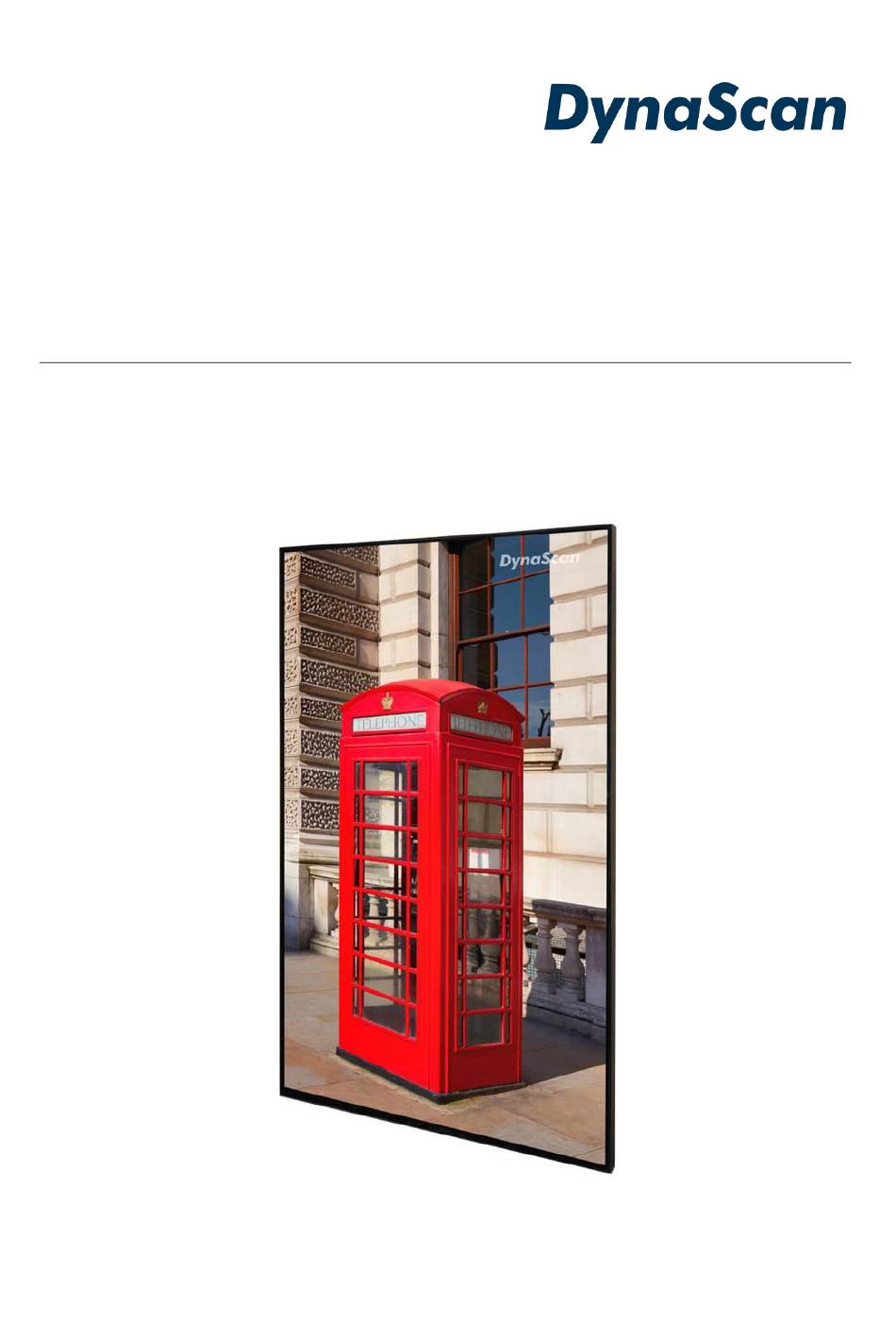

  • Page 1 User Manual DI100ST2 Version 2.06 The use of diagrams and illustrations in the manual are for reference only. The actual product may be different. Product design and specifications are subject to change without notice...
  • Page 2: Table Of Contents

    Contents Material Contents Declaration ........................ 2 Recycling and Energy Information ......................2 Declaration of Conformity ........................3 Safety Precautions ..........................4 Important Safety Information ........................5 Getting Started ............................6 Contents ............................. 6 Installing and Replacing Remote Control Batteries ................6 Installation...............................
  • Page 3: Material Contents Declaration

    SJ/T-11363-2006 and EU 2005/618/EC. Recycling and Energy Information DynaScan is firmly committed to its environmental protection efforts and we believe that reducing our products’ impact on the environment is of the utmost importance. We are dedicated to meet the latest environmental protection regulations.
  • Page 4: Declaration Of Conformity

    End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Manufacturer Name DynaScan Technology Corp. Manufacturer Address 7F, 66 Huaya 1st Road, Guishan, Taoyuan 33383,Taiwan This device complies with Directive 2014/53/EU issued by the Commission of the European Community.
  • Page 5: Safety Precautions

    Safety Precautions CAUTION Do not install near flammable material or any heat sources. Do not defeat the safety purpose of the grounding-type plug. Do not disassemble the display to avoid electrical shock or burn. Normal operating condition considers installation at an altitude below 2000m; some abnormalities may be experienced when installed at an altitude above 2000m.
  • Page 6: Important Safety Information

    Handle the LCD with care. Save the packaging materials for transport later.  Clean the LCD backside at least once a month for dust and other particles. Unplug the LCD immediately and contact a DynaScan certified service professional as soon as possible when any of the following situations occurs: ...
  • Page 7: Getting Started

    Getting Started Contents Confirm that the accessories below are shipped along with the display. If any item is missing, please contact your dealer. The color and shape of the accessories may vary with the products.   DI100ST2 Professional LCD. Power cable x1 pc.
  • Page 8: Installation

    The LCD must be properly installed using a wall mount. Incorrect installation may cause injury or damage the equipment. Product warranty does not cover the damage caused by improper installation and DynaScan shall not be held responsible in such incident. Refer to the mount manufacturer’s instructions for proper installation.
  • Page 9 Orientation  When used in the portrait orientation, the LCD should be rotated clockwise when looking at the front of the display such that the left edge becomes the top edge. <Front> Portrait mode: Rotate the set clockwise 90° (mandatory) <Rear>...
  • Page 10 Installation Location  The wall and mount must have enough strength to support the LCD and its accessories.  Do not install in a location with strong vibrations or dusty.  Do not install near the building’s main electric panel. ...
  • Page 11: Wall Mounting

     A wall mount is not included. Please purchase a VESA Standard wall mount to secure the LCD. DynaScan is not responsible for damages caused by using non-standard wall mounts.  Verify that the mounting location can support the weight of the LCD before installation.
  • Page 12: Connecting An External Video Source

    Connecting an External Video Source Turn OFF the power of both LCD and external video device. Using the DP cable (or HDMI cable) provided, insert one end into the DP-IN (or HDMI 1-IN, HDMI 2-IN) on the back of the display shown the in the diagram below.
  • Page 13: Input / Output Terminals

    Input / Output Terminals AC (IN): Connect the supplied power cord to the wall outlet. Power Switch: Press to switch the main power on/off. USB port: Support for USB flash drive storage, mouse and keyboard. SD card: Support for up to 32GB, FAT32/NTFS format is supported. RJ-45 (IN): RJ45 network input connection.
  • Page 14: Powering On/Off The Display

    Operating Instructions Powering On/Off the Display To turn on/off the display, press the power switch on the back of the display as shown in the diagram below. NOTE: The remote control only works when the power switch is ON. DI100ST2 User Manual...
  • Page 15: Using The Remote Control

    Using the Remote Control  When using the remote control, aim the remote at the IR receiver on the display. The IR receiver on the DI100ST2 model is at the front of the display with a receiving angle of 30° from the left and right.
  • Page 16         *Color and shape may vary by model. ITEM DESCRIPTION  POWER Power On / Off  MENU OSD On / Off  Move the cursor up or change the setting of selected item. ...
  • Page 17: Using The Built-In Keypad

    Using the built-in keypad ITEM DESCRIPTION MENU OSD On / Off, Power On / Off. Move the cursor up or change the setting of selected item. DOWN Move the cursor down or change the setting of selected item. LEFT Exit the current selection. RIGHT Select the highlighted item.
  • Page 18: Navigating The On Screen Display (Osd) Menu

    Navigating the On Screen Display (OSD) Menu Press the MENU button on the built-in keypad or remote control to show the OSD. Use the navigation arrows to select and adjust the menu items. *The change of each setting can only enable when you press “LEFT” (refer to p.15) to back to the last menu layer.
  • Page 19 ITEM 1 ITEM 2 DEFAULT DESCRIPTION Color Select the color temperature. (User2, User1, Temperature D93, D65 and D55). Adjust the red light level. Range 0 – 100. Note: The feature is only supported on User2 mode. Adjust the green light level. Range 0 – 100. Green Note: The feature is only supported on User2 mode.
  • Page 20 4. Backlight ITEM 1 ITEM 2 DEFAULT DESCRIPTION Enable/ Disable auto brightness adjustment. Note: If the AUTO BRIGHTNESS is off, the screen brightness will remain at HIGH LEVEL brightness value. If the AUTO BRIGHTNESS is on (Auto), the brightness of display will be adjusted according to the ambient light.
  • Page 21 Enable/disable the remote control for Menu. Note: When disabled, the remote control function can be enabled again from IR Control the control panel on the display or through the DynaScan “Display Manager” application. Set volume. Volume Range 100 – 0.
  • Page 22 6. Information ITEM 1 ITEM 2 DEFAULT DESCRIPTION Resolution Input resolution. The display’s model. Model DI100ST2 The display’s serial number. Serial Number Hardware The H/W version. Software The F/W version. Amb. Temp. LCD inner (backlight unit) temperature (Back) monitoring. LCD outer (ambience) temperature Amb.
  • Page 23: Specifications

    Specifications MODEL DI100ST2 LCD Panel Size 99.5 inches Native Resolution 3840 x 2160 Brightness 700 cd/m² (Typ.) Contrast Ratio 3,000:1 PANEL Response Time 6.5 ms (Typ.) Viewing Angle 178°/ 178° Life Time 50,000 hrs (Typ.) Panel Surface AGLR, 3H Power Supply Internal Rated Voltage 100 - 240V, 50 / 60Hz...
  • Page 24: Input Mode

    Input Mode Active Resolution Refresh Rate H Pixels V Lines 60 Hz 60 Hz 1024 60 Hz 1280 60 Hz 1280 60 Hz 1280 60 Hz 1280 1024 60 Hz 1366 60 Hz 1440 60 Hz 1600 1200 60 Hz 1920 1080 60 Hz...
  • Page 25: Pin Assignments

    Pin Assignments RS-232 Output PIN No. NAME Connected to 7&8 Connected to 6 Connected to 4 Connected to 1&8 Connected to 1&7 RS-232 Input PIN No. NAME Connected to 7&8 Connected to 6 Connected to 4 Connected to 1&8 Connected to 1&7 DI100ST2 User Manual...
  • Page 26: Troubleshooting

    Ensure the 'Remote Control' setting is RS232. remotely via RS-232.  Check whether serial cable is straight through type. If you are still having trouble with your DynaScan DS² Professional LCD, contact your dealer or DynaScan directly for more assistance. DI100ST2 User Manual...
  • Page 27: About Dsm365

    About DSM365 DSM365 is an internal operating system as Android, which can install the applications via USB flash drive storage, SD card or Internet. How to Switch to DSM365  Press the MENU button on either the rear panel control or remote control to show the OSD. ...
  • Page 28 ITEM DESCRIPTION  APPS Show the Installed APPS.  SETTINGS Enter the setting menu. DI100ST2 User Manual...
  • Page 29 Copyright © DynaScan Technology, Inc. All Rights Reserved. DI100ST2 User Manual...
