https://wiki.teltonika-networks.com/view/QSG_RUTM10
QSG RUTM10
Main Page
>
RUTM Routers

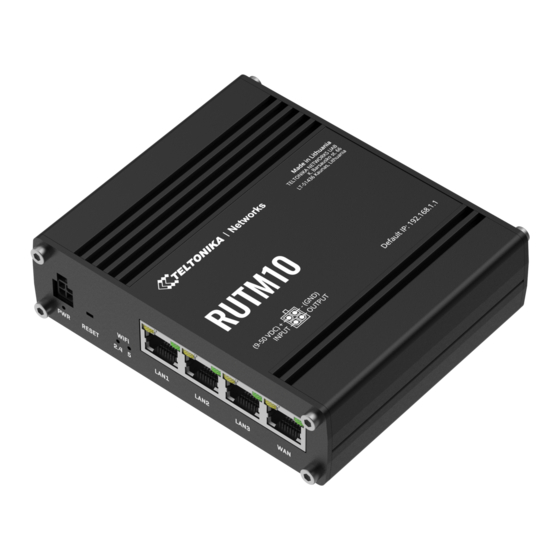

This Wiki page contains the online version of the Quick Start Guide (QSG) for the RUTM10
Router. Here, you will find an overview of the various physical interfaces of a RUTM10, hardware
installation instructions, first login information, device specifications, conformity, and general safety
information. It is highly recommended that you acquaint yourself with the Quick Start Guide before
using the device. You can also locate a printed short version of the Quick Start Guide in your
device's packaging box.
Contents
1 Safety information
-
1.1 General
2 Compliance
-
2.1 CE Declaration of Conformity
-
2.2 Markings
-
2.3 RF exposure
3 Product Safety and Use
-
3.1 Operating conditions
-
3.2 Faulty and damaged products
-
3.3 Electrical safety
-
3.4 Product handling
4 Quick Start Guide
-
4.1 Front view
-
4.2 Back view
-
4.3 Connectors
4.3.1 Power Socket Pinout
-
4.4 Hardware installation
-
4.5 Configure your computer LAN (Windows)
-
4.6 Login to device
Safety information
Before starting operating the device, please review recommendations and precautions to minimize
the possibility of accidents. Safety precautions presented are supplementary and subject to the local
safety regulations. When various operations are executed on the device, the user must fully follow
the safety instructions and recommendations provided with the device.
General
RF Technologies Wi-Fi
Max RF power
20 dBm@WiFi 2.4G, 23 dBm@WiFi 5G
Power adapter
Input: 0.6A@100-240 VAC, Output: 12 VDC, 1.5A, 4-pin plug
> QSG RUTM10
>
RUTM10
Radio specifications
Bundled accessories specifications*
www.ime.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RUTM10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Teltonika RUTM10

  • Page 1 > RUTM10 This Wiki page contains the online version of the Quick Start Guide (QSG) for the RUTM10 Router. Here, you will find an overview of the various physical interfaces of a RUTM10, hardware installation instructions, first login information, device specifications, conformity, and general safety information.
  • Page 2: Ce Declaration Of Conformity

    **Higher gain antenna can be connected to compensate for cable attenuation when a cable is used. The user is responsible for the compliance with the legal regulations. RUTM10 ethernet router must be used in compliance with any and all applicable national and international laws and with any special restrictions regulating the utilization of the communication module in prescribed applications and environments.
  • Page 3 [IT] Italian conforme ai requisiti essenziali e ad altre disposizioni pertinenti della Direttive 2014/53/EU, 2011/65/EU, 2009/125/EC. TELTONIKA NETWORKS ar šo paziņo, ka šis RUTM10 atbilst pamatprasībām un [LV] Latvian citiem Direktīvas 2014/53/EU, 2011/65/EU, 2009/125/EC noteikumiem. Šiuo dokumentu UAB TELTONIKA NETWORKS deklaruoja, kad šis RUTM10...
  • Page 4: Operating Conditions

    RF exposure exceeding the applicable limits. External antennas used with RUTM10 must be installed to provide a distance of at least 20 cm from any people and must not be co-located or operated in conjunction with any other antenna or transmitter.
  • Page 5: Faulty And Damaged Products

    www.ime.de Faulty and damaged products Do not attempt to disassemble the device or its accessories. Only qualified personnel must service or repair the device or its accessories. If your device or its accessories have been submerged in water punctured or subjected to a severe fall, do not use until they have been checked at an authorized service center.
  • Page 6: Front View

    www.ime.de Ensure that the voltage and the rated current of the power source match the device’s requirements. Do not connect the device to an inappropriate power source. During a thunderstorm, no operations should be carried out on the device and cables. The unit must be powered off where blasting is in progress and explosive atmospheres are present or near medical life support equipment.
  • Page 7 www.ime.de Configure your computer LAN (Windows) 1. Ensure the Network connection is Enabled. Go to Start — Control Panel — Network and Internet — Network and Sharing Center. Click on the Change adapter settings in the left panel, then right-click on Network Adapter, and select Enable.
  • Page 8 www.ime.de 1. To enter the router's Web interface (WebUI), type http://192.168.1.1 into the URL field of your Internet browser. 2. When prompted for authentication enter the username admin and enter the password located on the device information label/engraving. 3. After logging in, you must set a new password for security reasons.
