ArmorAll VK609PFR 0901 Operator's Manual

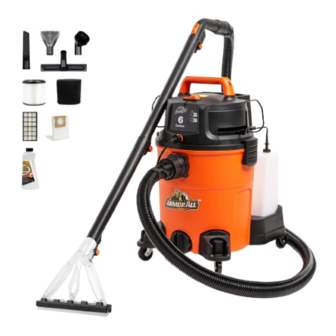

Wet/dry shampoo vacuum 6 gallon 23l
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
• Model No. • Référence de modèle • N° de modelo
Read and understand this manual before use. Keep this manual for future reference.
Lisez et comprenez ce manuel avant toute utilisation de l'appareil.
Lea y comprenda este manual antes de usar el producto.
Conserve este manual para futura referencia.
Distributed by/
Distribué par/Distribuido por:
Cleva North America
601 Regent Park Court
Greenville, SC 29607
1-866-384-8432
Aspirateur À Shampooing Sec Et Humide
Aspiradora para limpiar en seco/húmedo
Operator's Manual
Manuel d'utilisation
Manual del Usuario
6 Gallon 23L
VK609PFR 0901
FOR YOUR SAFETY
POUR GARANTIR VOTRE SÉCURITÉ
POR SU SEGURIDAD
©2023 Energizer Auto. Armor All is a trademark of Energizer Auto and is
used under license by Cleva North America, Inc.
©2023 Energizer Auto. Armor All est une marque déposée de Energizer
Auto qui est utilisée sous licence par Cleva North America, Inc.
©2023 Energizer Auto. Armor All es marca registrada de Energizer Auto y
se utiliza bajo licencia de Cleva North America, Inc.
Wet/Dry Shampoo Vacuum
ieurement.
FR
EN
P. 02
FR
P. 27
ES
P. 55

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VK609PFR 0901 and is the answer not in the manual?

Questions and answers

Related Manuals for ArmorAll VK609PFR 0901

Summary of Contents for ArmorAll VK609PFR 0901

  • Page 1 P. 27 P. 55 6 Gallon 23L • Model No. • Référence de modèle • N° de modelo VK609PFR 0901 FOR YOUR SAFETY Read and understand this manual before use. Keep this manual for future reference. POUR GARANTIR VOTRE SÉCURITÉ...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SECTION Page Warranty ............................... Important Safety Instructions ....................... Double Insulation Instructions ......................Extension Cords ........................... Symbols ............................... Unpacking & Checking Carton Contents ..................... General Assembly Instructions ......................Dry Vacuum Operation ........................Liquid Vacuum Operation ........................Carpet/Upholstery Cleaning Operation ....................Maintenance ............................

  • Page 3: Warranty

    WARRANTY We take pride in producing a high-quality, durable product. This vac carries a limited two (2) year warranty against defects in workmanship and materials from date of purchase under normal household use. Please keep your receipt as proof of purchase. This warranty gives you specific legal rights, and you may have other rights, which vary from state to state.
  • Page 4 • To reduce the risk of health hazards from vapors or dust, do not vacuum toxic materials. • Do not use or store near hazardous materials. • Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
  • Page 5 WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK - UNPLUG BEFORE CLEANING OR SERVICING. FCC COMPLIANCE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and •...

  • Page 6: Double Insulation Instructions

    DOUBLE INSULATION INSTRUCTIONS This Wet/Dry Vacuum is double insulated, eliminating the need for a separate grounding system. Use only identical replacements parts. Read the instructions for Servicing Double-Insulated Wet/Dry Vacuums before servicing. Use this vacuum as described in this manual. Observe the following warnings that appear on the motor housing of your vacuum.

  • Page 7: Extension Cords

    EXTENSION CORDS When using an extension cord with your Wet/Dry Shampoo Vacuum refer to the following table to determine the required A.W.G. wire size. Before using the cleaner make sure the power cord and extension cord are in good working condition. Make repairs or replacements before using the vacuum cleaner.

  • Page 8: Unpacking & Checking Carton Contents

    UNPACKING & CHECKING CARTON CONTENTS Remove all contents from the box. Remove the powerhead and take out any contents inside the collection tank. Check each item against the carton contents list. Carton Contents List: Description ..........Vacuum Assembly ........Handle ............. Washable Cartridge Filter ......
  • Page 9 Powerhead Power Cord Storage Exhaust Filter Door Cleaning Solution Tube Cleaning Solution Tube Inlet Cap of Cleaning Solution Tank Handle On/Off Switch Detergent Mode Button Hose Storage Rack Vacuum Mode Button Cleaning Solution Outlet Latch Vacuum Port Cleaning Solution Tank Collection Tank Accessory Storage Front Caster...
  • Page 10 ACCESSORIES A choice of accessories and attachments are supplied with this product. Refer to below descriptions for their functions. Illustration Description Function Handheld Shampoo For cleaning sofas, chairs, stairs, and car interiors. Nozzle Used without brush holder for cleaning carpets. Carpet Shampoo Used with brush holder for cleaning hard floors.

  • Page 11: General Assembly Instructions

    GENERAL ASSEMBLY INSTRUCTIONS A Phillips head screw driver is required. WARNING: DO NOT PLUG THE POWER CORD INTO A POWER OUTLET. MAKE SURE THE PLUG IS DISCONNECTED BEFORE ASSEMBLING THE WET/DRY SHAMPOO VACUUM. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN. ①...
  • Page 12 8. Your vacuum comes ready for dry vacuum cleaning. If the cartridge filter is not installed, refer to page 20 for installation instructions (Fig. 7 & 8). 9. Optional: For improved dust filtration, fit the dust collection bag flange onto the inlet port, taking care not to damage the bag (Fig.

  • Page 13: Dry Vacuum Operation

    DRY VACUUM OPERATION DRY VACUUMING WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION ENTITLED “IMPORTANT SAFETY INSTRUCTIONS”. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUST IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASED PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS.

  • Page 14: Liquid Vacuum Operation

    4. Optional: For improved dust filtration, fit the dust collection bag flange onto the inlet port, taking care not to damage the bag (Fig. 5). 5. Place the powerhead back on the collection tank and secure it in place using the latches (Fig. 6). OPERATING INSTRUCTIONS: DRY VACUUMING 6.
  • Page 15 LIQUID VACUUMING WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION ENTITLED “IMPORTANT SAFETY INSTRUCTIONS”. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUST IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASED PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS.

  • Page 16: Carpet/Upholstery Cleaning Operation

    CARPET/UPHOLSTERY CLEANING OPERATION ② ③ WARNING: DO NOT RUN THE VACUUM IN DETERGENT MODE WITHOUT SOLUTION IN THE CLEANING SOLUTION TANK. WARNING: USE ONLY MANUFACTURER RECOMMENDED CLEANING SOLUTION WITH THIS VACUUM CLEANER. WA R N I N G : D O N O T R E P L A C E F U R N I T U R E U N T I L T H E C A R P E T I S COMPLETELY DRY!
  • Page 17 CAUTION: BEFORE YOU USE THIS PRODUCT TO SHAMPOO CLEAN AN AREA, TEST YOUR WET/DRY SHAMPOO VACUUM AND THE CLEANING SOLUTION ON A SMALL HIDDEN AREA FOR COLORFASTNESS. IF THE COLOR IS AFFECTED, DO NOT USE. CAUTION: THE CLEANING SOLUTION CONTAINS A CHEMICAL SOLUTION. AVOID PROLONGED CONTACT AS SOME INDIVIDUALS MAY EXPERIENCE SKIN AND EYE IRRITATION.
  • Page 18 If there is dirt or debris accumulated in the handheld shampoo nozzle, press the release button and remove the cover from the nozzle for cleaning (Fig. 15). 10. Plug the power cord into a power outlet (Fig. 16). 11. Turn on the motor by flipping the switch to the “I” ON position and the machine is ready for use. Press the detergent mode button, indicated by the following symbol , on either the remote- control handle or the powerhead for cleaning solution application only.

  • Page 19: Maintenance

    MAINTENANCE EMPTYING THE COLLECTION TANK WARNING: ALWAYS DISCONNECT THE PLUG FROM THE POWER OUTLET BEFORE REMOVING THE POWERHEAD FROM COLLECTION TANK. 1. Verify that the power cord is disconnected from the outlet (Fig. 1). 2. Press down the orange latch on the cleaning solution delivery tube and unplug the delivery tube from the vacuum.

  • Page 20: Installing & Cleaning Cartridge Filter

    INSTALLING & CLEANING CARTRIDGE FILTER INSTALLING CARTRIDGE FILTER 1. Verify that the power cord is disconnected from the outlet (Fig. 1). 2. Remove the powerhead and place in an upside-down position. 3. Install the cartridge filter over the filter cage making sure the cage is completely covered (Fig. 2 & 3). 4.

  • Page 21: Installing & Cleaning Foam Wet Filter

    INSTALLING & CLEANING FOAM WET FILTER INSTALLING FOAM WET FILTER 1. Verify that the power cord is disconnected from the outlet (Fig. 1). 2. Remove the powerhead and place in an upside-down position. Follow instructions to remove the cartridge filter on page 20. 3.

  • Page 22: Cleaning & Replacing Exhaust Filter

    CLEANING & REPLACING EXHAUST FILTER 1. Verify that the power cord is disconnected from the outlet (Fig. 1). wards to the release. Pull the door out (Fig. 2). y tapping or brushing off dirt. For door into place (Fig. 4). CHANGING THE BATTERY ＋...

  • Page 23: Troubleshooting

    TROUBLESHOOTING WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, UNPLUG BEFORE TROUBLESHOOTING. PROBLEM POSSIBLE CAUSE SOLUTION Unplug and check the power cord. Faulty power cord, switch, or If damaged, have it repaired by a motor. professional or call customer service. Check the power supply, cord, No power supply.
  • Page 24 PROBLEM POSSIBLE CAUSE SOLUTION Detergent mode is not selected. Press the detergent mode button. Cleaning solution tank is empty. Refill the cleaning solution tank. Cleaning solution does Check fittings and connections. Incorrectly fitted tubes. not spray out. Ensure there are no kinks in tubes. Let the vacuum cool down to reach a The water pump inside the normal temperature, then re-start the...

  • Page 25: Exploded View

    EXPLODED VIEW...

  • Page 26: Parts List

    PARTS LIST Part Part Number Description Quantity 551746101 Handle Assembly 551657102 Hose Storage Rack Powerhead Assembly 551005103 Float 551437105 Filter Cage 551746103 Exhaust Filter Door 551121122 Exhaust Filter Assembly 551746104 Latch Assembly Collection Tank 551661104 Vacuum Port Assembly 551002110 Drain Cap Assembly 551617105 Vacuum Base 551661106...
