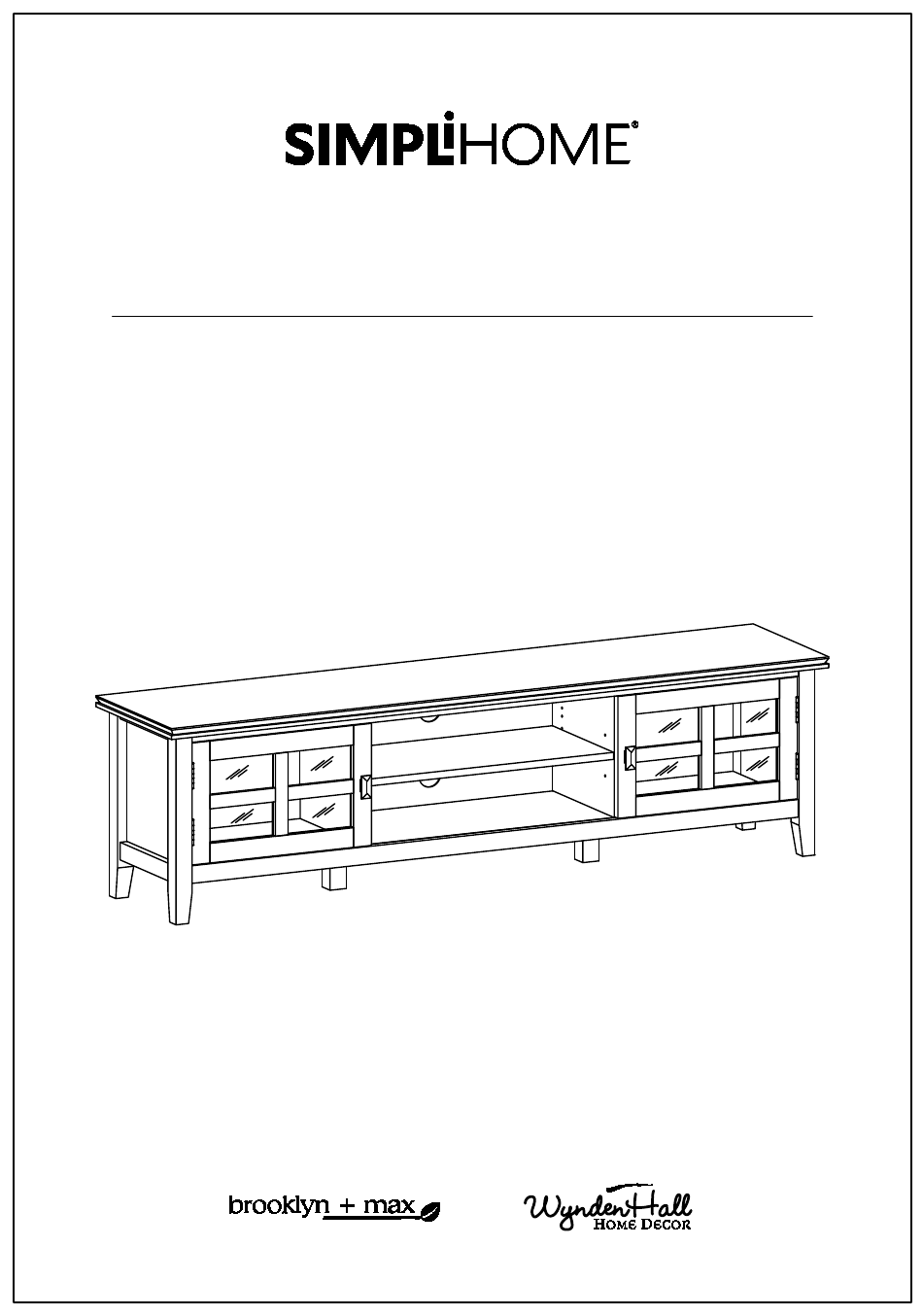

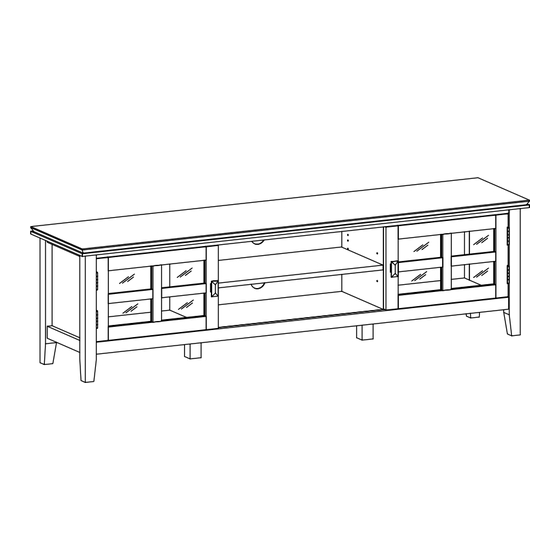

- Page 1 Artisan / Holden / Stratford 72 inch Low TV Media Stand Model # AXCARTLOW-72-RUS...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 130 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death.
-
Page 8: Maximum Load 25 Lbs
WARNING For use with televisions weighing 130 lbs or less. Use with heavier televisions may result in instability causing tip over resulting in death or serious injury. If a customer wants to use this unit as a TV stand, you must install the TV at position 4 inches from the front edge of console to prevent it from tipping over. - Page 9 Pre-Assembly Information Model # AXCARTLOW-72-RUS Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 RIGHT DIVIDER LEFT DIVIDER BOTTOM SHELF QTY 1 QTY 1 QTY 1 SHELF BACK PANEL DOOR QTY 1 QTY 1 QTY 2 BOTTOM SUPPORT LEG QTY 2...
- Page 10 Pre-Assembly Information Model # AXCARTLOW-72-RUS Hardware Description WASHER ALLEN KEY SCREW ALLEN KEY BOLT ALLEN KEY M6 X 30mm M6 X 30mm Ø16 / Ø6 X1mm QTY 18 QTY 6 QTY 1 QTY 6 PHILLIPS SCREW HANDLE PHILLIPS SCREW PHILLIPS SCREW ROUND HEAD M4 X 25 mm M3 X 12mm...
- Page 11 Components - Key Diagram Model # AXCARTLOW-72-RUS...
- Page 12 Assembly Model # AXCARTLOW-72-RUS Step 1 1. Use three Allen Key Screws 1 to attach each Divider DL , DR through guide holes from Bottom Shelf C to pre-drilled holes of Dividers DL , DR . 2. Use Allen Key 4 to tighten Screws. Do not over-tighten.
- Page 13 Assembly Model # AXCARTLOW-72-RUS Step 2 1. Insert one Dowel 11 into guide holes on each Side BL , BR . 2. Use rubber mallet to tap Dowels 11 into bottom of holes securely. 1/3 length of Dowels should be exposed. Step 3 1.
- Page 14 Assembly Model # AXCARTLOW-72-RUS Step 4 1. Align Bottom Support Legs H with pre-drilled holes on back of Bottom Shelf C . Use Phillips Screwdriver to tighten eight Phillips Screws 6 .
- Page 15 Assembly Model # AXCARTLOW-72-RUS Step 5...
- Page 16 Assembly Model # AXCARTLOW-72-RUS Step 6 Note: Warning Label 1. Attach the Back Panel G to back frame using Phillips Screws Round Head 5 through guide holes from Back Panels. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
- Page 17 Assembly Model # AXCARTLOW-72-RUS First Step Step 7 Last Step ( after adjust the door ) Note: Levelers on bottom of legs can be adjusted if floor is uneven.
- Page 18 Assembly Model # AXCARTLOW-72-RUS Step 8 1. Attach Magnet Plates 9 to top corner of Doors E using Phillips Screws 10 into pre-drilled holes on Doors E . 2. Attach Magnets 9 using Phillips Screws 10 into pre-drilled holes Dividers DL , DR . 3.
- Page 19 Assembly Model # AXCARTLOW-72-RUS Step 9 shelf support shelf level 1 anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 12 for Cabinet Shelf F in desired location. 2. Two Shelf Supports 12 may be used on back top of Cabinet Shelf F as a tipping restraint.
- Page 20 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 10 NOTE: The screwdriver is not included in the hardware pack.
- Page 21 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
