SIMPLIHOME WyndenHall brooklyn + max AXCART16-RUS Assembly Instructions Manual

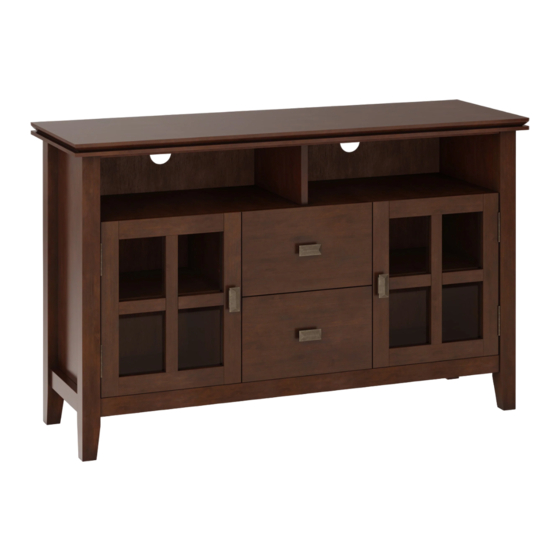

Artisan / holden / stratford tv media stand
Hide thumbs

Advertisement

Quick Links

Download this manual

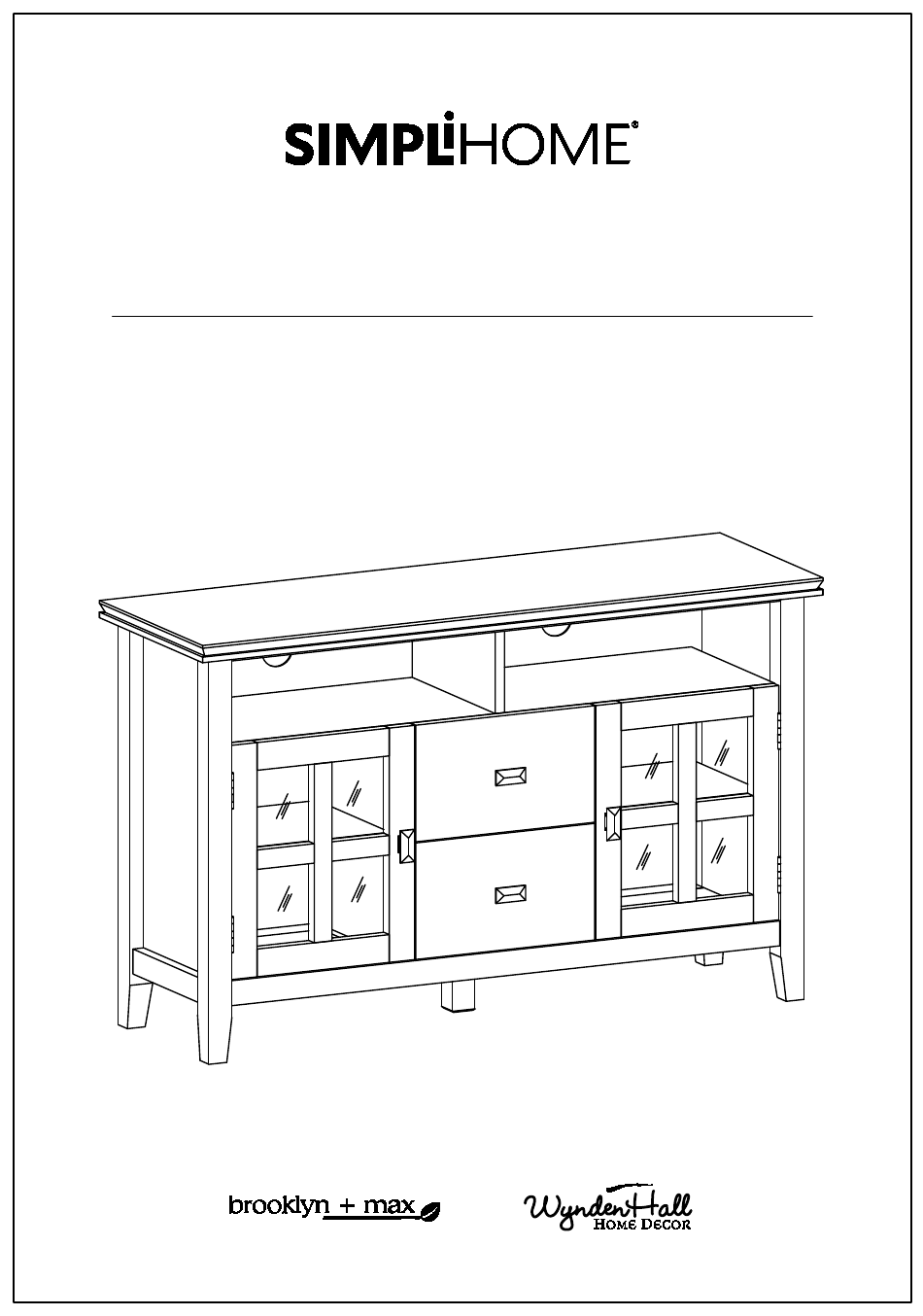

Artisan / Holden / Stratford
TV Media Stand
Model # AXCART16-RUS
TM
TM
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the WyndenHall brooklyn + max AXCART16-RUS and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME WyndenHall brooklyn + max AXCART16-RUS

Summary of Contents for SIMPLIHOME WyndenHall brooklyn + max AXCART16-RUS

  • Page 1 Artisan / Holden / Stratford TV Media Stand Model # AXCART16-RUS...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.

  • Page 7: Maximum Load 25 Lbs

    WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 220 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death.
  • Page 8 Pre-Assembly Information Model # AXCART16-RUS Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM FRAME MIDDLE SHELF DIVIDER QTY 1 QTY 1 QTY 1 LEFT DIVIDER RIGHT DIVIDER DOOR QTY 1 QTY 1 QTY 2...

  • Page 9: Drawer Bottom

    Pre-Assembly Information Model # AXCART16-RUS Part Description TOP BACK PANEL CENTER BACK PANEL BOTTOM SUPPORT LEG QTY 1 QTY 1 QTY 1 Warning Label LEFT BACK PANEL RIGHT BACK PANEL SHELF QTY 1 QTY 1 QTY 2 RIGHT DRAWER SIDE LEFT DRAWER SIDE DRAWER FRONT QTY 2...
  • Page 10 Pre-Assembly Information Model # AXCART16-RUS Hardware Description ALLEN KEY SCREW CAM LOCK PIN HANDLE ALLEN KEY M6 X 30mm CAM LOCK M4 X 30 mm QTY 1 QTY 26 QTY 26 SETS QTY 4 SET PHILLIPS SCREW PHILLIPS SCREW PHILLIPS SCREW MAGNET AND PLATE M3 X 15mm M3 X 12mm...
  • Page 11 Components - Key Diagram Model # AXCART16-RUS...
  • Page 12 Assembly Model # AXCART16-RUS Step 1 1. Attach four Cam Lock Pins 2 into pre-drilled holes on back of Drawer Front M . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2 1. Align Cam Lock Pins with guide holes and attach Drawer Sides NL , NR to Drawer Front M .
  • Page 13 Assembly Model # AXCART16-RUS Step 3 1. Slide Drawer Bottom P firmly into slots on Drawer Sides NL , NR and Drawer Front M . Step 4 2. Align Drawer Back O with Drawer Bottom P and press firmly into slot. 3.
  • Page 14 Assembly Model # AXCART16-RUS Step 5 1. Use Phillips screwdriver to attach Handle 4 to Drawer Front M . Repeat Step 1-5 for the second drawer.
  • Page 15 Assembly Model # AXCART16-RUS Step 6 1. Attach Cam Lock Pins 2 into pre-drilled holes on p arts BL , BR , D . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten.
  • Page 16 Assembly Model # AXCART16-RUS Step 7 1. Use thee Allen Key Screws 1 to attach part E through guide holes from part D to pre-drilled holes of part E . 2. Use Allen Key 3 to tighten Screws. Do not over-tighten.
  • Page 17 Assembly Model # AXCART16-RUS Step 8 1. Align Cam Lock Pin with guide holes and attach parts FL , FR to part D . 2. Insert three Cam Locks 2 into guide holes on each part FL , FR . 3.
  • Page 18 Assembly Model # AXCART16-RUS Step 9 1. Use six Allen Key Screws 1 to attach parts FL , FR through guide holes from part C to pre-drilled holes of parts FL , FR . 2. Use Allen Key 3 to tighten Screws. Do not over-tighten. 3.
  • Page 19 Assembly Model # AXCART16-RUS Step 10 1. Align Cam Lock Pin with guide holes and attach parts BL , BR to parts C , D . 2. Insert six Cam Locks 2 into guide holes on each part C , D . 3.
  • Page 20 Assembly Model # AXCART16-RUS Step 11 1. Use three Allen Key Screws 1 to attach each part BL , BR , E through guide holes from each part BL , BR , E to pre-drilled holes of Top A . 2.
  • Page 21 Assembly Model # AXCART16-RUS Step 12 Note: Warning Label 1. Attach the Back Panels I , J , KL , KR to back frame using Phillips Screws Round Head 9 through guide holes from Back Panels. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
  • Page 22 Assembly Model # AXCART16-RUS Step 13 First Step Last Step ( after adjust the door ) 1. Attach hinges on Doors G to Sides BL , BR using Phillips Screws 7 into pre-drill holes: - Using Phillips screwdriver to attach Screws 7 at middle hole of hinges for both top &...
  • Page 23 Assembly Model # AXCART16-RUS Step 14 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Magnet Plates 5 to bottom corner of Doors G using Phillips Screws 6 into pre-drilled holes on Doors G . 2. Attach Magnets 5 using Phillips Screws 6 into pre-drilled holes on Bottom Shelf C .
  • Page 24 Assembly Model # AXCART16-RUS Step 15 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 10 for each Cabinet Shelf L in desired location. 2. Two Shelf Supports 10 may be used on back top of each Cabinet Shelf L as a tipping restraint.
  • Page 25 Assembly Model # AXCART16-RUS Step 16 1. Insert assembled drawers into glides on assembled TV.
  • Page 26 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 17 NOTE: The screwdriver is not included in the hardware pack.
  • Page 27 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
