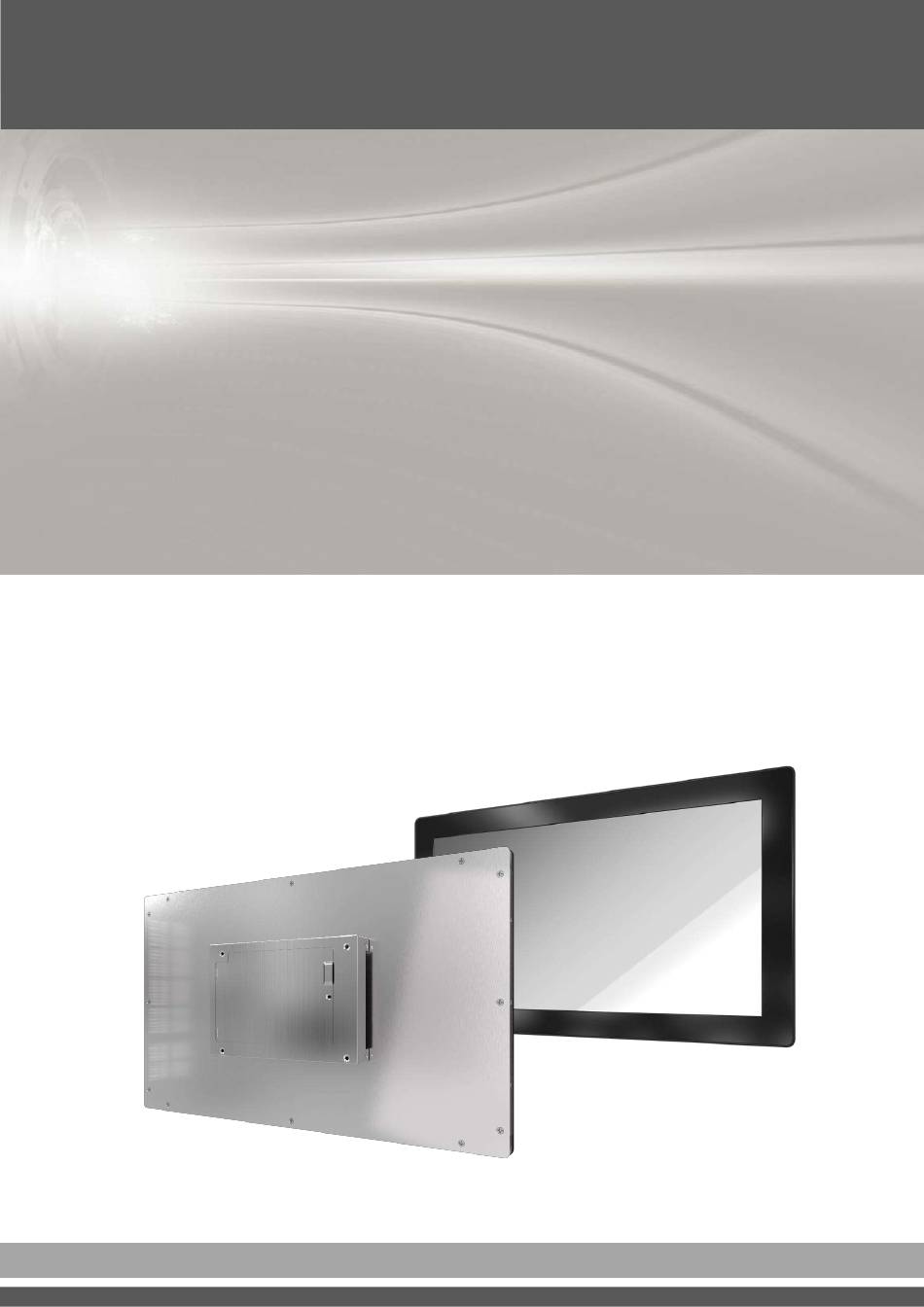

- Page 1 USER’S MANUAL HIO Series Open Frame Touch Panel PC...
-
Page 2: Table Of Contents
HIO Series l User’s Manual Table of Contents Prefaces …………………………………………………….……………………………………………. 03 Revision ………………………………………………..……………….…......…….. 03 Disclaimer ………………………………….………………………….…………………....03 Copyright Notice ………………………………………………………………………....03 Trademarks Acknowledgment …………..………………………………....... 03 Environmental Protection Announcement ………………….…………………..03 Safety Precautions …………………………………….…………….…………………………….. 04 Technical Support and Assistance ………………….…………….………………... 05 Conventions Used in this Manual ……………………………….….…………….... -
Page 3: Prefaces
Preface HIO Series l User’s Manual Prefaces Revision Revision Description Date Manual Released 2024/06/18 Disclaimer All specifications and information in this User’s Manual are believed to be accurate and up to date. C&T Solution Inc. does not guarantee that the contents herein are complete, true, accurate or non-misleading. -
Page 4: Safety Precautions
Preface HIO Series l User’s Manual Safety Precautions Before installing and using the equipment, please read the following precautions: ⚫ Put this equipment on a reliable surface during installation. Dropping it or letting it fall could cause damage. ⚫ The power outlet shall be installed near the equipment and shall be easily accessible. -
Page 5: Technical Support And Assistance
Preface HIO Series l User’s Manual Technical Support and Assistance 1. Visit the C&T Solution Inc website at https://www.candtsolution.com/ where you can find the latest information about the product. 2. Contact your distributor, our technical support team or sales representative for technical support if you need additional assistance. -
Page 6: Package Contents
Preface HIO Series l User’s Manual Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty HIO-200-ADL-N97 Series Open Frame Touch Panel PC DC jack to S4P Power Cable 128G M.2 B key SSD... -
Page 7: Chapter 1 Product Introductions
Chapter 1 Product Introductions... -
Page 8: Overview
Chapter 1: Product Introductions HIO Series l User’s Manual 1.1 Overview Key Features ⚫ 10.1“ / 15.6“ / 21.5" Open Frame Touch Panel PC ⚫ World Class Certifications for Safety and Reliability: CE/FCC ⚫ Front IP65 Rating for protection against water and dust ⚫... -
Page 9: Hardware Specification
Chapter 1: Product Introductions HIO Series l User’s Manual 1.2 Hardware Specification Display HIO-W210-ADL-N97 HIO-W215-ADL-N97 HIO-W221-ADL-N97 LCD Size 10.1" (16:10) 15.6" (16:9) 21.5" (16:9) Max. Resolution 1280 x 800 1920 x 1080 (FHD) 1920 x 1080 (FHD) Brightness (cd/m2) Contrast Ratio... - Page 10 Chapter 1: Product Introductions HIO Series l User’s Manual Operating System • DisplayPort • Windows HDMI / DP / LVDS / eDP Windows 10 / Windows 11 • COM • Linux 2x RS-232/422/485 by internal cable Linux Ubuntu 22.04 • USB Power •...
-
Page 11: System I/O
Chapter 1: Product Introductions HIO Series l User’s Manual 1.3 System I/O 1.3.1 HIO-W210-ADL-N97 USB 3.2 Gen 2 port LAN port Used to connect USB 3.2 device Used to connect the system to a local area network Line-out Used to connect a speaker... - Page 12 Chapter 1: Product Introductions HIO Series l User’s Manual 1.3.2 HIO-W215-ADL-N97 USB 3.2 Gen 2 port LAN port Used to connect USB 3.2 device Used to connect the system to a local area network Line-out Used to connect a speaker...
- Page 13 Chapter 1: Product Introductions HIO Series l User’s Manual 1.3.3 HIO-W221-ADL-N97 USB 3.2 Gen 2 port LAN port Used to connect USB 3.2 device Used to connect the system to a local area network Line-out Used to connect a speaker...
-
Page 14: Mechanical Dimension
Chapter 1: Product Introductions HIO Series l User’s Manual 1.4 Mechanical Dimensions 1.4.1 HIO-W210-ADL-N97 Unit: mm... - Page 15 Chapter 1: Product Introductions HIO Series l User’s Manual 1.4.2 HIO-W215-ADL-N97 Unit: mm...
- Page 16 Chapter 1: Product Introductions HIO Series l User’s Manual 1.4.3 HIO-W221-ADL-N97 Unit: mm...
-
Page 17: Chapter 2 System Setup
Chapter 2 System Setup... -
Page 18: Replacement Of Internal Modules
Chapter 2: System Setup HIO Series l User’s Manual Set torque force to 3.5 kgf-cm to execute all the screwing and unscrewing. 2.1 Replacement of Internal Modules In order to prevent electric shock or system damage, before removing the chassis cover, must turn off power and disconnect the unit from power source. -
Page 19: Replacement Of Memory Module
Chapter 2: System Setup HIO Series l User’s Manual 2.2 Replacement of Memory Module 1. Pull out the locking tabs on both sides of the memory slot to release the memory module, allowing it to pop out. 2. After the memory module pops up, pull it out. -
Page 20: Replacement Of M.2 Storage Module
Chapter 2: System Setup HIO Series l User’s Manual 2.3 Replacement of M.2 Storage Module Use a screwdriver to remove the single screw securing the M.2 card. After removing the M.2 card, carefully remove the thermal pad underneath. -
Page 21: Install Wireless Network Card And Antenna
Chapter 2: System Setup HIO Series l User’s Manual 2.4 Install wireless network card and antenna 1. Install the network card in the designated red frame and secure it with screws. 2. Route the antenna cable out of the main unit and attach the antenna to a non-metallic surface away from the whole body. -
Page 22: Install Panel Bracket
Chapter 2: System Setup HIO Series l User’s Manual 2.5 Install Panel Bracket 1. Use the appropriate PANEL bracket according to the model size. Model Panel Mount Kit HIO-W210-ADL-N97 HIO-W215-ADL-N97 HIO-W221-ADL-N97 2. Secure the PANEL bracket to the fixing holes around the screen as shown below. - Page 23 Premio Inc. All Rights Reserved www.premioinc.com...
