Summary of Contents for Premio SIO-W221 Series

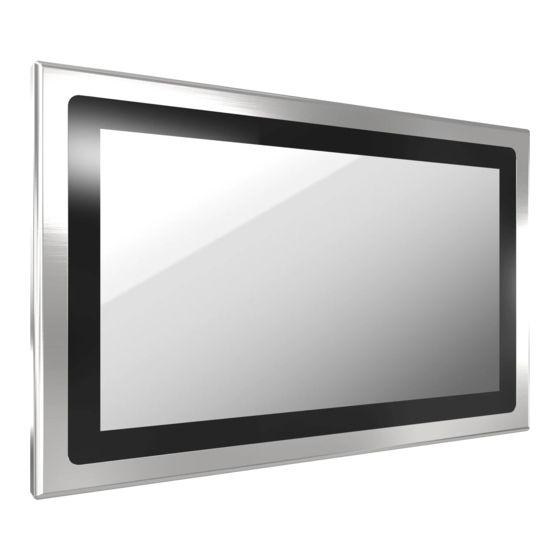

- Page 1 USER’S MANUAL SIO-W221-8365UE Stainless Steel Panel PCs...
-
Page 2: Table Of Contents
SIO-W221-8365UE l User’s Manual Table of Contents Prefaces …………………………………………………….……………………………………………. 04 Revision ………………………………………………..……………….…......…….. 04 Disclaimer ………………………………….………………………….…………………....04 Copyright Notice ………………………………………………………………………....04 Trademarks Acknowledgment …………..………………………………....... 04 Environmental Protection Announcement ………………….…………………..04 Safety Precautions …………………………………….…………….…………………………….. 05 Technical Support and Assistance ………………….…………….………………... 06 Conventions Used in this Manual ……………………………….….…………….... 06 Package Contents ……………………………………………………….…………….... - Page 3 SIO-W221-8365UE l User’s Manual Chapter 3 Front Panel Controls ………………………………………..…………………………………….. Users Controls ………………….………….…………………………………………………….….. 42 3.1.1 Power Button …………………………...………………………………………………...…. 42 3.1.2 LED ………………….………….…………………………………………………...…………….. 42 3.1.3 Reset ………………………..………………………………..……………………………….. 42 3.1.4 Native touchscreen enable/disable ………………………………………...……… 42 Chapter 4 BIOS Setup ……………………..……………………………………………………………………..… BIOS Introduction ………………………………………..…….…………………………………..44 4.2 Main Setup ………..……................
-
Page 4: Prefaces
2021/03/25 Disclaimer All specifications and information in this User’s Manual are believed to be accurate and up to date. Premio Inc. does not guarantee that the contents herein are complete, true, accurate or non-misleading. The information in this document is subject to change without notice and does not represent a commitment on the part of Premio Inc. -
Page 5: Safety Precautions
Preface SIO-W221-8365UE l User’s Manual Safety Precautions Before installing and using the equipment, please read the following precautions: Put this equipment on a reliable surface during installation. Dropping it or letting it fall could cause damage. The power outlet shall be installed near the equipment and shall be easily accessible. ... -
Page 6: Technical Support And Assistance
SIO-W221-8365UE l User’s Manual Technical Support and Assistance 1. Visit the Premio Inc website at https://premioinc.com/where you can find the latest information about the product. 2. Contact your distributor, our technical support team or sales representative for technical support if you need additional assistance. -
Page 7: Package Contents
Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty SIO-W221 Series Stainless Steel Panel PC Utility DVD Driver Waterproof Connector Cover Set Ordering Information Model No. Description... -
Page 8: Available Models
Preface SIO-W221-8365UE l User’s Manual Available Models Model No. Description 21.5" 16:9 FHD Resistive Touch Stainless Steel Panel PC with Intel® Core™ SIO-W221R-8365UE i5-8365UE Processor 21.5" 16:9 FHD Capacitive Touch Stainless Steel Panel PC with Intel® SIO-W221C-8365UE Core™ i5-8365UE Processor 21.5"... -
Page 9: Chapter 1 Product Introductions
Chapter 1 Product Introductions... -
Page 10: Overview
Chapter 1: Product Introductions SIO-W221-8365UE l User’s Manual 1.1 Overview The SIO-200 series full IP66/IP69K Waterproof Touchscreen Computer for High-Pressure, High- Temperature Waterproof and Reliable connections resistant to humidity, water, dust, dirt and corrosion. The Rugged Stainless Steel Display for Hygienic Environments. FHD Resistive / Capacitive Touch Stainless Steel Panel PC with Intel®... -
Page 11: Hardware Specification
Chapter 1: Product Introductions SIO-W221-8365UE l User’s Manual 1.2 Hardware Specification Display SIO-W221-J1900 LCD Size 21.5" (16:9) Max. Resolution 1920 x 1080 (FHD) Brightness (cd/m2) Contrast Ratio 1,000:1 LCD Color 16.7M Pixel Pitch (mm) 0.248 (H) x 0.248 (V) Viewing Angle (H-V) 178 / 178 Backlight MTBF 50000 hrs (LED Backlight) -
Page 12: System I/O
Chapter 1: Product Introductions SIO-W221-8365UE l User’s Manual 1.3 System I/O Rear Panel SIO-W221-8368UE Touch ON/OFF Switch Power Power Supply Voltage 110 ~ 240V AC Input by 1x LAN by M12 X-Code 8-pin M12 A-Code 4pin 1x RS-232/422/485 by M12 A-Code 8-pin 2x USB 2.0 by M12 A-code 8-pin Touch Touch ON/OFF Switch... -
Page 13: Chapter 2 Mechanical Specifications
Chapter 2 Mechanical Specifications... -
Page 14: Switch And Connector Locations
Chapter 2: Mechanical Specifications SIO-W221-8365UE l User’s Manual 2.1 Switch and Connector Locations Top View... - Page 15 Chapter 2: Mechanical Specifications SIO-W221-8365UE l User’s Manual Bottom View...
-
Page 16: Connector / Switch Definition
Chapter 2: Mechanical Specifications SIO-W221-8365UE l User’s Manual 2.2 Connector / Switch Definition Connector Location Definition Clear CMOS header Panel PWR setting header Backlight PWR setting header Front Panel header AT/ATX setting header Panel Control USB3.1 port USB3.1 port COM1 COM1 Serial Port header COM2 COM2 Serial Port header... -
Page 17: I/O Interface Descriptions
Chapter 2: Mechanical Specifications SIO-W221-8365UE l User’s Manual 2.3 I/O Interface Descriptions 2.3.1 Clear CMOS Signal RTCRST# 2.3.2 Panel Power setting Signal +V3.3 P3P5V... -
Page 18: Backlight Pwr Setting
Chapter 2: Mechanical Specifications SIO-W221-8365UE l User’s Manual 2.3 I/O Interface Descriptions 2.3.3 Backlight Power setting Signal +V12 P5P12V... -
Page 19: Front Panel Header
Chapter 2: Mechanical Specifications SIO-W221-8365UE l User’s Manual 2.3 I/O Interface Descriptions 2.3.4 Front Panel Header Signal Signal Power(3.3V) SATA_LED# Power(3.3V) LOUT_R RESET_BUTTON_N LOUT_L PS_ON_BUTTON_N MICIN1_R MICIN1_L AGND_HD... -
Page 20: At/Atx Setting
Chapter 2: Mechanical Specifications SIO-W221-8365UE l User’s Manual 2.3 I/O Interface Descriptions 2.3.5 AT/ATX setting Signal AT MODE PS_ON_BUTTON_N... -
Page 21: Panel Control
Chapter 2: Mechanical Specifications SIO-W221-8365UE l User’s Manual 2.3 I/O Interface Descriptions 2.3.6 Panel control Signal Signal LVDS_BKLTEN LBKLT_CTRL BLPWR BLPWR CH7511_BLUP CH7511_BLDN... -
Page 22: Usb3
Chapter 2: Mechanical Specifications SIO-W221-8365UE l User’s Manual 2.3 I/O Interface Descriptions 2.3.7 USB3 Signal Signal USBVCC0 USBVCC0 USB2-2N_CONN USB2-1N_CONN USB2-2P_CONN USB2-1P_CONN USB3-RN2_CONN USB3-RN1_CONN USB3-RP2_CONN USB3-RP1_CONN USB3-TN2_CONN USB3-TN1_CONN USB3-TP2_CONN USB3-TP1_CONN... -
Page 23: Usb
Chapter 2: Mechanical Specifications SIO-W221-8365UE l User’s Manual 2.3 I/O Interface Descriptions 2.3.8 USB Signal Signal USBVCC0 USBVCC1 USB2-2N_CONN USB2-3N_CONN USB2-2P_CONN USB2-3P_CONN USB3-RN2_CONN USB3-RN3_CONN USB3-RP2_CONN USB3-RP3_CONN USB3-TN2_CONN USB3-TN3_CONN USB3-TP2_CONN USB3-TP3_CONN... -
Page 24: Edp
Chapter 2: Mechanical Specifications SIO-W221-8365UE l User’s Manual 2.3 I/O Interface Descriptions 2.3.9 eDP (Optional) CN31 Signal EDP_TXP1 EDP_TXN1 EDP_TXP0 EDP_TXN0 EDP_AUX-P EDP_AUX-N PNLPWR PNLPWR EDP_HPD... -
Page 25: Com Port Com1
Chapter 2: Mechanical Specifications SIO-W221-8365UE l User’s Manual 2.3 I/O Interface Descriptions 2.3.10 COM Port COM1 Signal Signal CM1_DCD CM1_DSR CM1_RXD CM1_RTS CM1_TXD CM1_CTS CM1_DTR CM1_RI... -
Page 26: Com Port Com2
Chapter 2: Mechanical Specifications SIO-W221-8365UE l User’s Manual 2.3 I/O Interface Descriptions 2.3.11 COM Port COM2 Signal Signal CM2_DCD CM2_DSR CM2_RXD CM2_RTS CM2_TXD CM2_CTS CM2_DTR CM2_RI... -
Page 27: Com Port Com3
Chapter 2: Mechanical Specifications SIO-W221-8365UE l User’s Manual 2.3 I/O Interface Descriptions 2.3.12 COM Port COM3 Signal Signal CM3_DCD CM3_DSR CM3_RXD CM3_RTS CM3_TXD CM3_CTS CM3_DTR CM3_RI... -
Page 28: Com Port Com4
Chapter 2: Mechanical Specifications SIO-W221-8365UE l User’s Manual 2.3 I/O Interface Descriptions 2.3.13 COM Port COM4 Signal Signal CM4_DCD CM4_DSR CM4_RXD CM4_RTS CM4_TXD CM4_CTS CM4_DTR CM4_RI... -
Page 29: Gpio
Chapter 2: Mechanical Specifications SIO-W221-8365UE l User’s Manual 2.3 I/O Interface Descriptions 2.3.14 GPIO GPIO1 GPIO Default Configuration VCC5 DIO_PH_INT0 GPI0 DIO_PH_OUT0 GPO0 DIO_PH_INT1 GPI1 DIO_PH_OUT1 GPO1 DIO_PH_INT2 GPI2 DIO_PH_OUT2 GPO2 DIO_PH_IN3 GPII3 DIO_PH_OUT3 GPO3... -
Page 30: Sata1
Chapter 2: Mechanical Specifications SIO-W221-8365UE l User’s Manual 2.3 I/O Interface Descriptions 2.3.15 SATA SATA1 Signal SATA_TX0_C_DC_DP SATA_TX0_C_DC_DN SATA_RX0_DC_DN SATA_RX0_DC_DP... -
Page 31: Sata2
Chapter 2: Mechanical Specifications SIO-W221-8365UE l User’s Manual 2.3 I/O Interface Descriptions 2.3.16 SATA SATA2 Signal SATA_TX1_C_DC_DP SATA_TX1_C_DC_DN SATA_RX1_DC_DN SATA_RX1_DC_DP... -
Page 32: Sata1_Pwr1
Chapter 2: Mechanical Specifications SIO-W221-8365UE l User’s Manual 2.3 I/O Interface Descriptions 2.3.17 SATA Power SATA1_PWR1 Signal +V12... -
Page 33: Sata2_Pwr1
Chapter 2: Mechanical Specifications SIO-W221-8365UE l User’s Manual 2.3 I/O Interface Descriptions 2.3.18 SATA Power SATA2_PWR1 Signal +V12... -
Page 34: Usb2.0
Chapter 2: Mechanical Specifications SIO-W221-8365UE l User’s Manual 2.3 I/O Interface Descriptions 2.3.19 USB2.0 USB_2 Signal Signal USBVCC2 USBVCC2 USB2-5N_CONN USB2-6N_CONN USB2-5P_CONN USB2-6P_CONN... -
Page 35: Dc12_In
Chapter 2: Mechanical Specifications SIO-W221-8365UE l User’s Manual 2.3 I/O Interface Descriptions 2.3.20 DC12_IN DC_IN2 Signal... -
Page 36: Fan Pwr
Chapter 2: Mechanical Specifications SIO-W221-8365UE l User’s Manual 2.3 I/O Interface Descriptions 2.3.21 FAN Power FAN1 Signal +12V FAN_SENSE FAN_CONTROL... -
Page 37: Hdmi
Chapter 2: Mechanical Specifications SIO-W221-8365UE l User’s Manual 2.3 I/O Interface Descriptions 2.3.22 HDMI HDMI Signal Signal HDMI_TX2+_C HDMI_TXC-_C HDMI_TX2-_C HDMI_TX1+_C HDMI_SCL HDMI_TX1-_C HDMI_SDA HDMI_TX0+_C VCC5_HDMI HDMI_TX0-_C HDMI_HPD_CON HDMI_TXC+_C... - Page 38 Chapter 2: Mechanical Specifications SIO-W221-8365UE l User’s Manual 2.3 I/O Interface Descriptions 2.3.23 DP Signal ML_LANE0+ ML_LANE0- ML_LANE1+ ML_LANE1- ML_LANE2+ ML_LANE2- ML_LANE3+ ML_LANE3- AUX CH+ AUX CH- DP_PWR Return...
-
Page 39: Rj45
Chapter 2: Mechanical Specifications SIO-W221-8365UE l User’s Manual 2.3 I/O Interface Descriptions 2.3.24 RJ45 Signal Signal R1 GBE1_MDI0P R1 GBE2_MDI0P R2 GBE1_MDI0N R2 GBE2_MDI0N R3 GBE1_MDI1P R3 GBE2_MDI1P R4 GBE1_MDI1N R4 GBE2_MDI1N R5 GBE0_CT R5 GBE0_CT R6 GBE0_CT R6 GBE0_CT R7 GBE1_MDI2P R7 GBE2_MDI2P R8 GBE1_MDI2N... -
Page 40: Lvds
Chapter 2: Mechanical Specifications SIO-W221-8365UE l User’s Manual 2.3 I/O Interface Descriptions 2.3.25 LVDS (Optional) LVDS1 Signal Signal LB_DATA-N3 LB_DATA-P3 LB_CLK-N LB_CLK-P LB_DATA-N2 LB_DATA-P2 LB_DATA-N1 LB_DATA-P1 LB_DATA-N0 LB_DATA-P0 MIICSDA MIICSCL LA_DATA-P3 LA_DATA-N3 LA_CLK-P LA_CLK-N LA_DATA-P2 LA_DATA-N2 LA_DATA-P1 LA_DATA-N1 LA_DATA-P0 LA_DATA-N0 PNLPWR PNLPWR PNLPWR... -
Page 41: Front Panel Controls
Chapter 3 Front Panel Controls... -
Page 42: Users Controls
Chapter 3: Panel Controls SIO-W221-8365UE l User’s Manual 3.1 Users Controls Native touchscreen enable/disable Power On/Off Reset 3.1.1 Power Button System power on or off. 3.1.2 1. Yellow indicates power on. 2. Red indicates HDD access status. 3.1.3 Reset Button Reset system to reboot. -
Page 43: Chapter 4 Bios Setup
Chapter 4 BIOS Setup... -
Page 44: Bios Introduction
Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual 4.1 BIOS Introduction The BIOS provides an interface to modify the configuration. When the battery is removed, all the parameters will be reset. BIOS Setup Power on the embedded system and by pressing <Del> immediately allows you to enter the setup screens. -
Page 45: Main Setup
Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual 4.2 Main Setup Press <Del> to enter BIOS CMOS Setup Utility. The Main setup screen is showed as following when the setup utility is entered. System Date/Time is set up in the Main Menu. ■... -
Page 46: Advanced Setup
Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual 4.3 Advanced Setup... -
Page 47: Cpu Configuration
Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual 4.3.1 CPU Configuration Item Options Description Intel (VMX) Virtualization Disabled, When enabled, a VMM can utilize the Technology Enabled[Default] additional hardware capabilities provided by Virtualization Technology. Active Processor Cores All[Default] Number of cores to enable in each processor package. -
Page 48: Pch-Fw Configuration
Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual 4.3.2 PCH-FW Configuration Item Options Description AMT BIOS Features Disabled, When disabled AMT BIOS Features are no Enabled[Default] longer supported and user is no longer able to access MEBx Setup. Note:This option does not disable Manageability Features in FW. -
Page 49: Sata And Rst Configuration
Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual 4.3.3 SATA and RST Configuration Item Options Description SATA Controller(s) Disabled, Enable/Disable SATA Device. Enabled[Default] SATA Mode Selection AHCI[Default] , Determines how SATA controller(s) operate. Intel RST Premium With Intel Optane System Acceleration Use RST Legacy OROM Disabled[Default] ,... -
Page 50: Rst (Uefi Raid) Configuration
Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual 4.3.4 RST (UEFI RAID) Configuration How to set the UEFI RAID: 1. When set to “Intel RST Premium With Intel Optane System Acceleration“, please save change reset system. 2. After reboot the system, please into BIOS utility and then will see “Intel (R) Rapid Storage Technology”... - Page 51 Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual 3. Into Intel(R) Rapid Storage Technology, and start create RAID volume. 4. Start Create the RAID ■ Select Disk that you want to do the RAID ■ Select [x]; No-Select [ ]...
-
Page 52: Trusted Computing
Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual 4.3.5 Trusted Computing Item Options Description Security Device Support Enabled, Enable/Disable BIOS support for security Disabled[Default] , device. O.S. will not show Security Device.TCG EFI protocol and INT1A interface will not be available. Pending operation None[Default] , Schedule an Operation for the Security Device. -
Page 53: Acpi Settings
Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual 4.3.6 ACPI Settings Item Options Description Enable Hibernation Disabled , Enables or Disables System ability to Enabled[Default], Hibernate (OS/S4 Sleep State). This option may not be effective with some operating systems. ACPI Sleep State Suspend Disabled, Select the highest ACPI sleep state the S3 (Suspend to RAM)[Default]... -
Page 54: Super Io Configuration
Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual 4.3.7 Super IO Configuration This setting allows you to select options for the Super IO Configuration, and change the value of the selected option. Item Description Serial Port 1 Configuration Set Parameters of Serial Port 1 (COMA). Serial Port 2 Configuration Set Parameters of Serial Port 2 (COMB). - Page 55 Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual ■ Serial Port 1 Configuration Item Options Description Serial Port Disabled, Enable or Disable Serial Port (COM). Enabled[Default] Change Settings Auto[Default], This item allows you to change the address IO=3F8h; IRQ=4; , &...
- Page 56 Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual ■ Serial Port 2 Configuration Item Options Description Serial Port Disabled, Enable or Disable Serial Port (COM). Enabled[Default] Change Settings Auto[Default], This item allows you to change the address IO=2F8h; IRQ=3; , &...
- Page 57 Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual ■ Serial Port 3 Configuration Item Options Description Serial Port Disabled, Enable or Disable Serial Port (COM). Enabled[Default] Change Settings Auto[Default], This item allows you to change the address IO=3E8h; IRQ=7; , &...
- Page 58 Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual ■ Serial Port 4 Configuration Item Options Description Serial Port Disabled, Enable or Disable Serial Port (COM). Enabled[Default] Change Settings Auto[Default], This item allows you to change the address & IO=2E8h; IRQ=7; , IRQ settings of the specified serial port.
-
Page 59: Hardware Monitor
Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual 4.3.8 Hardware Monitor These items display the current status of all monitored hardware devices/ components such as voltages and temperatures. -
Page 60: Serial Port Console Redirection
Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual 4.3.9 Serial Port Console Redirection Item Options Description Console Redirection Disabled[Default], These items allows you to enable or disable Enabled COM1 console redirection... -
Page 61: Network Stack Configuration
Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual 4.3.10 Network Stack Configuration Item Options Description Network Stack Disabled[Default] , Enable/Disable UEFI Network Stack. Enabled... -
Page 62: Csm Configuration
Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual 4.3.11 CSM Configuration Item Options Description CSM Support Disabled, This item allows users to enable or disable Enabled[Default] for “CSM Support”. GateA20 Active Upon Request[Default] , This item allows users to set Upon Request Always or Always for "GateA20 Active“. -
Page 63: Usb Configuration
Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual 4.3.12 USB Configuration Item Options Description Legacy USB Support Enabled[Default] Enables Legacy USB support. AUTO option Disabled disables legacy support if no USB devices are Auto connected. DISABLE option will keep USB devices available only for EFI applications. -
Page 64: Chipset
Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual 4.4 Chipset This section allows you to configure and improve your system and allows you to set up some system features according to your preference. 4.4.1 System Agent (SA) Configuration... - Page 65 Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual ■ Memory Configuration Item Options Description Max TOLUD Dynamic[Default], Maximum Value of TOLUD. Dynamic assignment 1GB, would adjust TOLUD automatically based on 1.25GB, largest MMIO length of installed graphic 1.5 GB, controller 1.75 GB, 2 GB, 2.25 GB,...
- Page 66 Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual ■ Graphic Configuration Item Options Description GTT Size 2MB, Select the GTT Size . 4MB, 8MB[Default] Aperture Size 128MB, Select the Aperture Size. 256MB[Default] , Note : Above 4GB MMIO BIOS assignment is 512MB, automatically enabled when selecting 1024MB,...
-
Page 67: Pch-Io Configuration
Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual 4.4.2 PCH-IO Configuration Item Options Description PCH LAN Controller Enabled [Default] , Enable/Disable onboard NIC. Disabled Wake on LAN Enabled, Enable/Disable integrated LAN to wake the Enable Disabled [Default] system. ■ PCI Express Configuration Restore AC Power Power On, Specify what state to go to when power is... - Page 68 Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual ■ PCI Express Configuration...
- Page 69 Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual PCI Express Root Port 8 / 9 / 16 Item Options Description PCI Express Root Disabled [Default] , Control the PCI Express Root Port. Port Enabled 8 / 9 /16 ASPM Disabled [Default] , Set the ASPM Level: L0s,...
- Page 70 Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual ■ USB Configuration Item Options Description XHCI Disable Disabled [Default] , Option to enable Compliance Mode. Default Compliance mode Enabled is to disable Compliance Mode. Change to enabled for Compliance Mode testing.
-
Page 71: Security
Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual 4.5 Security Security menu allow users to change administrator password and user password settings. ■ Administrator Password This item allows you to set Administrator Password. ■ User Password This item allows you to set User Password. - Page 72 Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual ■ Security Boot Item Options Description Secure Boot Disabled [Default] , Secure Boot feature is Active if Secure Boot is Enabled Enabled,Platform Key(PK) is enrolled and the System is in User mode. The mode change requires platform reset Secure Boot Mode Standard,...
- Page 73 Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual ■ Key Management Item Options Description Factory Key Provision Disabled [Default] , Install factory default Secure Boot keys after Enabled the platform reset and while the System is in Setup mode...
-
Page 74: Boot
Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual 4.6 Boot This menu allows you to setup the system boot options. Item Options Description Setup Prompt 1[Default] Number of seconds to wait for setup activation Timeout key. 65535(0xFFFF) means indefinite waiting. Bootup NumLock On[Default] , Select the Keyboard NumLock state. -
Page 75: Save & Exit
Chapter 4: BIOS Setup SIO-W221-8365UE l User’s Manual 4.7 Save & Exit This setting allows users to configure the boot settings. ■ Save Changes and Reset This item allows user to reset the system after saving the changes. This item allows user to reset the system after saving the changes. -
Page 76: Chapter 5 Address Map
Chapter 5 Address Map... -
Page 77: I/O Port Address Map
Chapter 5: Address Map SIO-W221-8365UE l User’s Manual 5.1 I/O Port Address Map The assignments of the I/O port addresses for the CT-DBT0x under Windows® 7 Ultimate 64-bit are shown below. - Page 78 Chapter 5: Address Map SIO-W221-8365UE l User’s Manual I/O Port Address Map (cont'd)
- Page 79 Chapter 5: Address Map SIO-W221-8365UE l User’s Manual I/O Port Address Map (cont'd)
-
Page 80: Interrupt Controller (Irq) Map
Chapter 5: Address Map SIO-W221-8365UE l User’s Manual 5.2 Interrupt Controller (IRQ) Map The interrupt controller map for the CT-DBT0x under Windows® 7 Ultimate 64-bit is shown below. - Page 81 Chapter 5: Address Map SIO-W221-8365UE l User’s Manual Interrupt Controller (IRQ) Map (cont'd)
- Page 82 Chapter 5: Address Map SIO-W221-8365UE l User’s Manual Interrupt Controller (IRQ) Map (cont'd)
- Page 83 Chapter 5: Address Map SIO-W221-8365UE l User’s Manual Interrupt Controller (IRQ) Map (cont'd)
- Page 84 Chapter 5: Address Map SIO-W221-8365UE l User’s Manual Interrupt Controller (IRQ) Map (cont'd)
- Page 85 Chapter 5: Address Map SIO-W221-8365UE l User’s Manual Interrupt Controller (IRQ) Map (cont'd)
- Page 86 Chapter 5: Address Map SIO-W221-8365UE l User’s Manual Interrupt Controller (IRQ) Map (cont'd)
- Page 87 Chapter 5: Address Map SIO-W221-8365UE l User’s Manual Interrupt Controller (IRQ) Map (cont'd)
-
Page 88: Memory Map
Chapter 5: Address Map SIO-W221-8365UE l User’s Manual 5.3 Memory Map The memory map of DRAM for the CT-DBT0x under Windows® 7 Ultimate 64-bit is shown below. - Page 89 Chapter 5: Address Map SIO-W221-8365UE l User’s Manual Memory Map (cont'd) Copyright © Premio Inc. All Rights Reserved. premioinc.com...
