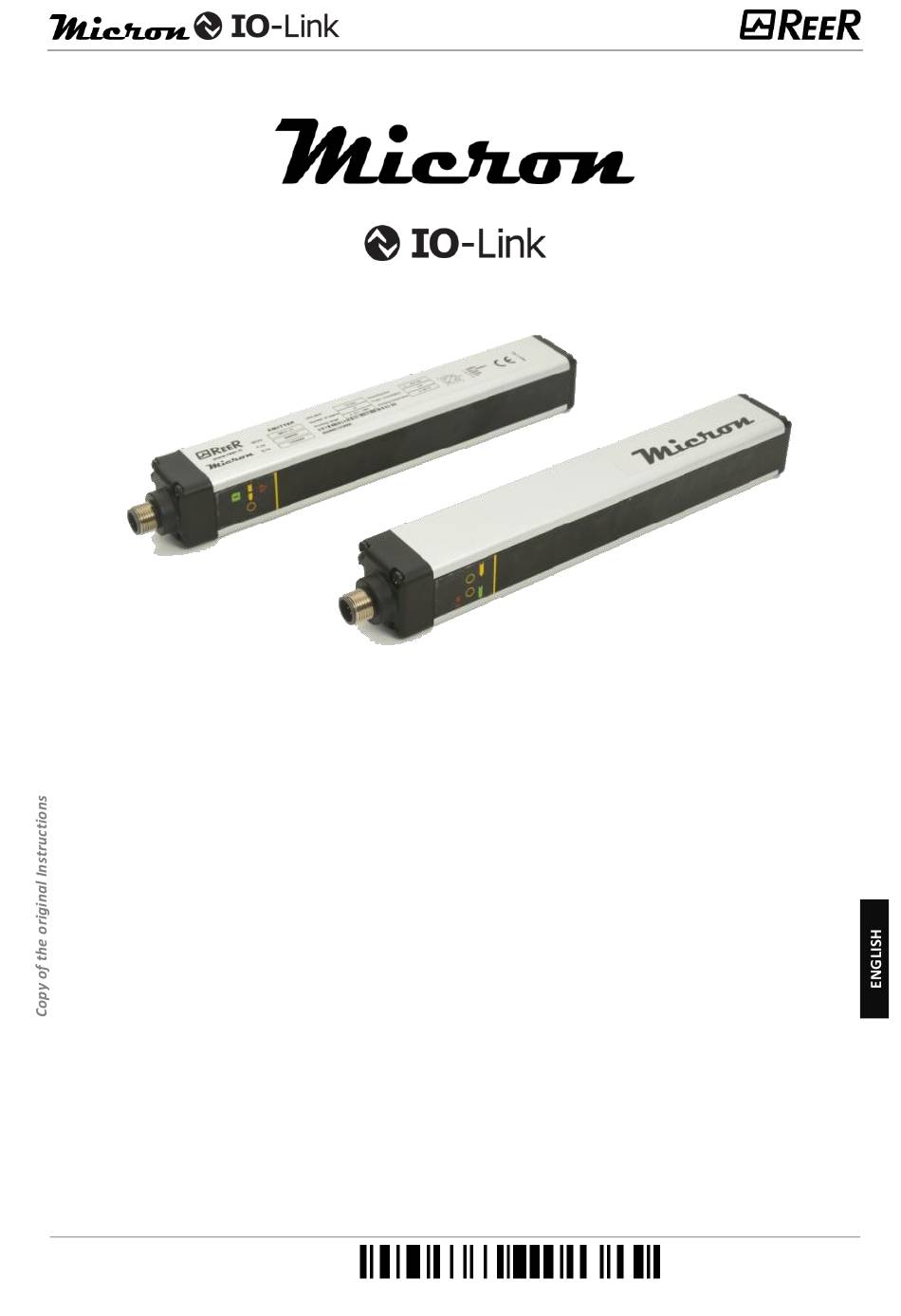

  • Page 1 PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN 8541359 - 08/10/2020 - Rev.2...
  • Page 2: Table Of Contents

    PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Contents INTRODUCTION ............................3 Beam positioning ..................... 3 Working range ....................4 ELECTRICAL CONNECTIONS ........................5 Emitter connections and LEDs ................5 Receiver connections and LEDs ................. 6 IO-Link master Micron connection via custom Y cable ........7 Warnings about connection cables ..............
  • Page 3: Introduction

    IO- Link - PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN INTRODUCTION The Micron photoelectric light curtain is a multi-beam optoelectronic system consisting of an emitter and a receiver, used to detect or measure objects. The two units can be synchronised via optical link or cable. The status of the light curtain outputs (which reside in the receiver) changes as soon as a measurement is performed (or an object is detected).
  • Page 4: Working Range

    PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Working range  Particular operating conditions may affect the sensing level of photo-electric devices. In environments characterised by fog, rain, fumes or dust, to always guarantee correct operation of the appliance, it is advisable to apply suitable correction factors Cf so as to maximum working range values. In these cases: Pu = Pm x Fc where Pu and Pm are, respectively, the working and maximum range expressed in metres.
  • Page 5: Electrical Connections

    0 DC input  LOW range 0VDC - 0 VDC power supply SYNC DI RX-TX SYNC INPUT (OPTIONAL) Ground connection NOTE: PE can not be used with ReeR adapter cables cod. 1250902/1250903 M12 5-pole System start RED BLINKING FAIL condition Normal operation.
  • Page 6: Receiver Connections And Leds

    PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Receiver connections and LEDs Figure 4 NAME TYPE DESCRIPTION 24 VDC power supply SYNC RX-TX SYNC INPUT (OPTIONAL) 0 VDC power supply IEC 61131-2 "Switching signal" DI (SIO) IEC 61131-9 "Coded switching" (COM1, COM2, COM3) Not connected M12 5-pole IO-LINK LED No connection to the IO-Link...
  • Page 7: Io-Link Master Micron Connection Via Custom Y Cable

    IO-Link master – Micron connection via custom Y cable A custom Y cable (ReeR CSYIOLH 1250902/ CSYIOLH 1250903) can be used to simplify connection between the emitter and the receiver to the IO-Link master. Two different cables are available to manage the Range of the emitter.
  • Page 8: Technical Specifications

    TECHNICAL SPECIFICATIONS Technical features Unit Micron 10mm / 30mm MEASURE CURTAIN TECHNICAL FEATURES Operating range Low Range: 02/ High Range: 110 24  20% Power supply Connections Emitter: M12 - 5-pole / Receiver: M12 - 5-pole (70 us * number of beams + 500 us)*n Measurement time (n = 1÷3 based on the scan cycles configured) Synchronisation...
  • Page 9: Mechanical Dimensions

    IO- Link - PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Mechanical dimensions Beam spacing 10 mm Model 1051 1201 1351 1501 Measurement height (mm) 1040 1190 1340 1490 Number of beams Model 1651 1801 1951 2101 2251 2401 2551 2701 2851 3001 Measurement height (mm) 1640 1790 1940...
  • Page 10: Mechanical Dimensions

    Mechanical dimensions 10mm, 20mm, 30mm 25mm, 50mm, 75mm 1050 1200 1350 1500 1650 1800 1950 2100 2250 2400 2550 2700 2850 3000 1113 1263 1413 1563 1713 1863 2013 2163 2313 2463 2613 2763 2913 3063 Dimension A 61,5 61,5 61,5 61,5 61,5...
  • Page 11: Configuration

    PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN CONFIGURATION IO-Link identification Vendor id 1269 Device id The Micron IOL will have two different Device Id depending on which process data is needed by the user. The format of the product Id is: xxx yyy p xxx indicates the lenght of the light curtain in cm;...
  • Page 12: Io-Link Parameters

    IO- Link - PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN IO-Link Parameters Vendor parameters Parameter Index Access Description Pitch 0x0040 Number of beams 0x0041 Syncro type 0x0042 0: Optical 1: Cable When switching from Cable to Optical a power cycle on the emitter is needed Bearing 0x0043 0: Normal...
  • Page 13: Io-Link Process Data

    IO- Link - PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN IO-Link Process Data PDIn measurement INT16 INT16 INT16 INT16 INT16 INT4 BOOL BOOL BOOL BOOL Len.Offset Data type Description 16.72 IntegerT16 FBO: first beam occupied 16.56 IntegerT16 LBO: last beam occupied 16.40 IntegerT16 CBO: central beam occupied 16.24 IntegerT16...
  • Page 14: Io-Link Events

    IO- Link - PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN IO-Link events Code Cat. Status Event Error type Description Customer action 0x5000 Invalid Error Device hardware fault Replace device 0x8CE4 Valid Error Sync signal list Correct device 0x8DFE Valid Warning Test event when index 2 Test event is set to 240 Event is canceled if index...
