PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN
854135903 - 08/06/2021 - Rev.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Micron 151 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Reer Micron 151

  • Page 1 PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN 854135903 - 08/06/2021 - Rev.0...
  • Page 2: Table Of Contents

    PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Contents INTRODUCTION ............................3 Beam positioning ..................... 3 Working range ....................4 ELECTRICAL CONNECTIONS ........................5 Emitter connections and LEDs ................5 Receiver connections and LEDs ................. 6 IO-Link master Micron connection via custom Y cable ........7 Warnings about connection cables ..............
  • Page 3: Introduction

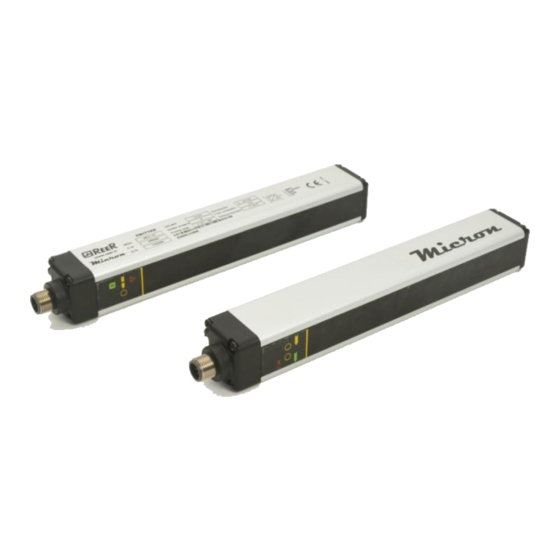

    PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN INTRODUCTION The Micron photoelectric light curtain is a multi-beam optoelectronic system consisting of an emitter and a receiver, used to detect or measure objects. The two units can be synchronised via optical link or cable. The status of the light curtain outputs (which reside in the receiver) changes as soon as a measurement is performed (or an object is detected).
  • Page 4: Working Range

    PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Working range ➔ Particular operating conditions may affect the sensing level of photo-electric devices. In environments characterised by fog, rain, fumes or dust, to always guarantee correct operation of the appliance, it is advisable to apply suitable correction factors Cf so as to maximum working range values. In these cases: Pu = Pm x Fc where Pu and Pm are, respectively, the working and maximum range expressed in metres.
  • Page 5: Electrical Connections

    PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN ELECTRICAL CONNECTIONS ➔ Perform the connections as shown in below tables, in order to ensure the correct functioning of the barrier. ➔ We recommend the use of separate power supplies for the barrier and for other electrical power equipment (electric motors, inverters, frequency converters) or other sources of disturbance.
  • Page 6: Receiver Connections And Leds

    PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Receiver connections and LEDs Figure 4 NAME TYPE DESCRIPTION 24 VDC power supply SYNC RX-TX SYNC OUTPUT (OPTIONAL) 0 VDC power supply SIO standard input/output or IO-Link communication C/Q COM/DO Not connected M12 5-pole IO-LINK LED No connection to the IO-Link RED BLINKING master...
  • Page 7: Io-Link Master Micron Connection Via Custom Y Cable

    IO-Link master – Micron connection via custom Y cable A custom Y cable (ReeR CSYIOLH 1250902/ CSYIOLL 1250903) can be used to simplify connection between the emitter and the receiver to the IO-Link master. Two different cables are available to manage the range of the emitter.
  • Page 8: Technical Features

    PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN TECHNICAL FEATURES Unit Micron 10mm / 30mm MEASURE CURTAIN TECHNICAL FEATURES Standard model HS model Operating range Low range 02 00.15 High range 110 01 24  20% Power supply Connections Emitter: M12 - 5-pole / Receiver: M12 - 5-pole Synchronisation Optical or via cable, selectable Max power...
  • Page 9 PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Beam spacing 10 mm Model 1051 1201 1351 1501 Measurement height (mm) 1040 1190 1340 1490 Number of beams Minimum cycle time 10.4 10.4 10.4 10.4 10.4 10.4 10.4 10.4 10.4 10.4 Measurements mode (ms) Minimum cycle time 10,4 11,2 11,6...
  • Page 10: Mechanical Dimensions

    PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Mechanical dimensions LE brackets 10mm, 20mm, 30mm 25mm, 50mm, 75mm 1050 1113 Dimension A 61,5 61,5 61,5 61,5 61,5 61,5 61,5 Dimension B (step 10mm, 30mm) Dimension C Dimension D (step 10mm) Dimension D (step 30mm) 2 LE TYPE brackets with 2 inserts Mounting 1200...
  • Page 11: Configuration

    PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN CONFIGURATION IO-Link identification Vendor id 1269 Device id Each Micron IOL model will have two different Device Id depending on the value of parameter Process data type (2069): Beams state or Measurements. Beam spacing 10 mm Model 1051 1201...
  • Page 12: Io-Link Parameters

    Type Factory setting Subindex Device Access Locks RecordT (16 Bit) false (Unlocked) Vendor name StringT (10 Byte) ReeR S.p.A. Vendor text StringT (19 Byte) www.reersafety.com Product Name StringT (8 Byte) MixxxxM / MixxxxB Product ID StringT (8 Byte) MixxxxM / MixxxxB...
  • Page 13 PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Parameter Index Type Factory setting Subindex Number of beams 2065 IntegerT (16 Bit) Synchronisation type 2066 UIntegerT (8 Bit) (optical / optical) Orientation of beams 2067 UIntegerT (8 Bit) (Normal / Normal) Data transmission mode 2068 UIntegerT (8 Bit) (Always_enabled / Always enabled) Process data type...
  • Page 14: Identification

    Vendor name Index 16 Subindex 0 StringT (10 byte) ReadOnly The vendor name that is assigned to a Vendor ID Factory setting ReeR S.p.A. Vendor text Index 17 Subindex 0 StringT (19 byte) ReadOnly Additional information about the vendor Factory setting www.reersafety.com...
  • Page 15: Basic Settings

    PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Basic settings Parameter Index Subindex Access Description Output polarity for the switching outputs Factory setting 0 (PnP) Value range 0 (PnP) 1 (nPn) 2069 Select between Measurements mode or Beams Process data type state mode in the process data (this will change the product Id of the device) Factory setting 2 (Measurements mode) Value...
  • Page 16: Digital Output 1

    PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Digital output 1 Parameter Index Subindex Access Description SSC1 Switch-On Switching signal channel 1, Switch-On delay delay Factory setting 0 Value range (0 to 30000) [ms] SSC1 Switch-Off Switching signal channel 1, Switch-Off delay delay Factory setting 0 Value range (0 to 30000) [ms] SSC1 Tol...
  • Page 17: Ssc1 Mode = Single Point Tolerance

    PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN SSC1 Mode = Single point tolerance Parameter Index Subindex Access Description SSC1 Param Switching signal channel 1, parameter Setpoint 1 Factory setting 1 Value range (1 to max num rays) Setpoint 2 Factory setting (N/A) Value range 0 (N.A.) SSC1 Config Switching signal channel 1, configuration...
  • Page 18: Ssc2 Mode = Single Point Tolerance

    PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN SSC2 Mode = Single point tolerance Parameter Index Subindex Access Description SSC1 Param Switching signal channel 1, parameter Setpoint 1 Factory setting 1 Value range (1 to max num rays) Setpoint 2 Factory setting (N/A) Value range 0 (N.A.) SSC1 Config Switching signal channel 1, configuration...
  • Page 19: Signal

    PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Signal Parameter Index Subindex Access Description Synchronisation 2066 Selection of synchronisation Factory setting 0 (optical / optical) type Value range 0 (optical / optical) 1 (cable / via cable) Pitch 2064 Pitch of the light beams Number of beams 2065 Number of beams...
  • Page 20: Teach

    PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Teach Parameter Index Subindex Access Description TI Select Teach selection Factory setting 1 (SSC1) Value range 1 (SSC1) 2 (SSC2) TI Result State Teach result Factory setting 0 (Idle) Value range 0 (Idle) 1 (SP1 success) 2 (SP2 success) 3 (SP12 success) 4 (Wait for command)
  • Page 21: Io-Link Process Data

    PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN IO-Link Process Data PDIn - Measurements INT16 INT16 INT16 INT16 INT16 NCBO INT8 INT4 BOOL BOOL BOOL BOOL RESERVED Device Status Len.Offset Data type Description 16.80 IntegerT16 FBO: first beam occupied 16.64 IntegerT16 LBO: last beam occupied 16.48 IntegerT16 CBO: central beam occupied...
  • Page 22: Pdout

    PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN PDOut BOOL Reserved Reserved Reserved Reserved Trigger Reserved Reserved Reserved Len.Offset Data type Description Bool Trigger IO-Link events Code Device status Process data Class Name Description quality 0x5000 4 (Failure) Invalid Error Device hardware fault Replace device 0x8CDB 1 Valid Warning Flash sequence active.
  • Page 23: Ec Declaration Of Conformity

    PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN EC DECLARATION OF CONFORMITY 854135903 - 08/06/2021 - Rev.0...
