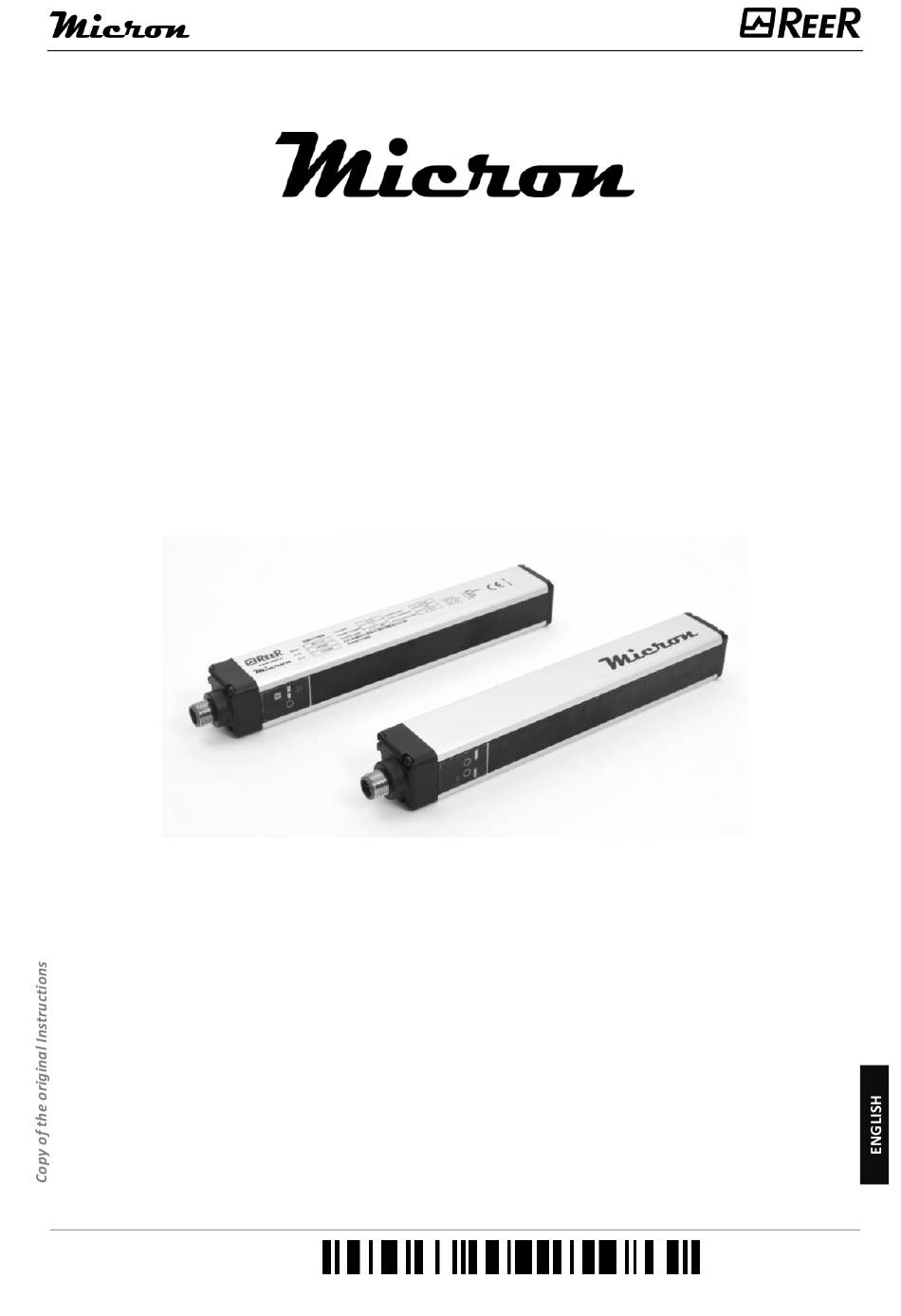

- Page 1 PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN INSTALLATION TECHNICAL FEATURES CONFIGURATION SOFTWARE 8541124 - 12/12/2018 - Rev.6...
-
Page 2: Table Of Contents
Receiver connections (AV/AC models) .............. 6 Receiver connections (B models) ............... 6 Receiver connections (C models) ..............7 Micron-PC connection via USB cable (ReeR CSU M5 - 1250900) ...... 7 Push-Pull Outputs (models with step 10mm, 20mm, 30mm STANDARD MODELS) ....................... 8 Warnings about connection cables .............. -
Page 3: Introduction
PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Micron light curtains MUST NOT be used as safety devices for protection of operators in hazardous areas. INTRODUCTION The Micron photoelectric light curtain is a multi-beam optoelectronic system consisting of an emitter and a receiver, used to detect or measure objects. The two units can be synchronised via optical link or cable. -
Page 4: Working Range
PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Working range Particular operating conditions may affect the sensing level of photo-electric devices. In environments characterised by fog, rain, fumes or dust, to always guarantee correct operation of the appliance, it is advisable to apply suitable correction factors Cf so as to maximum working range values. In these cases: Pu = Pm x Fc where Pu and Pm are, respectively, the working and maximum range expressed in metres. -
Page 5: Electrical Connections
PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN ELECTRICAL CONNECTIONS Perform the connections as shown in below tables, in order to ensure the correct functioning of the barrier. We recommend the use of separate power supplies for the barrier and for other electrical power equipment (electric motors, inverters, frequency converters) or other sources of disturbance. -
Page 6: Receiver Connections (Av/Ac Models)
PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Receiver connections (AV/AC models) Figure 4 COLOUR NAME TYPE DESCRIPTION OPERATION White OUT2/SYNC OUTPUT Static output 2 / RX-TX sync 24 VDC, 100 mA Brown 24VDC 24 VDC power supply Green OUT1 OUTPUT Static output 1 24 VDC, 100 mA Yellow INPUT... -
Page 7: Receiver Connections (C Models)
Ground connection Table 5 - M12, 5-pole RX (C models) Micron-PC connection via USB cable (ReeR CSU M5 - 1250900) AC/AV/B models are fitted with an M5 connector (leading from the receiver) for connecting the light curtain to a PC on which the Micron configuration SW is installed. -
Page 8: Push-Pull Outputs (Models With Step 10Mm, 20Mm, 30Mm Standard Models)
PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Push-Pull Outputs (models with step 10mm, 20mm, 30mm STANDARD MODELS) The models with step 10mm, 20mm, 30mm STANDARD (not H models) are provided with digital outputs 0-24VDC Push-Pull type. This outputs can operate both in PNP and NPN mode. At the power-on the barrier recognizes the type of connection of the load and operates accordingly. -
Page 9: Indicator Lamps
PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN INDICATOR LAMPS EMITTER (AC/AC/B/C) TRI-COLOUR LEDS MEANING (Red/Green/Orange) System start. RED BLINKING FAIL condition Normal operation. At power on: GREEN • 2 slow blinks -> Low range • 2 fast blinks -> High range ORANGE BLINKING No synchronisation via cable Figure 7 RECEIVER (AC/AV/B) -
Page 10: Technical Features
PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN TECHNICAL FEATURES Micron 5mm SAFETY CURTAIN TECHNICAL FEATURES Model AV/AC Operating range (REDUCED) 00,6 / 0,61,5 00,6 / 0,61,5 (selectable from sofware) 01 / 0,62,5 Operating range (NORMAL) 01 / 0,62,5 01 / 0,62,5 (selectable from sofware) 24 ... - Page 11 PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Micron 10mm, 20mm, 30mm MEASURE CURTAIN TECHNICAL FEATURES Model AV/AC Operating range 02 / 110 02 / 110 02 / 110 24 20% 24 20% 24 20% Power supply M12 - 5-pole emitter / M12 - 8-pole receiver M12 - 5-pole emitter / M12 - 8-pole receiver M12 - 5-pole emitter / Connections...
- Page 12 PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Micron 10mm, 30mm (H) MEASURE CURTAIN TECHNICAL FEATURES Model AVH / ACH Operating range (REDUCED) 03 / 08 03 / 08 (selectable from sofware) 08 / 118 Operating range (NORMAL) 08 / 118 08 / 118 (selectable from sofware) 24 ...
- Page 13 PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Micron 25mm, 50mm, 75mm SAFETY CURTAIN TECHNICAL FEATURES Model AV/AC Operating range (REDUCED) 03 / 08 03 / 08 (selectable from sofware) 08 / 118 Operating range (NORMAL) 08 / 118 08 / 118 (selectable from sofware) 24 ...
- Page 14 PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Beam spacing 5 mm Model 1050 1200 1350 1500 Measurement height (mm) 1045 1195 1345 1495 Number of beams Beam spacing 10 mm Model 1051 1201 1351 1501 1651 1801 1951 2101 2251 2401 2551 2701 2851 3001 Measurement...
-
Page 15: Mechanical Dimensions (All Measurements Are In Mm)
PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Mechanical dimensions (all measurements are in mm) LE brackets 25mm, 50mm, 75mm 10mm, 20mm, 30mm 1050 1200 1350 1500 1650 1800 1950 2100 2250 2400 2550 2700 2850 3000 1113 1263 1413 1563 1713 1863 2013 2163 2313 2463... -
Page 16: Configuration Software
* If more than one zone is obstructed, the data refer to the zone with the highest number of obstructed beams. A graphic interface can also be displayed for real-time monitoring of light curtain conditions. The following figures illustrate some screen pages of the ReeR MicronConfigurator program which can be used to configure the Micron's operating logic. Preliminary Operations Insert the MICRONCONFIGURATOR CD-ROM in the computer and follow the software installation instructions. -
Page 17: Connecting/Disconnecting The Light Curtain
PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Connecting/disconnecting the light curtain The "Barrier characteristics" panel in the top left corner is filled in automatically a few seconds after establishing the USB connection. Click (upload) to send the configuration to the Micron: at the end of this procedure the light curtain will automatically restart using the new configuration. -
Page 18: Input Pin Configuration (2)
PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN INPUT PIN CONFIGURATION (2) Figure 11 Input pin configuration (2) The input pin can be configured as follows: No function (disabled). Trigger function: this can be used to enable analog and digital outputs, stand-by and start/stop measurements. In this mode the minimum internal trigger time can be set to between 0 and 250 ms. -
Page 19: Teach In Mode (3)
PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN TEACH IN mode (3) When the input pin is configured as Teach in the “Teach in mode” panel is active Teach in mode is used when the light curtain must recognise a specific object or pattern. There are three possible options: MODE DESCRIPTION The object to be recognised must be compact (with no transparent... -
Page 20: Analog Output Configuration (Ac/Av Models) (4)
PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Analog output configuration (AC/AV models) (4) ANALOG OUTPUT CONFIGURATION (4) Figure 13 It is possible to configure the conditions for activating each single output. Use the “ENABLE” box to select the conditions for activating each analog output. MODE DESCRIPTION Output disabled... -
Page 21: Digital Output Configuration (5)
PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Digital output configuration (5) DIGITAL OUTPUT CONFIGURATION (5) Figure 14 The conditions for activating each digital output can be selected in the "ENABLE" panel. MODE DESCRIPTION Output disabled The output is not active and gives 0 VDC The output is active and gives 0 VDC or 24 VDC depending on the set condition. -
Page 22: The Condition Box
PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN The CONDITION box The “CONDIZIONE” box can be used to set the condition for switching the output to LL1 (24 VDC): First select operator 1 in the left-hand column. Select the condition: Select the value. The program offers a choice of the following conditions: •... -
Page 23: Rs485 Output Configuration (B Models) (6)
PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN RS485 output configuration (B models) (6) RS485 CONFIGURATION (6) Figure 17 The conditions for activating RS485 serial data transmission can be selected in the "ENABLE" panel. Enable MODE DESCRIPTION RS485 disabled Data transmission not active RS485 always enabled Data transmission always active Data transmission only starts upon recognition of a character that is received. -
Page 24: Micron On Network
PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Micron on Network Micron barrier can be connected on Network; the maximum number of barriers is 3. • The first barrier will be programmed with node=0. • The other barriers will have a node sequential and different from 0 numeration. •... -
Page 25: Data Transmission Parameters
The Checksum field is only present if selected in the “Data transmission parameters” section. In “Metron simulation” mode the barrier will send data simulating the METRON B in “Binary” mode. In “FieldBus” mode must be selected when the barrier is coupled with a ReeR FieldBus module. 8541124 - 12/12/2018 - Rev.6... -
Page 26: Comparator Mode
PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Comparator mode The following figure shows a scheme of the data packet sent by the light curtain in comparator mode. Figure 20 8541124 - 12/12/2018 - Rev.6... -
Page 27: Protocol Mode
PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Protocol mode The following figure shows a scheme of the data packet sent by the light curtain in protocol mode. Figure 21 8541124 - 12/12/2018 - Rev.6... -
Page 28: Example Of Data Packet In Comparator Mode
PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Example of data packet in comparator mode BEAMS STATUS (1->beam clear; 0->beam obstructed; x->don't care) 7 BYTES IN TOTAL 8541124 - 12/12/2018 - Rev.6... -
Page 29: Example Of Data Packet In Protocol Mode
PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Example of data packet in protocol mode BEAMS STATUS (1->beam clear; 0->beam obstructed; x->don't care) Length 9 BYTES IN TOTAL 8541124 - 12/12/2018 - Rev.6... -
Page 30: Monitoring Light Curtain Status
PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN Monitoring light curtain status AV/AC models Click "MONITOR" to open a graphic user interface that displays light curtain operation in real time. The following information is given: 1. Model and data of the light curtain connected 2. -
Page 31: B Models
PHOTOELECTRIC MEASUREMENT LIGHT CURTAIN B models Click "MONITOR" to open a graphic user interface that displays light curtain operation in real time. The following information is given: 1. Model and data of the light curtain connected 2. Synchronisation (optical or via cable) 3. - Page 32 Dichiarazione CE di conformità EC declaration of conformity Torino, 21/03/2016 REER SpA via Carcano 32 10153 – Torino Italy dichiara che: le barriere fotoelettriche MICRON le intefacce BUS della serie MI-B sono dispositivi optoelettronici di misura realizzati in conformità alle seguenti Direttive Europee: declares that: ...
