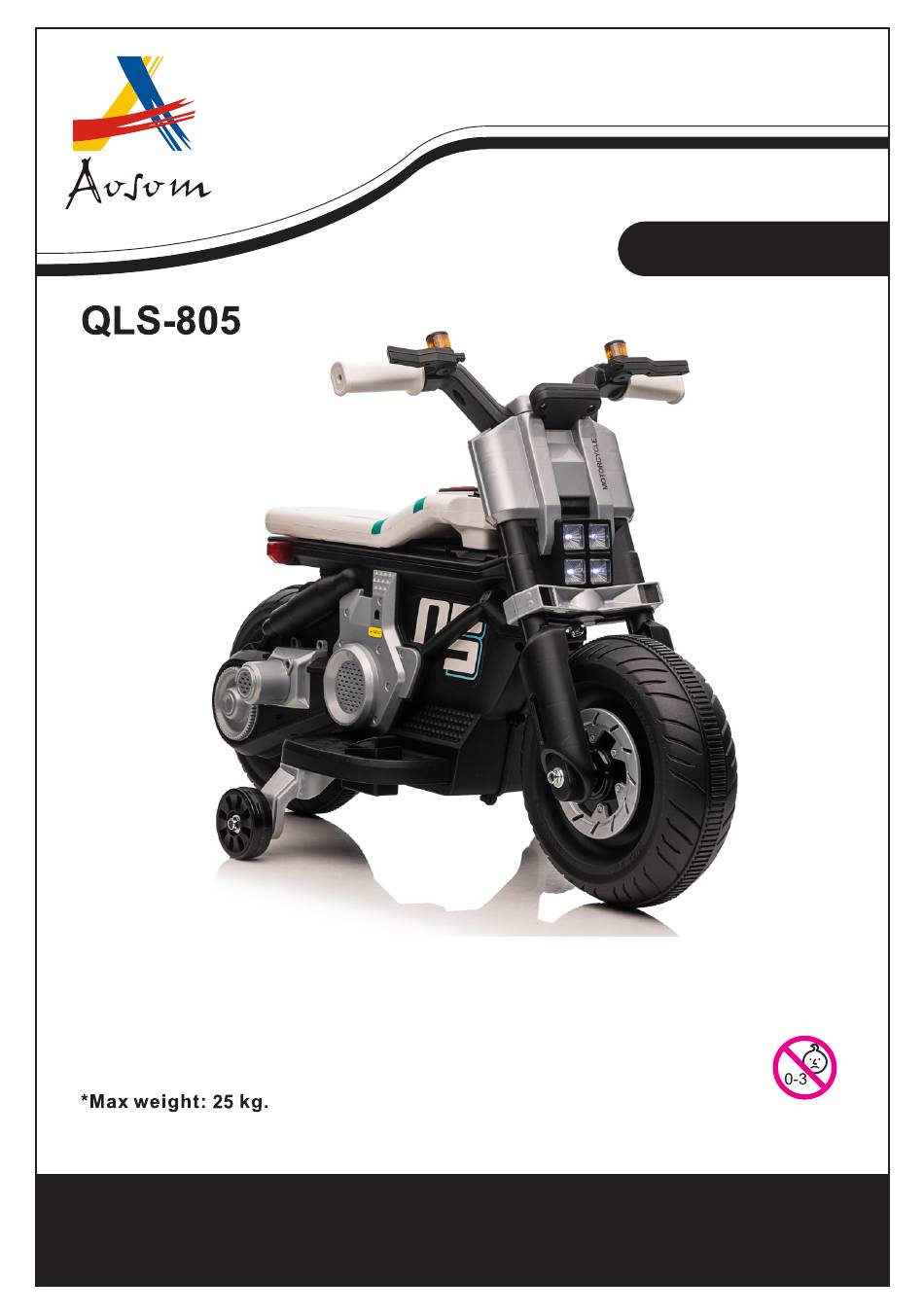

IN220901139V02_US
370-253V80
Children Electric Motorcycle
Installation and Operation Instructions
Forward and backward operations by manual shift
Lighting and music playback functions
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
ASSEMBLY INSTRUCTION
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Aosom QLS-805
Summary of Contents for Aosom QLS-805
- Page 1 IN220901139V02_US 370-253V80 Children Electric Motorcycle Installation and Operation Instructions Forward and backward operations by manual shift Lighting and music playback functions IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY ASSEMBLY INSTRUCTION...
- Page 2 Battery: 6V 4AH Drive Motor: 6V380*1(14000RPM) Suitable age: 37-60 months Maximum weight: 25 kg Car Size: 86x44x58 cm Speed: 3-5km/h Hours of Use: Using 45 minutes after Charging 8-10 hours Charger: Input: 100V-240V Output: 6V0.5A...
- Page 4 ③ ① ④ ② - Non-rechargeable batteries are not to be recharged, - The rechargeable batteries should be charged under adult supervision - Different types of batteries or new and used batteries are not to be mixed, - Batteries are to be inserted with the correct polarity(+ and -) - Exhausted batteries are to be removed from the toy.
- Page 5 Remove the two fasteners and screws from the head, install the handlebar to the head, install the fasteners back to the fixed position, and lock them with screws. Connect the headlight cable interface to the corresponding connection port at the front end of the body, and then hide the interface inside the body.
- Page 6 Install the head to the front of the machine body and align it from the upper hole to the lower hole. The long screw passes through the position from the upper end face. Put the shim and nut under it in turn and tighten it with a wrench.
- Page 7 Remove the front axle, nuts and shims from the head assembly, install the front wheel into the front insert, align the holes, and then penetrate the front axle. Install the shims and nuts on both sides in turn and tighten with wrenchs. First remove the pre installed screws on the bottom of the body and the foot pedal, then install the foot pedal on the body, then install the auxiliary wheel assembly into the bottom and fix it with screws...
- Page 8 Distinguish the left and right taillight decorative and install them to the corresponding body holes. Take out the pre installed screws at the fixed position of the motor cover, install the motor cover, and then fix it with screws. Open the seat cover, connect the interface of the power cord, open the power switch to check whether it is powered on, then install the seat cover and tighten the screws.
- Page 9 Warning: The toy is to be assembled by an adult. In unassembled state contain potentially hazardous sharp points, sharp edges and small part, so please keep out of baby's reach. Warning: Not to be used in traffic. Warning: Only adults can install parts and adjust the car, and keep moving parts out of children 's reach.
- Page 10 Charge the battery before first use, otherwise the battery will be damaged forever. In charging, put DC plug into the power socket, put charger into power plug. Never use the product during charging it. The product can be used for one hour and the charging time is 8-10 hours, exceeding no more than 18 hours.
- Page 11 fixed by professionals or under the guidance of professionals. If you have any questions, please contact our customer care center. Our contact details are below: 001-877-644-9366 customerservice@aosom.com Imported by Aosom LLC 27150 SW Kinsman Rd Wilsonville, OR 97070 USA MADE IN CHINA...
