FLIP-N-STORE TABLE COMPONENTS
A
1x Table Top
C
2x Leg
2x Swivel
D1
Caster
1
Place Tabletop
Depress the lever on the Tabletop locking mechanism
to release the Lock. Align holes in Legs
in Tabletop frame as shown and secure with a 1 3/4"
Socket Screw
(Ensure the elongated part for the Legs are positioned
over the Tabletop as shown). Tighten with enclosed
5mm Allen Wrench
Page 1 of 2
ASSEMBLY INSTRUCTIONS

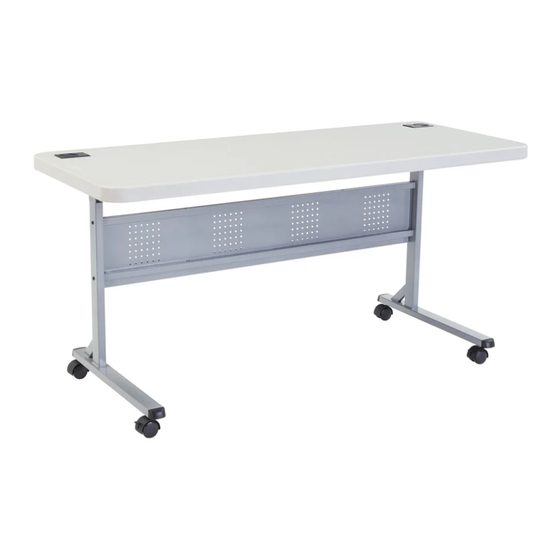

MODEL BPFT-2460 | PLASTIC FLIP-N-STORE TABLE
1x Modesty
B
Panel
frame side up on a clean surface.
A
and Nut
on each side.
E
F
and double sided Wrench
I
A
www.nationalpublicseating.com
2x Locking
D
Swivel Caster
with holes
C
.
J
INCLUDED HARDWARE
E
F
2x 1 3/4"
Socket Screw
G
H
4x 1 5/8"
1x 4 mm.
Socket Screw
Allen Wrench
J
I
1x 5 mm.
2x Double
Allen Wrench
Sided Wrench
C
F
2x Nut
E
1-800-261-4112
Advertisement
Related Manuals for National Public Seating BPFT-2460
Summary of Contents for National Public Seating BPFT-2460
- Page 1 ASSEMBLY INSTRUCTIONS MODEL BPFT-2460 | PLASTIC FLIP-N-STORE TABLE FLIP-N-STORE TABLE COMPONENTS INCLUDED HARDWARE 1x Table Top 2x 1 3/4” 2x Nut Socket Screw 4x 1 5/8” 1x 4 mm. Socket Screw Allen Wrench 1x Modesty Panel 2x Leg 2x Locking Swivel Caster 1x 5 mm.
- Page 2 Using enclosed 4mm Allen Wrench , attach Modesty Panel to Legs with four Socket Screws . If you want the Modesty Panel to be seen, then make sure that the Cable Channel is facing away from the elongated part of the Leg as shown. If you want it to be hidden, then face it in the direction of the elongated part of the Leg.
