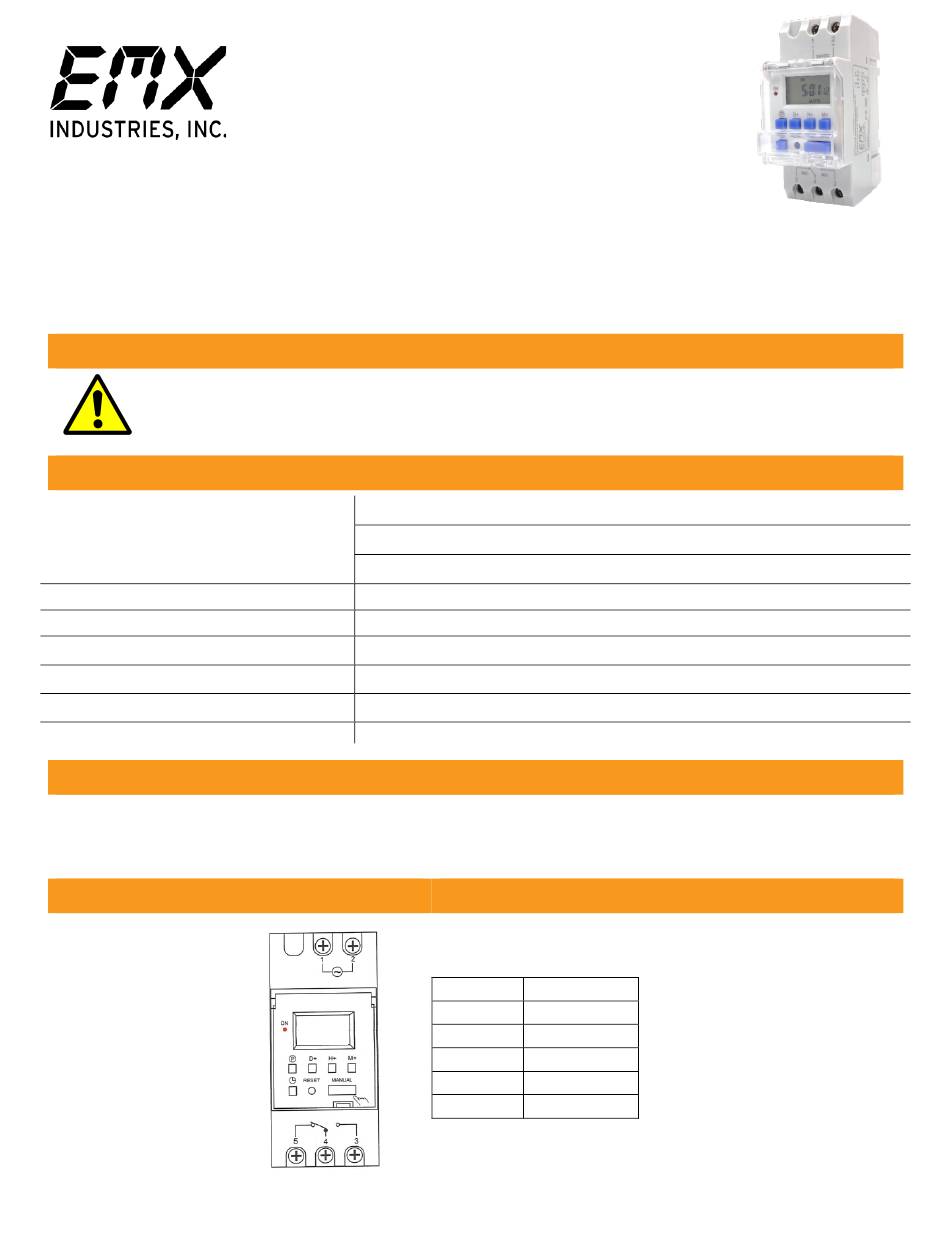

EMX PTM-12 Instruction Manual

Instruction Manual
The PTM seven day timer allows for the programming of open and closing times for automated doors, gates,
and parking barriers. The relay can handle currents of 16 A @ 120 VAC for automation of powered products
such as pumps, lighting systems, and other 5V to 120V solutions. It supports up to 18 on/off events, and input
on multiple days or single days to an event.
Cautions and Warnings
Install the PTM according to instructions from the gate or door operator manufacturer.
Comply with all applicable codes and safety regulations.
Specifications
Power & Current Draw
Events
Daily Program Options
Relay Contact Rating
Operating Temperature
Mounting
Dimensions (L x W x H)
Ordering Information
PTM-12
•
PTM-24
•
PTM-120
•
Wiring Connections
EMX Industries, Inc.
Document No.10078647 Rev 1.3

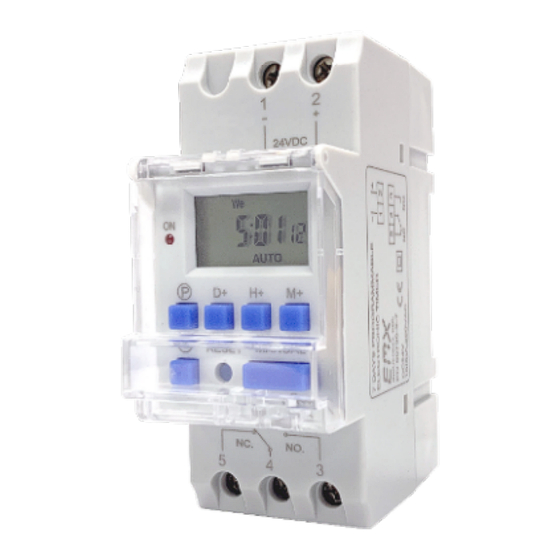

PTM
™
7 Day Programmable Timer
12 VDC/AC – 6 mA standby, 46 mA activated (PTM-12)
24 VDC/AC – 15 mA standby, 37 mA activated (PTM-24)
120 VAC – 33 mA standby and activated (PTM-120)
18 ON/OFF per day
15 combinations
SPDT 16 A @ 24 VDC / 120 VAC
14º F to 122ºF (-10°C to 50°C )
DIN rail
3.41" (86.5 mm) x 1.42" (36 mm) x 2.70" (68.5 mm)
12 VDC/AC programmable timer
24 VDC/AC programmable timer
120 VAC programmable timer
Tech support: 216-518-9889
technical@emxinc.com
Terminal Description
1 Power -
2 Power +
3 Relay – NO
4 Relay – COM
5 Relay – NC
TM
1/4
