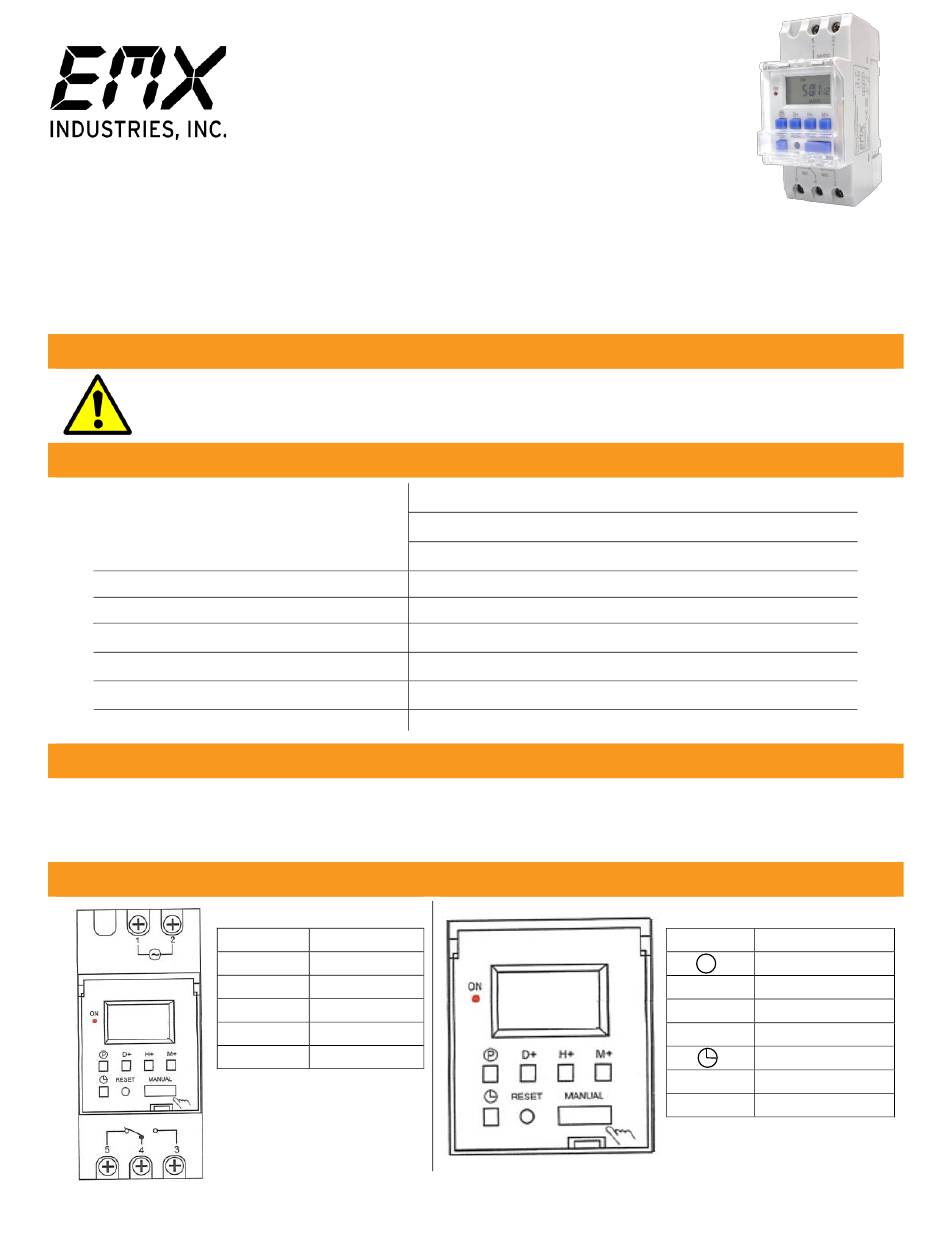

EMX PTM Series Instruction Manual

Instruction Manual

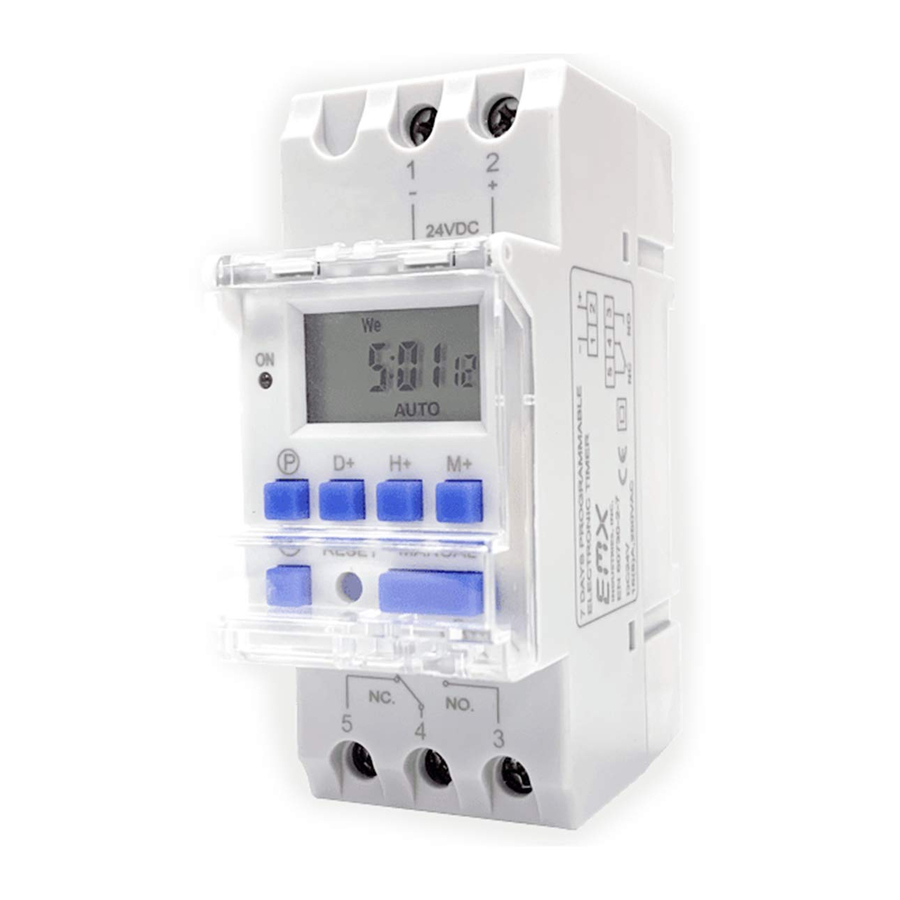

The PTM seven day timer allows for the programming of open and close times for overhead doors, gates
and parking barriers. It is designed with 16 ON/OFF events per day and 15 combinations of
daily programs for the best flexibility to the user. This DIN rail mounted timer has an internal battery for
memory back-up in the event of a power failure.
Cautions and Warnings
Install the PTM according to instructions from the gate or door operator manufacturer.
Comply with all applicable codes and safety regulations.

Specifications

Power & Current Draw
Events
Daily Program Options
Relay Contact Rating
Operating Temperature
Mounting
Dimensions (L x W x H)
Ordering Information
PTM-12
•
PTM-24
•
PTM-120
•

Wiring Connections

Terminal Description
EMX Industries, Inc.
PTM_Rev1.0_082420
PTM
™
7 Day Programmable Timer
12 VDC/AC – 46 mA activated
24 VDC/AC – 37 mA activated
120 VAC – 33 mA activated
16 ON/OFF per day
15 combinations
SPDT 16 A @ 24 VDC / 120 VAC
14º F to 122ºF (-10°C to 50°C )
DIN rail
3.41" (86.5 mm) x 1.42" (36 mm) x 2.70" (68.5 mm)
12 VDC/AC programmable timer
24 VDC/AC programmable timer
120 VAC programmable timer
1 Power -
2 Power +
3 Relay – NO
4 Relay – COM
5 Relay – NC
Tech support: 216-518-9889
technical@emxinc.com

User Interface

TM
Button Function
P
Program Adjust
D+ Day Adjust
H+ Hour Adjust
Minute Adjust
M+
Clock Adjust
RESET* Reset Timer
MANUAL Relay Set
