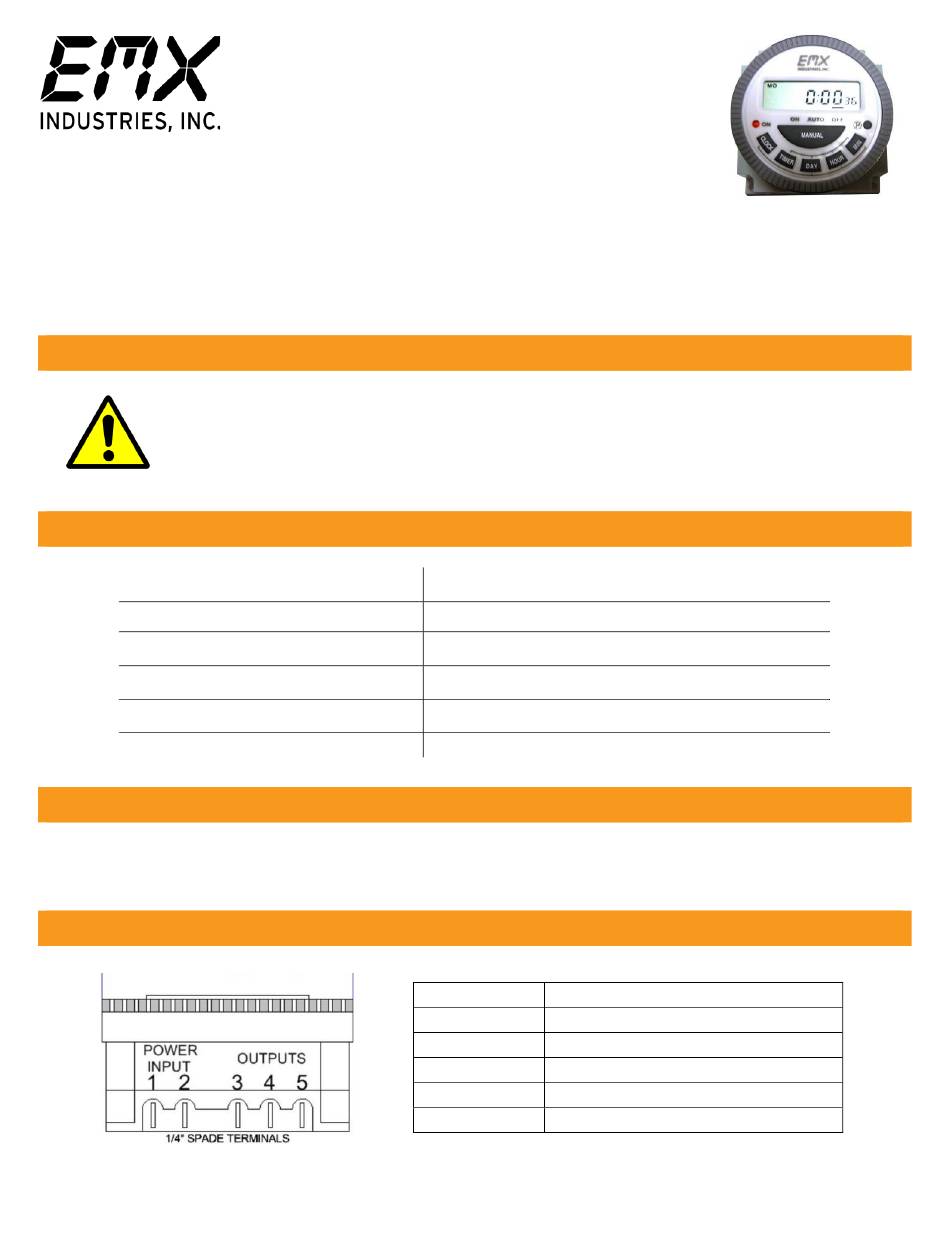

Instruction Manual
The ETM-17 is a panel mount digital timer that can be operated in 12 VDC or 24 VDC/AC power supply
ranges depending on model. The timer has an internal battery for memory backup in the event of a
power failure. The ETM-17 is designed with 17 ON/OFF events per day and 15 combinations of
daily programs for the best flexibility to the user.
Cautions and Warnings
This product is an accessory or part of a system. Install the ETM-17 according to
instructions from the gate or door operator manufacturer. Comply with all applicable
codes and safety regulations.
Specifications
Power
Current Draw
Relay Contact Rating
Relay
Mounting
Dimensions (L x W x H)
Ordering Information
ETM-17-12
•
ETM-17-24
•
Wiring Connections
EMX Industries, Inc.
ETM-17_Rev2.1_061620
ETM-17
™
Programmable Digital Timer
12 VDC digital timer
24 VDC/AC digital timer
Tech support: 216-518-9889
technical@emxinc.com
12 VDC, 24 VDC/AC
10 mA standby, 30 mA activated
16 A @ 30 VDC
SPDT 16 A @ 30 VDC
Screw mount
2.4" (61 mm) x 2.4" (61 mm) x 1.2" (30.5 mm)
Terminal
1
Power + (12 VDC or 24 VDC/AC)
2
Power - (12 VDC or 24 VDC/AC)
3
Relay Output Normally Closed
4
Relay Output Common
5
Relay Output Normally Open
Description
TM
1/2
