EMX DTM-9 Instruction Manual
7 day programmable timer
Hide thumbs
Also See for DTM-9:
- Operating instructions manual (8 pages) ,
- Operating instructions manual (10 pages)
Advertisement
Instruction Manual
The DTM-9 seven day timer allows for the programming of open and close times for overhead doors, gates
and parking barriers. The timer can hold up to six different open/close programs for varying days of the
week and times.
Cautions and Warnings
This product is an accessory or part of a system.
instructions from the gate or door operator manufacturer. Comply with all applicable
codes and safety regulations.
Specifications
Power
Current Draw
Relay
Surge Protection
Operating Temperature
Mounting
Dimensions (L x W x H)
Ordering Information
DTM-9-12
•
DTM-9-24
•
DTM-9-120
•
Wiring Connections
EMX Industries, Inc.
DTM-9_Rev2.1_061620
DTM-9
™
7 Day Programmable Timer
12 VDC, 24 VDC/AC or 120 VAC
60 mA standby, 74 mA activated
SPDT 5 A @24 VDC / 120 VAC
MOV protection
-40º to 170ºF (-40º to 77ºC)
DIN rail and flush mount bracket supplied
2.75" (70 mm) x 2.25" (57 mm) x 4.0" (102 mm)
12 VDC programmable timer
24 VDC/AC programmable timer
120 VAC programmable timer
Terminal
Tech support: 216-518-9889
technical@emxinc.com
A
Power + (12 VDC, 24 VDC/AC or 120 VAC)
B
Power – (12 VDC, 24 VDC/AC or 120 VAC)
3
Relay – NC (normally closed contact)
2
Relay – COM (common contact)
1
Relay – NO (normally open contact)
Install the DTM-9 according to
Description
TM
1/2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EMX DTM-9
Summary of Contents for EMX DTM-9

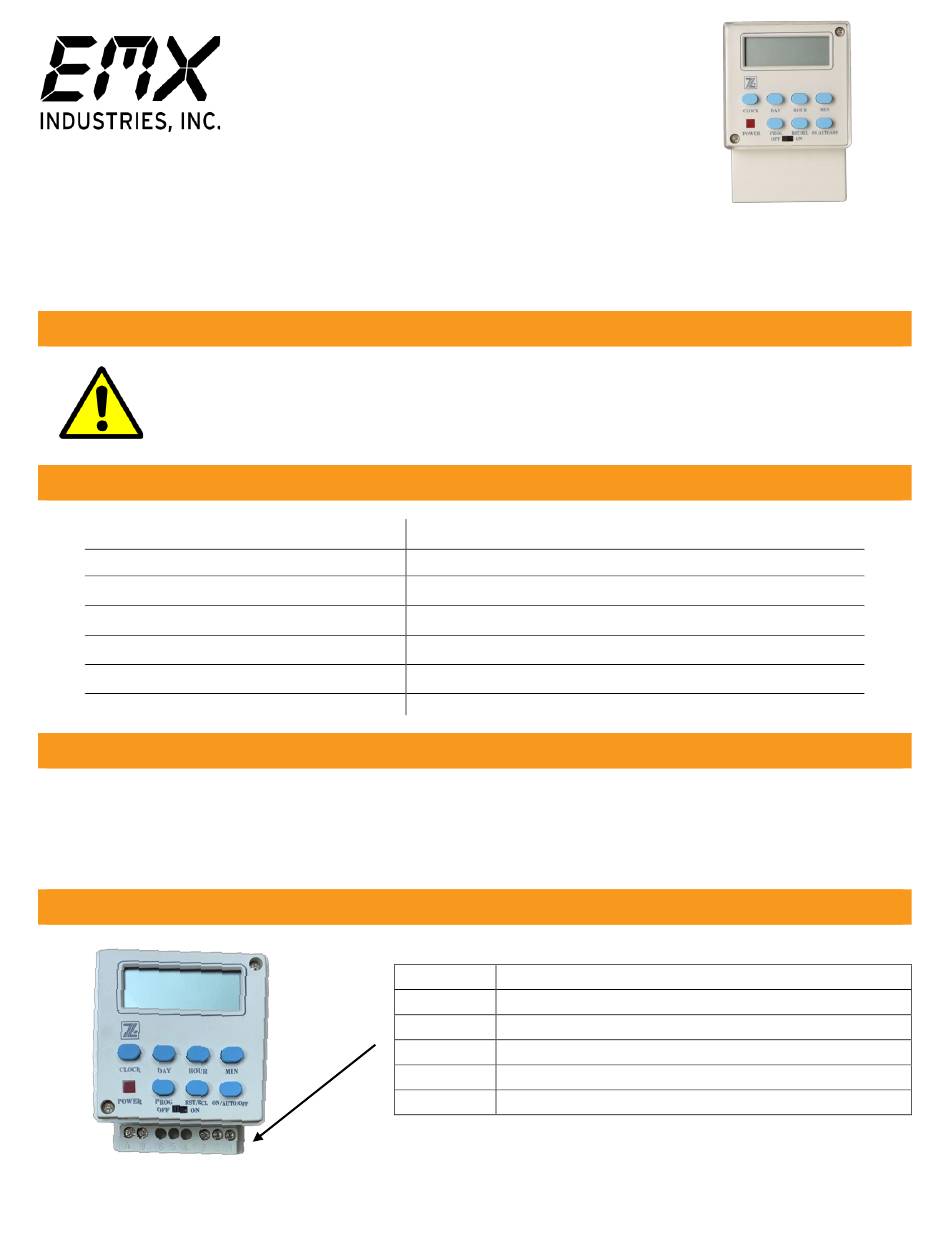

- Page 1 7 Day Programmable Timer Instruction Manual The DTM-9 seven day timer allows for the programming of open and close times for overhead doors, gates and parking barriers. The timer can hold up to six different open/close programs for varying days of the week and times.
- Page 2 Installation 1. Install the DTM-9 on DIN rail or use screws to mount base to surface. Remove clear terminal cover. 2. Connect power to terminals “A” and “B” (polarized). Connect terminal “2” (relay COM) and terminal “1” (relay NO) to the correct terminals in the operator as specified by the manufacturer.
