Alesis Fusion Quick Start Owner's Manual page 13

MULTITRACK INPUTS, EXTERNAL DRIVE PORT, COMPACT FLASH, USB

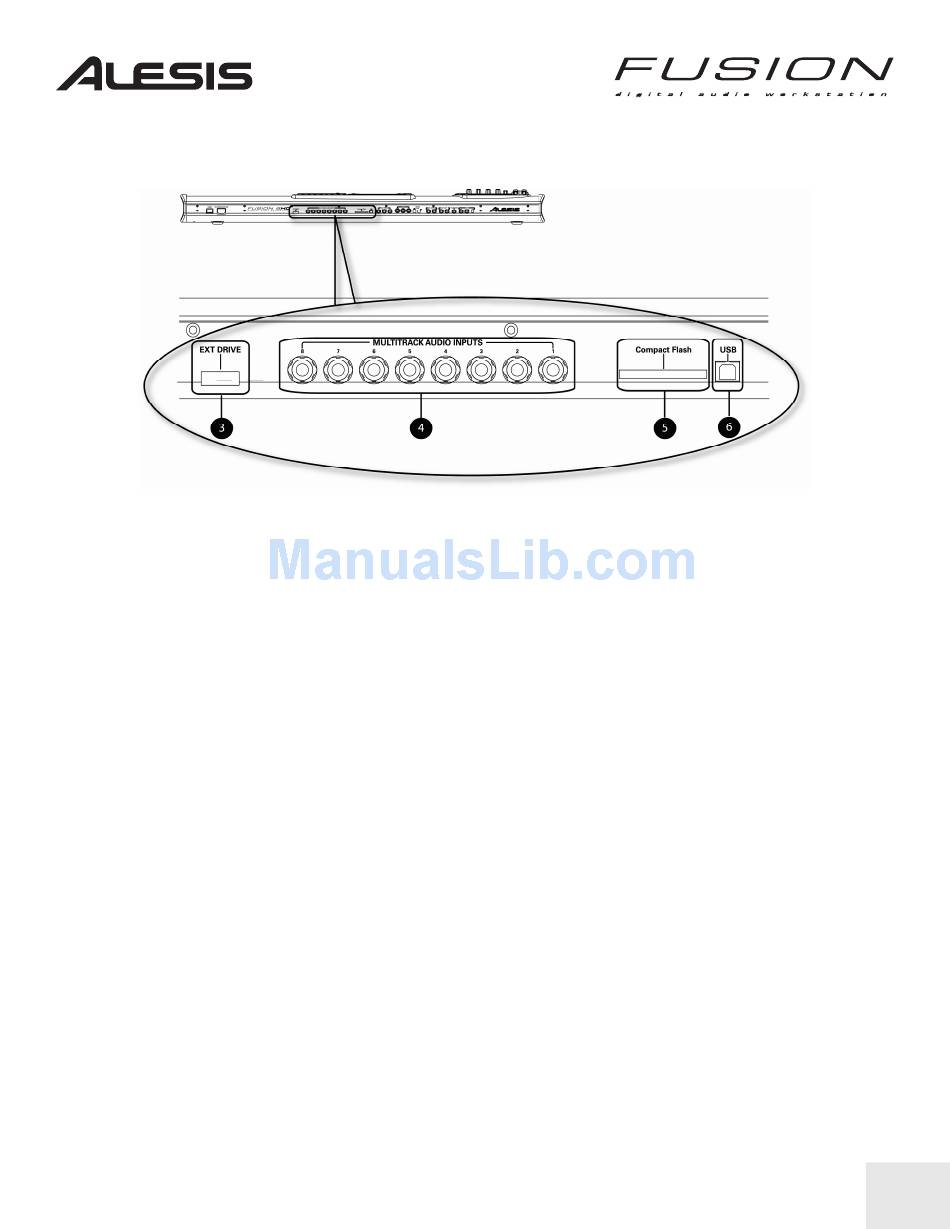

As you face the Fusion's connections panel, the area toward the center left contains the
following:
3. EXT DRIVE: This Serial ATA-type connector allows you to connect an external CD-R or hard
drive to the Fusion.
4. MULTITRACK AUDIO INPUTS: These eight ¼-inch inputs connect to the Fusion's multitrack
audio recorder. The Fusion can record 8 channels simultaneously.
5. COMPACT FLASH: This slot accepts CF cards for saving and loading programs, mixes,
samples, and many other kinds of files.
6. USB: This connector is used to hook up the Fusion to your computer. The Fusion supports
USB 2.0 and is backward-compatible with USB 1.1/1.0.
11
