Sennheiser AWM UHF Quick Manual

AWM UHF (470-694 MHz)
AWM UHF (823-1075 MHz)
AWM 1G8 (1785-1805 MHz)

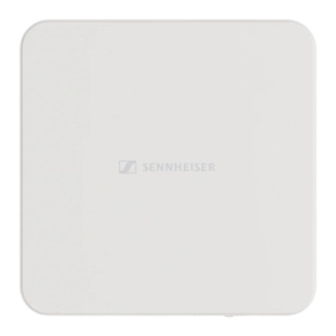

Model: AWM Antenna
Quick Guide
Kurzanleitung
Guide de démarrage rapide
Guida rapida
Instrucciones resumidas
Instruções resumidas
Beknopte gebruiksaanwijzing
Krótka instrukcja obsługi
Snabbguide
Kort vejledning
Pikaohje
Σύντομες οδηγίες
Kısa Kılavuz
Краткая инструкция
快速指南
快速使用指南
クイックガイド
요약 안내서

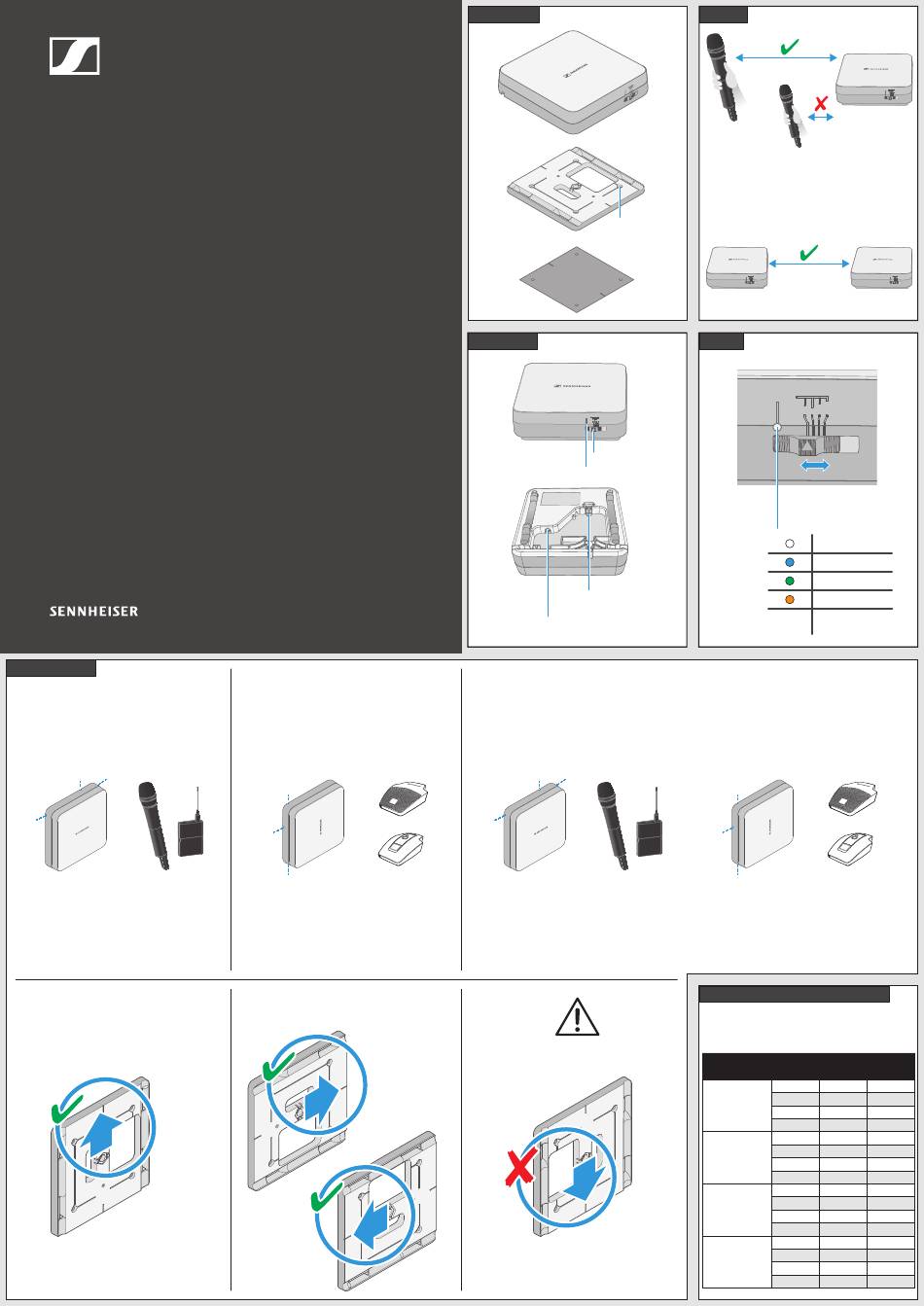

Polarization
Vertical (normal orientation)
best for handheld/bodypack
Vertical polarization
n t e r
c e
e
t o p li n
n t
p ! o u
ll m
w a
t o
1 0 0
S A
V E
n t e r
c e
e
li n
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
Publ. 03/23, 597234/A01
Horizontal (rotated orientation)
best for tablestand
Horizontal polarization
!
t o p
!
t o p
In the box
5,5 mm
Overview
GAIN (dB)
Gain switch
LED
RF out
DC in: 12 V /
max. 0.1 A
DC in
12 V /
max. 0.1 A
Vertical and horizontal (mixed orientation)
best for mixed transmitter
p !
t o
Setup
> 5 m
Diversity
> 1 m
GAIN (dB)
Gain
GAIN (dB)
LED
+12 dB
+6 dB
0 dB
-6 dB
OFF no or insufficient
DC supply
Recommended cable lengths
To ensure reliable operation, observe the following
maximum antenna cable runs and set the gain
accordingly:
Frequency range Gain Max. cable length (m)
around
RG 58 GZL RG 8x
-6 dB 4.5
0 dB 9
500 MHz
+6 dB 18
+12 dB 36
-6 dB 3.5
0 dB 7
700 MHz
+6 dB 14
+12 dB 28
-6 dB 3
0 dB 6
900 MHz
+6 dB 12
+12 dB 24
-6 dB 2
0 dB 4
1800 MHz
+6 dB 8
+12 dB 16
GAIN (dB)
GAIN (dB)
9
18
36
72
7
14
28
56
6
12
24
48
4
8
16
32
