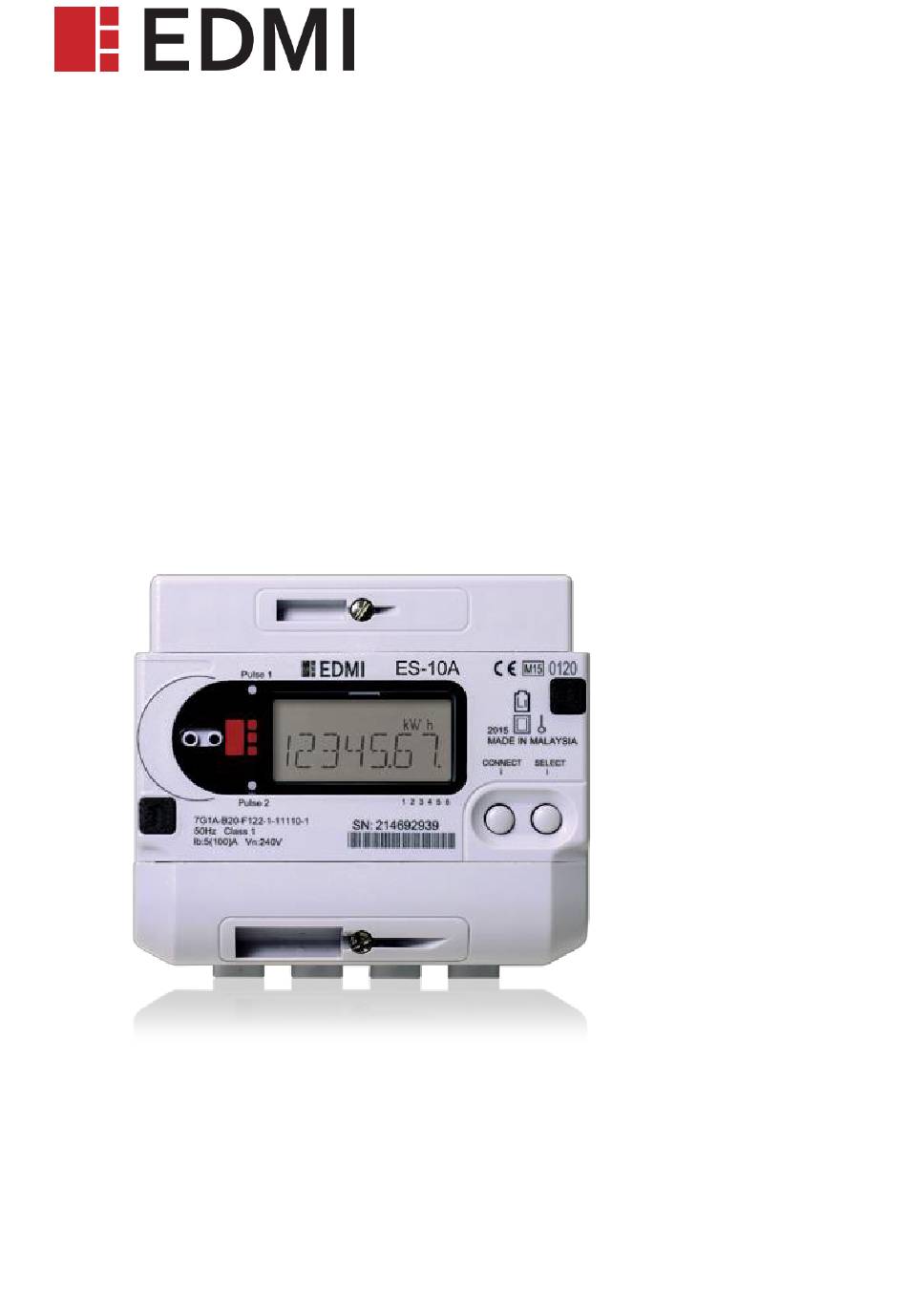

  • Page 1 ES-10A 4 Terminal Single Phase Residential Electricity Meter Product Guide Date: 30/10/2018 Version / Status: 2.7...

  • Page 2: Confidentiality

    Meter - Product Guide Confidentiality The information that is contained in this document is the exclusive property of EDMI Europe Limited (“EDMI”) except as otherwise indicated. The contents of this document and any attached appendices, in whole or in part, must not be reproduced, stored, transmitted or used for design purposes without the prior written permission of EDMI Europe Limited.

  • Page 3: Table Of Contents

    13.1 Credit Mode Menu Structure ..................23 13.2 The Default (Main) Screen – Credit Mode ..............24 13.3 Billing Menu Screens....................25 13.4 Security Menu Screens ....................28 Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 3 OF 60 Version / Status: 2.7 Public...
  • Page 4 Figure 11-1: Enunciators........................21 Figure 12-1: Pushbuttons........................22 Figure 13-1: Terminal Cover Screw ....................42 Figure 16-1: ES-10A with Communications Hub ................53 Figure 16-2: Fitting a Communications Hub ..................54 Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 4 OF 60 Version / Status: 2.7...

  • Page 5: Glossary Of Terms

    Formally known as: DECC Department of Energy and Climate Change – UK Government department. Bill Of Materials – List of materials and costs that form the product Cambridge Consultants Ltd. – Company overseeing the ongoing reliability testing for EDMI’s metering equipment Conseillers en Gestion et Informatique (Company name) –...
  • Page 6 User Integration Testing – Part of the DCC’s testing phase to get ready for go-live Volts Alternating Current – 230VAC is standard in the UK for sockets Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 6 OF 60 Version / Status: 2.7...

  • Page 7: Introduction

    ALCS support that can be fitted with an ICHIS compliant Communications Hub. The EDMI ES-10A electricity meter and Communications Hub (if fitted) are intended for use in CAT III 300V / 4000VAC impulse rated installations. This means that they are suitable for use in all locations on conductors that have up to 300V phase to ground and can withstand transient impulses up to 4000VAC between line and neutral.

  • Page 8: Meter Dimensions

    2 Meter Dimensions Height, Width and Depth values are given for the meter as supplied separately from the Communications Hub. Figure 2-1: Meter Dimensions Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 8 OF 60 Version / Status: 2.7 Public...

  • Page 9: Environmental Conditions

    The Communications Hub dimensions and required environmental conditions will vary according to manufacturer. For Communications Hub specifications, refer to your Communications Hub documentation. Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 9 OF 60 Version / Status: 2.7...

  • Page 10: Handling Of Meters

    ES-10A 4 Terminal Single Phase Residential Electricity Meter - Product Guide 4 Handling of Meters To ensure the longevity of ES10A meters supplied by EDMI we ask for some steps to be followed when handling meters. Always use EDMI provided packaging EDMI packaging is supplied with every meter, this packaging is designed to protect the meter from environmental issues as well as protecting it from damage.

  • Page 11: External Features

     Bottom: Flashing at 1 pulse per varh (1/1000 kvarh) Local optical port. Tamper evident seals protecting the meter lid screws. Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 11 OF 60 Version / Status: 2.7 Public...

  • Page 12: Meter Markings

    Ie = 2A Figure 5-2: Meter Markings EDMI logo and model type. Protective class indicator (or ‘Double Insulated’ symbol). Battery and type (Lithium) symbol. Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 12 OF 60 Version / Status: 2.7 Public...
  • Page 13 --25ºC to +55ºC Operating temperature range EN 50470-3:2006 Reference to European standard EN 50470-3 QR code linking to EDMI web site, year of manufacture, and country of manufacture. Property of XXXXXXX Meter Asset Provider name Enunciators to indicate low credit and emergency credit available (Prepayment mode only).

  • Page 14: Mounting The Meter

    For mounting, use 3 screws with a threaded section no larger than 5mm in diameter with a screw head no smaller than 8mm in diameter. Figure 6-1: Meter Mounting Points Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 14 OF 60 Version / Status: 2.7...

  • Page 15: Under The Terminal Cover

    Note: To access the Engineering menu, you do not need to completely remove the terminal cover. The recommended practice is to simply loosen the terminal cover until the tamper switch releases. Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 15 OF 60 Version / Status: 2.7...

  • Page 16: Connections

    TB2 – 2A Relay ALCS Connection Figure 7-3: Terminal Blocks Terminal Block 2 (TB2) 2A Relay ALCS Connection Terminal Block 1 (TB1) Supply Connections Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 16 OF 60 Version / Status: 2.7 Public...

  • Page 17: Current And Voltage

    Auxiliary Load Control Switch (ALCS) The ES-10A is fitted as standard with an ALCS relay connection. This output should not be used as a pulsing output for transmitting energy pulses, as the output contacts are subject to contact bounce and are not rated for continuous switching.

  • Page 18: Local Optical Port

    The local optical port position is shown in Figure 5-1. The ES-10A uses a BS 62056-21 compliant optical interface to connect the meter to a PC/Test bench/Portable device using a magnetic optical port read head. The optical interface provides a serial connection to the device at 9600 baud.

  • Page 19: Inside The Meter

    Meter - Product Guide 9 Inside the Meter Note: The meter is not designed to be opened after manufacture unless in an EDMI approved triage centre. Care must be taken as dangerous voltages are present in the circuitry inside the meter while the meter is active.

  • Page 20: The Liquid Crystal Display (Lcd)

    Currency and unit symbols. Note only £ will be used in the UK. Engineering menu activated Pay As You Go (or Prepayment) mode is activated Internal battery low indicator Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 20 OF 60 Version / Status: 2.7 Public...

  • Page 21: Enunciators

    Figure 11-1: Enunciators 12 The Pushbuttons & User Interface The ES-10A has two pushbuttons for installers/customers to interact with the meter, and both are multifunctional. Figure 12-1 shows the two buttons and labelling around them. The left button acts as both as the ‘up’ and ‘left’ functions, and the right button acts as the ‘down’ and ‘right’ functions.

  • Page 22: Figure 12-1: Pushbuttons

    Press OK)… Note: After a period of inactivity, the meter will revert to the main screen. This time will depend upon each supplier’s configuration. Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 22 OF 60 Version / Status: 2.7...

  • Page 23: Menu Structures

    Pwr Log Info Info version MPAN MPAN Call Call Import Export Name Softw Firmw Confg EUI64 RSSI Comms Continued on next page… Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 23 OF 60 Version / Status: 2.7 Public...

  • Page 24: The Default (Main) Screen - Credit Mode

    £ When on any other screen, the meter display reverts to this default screen if no buttons have been pressed for one minute. Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 24 OF 60 Version / Status: 2.7...

  • Page 25: Billing Menu Screens

    When the meter is operating in prepayment mode, the equivalent of this information is displayed on the Prepay (PAYG) menus and the MyBills menu displays: < N N E > Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 25 OF 60 Version / Status: 2.7 Public...
  • Page 26 The Advancd menu enables you to view the:  TOU Register Matrix.  TOU Block Register Matrix.  TOU Block Counter Matrix. Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 26 OF 60 Version / Status: 2.7 Public...
  • Page 27 3 4 5 When in this menu, the UI buttons perform the following actions: Left / Right Scroll up or down the table. Wrapped. Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 27 OF 60 Version / Status: 2.7 Public...

  • Page 28: Security Menu Screens

    The Main Security screen provides access to the:  Set PIN menu, on which you can set a PIN or change an existing PIN.  Remove an existing PIN. Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 28 OF 60 Version / Status: 2.7 Public...
  • Page 29 PIN that you enter after the third attempt is incorrect, you will be locked out of the user interface for one hour. Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 29 OF 60 Version / Status: 2.7...

  • Page 30: Info Menu Screens

    The Time menu item displays the local time, taking into account BST. For example: 8: 0 When in this menu, the UI buttons perform the following actions: Left / Right No effect. Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 30 OF 60 Version / Status: 2.7 Public...
  • Page 31 The Name menu item displays the supplier’s name. The name entered can be a maximum of 15 characters and scrolls at a rate of one character per second. Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 31 OF 60 Version / Status: 2.7...
  • Page 32 The Imprt option displays the Import Meter Point Administration Number. The 13 digit string scrolls across the screen at a rate of one character per second. For example: (Full message string “0123456789101”) Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 32 OF 60 Version / Status: 2.7 Public...
  • Page 33 Use the left/right buttons to scroll up and down the list of events and press the OK button to switch between the Event Code and the Timestamp display (every two seconds, the Timestamp display cycles between the date and time display). Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 33 OF 60 Version / Status: 2.7...
  • Page 34 This shows that Event 001 occurred at 23:01:15 on 01.01.15. The display will cycle between the time and date every two seconds. When in this menu the UI buttons perform the following actions: Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 34 OF 60 Version / Status: 2.7...
  • Page 35 The Supply menu display the supply state as either being Enabled, Disabled (displayed as Disabld to fit on the screen), or Armed. For example: A B L Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 35 OF 60 Version / Status: 2.7 Public...
  • Page 36 For example: 0. 1 When in this menu the UI buttons perform the following actions: Left / Right No effect. No effect. Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 36 OF 60 Version / Status: 2.7 Public...
  • Page 37 Left / Right No effect. No effect. Return Return to parent menu. 13.5.10.3 Configuration Version The Confg menu displays the meter’s configuration version. Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 37 OF 60 Version / Status: 2.7 Public...
  • Page 38 Displays the EUI64 of the selected device. For example: 5 6 7 When in this menu, the UI buttons perform the following functions: Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 38 OF 60 Version / Status: 2.7 Public...
  • Page 39 6: 2 3. 1 When in this menu, the UI buttons perform the following actions: Left / Right Scroll between two screens. Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 39 OF 60 Version / Status: 2.7 Public...
  • Page 40 When in this menu, the UI buttons perform the following actions: Left / Right No effect. No effect. Return Return to parent menu. Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 40 OF 60 Version / Status: 2.7 Public...

  • Page 41: Message

    Engineering menu. 13.7.1 Accessing the Engineering Menu To access the Engineering menu, loosen the terminal cover enough to activate the tamper detection switch. Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 41 OF 60 Version / Status: 2.7 Public...

  • Page 42: Figure 13-1: Terminal Cover Screw

    2 3 4 This indicates that the first message in the Event Log (001) is GBCS Event Code 8254.234. Pressing OK will display: Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 42 OF 60 Version / Status: 2.7...
  • Page 43 After the test has completer (five minutes), the screen will display the following for five seconds: After which, the screen displays: Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 43 OF 60 Version / Status: 2.7...
  • Page 44 Back to Parent menu. After leaving the network, it can be re-joined using the Join menu option. See section 13.5.8 Join for more information.s Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 44 OF 60 Version / Status: 2.7...

  • Page 45: Prepayment Mode Menu Structure

    The main screen displays basic information at-a-glance, cycling through: Active Import register Active Export Register P R T Meter Balance L N C 0. 4 £ Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 45 OF 60 Version / Status: 2.7 Public...

  • Page 46: Prepayment Menu Screens

    When in this menu, the UI buttons perform the following actions: Left / Right No effect. No effect. Return Return to parent menu. Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 46 OF 60 Version / Status: 2.7 Public...
  • Page 47 When in this menu, the UI buttons perform the following functions: Left / Right No effect. No effect. Return Return to parent menu. Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 47 OF 60 Version / Status: 2.7 Public...
  • Page 48 Return to parent menu. 13.10.4.4 Payment Based Debt Displays payment based debt, cycling through screens displaying the debt amount and the rate. Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 48 OF 60 Version / Status: 2.7 Public...
  • Page 49 When in this menu, the UI buttons perform the following actions: Left / Right No effect. No effect. Return Return to parent menu. Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 49 OF 60 Version / Status: 2.7 Public...

  • Page 50: Top Up Pay As You Go Credit

    You will be prompted to re-enter the UTRN. If a UTRN entry fails for the number of times specified by your supplier, you will be locked out of the user interface for one hour. Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 50 OF 60 Version / Status: 2.7...

  • Page 51: Activate Emergency Credit

    If the meter balance has fallen below the Emergency Credit Threshold, but not below zero. The Emergency Credit Enunciator will be lit. The Home screen will cycle through: G C Y. P R T G C Y. Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 51 OF 60 Version / Status: 2.7 Public...

  • Page 52: Communications Hub

    (via the Communications Service Provider). Only Communications Hubs that follow the ICHIS standard are compatible with the ES-10A (previous hubs used with the Mk7B are not compatible). Figure 16-1 shows a meter with an intimate connection to an Arqiva Communications Hub.

  • Page 53: Figure 16-1: Es-10A With Communications Hub

    Both the screw meter mount and the connection interface is common and specified in ICHIS. However, the size and shape of the Communications Hub, and Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 53 OF 60 Version / Status: 2.7...

  • Page 54: Servicing

    17 Servicing The meter is not designed for field servicing and has no user serviceable parts. The meter has no internal fuses. In the event of failure of the meter, contact EDMI or follow your approved diagnostics and triage process.

  • Page 55: Data Sheet

    Device Language Message Specification (DLMS) CTT 3.0 ZigBee Smart Energy 1.2b Smart Meter Device Assurance scheme (SMD) DCC's Intimate Communications Hub Interface (ICHIS) v1.0 Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 55 OF 60 Version / Status: 2.7 Public...
  • Page 56 Long term overcurrent: 140A for 2 hours BS 7856 Disconnect Rating: IEC62052-31 UC3 @ 100A, 230VAC Auxiliary Relay Auxiliary Load Control Switch(ALCS) (230V, 2A) Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 56 OF 60 Version / Status: 2.7 Public...
  • Page 57 Local optical port - for calibration, configuration or triage ZigBee Smart Energy Profile 1.2b DLMS CCT 3.0 GBCS object support v1.0 release 0.8.2 Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 57 OF 60 Version / Status: 2.7 Public...
  • Page 58 ES-10A 4 Terminal Single Phase Residential Electricity Meter - Product Guide Physical Measurements Dimensions 120mm (H) x 130mm(W) x 65mm (D) Weight Approx. 0.75 kg Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 58 OF 60 Version / Status: 2.7 Public...

  • Page 59: Revision History

    Added section 12.7.4 Leave. Added ‘Section 4: Handling of meters’ 18/10/2017 Added ‘Section 18: Data Sheet’ 04/07/2018 Added information regarding the ‘Mode’ screen 30/10/2018 Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 59 OF 60 Version / Status: 2.7 Public...

  • Page 60: Contact Us

    If you have any further questions or would like to get in touch, please use the details below. EDMI Europe Limited Support Queries: servicedesk.europe@edmi-meters.com Website: www.edmi-meters.co.uk Copyright © 2018 EDMI Europe Ltd. All rights reserved PAGE 60 OF 60 Version / Status: 2.7 Public...
