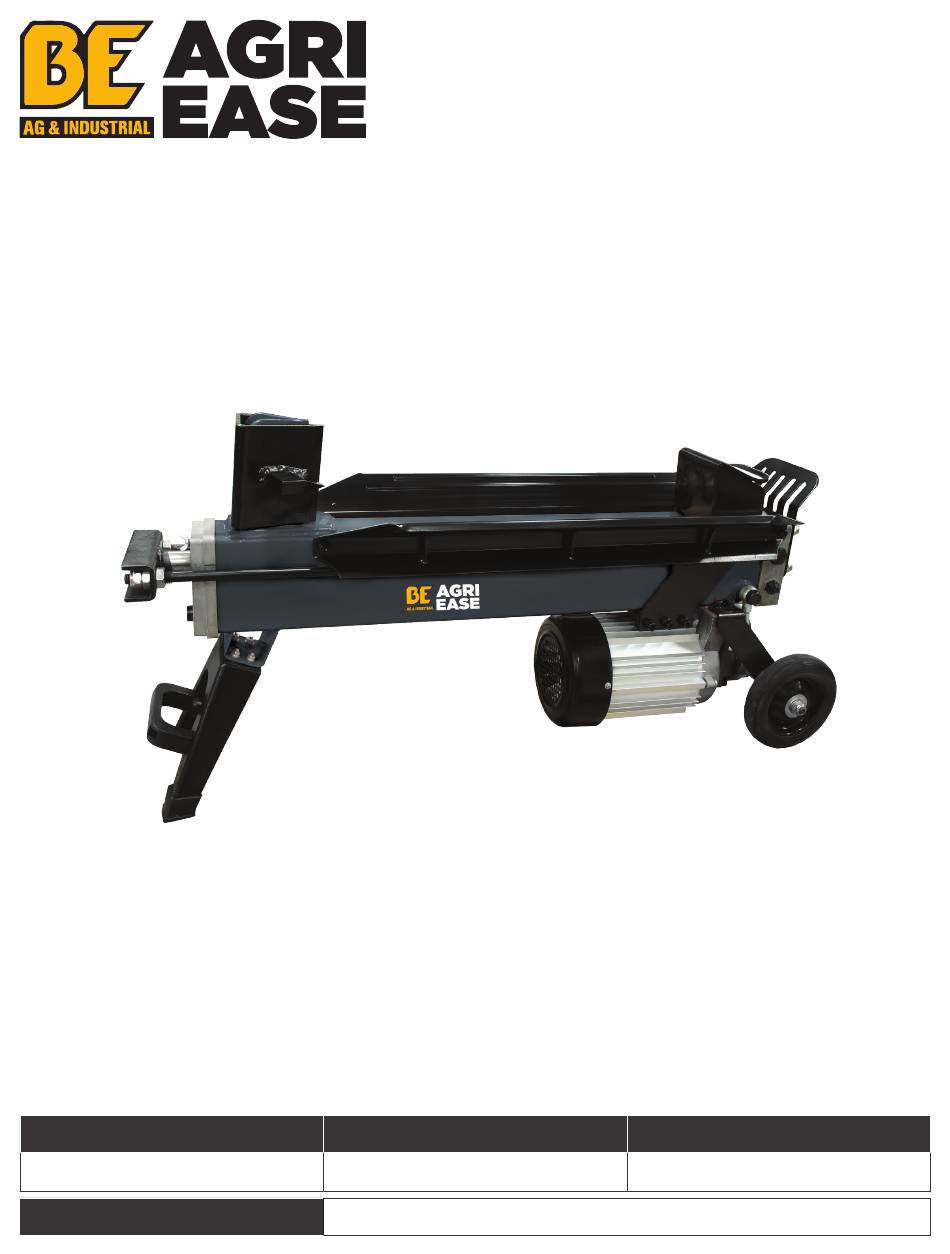

- Page 1 ELECTRIC LOG SPLITTER BE-LS7TELL OPERATIONS & PARTS MANUAL PURCHASE DATE MODEL NO. SERIAL NUMBER DEALER...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INFORMATION SAFETY DECALS SAFETY INFORMATION UNPACKING & ASSEMBLY PRE-OPERATIONAL INSTRUCTIONS OPERATING INSTRUCTIONS MAINTENANCE TROUBLESHOOTING TECHNICAL SPECIFICATIONS EXPLODED DIAGRAM AND PARTS LIST INTRODUCTION To The Owner Thank you for purchasing a BE Agriease Log Splitter. It was carefully engineered to provide excellent performance when properly operated and maintained. -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION WARNING: Read and thoroughly understand all instructions in this manual and on safety decals before assembling or operating this log splitter. Failure to do so may cause serious injury or death. Do not allow anyone to operate this log splitter who has not read this manual. -
Page 4: Safety Decals
SAFETY DECALS Make sure that all safety warning decals are in good condition and readable. Always replace missing or defaced decals. BE-LS7TELL USER MANUAL... -
Page 5: Safety Information
SAFETY INFORMATION This page depicts and describes safety symbols that may appear on this product. Read, understand and follow all instructions on the machine before attempting to assemble and operate. BE-LS7TELL USER MANUAL... - Page 6 SAFETY SIGNALS EXTENSION CORDS Use only 3-wire extension cords that have 3-prong grounding plugs and 3-pole receptacles that accept the tool’s plug. When using a power tool at a considerable distance from the power source, use an extension cord heavy enough to carry the current that the tool will draw. An undersized extension cord will cause a drop in line voltage, resulting in a loss of power and causing the motor to overheat.
- Page 7 ELECTRICAL SAFETY WARNING: Keep the extension cord clear of the working area. Position the cord so that it will not get caught on lumber, tools or other obstructions while you are working with a power tool. Failure to do so can result in serious personal injury. WARNING: Check extension cords before each use.
- Page 8 LOG SPLITTER OVERVIEW REF DESCRIPTION End Wedge Sliding Ram Support Legs, Log Holder Machine Body / Oil Reservoir Control Handle 115V, 2HP Motor Motor Control Box On/Off Switch Electrical Cable w/ Plug Oil Drain Bolt w/ Dipstick Vent Plug Towing Handle (DO NOT touch it during operation) Wheel BE-LS7TELL USER MANUAL...
- Page 9 GENERAL SAFETY Failure to follow these instructions may result in serous injury or death. ALWAYS read the operator’s manual before operation. NEVER allow children to operate this log splitter. NEVER allow adults lacking proper instructions and understanding to operate this log splitter. KEEP all people and pets a minimum of 25 feet away from you your work area form your work area when operating this log splitter during use.
- Page 10 OPERATION OF LOG SPLITTER KNOW how to stop the log splitter and disengage the control before operating it. NEVER place hands or feet between the log and splitting wedge during forward or reverse stroke. NEVER straddle or step over the log splitter during operation. NEVER reach or bend over the log splitter to pick up a log.
-
Page 11: Unpacking & Assembly
HYDRAULIC SAFETY The hydraulic system of your log splitter requires careful inspection along with the mechanical parts. Be sure to replace frayed, kinked, cracked or otherwise damaged hydraulic hoses or hydraulic components. NEVER check for leaks of hydraulic fluid with your hand. Fluid escaping from a small hole can be almost invisible. -
Page 12: Pre-Operational Instructions
PRE-OPERATIONAL INSTRUCTIONS WARNING: If any parts are damaged or missing, do not operate this tool until the missing parts are replaced. Failure to do so could result in possible personal injury. Do not attempt to modify this tool or create accessories not recommended for use with this tool. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury. - Page 13 The oil level has been pre-set by the manufacturer. Check the oil level periodically or as necessary if the machine malfunctions indicating a shortage of hydraulic oil in the tank: the ram is running slowly, not enough power output, or the ram can’t extend fully. How to check the oil level: •...
-
Page 14: Operating Instructions
OPERATING INSTRUCTIONS 1. Plug the unit into a 3-prong outlet. 2. Press the power button to turn the splitter on. 3. Place the log firmly against the wedge. 4. Move control handle down to split the log. Release the handle to retract the ram automatically and begin loading the next log. - Page 15 SPLITTING LOGS See Figure 5. Always place logs lengthwise on the work table and resting firmly on the side supports with one end against the wedge. Place logs flat and in the direction of the grain. Never angle the log to split it or place the log crosswise on the splitter.
-
Page 16: Maintenance
MAINTENANCE WARNING: When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. Only the parts shown on the parts list are intended to be repaired or replaced by the customer. All other parts should be replaced at an Authorized Service Center. - Page 17 BE-LS7TELL USER MANUAL...
-
Page 18: Troubleshooting
TROUBLESHOOTING PROBLEM(S) POSSIBLE CAUSE CORRECTIVE ACTION • Switch off the motor and unplug the power • Overload Protection Device is cable. Let motor cool down for 5 min and Motor fails to start disengaged to protect the log restart. If this does not solve the problem, splitter from being damaged. -
Page 19: Technical Specifications
TECHNICAL SPECIFICATIONS Electrical Requirements 115v, 60hz Power Output 1500W Rated Current 13.5A Motor Speed 3400 RPM Power Cable SJTW AWG (2.08mm2) Max Splitting Force* 7 Ton Max Splitting Length 20.5 in Max Spliting Diameter 10 in Hydraulic Pressure 3500 PSI Cylinder Bore 2.2 in Feed... -
Page 20: Exploded Diagram And Parts List
EXPLODED DIAGRAM AND PARTS LIST BE-LS7TELL USER MANUAL... - Page 21 REF PART NO. DESCRIPTIO SPECIFICATION 3210-325 Machine Body w/ End Wedge 7 Ton 530-101 Ram Cap & Shaft 530-475 Upper Nylon Cushion 530-989 Lower Nylon Cushion 530-616 Base Plate or Ram 750-520 Flat Washer Black Oxide. M10*1.5 750-355 Spring Washer Black Oxide.
- Page 22 REF PART NO. DESCRIPTIO SPECIFICATION 750-075 Flat Washer Black Oxide, M8*2.5 550-203 Hydraulic Pump 730-624 O Seal Ring Ø18*1.9 560-587 Oil Tube Ø14-10*100*2 750-158 Cooper Seal Washer M14*1 710-896 Oil Tube Screw Black Oxide, M14*30*1.5 540-311 Oil Filter 710-541 Inner Hex Head Bolt Black Oxide, M8*30 750-075 Spring Washer...
- Page 23 REF PART NO. DESCRIPTIO SPECIFICATION 750-638 Flat Washer Zinc, M8*1 720-500 Lock Nut Zinc, M8 320-748 U-Shape Towing Handle 340-090 Wheel Axle Ø12.7*335 340-250 Axle Bushing Ø16*1*168 750-146 Flat Washer Zinc, 1/2*2 330-214 Wheel 7”*1.8” 340-132 Bearing Spacer Ø16*1.2*36.8 750-525 Flat Washer Zinc, M10*1.5 720-120...
- Page 24 B RA B E R EQ .CO M WGSALES@BRABEREQ.COM PHONE: 604-850-7770 FAX: 604-850-7774 TOLL FREE PHONE: 1-877-588-3311 TOLL FREE FAX: 1-800-665-7334 BE-LS7TELL USER MANUAL...
