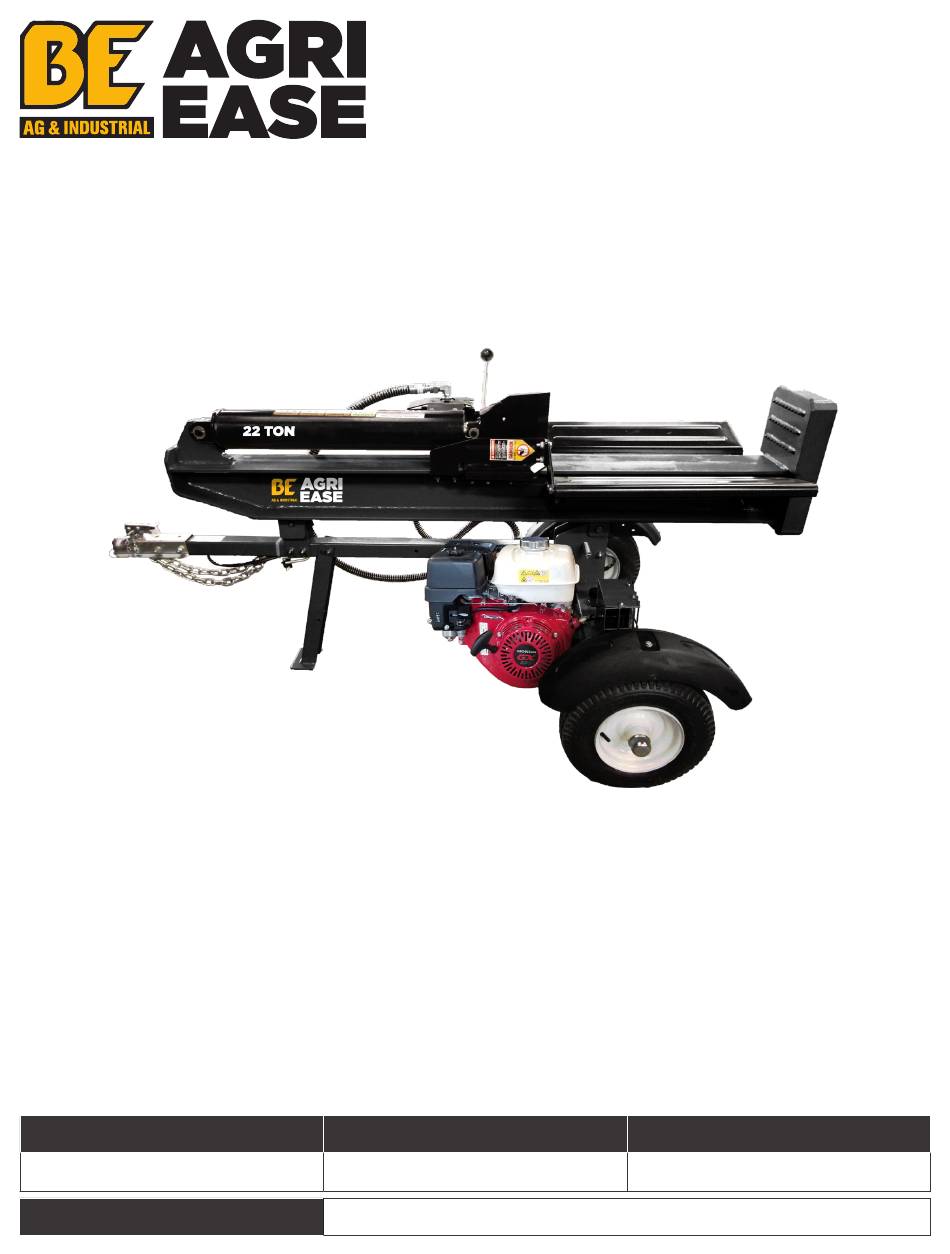

LOG SPLITTER
BE-LS22TL
BE-LS28TL
BE-LS34TL
OPERATIONS & PARTS MANUAL
PURCHASE DATE
MODEL NO.
SERIAL NUMBER
DEALER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BE-LS22TL and is the answer not in the manual?

Questions and answers

Tom Seggerman
July 15, 2025

How do I order parts for BELS22TL640 log splitter? Owner's manual REF# is 12. Fitting for B-Capacity. I would like to see a picture of the item before I order.

Summary of Contents for BE Ag & Industrial BE-LS22TL

  • Page 1 LOG SPLITTER BE-LS22TL BE-LS28TL BE-LS34TL OPERATIONS & PARTS MANUAL PURCHASE DATE MODEL NO. SERIAL NUMBER DEALER...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INFORMATION SAFETY DECALS SAFETY INFORMATION PRE-OPERATION UNPACKING THE CONTAINER ASSEMBLY SET-UP OPERATION MAINTENANCE & ADJUSTMENTS TROUBLESHOOTING SPECIFICATIONS BREAKDOWN PACKING LIST INTRODUCTION Thank you for purchasing a BE Log Splitter. It was carefully engineered to provide excellent performance when properly operated and maintained.
  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION WARNING: Read and thoroughly understand all instructions in this manual and on safety decals before assembling or operating this log splitter. Failure to do so may cause serious injury or death. Do not allow anyone can be dangerous if assembled or used improperly. Do not operate this log splitter if you have any questions concerning safe operation.
  • Page 4: Safety Decals

    SAFETY DECALS Make sure that all safety warning decals are in good condition and readable. Always replace missing or defaced decals. Contact an authorized service dealer for replacement decals. BE-LSxxTL USER MANUAL...
  • Page 5: Safety Information

    SAFETY INFORMATION This page depicts and describes safety symbols that may appear on this product. Read, understand and follow all instructions on the machine before attempting to assemble and operate. WARNING Your Responsibility - Restrict the use of this power machine to persons who read, understand and follow the warnings and instructions in this manual and on the machine.
  • Page 6 TRAINING • Read, understand and follow all instructions on the machine and in the manual(s) before attempting to assemble and operate. Keep this manual safe place for future and regular reference and for ordering replacement parts. • Be familiar with all controls and their proper operation. Know how to stop the machine and disengage them quickly.
  • Page 7: Pre-Operation

    PRE-OPERATION • BEFORE operating this log splitter, make sure that you wear safety goggles or safety glasses, steel toed shoes and tight-fitting gloves (without loose cuffs or draw strings). Always wear a protective hearing device when operating this log splitter. •...
  • Page 8 • BEFORE starting this machine, review the safe instructions in the manual. Failure to follow these rules may resulting in serious injury to the operator or bystanders. • NEVER leave this machine unattended with the engine running. • DO NOT operate machine while under the influence of alcohol, drugs or medication. •...
  • Page 9 OPERATOR ZONE ONLY operate the log splitter from the operator zones as shown in the diagram below. The operator has the safest and most efficient access to the control valve and the beam in this location. Operating the log splitter in another location can result in serious injury or death.
  • Page 10 MAINTENANCE SAFETY • Stop the engine, disconnect the spark plug and ground it against the engine before cleaning or inspecting the machine. • NEVER perform any service or repair on your log splitter without first removing the spark plug wire. •...
  • Page 11 FIRE PREVENTION • ALWAYS take a Class B fires extinguisher with when operating this log splitter in dry areas. • NEVER operate your log splitter near a flame or spark or smoke during operation. Extinguish all cigarettes, cigars, pipes and other sources of ignition. Hydraulic oil and gasoline are flammable and can explode. •...
  • Page 12: Unpacking The Container

    TOWING SAFETY • NEVER carry any cargo or wood on your log splitter. • NEVER allow anyone to sit or ride on your log splitter. • ALWAYS turn the fuel shaft off valve on the engine to the “OFF” position before towing the log splitter. Failure to do so may result in flooding the engine.
  • Page 13 NOTE: DO NOT remove the strap securing the hydraulic hose assemblies to the beam at this time, until you do the assembly procedure of the hoses. Step 4: Use a pry-bar or claw hammer to remove the plywood splinters securing the beam and tank assemblies on the crate bottom.
  • Page 14: Assembly

    ASSEMBLY NOTE: Due to the weight/size of the log splitter, it is recommended that two or more adults be present to assist with the assembling. Some lifting tools as hoist, crane, jack, etc. are recommended. Step 1: Assemble the fenders to the reservoir assembly. See Figure 4. REF DESCRIPTION Reservoir Tank Assembly Fender...
  • Page 15 REF DESCRIPTION Road-Speed Tire & Wheel Castle Nut - 1-1/4 (Hardware Kit #2) Split Pin - Ø4x35 (Hardware Kit #2) Hub Cap (Hardware Kit #2) Step 3: Attach the tongue and jack stand assembly to the reservoir assembly. 1. Remove the spring clip (Ø3) and clevis pin (Ø6x50) from the jack stand on the tongue, then pivot the jack stand towards the ground into the operating position.
  • Page 16 Step 4: Assemble the pump assembly to the engine. See Figure 8. 1. Loosen the set screw on the coupler at the engine side. 2. Place the engine shaft key into the slot on the engine shaft. 3. Insert the engine shaft into the center hole of coupler, pivoting the pump assembly to ensure the engine shaft key to fit in the slot of the coupler center hole.
  • Page 17 Step 6: Assemble the beam. See Figure 10. 1. Stand the beam up on end. Two or more people may be needed for this step to ensure safety. Make sure that the beam is stable and on a level surface. 2.
  • Page 18 Step 7: Connect the open ends of the hydraulic hoses to their corresponding fittings. See Figure 11. There are three hydraulic hoses listed below, each of them has one end fixed on the link part assembly at the manufacturer’s field, the other open end needs you to attach. For clear view of the hydraulic hoses, the hose protective springs are not shown in the illustration below.
  • Page 19 Step 8: Assemble the log dislodger and log tray. See Figure 12. 1. Attach the log tray to the beam and log dislodger to its link part (see highlighted parts in illustration below). You could perform this procedure with the beam in horizontal or vertical position. REF DESCRIPTION Log Tray &...
  • Page 20 REF DESCRIPTION 14-1 Cross Wedge 14-2 L-Shape Support 14-3 Hex Head Bolt - M8x55 1 14-4 Lock Nut - M8 14-5 Hex Head Bolt - M8x25 2 14-6 Spring Washer - M8 14-7 Flat Washer - M8 GAS OIL FILL-UP Service the engine with gasoline and engine oil as instructed in the engine manual packed with your log splitter.
  • Page 21: Set-Up

    SET-UP PREPARING THE LOG SPLITTER 1. Lubricate the beam area (where the splitting wedge will slide) with the engine oil. Do not use grease. See Figure 15. 2. Fill hydraulic oil before your initial use. NOTE: The log splitter is shipped without hydraulic fluid in the reservoir. Use the hydraulic oil your dealer provides or buy the hydraulic oil recommended below.
  • Page 22 7) Refill the tank as specified on the dipstick if necessary. NOTE: Failure to refill the tank will void the splitter’s warranty. 8) Extend and retract the wedge 12 complete cycles to remove any trapped air in the system (the system is “self-bleeding”).
  • Page 23: Operation

    NOTE: This Operator’s Manual covers several models. Log splitter features may vary by model. Not all features in this manual are applicable to all log splitter models and the log splitter depicted may differ from yours. Engine Controls See the Engine Operator’s Manual; for the location and function of the control on the engine. Beam Locks These two locks, as their name suggests, are used to secure the beam in the horizontal or the vertical position.
  • Page 24 4. To place the beam in the Vertical Position proceed as follows: 1) Pull the horizontal beam lock out to release the beam and pivot the beam to the vertical position. See Figure 19. 2) To lock the beam in the vertical position, pull out the vertical beam lock and rotate it to secure the beam.
  • Page 25 SPLITTING THE WOOD 1. Start the engine as instructed in the Engine Operator’s manual included with the log splitter. 2. Place the log against the end plate and only split the wood in the direction of the grain. See Figure 22. 3.
  • Page 26 OPERATION TIPS Always: • Use clean fluid and check fluid level regularly. • Use an approved hydraulic fluid. Approved fluids include Shell Tellus® S2 M 32 Hydraulic Fluid, Dexron® III/ Mecron® Automatic Transmission Fluid, Pro-Select™ AW-32 Hydraulic Oil or 10WAW-ISO viscosity grade 32 hydraulic oil.
  • Page 27: Maintenance & Adjustments

    3. Attached the coupler hitch to a class I or higher 2” ball on the towing vehicle latch securely. 1) If the coupler hitch does not fit on the ball, turn the adjustment nut one turn counter-clockwise. 2) If the coupler hitch is too loose on the ball, turn the adjustment nut one turn clockwise. Then recheck and adjust accordingly.
  • Page 28 Change the hydraulic fluid in the reservoir every 100 hours of operation. The filter should also be changed with each hydraulic fluid change. Follow the steps below: 1. Place a suitable oil connection container under the tank. 2. Disconnect the oil drain screw from the bottom of the reservoir tank. See Figure 24. 3.
  • Page 29: Troubleshooting

    TROUBLESHOOTING Most problems are easy to fix. Consult the trouble shooting table below for common problems and their solutions. If you continue to experience problems, contact your local dealer. If the machine should start making an unusual noise or vibration, shut down the engine, wait 5 minutes for the machine to cool down, then inspect for damage.
  • Page 30: Specifications

    SPECIFICATIONS MODEL BE-LS22TL BE-LS28TL BE-LS34TL ENGINE See engine manual See engine manual See engine manual PUMP Two-Stage, 9 GPM Two-Stage, 11 GPM Two-Stage, 16 GPM CYLINDER (BORE X STROKE) 4x24” 4.5x24” 5x24” MAXIMUM SPLITTING FORCE 22 Tons* 28 Tons* 34 Tons*...
  • Page 31: Breakdown

    BREAKDOWN BE-LSxxTL USER MANUAL...
  • Page 32 REF DESCRIPTION REF DESCRIPTION Beam Incl. End Plate O Seal Ring Splitting Wedge Oil Drain Screw Hex Head Bolt O Seal Ring Lock Nut Fitting for Oil Suction Hose Cylinder Oil Suction Hose Hose Clamp Flat Washer Fitting on Filter for Oil Return Hose Split Pin Filter Cap Hydraulic Hose for A-Capacity...
  • Page 33 REF DESCRIPTION Flat Washer Lock Nut Log Tray w/ Log Dislodger Hex Head Bolt Flat Washer Lock Nut Dislodger Connecting Plate Hex Head Bolt Flat Washer Lock Nut Hex Head Bolt Flat Washer Lock Nut Cross Wedge L-Shape Support 100 Hex Head Bolt Lock Nut 102 Hex Head Bolt 103 Spring Washer...
  • Page 34: Packing List

    PACKING LIST BE-LSxxTL USER MANUAL...
  • Page 35 BE-LSxxTL USER MANUAL...
  • Page 36 B RA B E R EQ .CO M WGSALES@BRABEREQ.COM PHONE: 604-850-7770 FAX: 604-850-7774 TOLL FREE PHONE: 1-877-588-3311 TOLL FREE FAX: 1-800-665-7334 BE-LSxxTL USER MANUAL...
