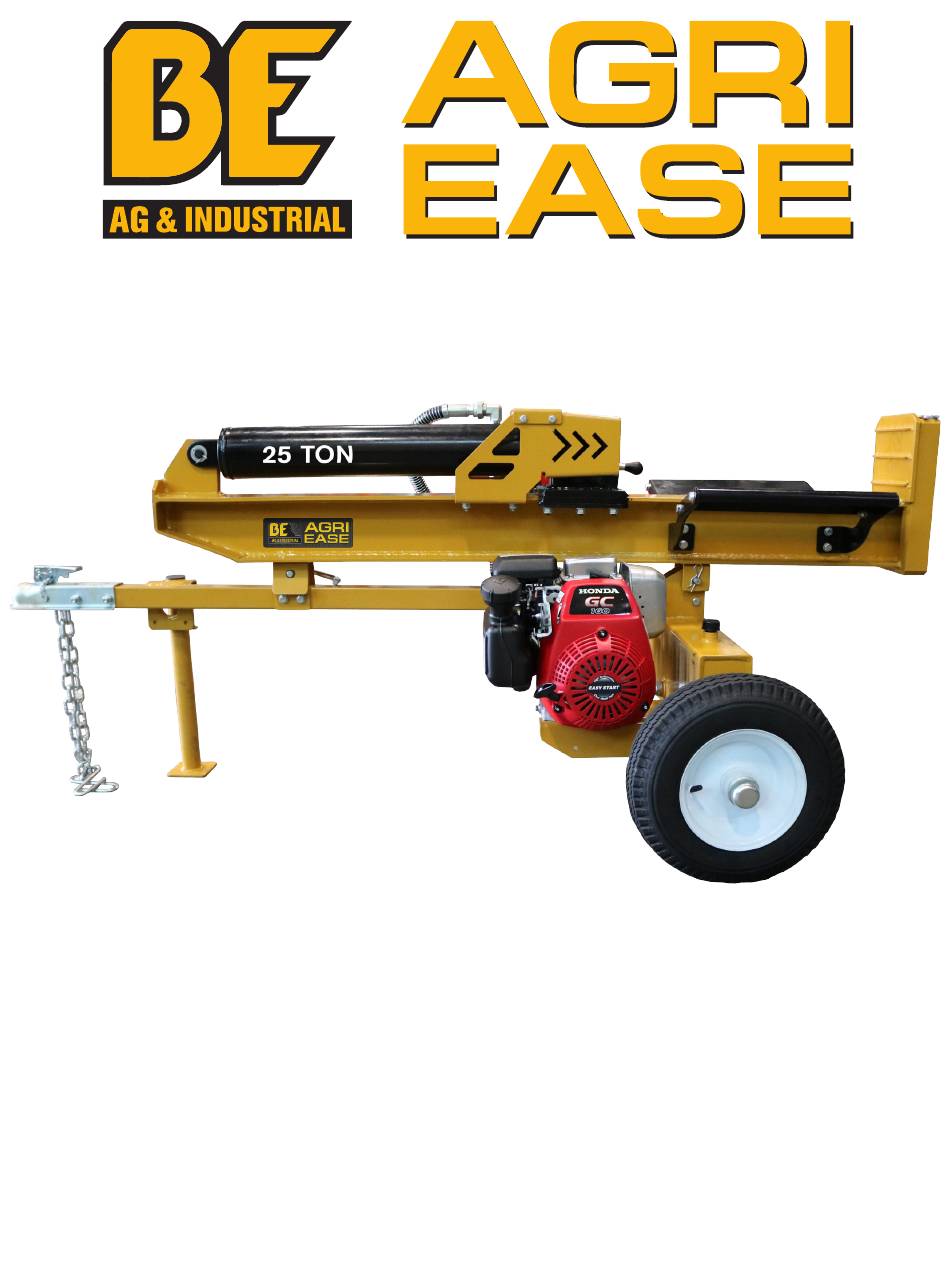

- Page 1 OWNERS MANUAL BE-LS25TLE5GC / BE-25TLE65GX ASSEMBLY & OPERATING INSTRUCTIONS Purchase Date ____________ Model NO. _____________ Serial NO. ______________ Dealer _________________________________________________________...
- Page 2 To The Owner Thank you for purchasing a BE AGRIEASE Log Splitter. It was carefully engineered to provide excellent performance when properly operated and maintained. Please read this entire manual prior to operating the equipment. It instructs you how to safely and easily set up, operate and maintain your machine.
-
Page 3: Table Of Contents
Table of Contents Important Safety Information 1-10 General Safety Alert Signals Safety Decals Safety Symbols Training Pre-Operation Operation Operator Zone Maintenance Safety Fire Prevention Towing Safety Assembly & Set-Up Instructions 11-22 Unpacking the Container 11-12 Assembling 13-19 Set-Up 20-21 Know Controls and Features Operating Instructions 23-26 Starting and Stopping the Machine... -
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION WARNING: Read and thoroughly understand all instructions in this manual and on safety decals before assembling or operating this log splitter. Failure to do so may cause serious injury or death. Do not allow anyone to operate this log splitter who has not read this manual. -
Page 5: Safety Decals
IMPORTANT SAFETY INFORMATION SAFETY DECALS SAFETY DECALS SAFETY DECALS SAFETY DECALS SAFETY DECALS SAFETY DECALS Make sure that all safety warning decals are in good condition and readable. Always replace missing or defaced decals. Make sure that all safety warning decals are in good condition and readable. Always replace missing or defaced decals. Make sure that all safety warning decals are in good condition and readable. -
Page 6: Safety Symbols
IMPORTANT SAFETY INFORMATION SAFETY SYMBOLS SAFETY SYMBOLS This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. -
Page 7: Training
IMPORTANT SAFETY INFORMATION TRAINING 1. Read, understand, and follow all instructions on the machine and in the manual(s) before attempting to assemble and operate. Keep this manual in a safe place for future and regular reference and for ordering replacement parts. 2. -
Page 8: Pre-Operation
IMPORTANT SAFETY INFORMATION PRE-OPERATION PRE-OPERATION BEFORE operating this log splitter, make sure that you wear safety gear such as goggles or safety glasses, steel toed shoes and tight fitting gloves (without loose cuffs or draw strings). Always wear a protective 1. -
Page 9: Operation
IMPORTANT SAFETY INFORMATION OPERATION BEFORE starting this machine, review the safety instructions in the manual. Failure to follow these rules may result in serious injury to the operator or bystanders. NEVER leave this machine unattended with the engine running. DO NOT operate machine while under the influence of alcohol, drugs, or medication. NEVER allow anyone to operate this machine without proper instruction. -
Page 10: Operator Zone
IMPORTANT SAFETY INFORMATION OPERATOR ZONE OPERATOR ZONE ONLY operate the log splitter from the operator zone as shown in the diagrams below. The operator has the safest and ONLY operate the log splitter from the operator zone as shown in the diagrams below. The operator has the safest most efficient access to the control valve and the beam in this location. -
Page 11: Maintenance Safety
IMPORTANT SAFETY INFORMATION MAINTENANCE SAFETY 1. Stop the engine, disconnect the spark plug and ground it against the engine before cleaning, or inspecting the machine. NEVER perform any service or repair on your log splitter without first removing the spark plug wire. 2. -
Page 12: Fire Prevention
IMPORTANT SAFETY INFORMATION FIRE PREVENTION ALWAYS take a Class B fire extinguisher with you when operating this log splitter in dry areas. NEVER operate your log splitter near a flame or spark or smoke during operation. Extinguish all cigarettes, cigars, pipes, and other sources of ignition. Hydraulic oil and gasoline are flammable and can explode. 3. -
Page 13: Towing Safety
IMPORTANT SAFETY INFORMATION TOWING SAFETY NEVER carry any cargo or wood on your log splitter. NEVER allow anyone to sit or ride on your log splitter. ALWAYS turn the fuel shut off valve on the engine to the “OFF” position before towing the log splitter. Failure to do so may result in flooding the engine. -
Page 14: Assembly & Set-Up Instructions
ASSEMBLY & SET-UP INSTRUCTIONS ASSEMBLY & SET-UP INSTRUCTIONS UNPACKING THE CONTAINER UNPACKING THE CONTAINER WARNING: WARNING! Use extreme caution unpacking this machine. Some components are very heavy and will require Use extreme caution unpacking this machine. Some components are very heavy and will require additional people If any parts are damaged or missing, do not operate this tool until the missing parts are replaced. - Page 15 Step 2: Remove all loose parts included in the container, e.g. wheels and hardware box. Step 3: Use scissors or a knife to cut and remove the straps securing the parts to the beam or tank assembly, including tongue assembly and log tray assemblies. Put them aside for assembly. NOTE: DO NOT remove the strap securing the hydraulic hoses assemblies to the beam at this time, until you do the assembly procedure of the hoses.
-
Page 16: Assembling
ASSEMBLY & SET-UP INSTRUCTIONS ASSEMBLY & SET-UP INSTRUCTIONS ASSEMBLING ASSEMBLING NOTE: Due to the weight / size of the log splitter, it’s recommended that two or more adults be present to assist with the assembling. Some lifting tools such as hoist, crane, jack, etc. are recommended too. NOTE: Due to the weight / size of the log splitter, it’s recommended that two or more adults be present to assist with the assembling. - Page 17 STEP 2: Install the tongue assembly to the reservoir tank. See FIGURE 5. STEP 2: Install the tongue assembly to the reservoir tank. See FIGURE STEP 2: Install the tongue assembly to the reservoir tank. See FIGURE 1. Pull out the spring loaded lock handle of flip-down stand which hold the stand on the tongue, and then the 1.
- Page 18 3. Adjust the engine side of coupler shaft to make sure the engine key fits into the slot of the coupler shaft, and tighten the set screw just loosened. 3. Adjust the engine side of coupler shaft to make sure the engine key fits into the slot of the coupler shaft, and tighten 3.
- Page 19 STEP 5: Install the beam assembly. See FIGURE 8. STEP 5: Install the beam assembly. See FIGURE 8. Stand the beam upright on a flat level. Two or more people are recommended to assist with raising and lowering 1. Stand the beam upright on a flat level. Two or more people are recommended to assist with raising and lowering the beam as it is very heavy.
- Page 20 STEP 6: Connect hydraulic hoses. See FIGURE 9. There are three hydraulic hoses listed below, each of them has one end fixed on the log splitter by manufacturer, and the STEP 6: Connect hydraulic hoses. See FIGURE 9. 1. Oil suction hose ¾”, labeled as ①, comes from the bottom of the reservoir. other open end still needs to be attached.
- Page 21 STEP 7: Install the log tray assemblies. See FIGURE 10. STEP 7: Install the log tray assemblies. See FIGURE 10. 1. Lower the beam to horizontal position. Please refer to “Beam Operating Positions” section in Page 23. Lower the beam to horizontal position. Please refer to “Beam Operating Positions” section in Page 23.
- Page 22 EP 8: Assemble the control handle. See FIGURE 11. STEP 8: Assemble the control handle. See FIGURE 11. The control handle is shipped hanging from the valve on the handle link. The control handle is shipped hanging from the valve on the handle link. Remove the clevis pin and bow-tie cotter pin from the valve.
-
Page 23: Set-Up
ASSEMBLY & SET-UP INSTRUCTIONS ASSEMBLY & SET-UP INSTRUCTIONS SET-UP SET-UP Gas and Oil Fill-Up Gas and Oil Fill-Up Service the engine with gasoline and engine oil as instructed in the engine manual packed with your log splitter. Read Service the engine with gasoline and engine oil as instructed in the engine manual packed with your log splitter. Read the instructions carefully. - Page 24 Fill Hydraulic Oil Fill hydraulic oil Fill hydraulic oil The log splitter is shipped without hydraulic fluid in the reservoir. Fill the reservoir before your initial use. The log splitter is shipped without hydraulic fluid in the reservoir. Fill the reservoir before your initial use. The log splitter is shipped without hydraulic fluid in the reservoir.
-
Page 25: Know Controls And Features
Know Controls and Features Know Controls & Features Cylinder Control Handle Splitting Wedge Tongue Log Dislodger Log Tray End Plate Flip-down Horizontal Stand Beam Lock (FIGURE15) NOTE: This Operator’s Manual covers several models. Log splitter features may vary by model. Not all features in this NOTE: This Operator’s Manual covers several models. -
Page 26: Starting And Stopping The Machine
OPERATION INSTRUCTIONS OPERATION INSTRUCTIONS STARTING & STOPPING THE ENGINE STARTING & STOPPING THE ENGINE Refer to the Engine Operator’s manual packed with your log splitter for instructions on starting and stopping the engine. Refer to the Engine Operator’s manual packed with your log splitter for instructions on starting and stopping the engine. BEAM OPERATING POSITIONS BEAM OPERATING POSITIONS 1. -
Page 27: Operating Instructions
OPERATION INSTRUCTIONS OPERATION INSTRUCTIONS USING CONTROL HANDLE USING CONTROL HANDLE The control handle has three positions. See FIGURE 18. The control handle has three positions. See FIGURE 18. (FIGURE 18) FORWARD — To split wood. Move the control handle to the FORWARD position to move wedge toward the log to split. •... -
Page 28: Splitting The Wood
OPERATION INSTRUCTIONS OPERATION INSTRUCTIONS SPLITTING THE WOOD 1. Start the engine as instructed in the Engine Operator’s manual included with the log splitter. SPLITTING THE WOOD 2. Grasp the log on the sides and place it on top of the beam against the end plate. Always split the wood in the direction of the grain. -
Page 29: Transporting The Log Splitter
OPERATION INSTRUCTIONS OPERATION INSTRUCTIONS TRANSPORTING THE LOG SPLITTER TRANSPORTING THE LOG SPLITTER 1. Lower the beam to its horizontal position. Make certain the beam is locked securely with the horizontal beam lock. 1. Lower the beam to its horizontal position. Make certain the beam is locked securely with the horizontal beam lock. 2. -
Page 30: Maintenance And Adjustments
MAINTENANCE & ADJUSTMENTS Regular maintenance is the way to ensure the best performance and long life of your machine. Please refer to this manual and the engine manufacturer’s owner’s manual for maintenance procedures. WARNING! Do not make any adjustments without first stopping the engine, disconnecting the spark plug wire and grounding it against the engine. - Page 31 (FIGURE21) (FIGURE22) 6. Refill the reservoir tank (Please follow the steps in Page 22 to fill the tank, and repel the air in the tank). 5. Refill the reservoir tank (Please follow the steps in Page 22 to fill the tank, and repel the air in the tank). 7.
-
Page 32: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING Most problems are easy to fix. Consult the trouble shooting Table below for common problems and their solutions. If you continue to experience problems, contact us www.boss-industrial.com, or call toll-free (800) 780 2677 Most problems are easy to fix. Consult the trouble shooting Table below for common problems and their solutions. support. -
Page 33: Specifications
SPECIFICATIONS Model BE-LS25TLE5GC BE-LS25TLE65GX See engine manual See engine manual Engine Pump Two-stage, 11 gpm Two-stage, 11 gpm Cylinder (Bore x Stroke) 4 in x 24 in 4 in x 24 in Maximum Splitting Force 25 Tons* 25 Tons* 3650 3650 Hydraulic Pressure Maximum Log Length... -
Page 34: Exploded Diagram & Parts List
EXPLODED DIAGRAM & PARTS LIST EXPLODED DIAGRAM & PARTS LIST Page 28 Page 31... - Page 35 REF # PART # PART NAME SPECIFICATIONS QTY PER UNIT 310-633 Beam incl. End Plate 22 Ton 10-10-8 310-658 Beam incl. End Plate 25 Ton 10-10-10 310-346 Beam incl. End Plate 28 / 30 Ton 10-12-10 310-471 Beam incl. End Plate 35 Ton 12-12-12 530-421 Splitting Wedge w/ Guides 22-30 Ton...
- Page 36 REF # PART # PART NAME SPECIFICATIONS QTY PER UNIT 750-617 Flat Washer ZP, 5/16 750-844 Spring Washer ZP, 5/16 770-123 Engine Shaft Square Key 3/16 X 1.75 (22/25/28T) 770-125 Engine Shaft Square Key 1/4 X 2.165 (30/35T) 960-110 Gas Engine (BI75) 960-327 Gas Engine (Kohler 6.5) 25/28T...
- Page 37 REF # PART # PART NAME SPECIFICATIONS QTY PER UNIT 320-948 Log Tray Frame (FL, BR) 720-120 Lock Nut ZP, M10 750-525 Flat Washer ZP, M10 710-556 Hex Head Bolt ZP, M10*45 (8.8) 710-520 Hex Head Bolt ZP, M10*25 (8.8) 750-525 Flat Washer ZP, M10...
-
Page 38: Packing List
PACKING LIST PACKING LIST Beam asembly x 1 Tongue assembly x 1 Reservoir tank assembly x 1 Engine box x 1 Log tray assembly x 2 Wheel x 2 OWNERS MANUAL BE-LS25TLE5GC / BE-25TLE65GX ASSEMBLY & OPERATING INSTRUCTIONS Purchase Date ____________ Model NO.
