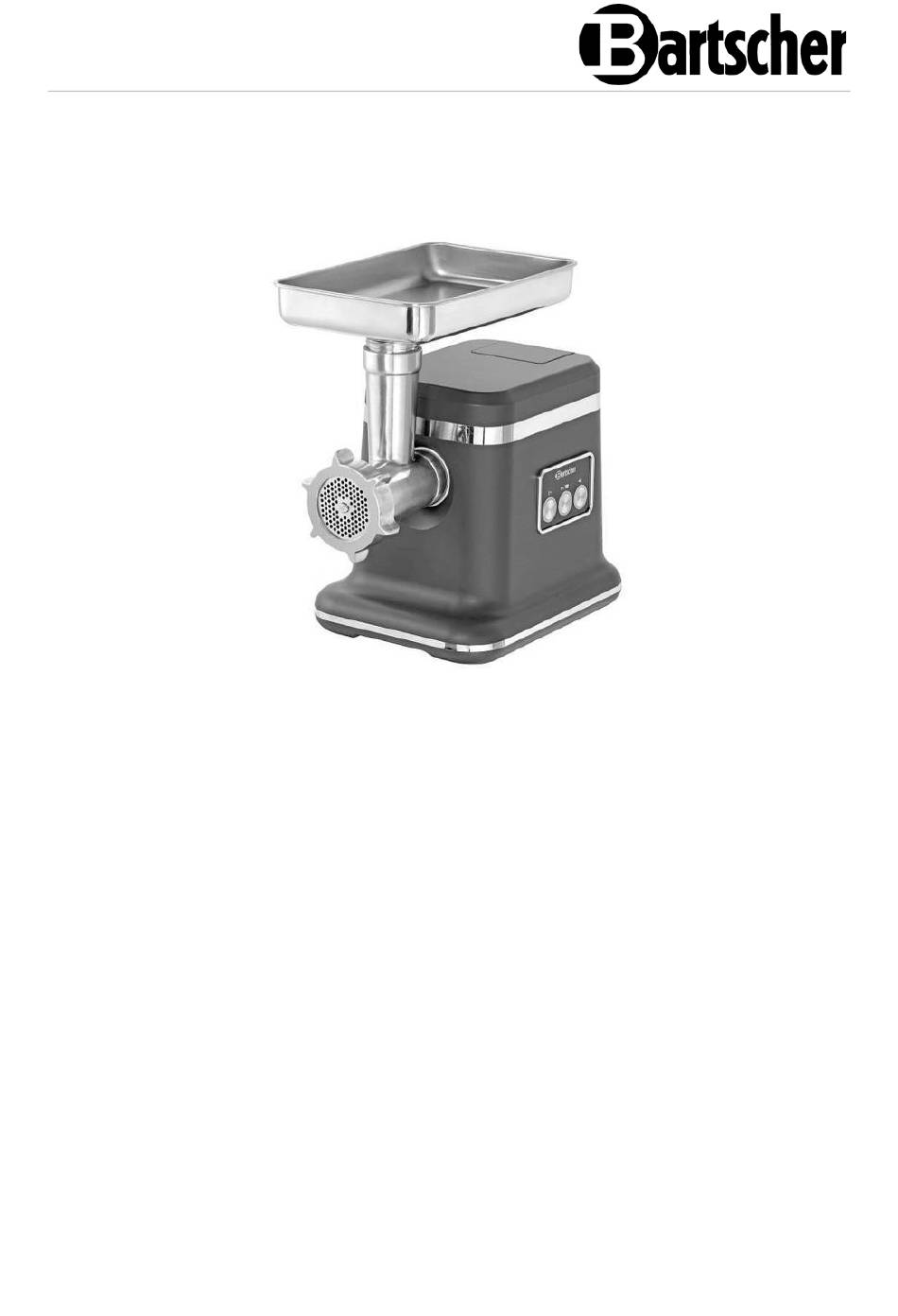

  • Page 1 FW10 370224...
  • Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 D-33154 Salzkotten Technical Support Hotline: +49 5258 971-197 Germany www.bartscher.com Version: 3.0 Date of preparation: 2024-04-25...

  • Page 3: Table Of Contents

    Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage ..............

  • Page 4: Safety

    Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Inform ationsquelle und N achschl agew erk. Di e Kenntnis aller enthaltenen Sic herheits hinw eis e und H andlungs anw eisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfallv erhütungsv orsc hriften und allgem einen Sicherheits bestimmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und m uss i n unmittelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, W artungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt w erden. W enn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den.

  • Page 5: Safety Instructions

    Safety CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages, which may occur if safety instructions are not observed. NOTE! The symbol NOTE indicates subsequent information and guidelines for the user on usage of the appliance.
  • Page 6 Safety • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged. If this cable is damaged, it must be replaced by customer service or a qualified electrician in order to avoid dangers. Safety of Meat Grinder Operation •...
  • Page 7 Safety Operating Personnel • The appliance may only be operated by qualified personnel and trained specialist personnel. • This appliance may not be operated by persons (including children) with limited physical, sensory or mental capabilities, nor by persons with limited experience and/or limited knowledge.

  • Page 8: Intended Use

    Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – grinding and mixing suitable food products (meat, vegetables), –...

  • Page 9: General Information

    General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual.

  • Page 10: Transport, Packaging And Storage

    Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint.

  • Page 11: Technical Data

    Technical Data Technical Data Technical Specifications Name: Meat grinder FW10 370224 Art. No.: Material: plastic Material of hopper funnel: stainless steel, cast aluminium Diameter of disks, in mm: Max. output, in kg/h: Connected load: 0,85 kW | 230 V | 50/60 Hz...

  • Page 12: List Of Components Of The Appliance

    Technical Data List of Components of the Appliance Fig. 1 10 / 28 370224...

  • Page 13: Functions Of The Appliance

    Installation and operation Description for Fig. 1 1. Safety nut 2. Perforated disks (coarse, medium, fine) 3. Cross-knife 4. Worm shaft 5. Worm housing 6. Tray 7. Storage compartment for perforated 8. Control panel disks 9. ON/OFF mains switch 10. Housing 11.

  • Page 14: Operation

    Installation and operation • Place the appliance in a way making the connections easily accessible, so that they may be quickly disconnected if such a need arises. • The appliance should be placed on surfaces that are: – even, with sufficient bearing capacity, resistant to water, dry and resistant to high temperatures;...
  • Page 15 Installation and operation processing of subsequent portions, so that the appliance does not overheat. Prepare another portion during the break. • Never use the appliance for processing of too hard and too fibrous food products (e.g. fruit stones, shells, nuts, bones, cartilage, thick tendons, etc.). Remove them prior to processing.
  • Page 16 Installation and operation 4. Prior to the first use clean the appliance and its components thoroughly observing instructions in section 6 'Cleaning'. 5. Select and assemble accessories suitable for the food to be processed. Control Panel Fig. 4 17. Speed selection button 18.
  • Page 17 Installation and operation Food Products Processing Grinding and Mixing 1. Select the perforated disk for grinding depending on the type of food products: – coarse perforated disk for solid ingredients and coarse sausage filling; – medium perforated disk for soft ingredients; –...
  • Page 18 Installation and operation 7. Fit the worm housing onto the motor drive by rotating it counter-clockwise until you hear a 'click' sound. 8. Place the tray onto the hopper funnel of the worm housing. The appliance is now ready to grind food products.
  • Page 19 Installation and operation Stuffing Sausage 1. Grind the meat as described in section 'Grinding and Mixing'. 2. After processing, first press the START/STOP button to switch the motor off. 3. Then switch the appliance off using the ON/OFF mains switch and unplug it from the mains socket (pull the plug out).
  • Page 20 Installation and operation 8. Place the tray onto the hopper funnel of the worm housing. 9. Soak sausage casing in lukewarm water for approx. 10 minutes. 10. Prepare sausage filling to your liking and then place it on the appliance tray. Thread the sausage casing onto the sausage stuffing attachment.
  • Page 21 Installation and operation Preparing Shortcrust Cookies 1. Prepare the dough for shortcrust cookies according to a selected recipe. Place it in the refrigerator for some time before processing. 2. Prepare the meat grinder for the production of shortcrust cookies. 3. Assemble the attachment for shortcrust cookie according to the following instructions.
  • Page 22 Installation and operation 14. If necessary, select a slower motor operation (press the button on the control panel once). 15. Use the pusher to push the dough into the hopper funnel. 16. Remove the cookies formed to the desired length from the attachment for shortcrust cookies and place them on a baking tray lined with baking paper.
  • Page 23 Installation and operation 3. Grind meat for the outer crust in the meat grinder 3 times as described in section 'Grinding and Mixing' (first with a medium, then 2 times with a fine perforated disk). Combine the ground meat in a bowl with the remaining ingredients for the outer crust.
  • Page 24 Installation and operation 7. Fix the plastic attachment so that the notch is aligned with the worm housing stick. Fit the cone and secure it with the lock nut on the worm housing. 8. Fit the assembled attachment onto the motor drive by rotating it counter-clockwise until you hear a 'click' sound.
  • Page 25 Installation and operation Removing Stuck Ingredients — Reverse Run Function 1. Using the reverse run function of the appliance, you can possibly remove ingredients that have stuck in the worm housing. 2. If there are any stuck food products in the worm housing, the reverse run function must be activated as follows: –...

  • Page 26: Cleaning

    Cleaning 3. Press the 'Z' button on the bottom of the appliance to switch the appliance ready for operation on (pictured right). 4. Plug it in to the socket. 5. Switch the appliance on again (press the ON/OFF mains switch and the START/STOP button).

  • Page 27: Cleaning

    Cleaning Cleaning WARNING! Cut wounds hazard! The cross-knife is very sharp. Be very careful when disassembling the machine and cleaning the cross- knife. ATTENTION! Irregular cleaning can lead to damage to the surface of the appliance. Clean the appliance directly after each use and do not let the residues of food products to dry up on the housing nor any other component of the appliance.
  • Page 28 Cleaning Cleaning of Appliance and Accessories 1. Clean the removed accessories in warm water with a detergent. For cleaning, use a soft sponge or dish-washing brush. 2. Residues of food products that dried up on the detachable accessories of the appliance may be easily removed after soaking them for a while in warm water.

  • Page 29: Possible Malfunctions

    Possible Malfunctions Possible Malfunctions Mögliche The plug is Electric power safety fuse Check the fuse, connect the plugged in, but the tripped appliance to another socket motor is not and check it running ON/OFF mains switch is Switch the appliance on with not switched on the ON/OFF mains switch.

  • Page 30: Disposal

    Disposal Malfunction Possible Cause Solution Motor runs too Worm housing is overfilled Do not put too many food slowly products into the hopper funnel Pressure on the pusher is Do not push the pusher that too high hard Too hard items blocking the Remove hard items (e.g.
