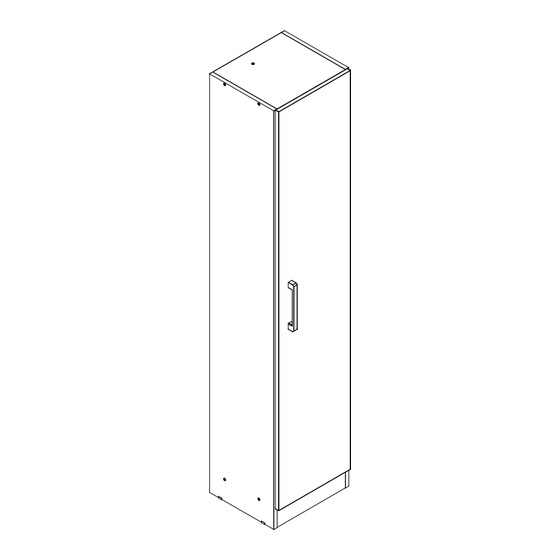

CABINET 01 DOOR AH0321
ASSEMBLY INSTRUCTIONS
IMPORTANT
FOR DOMESTC USE ONLY
PLEASE READ BEFORE YOU CONTINUE FURTHER
CARE AND MAINTENANCE
After unpacking this product please keep the original packaging in case it needs to be returned for any reason.
• Please ensure all fitting and parts are present before commencing with assembly.
• Never drag or push products as this could cause damage to the joints making it inferior.
• We strongly recommend that you keep children away from your work area.
• We recommend that you lay a blanket or sheet on the floor to avoid damage to both your floor and the product.
• Assemle this product as close to its fnal position as possible.
• Do not place this product next to a radiator or in direct sunlight.
• Do not drag or push items across your hihg glosss furniture as this may cause the surface to acratch.
• Wood is a natural product and may expand if subjected to damp and may shrink or crack if subjected to heat.
Therefore it recommended that room temperature is maintained, with no sudden temperature fluctuations.
• Make sure any spillage is wiped off immediately.
• Do not place hot or chilled items directly on to the surface, use a place mat or marking will occur.
• For general cleaning use a soft cotton or micro fibre cloth, and do not use detergents of any kind.
• From time to time it may be necessary to tighten fittings, regular inspections should be carried out.
• Do not place on a wet or damp floor as staining may occur to your floor.
