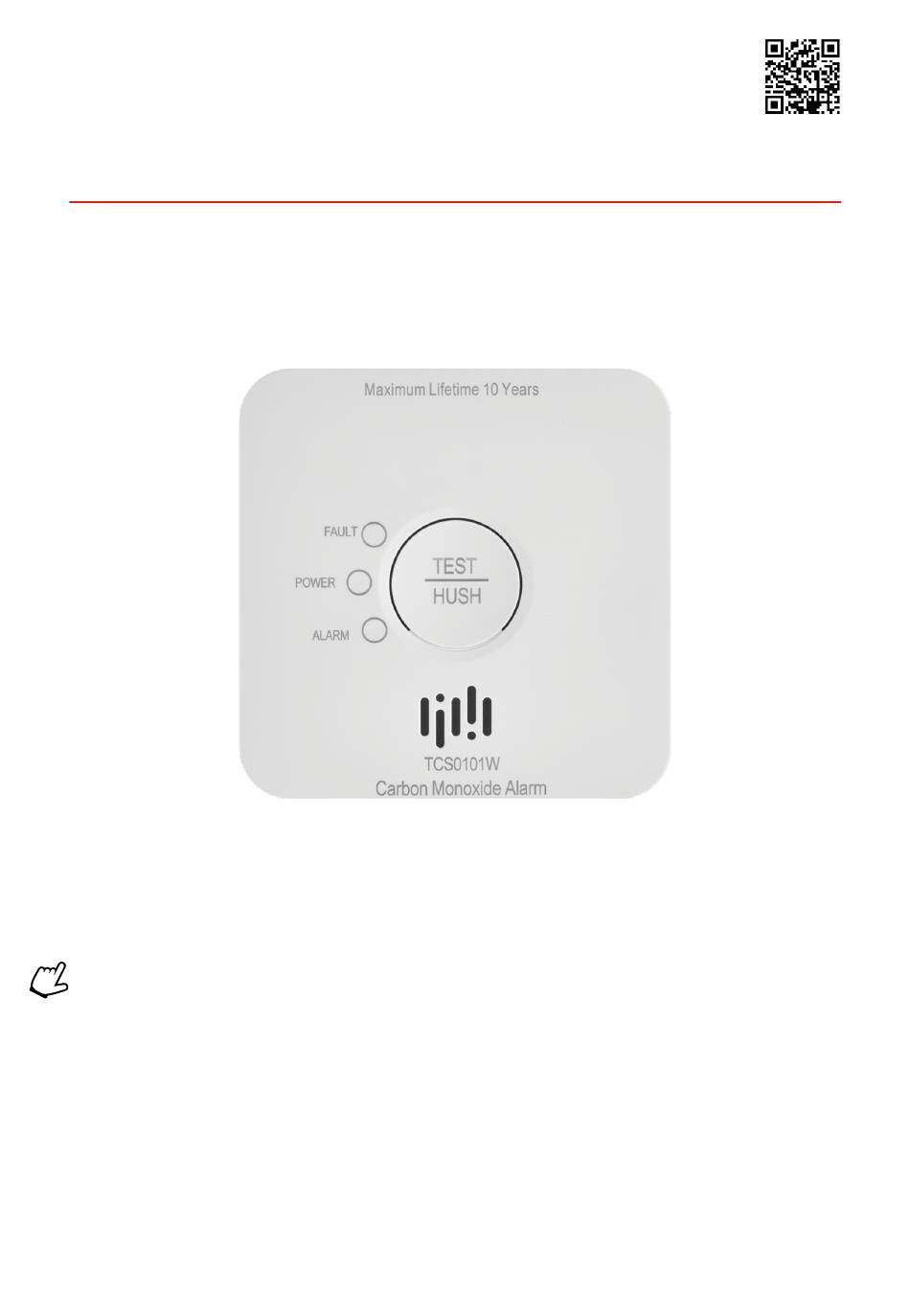

P56400S
GB | CO Detector
Contents
Safety Instructions and Warnings ....................................................................................2
Technical Specifications ....................................................................................................3
Device Description .............................................................................................................3
Installation and Assembly .................................................................................................4
Getting Started ..................................................................................................................5
Mobile Application .............................................................................................................8
Controls and Functions ...................................................................................................10
Troubleshooting FAQ ........................................................................................................12
CZ | 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Emos P56400S
Summary of Contents for Emos P56400S
-
Page 1: Table Of Contents
P56400S GB | CO Detector Contents Safety Instructions and Warnings ..................2 Technical Specifications ....................3 Device Description ......................3 Installation and Assembly ....................4 Getting Started ........................5 Mobile Application ......................8 Controls and Functions ....................10 Troubleshooting FAQ ......................12 CZ | 1... -
Page 2: Safety Instructions And Warnings
Children must always be supervised to ensure they do not play with the appliance. EMOS spol. s r. o. hereby declares that device type P56400S complies with Directive 2014/53/EU. The full wording of the EU declaration of conformity is available at http://www.emos.eu/download. -
Page 3: Technical Specifications
Technical Specifications 93 mm 30 mm Detected gas: carbon monoxide (CO) Sensor type: electrochemical cell In accordance with standard ČSN EN 50291-1 ed.2:18 Service life: 10 years B-type device Operating temperature and humidity: -10 to +40 °C, 15 to 93 % (without condensation) Enclosure rating: IP20 Acoustic signalisation: >85 dB at a range of 3 m Power supply: 2×... -
Page 4: Installation And Assembly
Installation and Assembly 1 – holes in the wall 2 – wall plugs 3 – mounting pad 4 – screws Drill two holes (ø 5 mm) into the wall (1); the distance between the holes should be 52 mm. Insert the attached wall plugs (2) into the holes, place the mounting pad (3) and attach it to the wall using screws (4). -
Page 5: Getting Started
Getting Started Insert batteries (2× 1.5 V AA) into the battery compartment on the back of the device. Only use alkaline batteries of the same type; do not use 1.2 V rechargeable batteries due to their low voltage. Warning: The mounting pad will not fit unless both batteries are in place! After the batteries are inserted, all three diodes (ALARM, POWER, FAULT) will flash one after another. - Page 6 CO WARNING If the detector detects dangerous amounts of CO, an optical and acoustic warning will be activated. The detector will simultaneously beep/flash the RED ALARM LED 4× every 5 seconds. The CO level (0 až 999 ppm) will be displayed in the app. The warning will be active for as long as CO is present, until CO levels drop below the danger level or the detector is silenced manually.
- Page 7 What Is Carbon Monoxide (CO) Carbon monoxide (CO) is an odourless, invisible, highly poisonous gas. It is generated through incomplete combustion of fuels, such as wood, wooden coal, coal, fuel oil, paraffin, gasoline, natural gas, propane, bu- tane, etc., and from cigarette smoke. A dangerous concentration of CO can form if the fuel-burning device is faulty or not properly maintained, if the flue is blocked or the room insufficiently ventilated.
-
Page 8: Mobile Application
Mobile Application Download the EMOS GoSmart app for your device. Tap the Log In button if you’ve used the app before. Otherwise, tap the Sign Up button and register. Pairing with the App 2× 1.5 V AA Insert batteries (2× 1.5 V AA) into the detector. - Page 9 Tap Add Device in the app. Tap the GoSmart list on the left and tap the P56400S icon. Follow the instructions in the app and enter the name and password for your 2.4 GHz Wi-Fi network. The detector will pair with the app within 2 minutes; the green LED will stop flashing.
-
Page 10: Controls And Functions
Controls and Functions Application Menu 1 – Settings 2 – Scene creation 3 – Records 4 – CO level in ppm 5 – Detector status 6 – Advanced settings CZ | 10... - Page 11 Settings Display notifications in the app: • Battery percentage – battery state of charge • CO alarm Hush – display notifications about silencing of the alarm • Normal – display notifications about normal status of the detector • Battery fault – display notifications about low battery •...
-
Page 12: Troubleshooting Faq
Troubleshooting FAQ Test mode is not working: • Check battery voltage or replace batteries. The detector beeps/flashes its LEDs at different times: • The detector may be in the following states, see descriptions in the manual above: Fault state, low batteries, end of life of the alarm, alert to presence of CO. The detector fails to pair with the app: •...
