Summary of Contents for Monstertech BUDDY-FOX A-10C UFC HOLDER

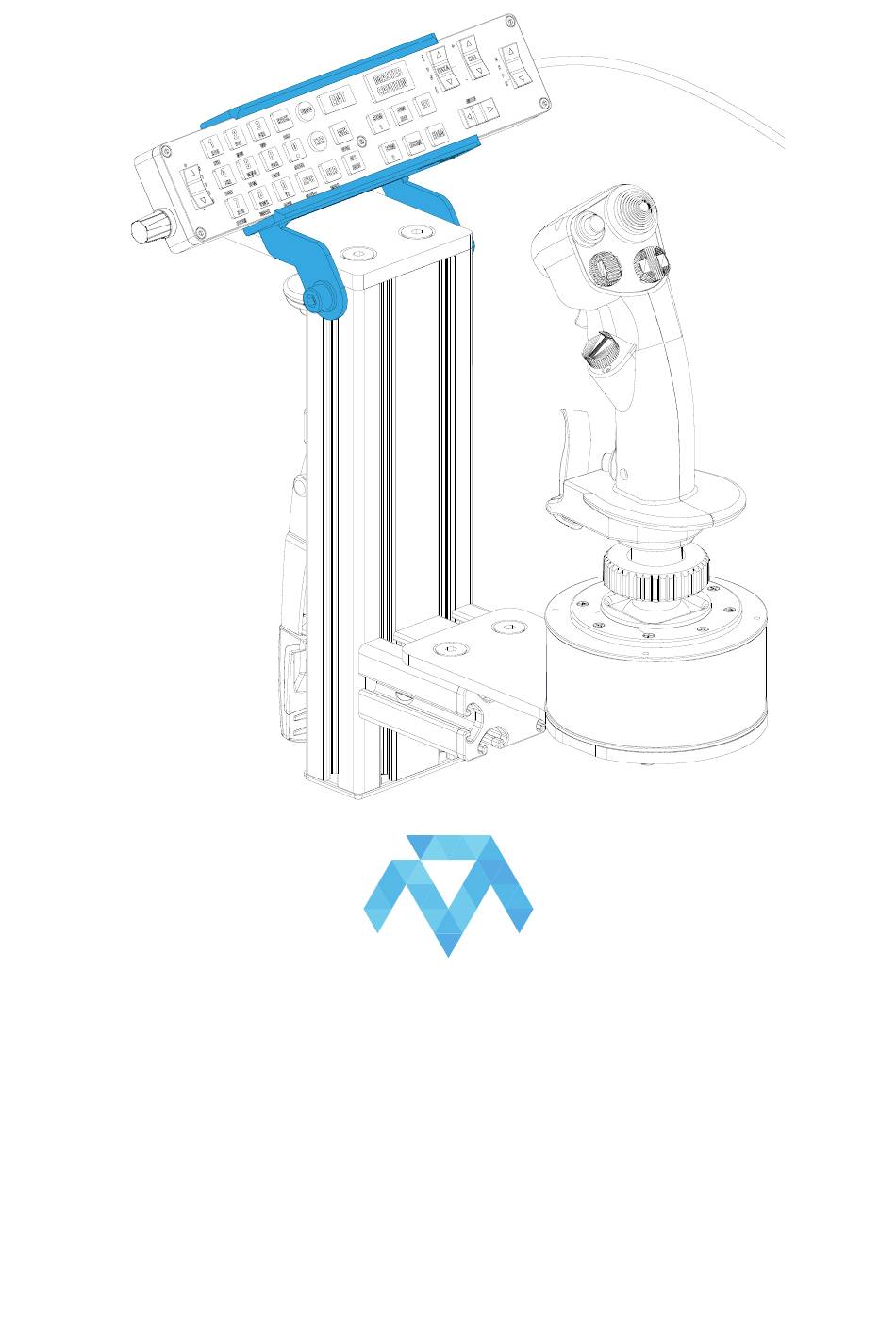

- Page 1 BUDDY-FOX A-10C UFC HOLDER Instruction Manual Bedienungsanleitung Mode d‘emploi...
- Page 2 GENERAL ASSEMBLY INFO AND HOW TO PROFILE NUT HEX KEY SET WITH BALL HEAD + EXTENSION OR SIMILAR REQUIRED MTSIM BUDDY FOX A-10C UFC HOLDER MANUAL...
- Page 3 UNIVERSAL CONNECTOR M8x30 universal connector slot nut M8 ALTERNATIVE M8x30 very loose pre-assembled universal connector slide in MTSIM BUDDY FOX A-10C UFC HOLDER MANUAL...
- Page 4 extension for better tightening force BOLT DIMENSIONS AND HOW TO MEASURE THEM [mm] M8x35 M8x35 M8x25 M8x25 PROFILE CAP ASSEMBLY MTSIM BUDDY FOX A-10C UFC HOLDER MANUAL...
- Page 5 PARTS [dimensions in mm / different scales] No extra or spare parts listed! black black MTSIM BUDDY FOX A-10C UFC HOLDER MANUAL...
- Page 6 ASSEMBLY washer Ø12 center bracket M6x14 flat head black slot nut MTSIM BUDDY FOX A-10C UFC HOLDER MANUAL...
- Page 7 M8x14 black washer Ø16 black M8x14 black washer Ø16 black MTSIM BUDDY FOX A-10C UFC HOLDER MANUAL...
- Page 8 slide in 29-08-2024...
-
Page 9: Warning Notices
WARNING NOTICES CAUTION! Do not clamp your fingers while attaching the Holder. CAUTION! Check before usage if all screws are tightened. CAUTION! Check before usage that the Holder is screwed on tight after making adjustments. DANGER: Contains small parts not suitable for children under 3 years. Only suitable for children over 12 years and adults.
