Summary of Contents for Monstertech MFD

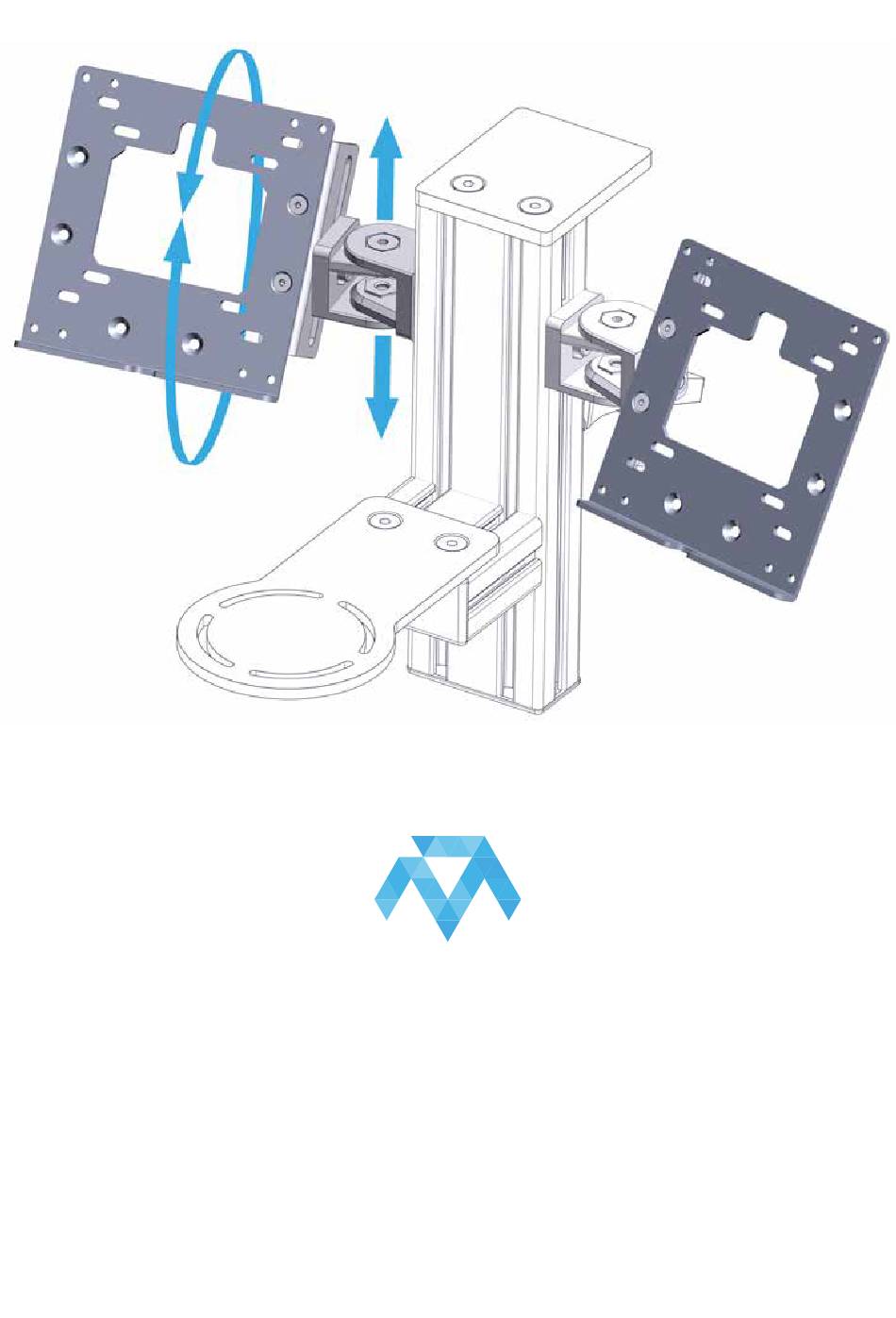

- Page 1 MFD/TABLET MOUNT L/R Instruction Manual Bedienungsanleitung Mode d‘emploi...
- Page 2 GENERAL ASSEMBLY INFO AND HOW TO PROFILE NUT HEX KEY SET WITH BALL HEAD + EXTENSION OR SIMILAR REQUIRED MTSIM MFD/TABLET MOUNT L/R INSTRUCTION MANUAL...
- Page 3 BOLT DIMENSIONS AND HOW TO MEASURE THEM [mm] M8x35 M8x25 MTSIM MFD/TABLET MOUNT L/R INSTRUCTION MANUAL...
- Page 4 Hold up the M8x18 bolt with the hex key while tighten the locknut with the wrench (or reverse). Its perfect tighten if you still can angle your mounted device but it is tight enough not to move unintentional. MTSIM MFD/TABLET MOUNT L/R INSTRUCTION MANUAL...
- Page 5 M8 optional rotation blocker M8x16 MTSIM MFD/TABLET MOUNT L/R INSTRUCTION MANUAL...
- Page 6 MTSIM MFD/TABLET MOUNT L/R INSTRUCTION MANUAL...
- Page 7 MOUNTABLE DEVICES VESA 75 STEAM DECK MINI STEAM DECK STAN- DARD STEAM DECK XL VESA 100 Keyboard Clamp Tablet or phones MTSIM MFD/TABLET MOUNT L/R INSTRUCTION MANUAL...
- Page 8 MOUNTING A THRUSTMASTER MFD Bofore this step remove the original bracket (without picture). original screws MTSIM MFD/TABLET MOUNT L/R INSTRUCTION MANUAL...
- Page 9 MOUNTING A TM MFD FOR USE WITH A TABLET remove rubber screws nut M3 washer 12mm spacer M3x35 MTSIM MFD/TABLET MOUNT L/R INSTRUCTION MANUAL...
- Page 10 MTSIM MFD/TABLET MOUNT L/R INSTRUCTION MANUAL...
- Page 11 MOUNTING A FLIGHT INSTRUMENT PANEL M3 nut washer M3x35 MTSIM MFD/TABLET MOUNT L/R INSTRUCTION MANUAL...
- Page 12 MOUNTING A STREAM DECK MINI (Stream Deck adapter available separately.) M4 nut M4x16 MTSIM MFD/TABLET MOUNT L/R INSTRUCTION MANUAL...
- Page 13 MOUNTING A STREAM DECK LIVE (Stream Deck adapter available separately.) M4 nut M4x10 MTSIM MFD/TABLET MOUNT L/R INSTRUCTION MANUAL...
- Page 14 MOUNTING A STREAM DECK XL (Stream Deck adapter available separately.) M4 nut M4x10 MTSIM MFD/TABLET MOUNT L/R INSTRUCTION MANUAL...
- Page 15 Alternative mounting 19-03-2022...
-
Page 16: Warning Notices
WARNING NOTICES CAUTION! Do not clamp your fingers while attaching the MFD/Tablet Mount. CAUTION! Check before usage if all screws are tightened. CAUTION! Check before usage that the mounting plate is screwed on tight after making height adjustments. DANGER: Contains small parts not suitable for children under 3 years.
