Monstertech MTS CENTER JOYSTICK Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
MTS CENTER JOYSTICK
Instruction Manual
Bedienungsanleitung
Mode d'emploi

Advertisement

loading
Need help?

Need help?

Do you have a question about the MTS CENTER JOYSTICK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Monstertech MTS CENTER JOYSTICK

Summary of Contents for Monstertech MTS CENTER JOYSTICK

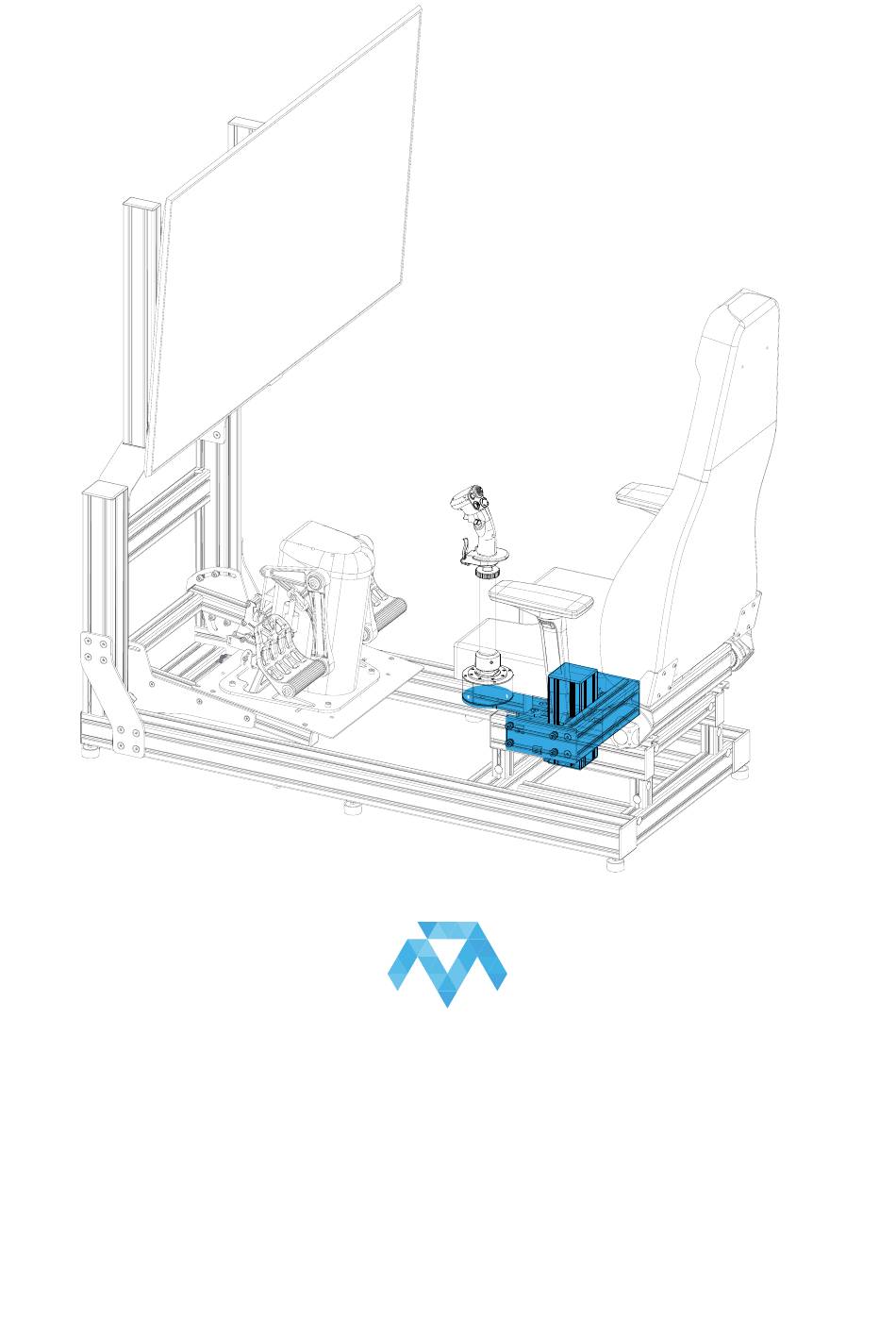

  • Page 1 MTS CENTER JOYSTICK Instruction Manual Bedienungsanleitung Mode d‘emploi...
  • Page 2 PARTS [dimensions in mm / different scales] No extra or spare parts listed! as ordered For assembly option B MTSIM MTS CENTER JOYSTICK INSTRUCTION MANUAL...
  • Page 3 PRE-ASSEMBLED with this parts: 10,8 MTSIM MTS CENTER JOYSTICK INSTRUCTION MANUAL...
  • Page 4 MTSIM MTS CENTER JOYSTICK INSTRUCTION MANUAL...
  • Page 5 ASSEMBLY slot nut MTSIM MTS CENTER JOYSTICK INSTRUCTION MANUAL...
  • Page 6 Assembly option A universal connector M8x30 turn around slot nut MTSIM MTS CENTER JOYSTICK INSTRUCTION MANUAL...
  • Page 7 M8x16 flat head mounting plate as ordered MTSIM MTS CENTER JOYSTICK INSTRUCTION MANUAL...
  • Page 8 M8x20 flat head choose height position as desired MTSIM MTS CENTER JOYSTICK INSTRUCTION MANUAL...
  • Page 9 Assembly option B bores universal connector M8x30 slot nut MTSIM MTS CENTER JOYSTICK INSTRUCTION MANUAL...
  • Page 10 M8x30 universal bores connector slot nut MTSIM MTS CENTER JOYSTICK INSTRUCTION MANUAL...
  • Page 11 MTSIM MTS CENTER JOYSTICK INSTRUCTION MANUAL...
  • Page 12 M8x16 flat head mounting plate as ordered MTSIM MTS CENTER JOYSTICK INSTRUCTION MANUAL...
  • Page 13 M8x30 MTSIM MTS CENTER JOYSTICK INSTRUCTION MANUAL...
  • Page 14 M8x20 flat head MTSIM MTS CENTER JOYSTICK INSTRUCTION MANUAL...
  • Page 15 MTSIM MTS CENTER JOYSTICK INSTRUCTION MANUAL...
  • Page 16 M8 slot nut double M8 star knob MTSIM MTS CENTER JOYSTICK INSTRUCTION MANUAL...
  • Page 17 = do not move the slot nuts MTSIM MTS CENTER JOYSTICK INSTRUCTION MANUAL...
  • Page 18 M8x10 Fix the positions of the slot nuts with set screws. MTSIM MTS CENTER JOYSTICK INSTRUCTION MANUAL...
  • Page 19 PRE-ASSEMBLED bearing curved spring washer roller M4x20 flat head lever M6 washer Ø12 slot nut M6 MTSIM MTS CENTER JOYSTICK INSTRUCTION MANUAL...
  • Page 20 M8x20 flat head M8x20 flat head MTSIM MTS CENTER JOYSTICK INSTRUCTION MANUAL...
  • Page 21 Detail MTSIM MTS CENTER JOYSTICK INSTRUCTION MANUAL...
  • Page 22 Detail MTSIM MTS CENTER JOYSTICK INSTRUCTION MANUAL...

  • Page 23: Operation

    Operation Loosen the 2 levers on both sides to slide the center joystick back and forth. Fasten after positioning!
  • Page 24 Loosen the 2 star screws a little and lift up the removable part to unhook it.
  • Page 25 07-07-2022...
