Legs & hardware are packed in the box and stored at
the bottom of the seat, please take out for assembly.
Note: Do not use power tools for assembly. Power tools increase the
risk of over tightening which lead to spliting or cracking the wood.
Component list
No
A
B
C
D
E
F
G
H
I
J
K
L
Assembly Instruction
ITEM NO.: 9603CR-3
Drawing

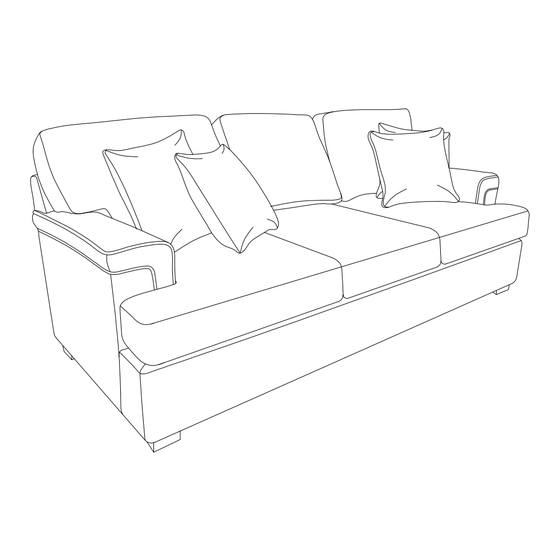

Sofa
Qty
1
1
Left seat cushion
1
Middle seat cushion
1
Right seat cushion
1
Left back cushion
1
Middle back cushion
1
Right back cushion
4
4
150*130*100*50mm)
8
(5/16*65mm)
Flat washer
8
(5/16*Ø16*1.5mm)
1
1
Description
Sofa
Pillows
(18''*18'')
Legs
Bolt 65mm
Allen key
(M4*59mm)
