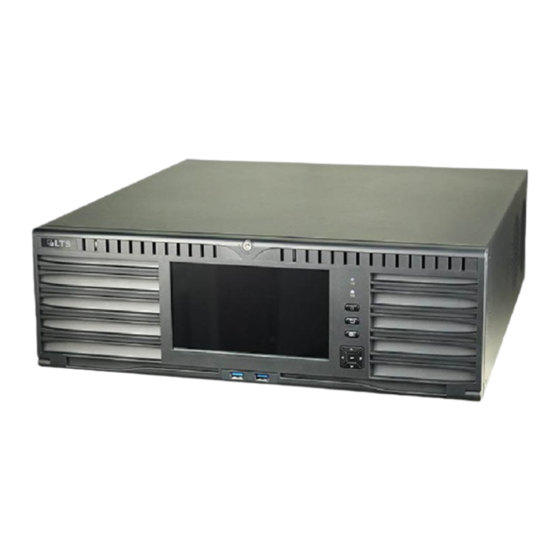

- Page 1 Network Video Recorder Quick Start Guide...
- Page 2 Quick Start Guide of Network Video Recorder Quick Start Guide About this Manual This Manual is applicable to Network Video Recorder (NVR). The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons.
- Page 3 Quick Start Guide of Network Video Recorder Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 4 Quick Start Guide of Network Video Recorder Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected. Cautions: Injury or equipment damage may occur if any of the cautions are neglected.
- Page 5 Quick Start Guide of Network Video Recorder Preventive and Cautionary Tips Before connecting and operating your device, please be advised of the following tips: • Ensure unit is installed in a well-ventilated, dust-free environment. • Unit is designed for indoor use only. •...
-
Page 6: Table Of Contents
Quick Start Guide of Network Video Recorder TABLE OF CONTENTS NVR Pre-Installation ........................... 6 NVR Installation ............................6 Hard Disk Installation ..........................6 Front Panel ..............................8 Rear Panel9 Peripheral Connections ..........................11 Wiring of Alarm Input ..........................11 Wiring of Alarm Output ........................... 11 Using of Alarm Connectors ........................ -
Page 7: Nvr Pre-Installation
Quick Start Guide of Network Video Recorder Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact dealer. This manual is applicable to LTN07256-R NVR Pre-Installation The NVR are highly advanced surveillance equipment that should be installed with care. Please take into consideration the following precautionary steps before installation of the NVR. - Page 8 Quick Start Guide of Network Video Recorder 3. Press the buttons on the panel of two sides and open the front panel. 4. Insert the hard disk along the slot until it is placed into position. 5. Repeat the above steps to install other hard disks onto the NVR. After having finished the installation of all hard disks, close the front panel and lock it with the key again.
-
Page 9: Front Panel
Quick Start Guide of Network Video Recorder Front Panel Front Panel Description of Front Panel Name Function Description Front Panel Lock You can lock or unlock the panel by the key. Tx/Rx Status Indicator Flashes blue when network connection is functioning properly. HDD Status Indicator Flashes red when data is being read from or written to HDD. -
Page 10: Rear Panel9
Quick Start Guide of Network Video Recorder Name Function Description Press and hold the button for 5 seconds will turn off audible key beep. Universal Serial Bus (USB) ports for additional devices such as USB mouse and USB Hard Disk Drive (HDD). USB Interfaces The USB ports are provided for the use of intel board when it is connected. - Page 11 Quick Start Guide of Network Video Recorder Item Description HDMI 16 HDMI video output connectors. Output Extension (provided for /H and /H/I models only) Board DB9 connector for VGA output. Display local video output and menu. AC 100V ~ 240V 100 ~ 240VAC power supply.
-
Page 12: Peripheral Connections
Quick Start Guide of Network Video Recorder Peripheral Connections Wiring of Alarm Input The alarm input is an open/closed relay. To connect the alarm input to the device, follow the diagram below. If the alarm input is not an open/close relay, please connect an external relay between the alarm input and the device. -
Page 13: Controller Connection
Quick Start Guide of Network Video Recorder 3. Connect pluggable block back into terminal block. Controller Connection To connect a controller to the NVR: 1. Disconnect pluggable block from the KB terminal block. 2. Unfasten stop screws from the KB D+, D- pluggable block, insert signal cables into slots and fasten stop screws. -
Page 14: Hdd Storage Calculation Chart
Quick Start Guide of Network Video Recorder HDD Storage Calculation Chart The following chart shows an estimation of storage space used based on recording at one camera for an hour at a fixed bit rate. Bit Rate Storage Used 128K 160K 192K 224K... -
Page 15: Menu Operation
Quick Start Guide of Network Video Recorder Menu Operation Menu Structure The menu structure of the NVR is as follows: Menu Playback Maintenance Shutdown Export VCA Search Record Camera Configuration Manual Behavior Normal Normal Schedule Camera General System Info Logout Record General Search... -
Page 16: Setting The Admin Password
Quick Start Guide of Network Video Recorder Setting the Admin Password Purpose: For the first-time access, you need to activate the device by setting an admin password. No operation is allowed before activation. You can also activate the device via Web Browser, SADP or Client Software. Steps: 1. -
Page 17: Login And Logout
Quick Start Guide of Network Video Recorder Login and Logout User Login Purpose: If NVR has logged out, you must login the device before operating the menu and other functions. Steps: Select the User Name in the dropdown list. Input Password. Click OK to log in. -
Page 18: Live View
Quick Start Guide of Network Video Recorder Live View Some icons are provided on screen in Live View mode to indicate different camera status. These icons include: Live View Icons In the live view mode, there are icons at the upper-right corner of the screen for each camera, showing the status of the record and alarm in the camera, so that you can find problems as soon as possible. - Page 19 Quick Start Guide of Network Video Recorder Steps: Select the Add IP Camera option from the right-click menu in live view mode or click Menu> Camera> Camera to enter the IP camera management interface. The online cameras with same network segment will be detected and displayed in the camera list. Select the IP camera from the list and click the button to add the camera.
-
Page 20: One-Touch Raid Configuration
Quick Start Guide of Network Video Recorder 3) (Optional) Check the checkbox of Continue to Add to add other IP cameras. 4) Click Add to add the camera. For the successfully added IP cameras, the Security status shows the security level of the password of camera: strong password, weak password and risk password. -
Page 21: Recording
Quick Start Guide of Network Video Recorder 3. Click One-touch Configuration to enter the One-touch Array Configuration interface. 4. Edit the array name in the Array Name text filed and click OK button to start configuring array. If you install 4 HDDs or above for one-touch configuration, a hot spare disk will be set by default. It is recommended to set hot spare disk for automatically rebuilding the array when the array is abnormal. -
Page 22: All-Day Recording
Quick Start Guide of Network Video Recorder record, then the icon turns to All-day Recording Steps: 1. On the live view window, right lick the window and move the cursor to the Start Recording option, and select Continuous Record or Motion Detection Record on your demand. 2. -
Page 23: Backup
Quick Start Guide of Network Video Recorder Just check the camera or cameras if you want to switch playback to another camera or execute simultaneous playback of multiple cameras. Backup Recorded files can be backed up to various devices, such as USB flash drives, USB HDDs or a DVD writer. Steps: 1. -
Page 24: Vca Detection
Quick Start Guide of Network Video Recorder 3. Check backup result. Choose the record file in Export interface and click button to check it. VCA Detection Purpose: The NVR supports the VCA detection (face detection, line crossing detection and intrusion detection) or receive the VCA alarm (region entrance detection, region exiting detection, loitering detection, people gathering detection, fast moving detection, parking detection, unattended baggage detection, object removal detection, audio loss exception detection, sudden change of sound intensity detection, and defocus detection) sent by IP... -
Page 25: Vca Search
Quick Start Guide of Network Video Recorder 2. Enable the VCA detection and configure the rule settings. Please refer to the User Manual for detailed instructions. Please refer to the User Manual for detailed instructions to set the VCA rules. VCA Search The NVR supports the VCA search for the behavior analysis, face capture, people counting and heat map. -
Page 26: Logging In
Quick Start Guide of Network Video Recorder product does not work properly, please contact with your dealer or the nearest service center. Logging In You can get access to the device via web browser. You may use one of the following listed web browsers: Internet Explorer 6.0, Internet Explorer 7.0, Internet Explorer 8.0, Internet Explorer 9.0, Internet Explorer 10.0, Apple Safari, Mozilla Firefox, and Google Chrome. -
Page 27: Live View
Quick Start Guide of Network Video Recorder Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug-in. You may have to close the web browser to finish the installation of the plug-in. Live View The live view interface appears by default when you log in the device. -
Page 28: Recording
Quick Start Guide of Network Video Recorder Name Description channel. Live View Window Displays the image of channel, and multi-window division is supported. Play Control Bar Play control operations are supported. Pan, tilt, zoom operations are supported, as well as preset editing and calling. - Page 29 Quick Start Guide of Network Video Recorder 3. Check the checkbox of Enable to enable recording schedule. 4. Choose the day in a week configure the recording schedule. Click a day to set the start time and end time for recording. Select the Record Type for the period.
-
Page 30: Playback
Quick Start Guide of Network Video Recorder 6. You can click to configure advanced record parameters to copy the schedule of current camera to other cameras. 7. Click Save to activate the above settings. Playback The playback interface may differ according to different models. Interface Introduction Name Description... - Page 31 Quick Start Guide of Network Video Recorder 1. Click Playback on the menu bar to enter playback interface. 2. Click the camera from the device list for playback. 3. Select the date from the calendar and click Search. 4. Click the Play button to play the video file searched on the current date. 5.
