Summary of Contents for Sonova Phonak Roger Select

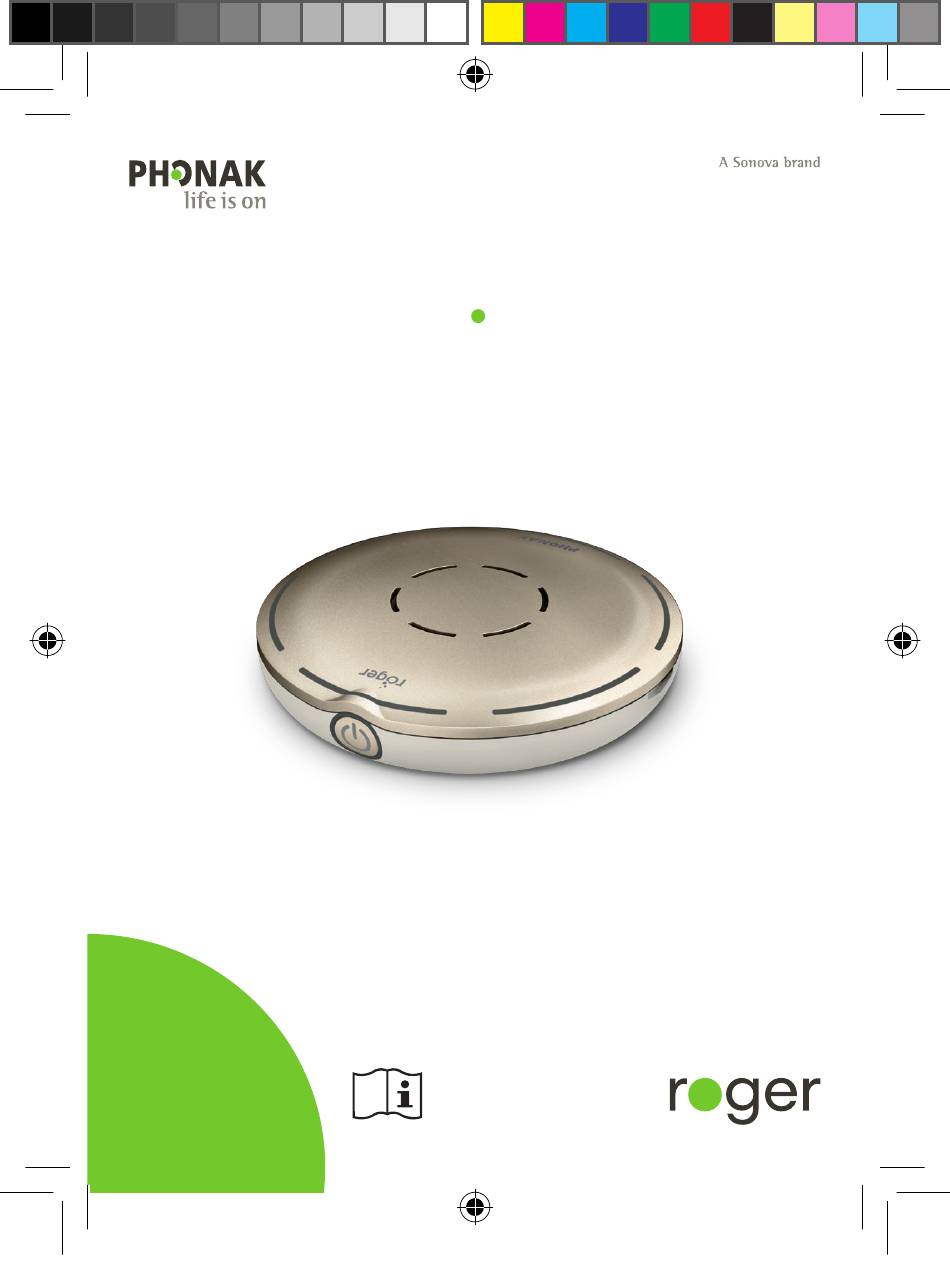

- Page 1 Roger Select User Guide PH_UserGuide_Roger-Select3_92x125_EN_029-1380-02.indd 1 PH_UserGuide_Roger-Select3_92x125_EN_029-1380-02.indd 1 16.04.24 18:05 16.04.24 18:05...
-
Page 2: Table Of Contents
Contents Welcome Additional functions Getting to know your Roger Select Mute Device description Disconnecting Roger devices (NewNet) Accessories Reset Indicator lights Clear list of paired Bluetooth devices Getting started Using Roger Select with other Roger microphones Charging your Roger microphone Switching Roger Select on Connecting with other microphones Connecting Roger Select to your hearing aids... -
Page 3: Welcome
1. Welcome 2. Getting to know your Roger Select Your Roger Select has been developed by Phonak – the Roger Select is a microphone that picks up the voice of a world leader in hearing solutions based in Zurich, speaker and sends it wirelessly directly into your ears. You Switzerland. -
Page 4: Device Description
2.1 Device description ➃ ➃ ➃ ➂ ➃ ➃ ➃ 1 On/off button incl. battery status light 6 Bluetooth button 2 Microphones and center indicator lights 7 Back indicator light 3 Center touch key 8 Connect button 4 Six steering touch keys 9 Micro-USB socket 5 Microphone mode indicator lights 10 Slots for lanyard and clip... -
Page 5: Accessories
2.2 Accessories Docking station External power supply Analog audio cable Magnetic clip 1 External power supply input 2 Digital/analog audio input USB cable Digital audio cable Lanyard Pouch PH_UserGuide_Roger-Select3_92x125_EN_029-1380-02.indd 8-9 PH_UserGuide_Roger-Select3_92x125_EN_029-1380-02.indd 8-9 16.04.24 18:05 16.04.24 18:05... -
Page 6: Indicator Lights
2.3 Indicator lights Battery status Bluetooth Green fast blinking Charging Blue slow blinking Bluetooth standby mode Green solid Fully charged Blue double blinking Incoming call Green slow blinking Switched on, battery Blue solid Active call Orange blinking full Blue fast blinking Network issue, please press Red blinking Battery half full... -
Page 7: Getting Started
3. Getting started 3.1 Charging your Roger microphone C) Via docking station: Slot the Roger There are three ways to charge your Roger microphone: Select into the docking station. A) Using external power supply: Plug the smaller end of the charging cable into your Roger microphone. Plug the Please read chapter 5.1 to setup larger end of the cable into the external power supply. -
Page 8: Switching Roger Select On
3.2 Switching Roger Select on 3.3 Connecting Roger Select to your Roger receiver Press the button 1 second The Roger receiver can either be attached to your hearing until the microphone mode aid / sound processor or body-worn (Roger NeckLoop or indicator light up. - Page 9 Connect status lights 1. Turn on your Roger microphone and Roger receiver. 2. Hold your Roger microphone close (within 10 cm / After pressing the Connect button, the following feedback 4 inches) from the Roger receiver. may be given by the back indicator light: 3.
-
Page 10: Using Your Roger Select To Hear Better
4. Using your Roger Select to hear better Roger Select is a versatile, intelligent product. It detects Your Roger microphone will activate an all-around which situation you are in and adapts its microphone microphone. When a talker speaks, your Roger settings automatically to provide you the best speech microphone will focus its microphone to the talker understanding possible. -
Page 11: Hearing A Distant Talker Better
Microphone mode indicator lights 4.2 Hearing a distant talker better Each time you tap or move the device, the microphone Roger Select allows you to hear a single conversation mode indicator lights shows the active segments. The partner over distance or in very noisy environments. In lights will fade out after a couple of seconds to save typical conditions, you may hear the talker even if they battery power. - Page 12 Using the clip Using the lanyard 1) Attach the clip to your Roger 1) Attach the lanyard to your Roger microphone. Make sure the clip microphone. Make sure the lanyard clicks into the small slots on the clicks into the small slots on the side of your Roger microphone.
-
Page 13: Listening To Tv Or Other Audio Devices
5. Listening to TV or other audio devices 5.1 Setting up the docking station 4) Connect the free end of the optical (Toslink) cable into the optical OUTPUT of your TV or alternative 1) Insert the smaller end of the USB cable into the socket audio device. -
Page 14: Listening To The Tv Using The Docking Station
5.2 Listening to the TV using the docking station Mute indicator lights When your Roger microphone is placed in the docking 1) Insert your Roger microphone into station and transmitting audio, the center red indicator the docking station. When it is placed light appears. -
Page 15: Listening To A Portable Audio Device
6. Listening to a portable audio device Mute indicator lights 1) Make sure you have switched on your When the audio cable is plugged into your Roger Roger microphone. microphone, the center red indicator light appears. 2) Plug the rectangular Your Roger microphone transmits end of the short audio cable into your Roger audio signals while its microphone is... -
Page 16: Making Phone Calls Using Bluetooth
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sonova Communications AG is under license. Other trademarks and trade names are those of their respective owners. -
Page 17: Pair Roger Select With Your Phone/Computer
Bluetooth operating range 7.2 Pair Roger Select with your phone/computer Your Roger microphone supports Bluetooth Class 2 operation up to a range of 3 meters (10 ft). 1) Turn on your Roger microphone and your Line-of-sight between your Roger microphone and your phone/computer. -
Page 18: Making Phone Calls
Making phone calls 6) Your Roger microphone should now be paired to your phone/computer and the indicator light will stop Use your phone‘s/computer’s keypad to enter the number blinking. or the contact you want to call and press the call button. 7) To add another Bluetooth device, briefly press the You will hear the ringing tone in your hearing Bluetooth button... -
Page 19: Further Bluetooth Options
Rejecting a call B. Briefly pressing the on/off button will put your Roger If you prefer not to answer an incoming call, tap and hold microphone into Bluetooth standby mode. This means the center touch key for 2 seconds until the blue light your Roger microphone microphone is switched off stops flashing. -
Page 20: Additional Functions
8. Additional functions 8.1 Mute 8.3 Reset To mute the your Roger microphone, If your Roger microphone stops responding to commands, tap the center touch key of the you can reset it by pressing the on/off and Bluetooth device once or twice until the center buttons together for 10 seconds. -
Page 21: Using Roger Select With Other Roger
9. Using Roger Select with other Roger microphones Roger Select can be combined with other Roger microphones, e.g. Roger Table Mic. Using multiple microphones allows you to hear a bigger group or multiple distant speakers. Connect status light After pressing the Connect button, the following feedback may be given by the back indicator light: Connection was successful - the other Roger microphone is now connected to your Roger Select. -
Page 22: Using Multiple Microphones
10. Troubleshooting 9.2. Using multiple microphones When Roger Select is used with other microphones, it has to be worn by a talker on the chest. When you place Problem Causes Solutions Roger Select on the table, it will mute automatically. I cannot The battery is Charge your Roger... - Page 23 Problem Problem Causes Solutions Causes Solutions I do not like to Your voice is picked Tap the segment in hear my own up by your Roger the direction of the I can hear the The microphone Move your Roger voice over my microphone talker to minimize talker but I...
- Page 24 Problem Problem Causes Solutions Causes Solutions I keep losing the The person on the Distance between Move your phone/ your Roger Wear your Roger signal during a phone is having computer closer to microphone on your your Roger microphone is Bluetooth phone call difficulty hearing me your Roger microphone...
-
Page 25: Service And Warranty
11. Service and warranty 11.1 Local warranty 11.3 Warranty limitation Please ask the hearing care professional, where you This warranty does not cover damage from improper purchased your devices, about the terms of the local handling or care, exposure to chemicals, immersion in warranty. -
Page 26: Compliance Information
Notice 1: Declaration of Conformity This device complies with Part 15 of the FCC Rules and Hereby Sonova Communications AG declares that this with Industry Canada’s license exempt RSS standard(s). product is in compliance with the Radio Equipment Operation is subject to the following two conditions: Directive 2014/53/EU. - Page 27 Notice 4: the instructions, may cause harmful interference to radio communications. However, there is no guarantee Japanese Radio Law Compliance. Business Law that interference will not occur in a particular Compliance. This device is granted pursuant to the installation. If the device does cause harmful Japanese Radio Law and the Japanese interference to radio or television reception, which can...
-
Page 28: Information And Explanation Of Symbols
13. Information and explanation of symbols Operating The CE symbol is confirmation by Sonova The device is designed such that it conditions Communications AG that this product is in functions without problems or restrictions if compliance with the Radio Equipment Directive used as intended, unless otherwise noted in 2014/53/EU. -
Page 29: Important Safety Information
14. Important safety information This symbol on the product or its packaging means that it should not be disposed of with your other household Please read the information on the following pages before waste. it is your responsibility to dispose using your device. - Page 30 Opening the device might damage it. If problems Changes or modifications to any of the devices occur which cannot be resolved by following the that were not explicitly approved by Sonova remedy guidelines in the troubleshooting section of Communications AG are not permitted.
-
Page 31: Product Safety Information
14.2 Product safety information If the device has been dropped or damaged, if it overheats, has a damaged cord or plug, or has been Protect the device connectors, plugs, power supply dropped into liquid, stop using your device and from dirt and debris. contact authorized service centre. - Page 32 Notes PH_UserGuide_Roger-Select3_92x125_EN_029-1380-02.indd 62-63 PH_UserGuide_Roger-Select3_92x125_EN_029-1380-02.indd 62-63 16.04.24 18:05 16.04.24 18:05...
- Page 33 Sonova Communications AG Herrenschwandweg 4 CH-3280 Murten Switzerland www.phonak.com PH_UserGuide_Roger-Select3_92x125_EN_029-1380-02.indd 64 PH_UserGuide_Roger-Select3_92x125_EN_029-1380-02.indd 64 16.04.24 18:05 16.04.24 18:05...
