Velp Scientifica AREC 10 Instruction Manual

Velp Scientifica AREC 10 Instruction Manual

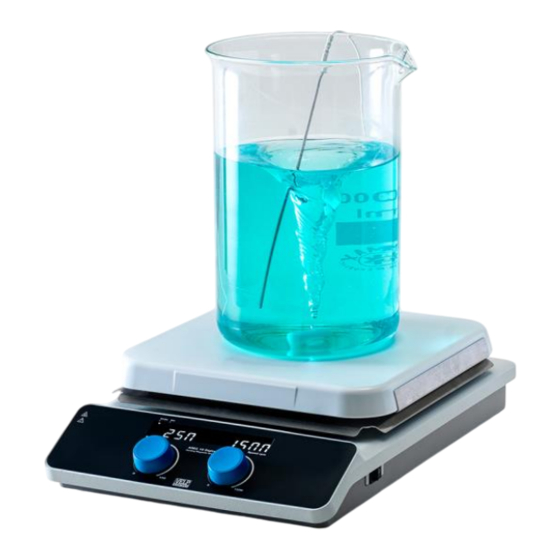

Digital heating magnetic stirrer/digital heating plate
Hide thumbs Also See for AREC 10:

Advertisement

Available languages

Available languages

Quick Links

Instruction Manual
Manuale di istruzioni
Manuel d'instructions
Manual de instrucciones
Bedienungsanleitung
操作指南

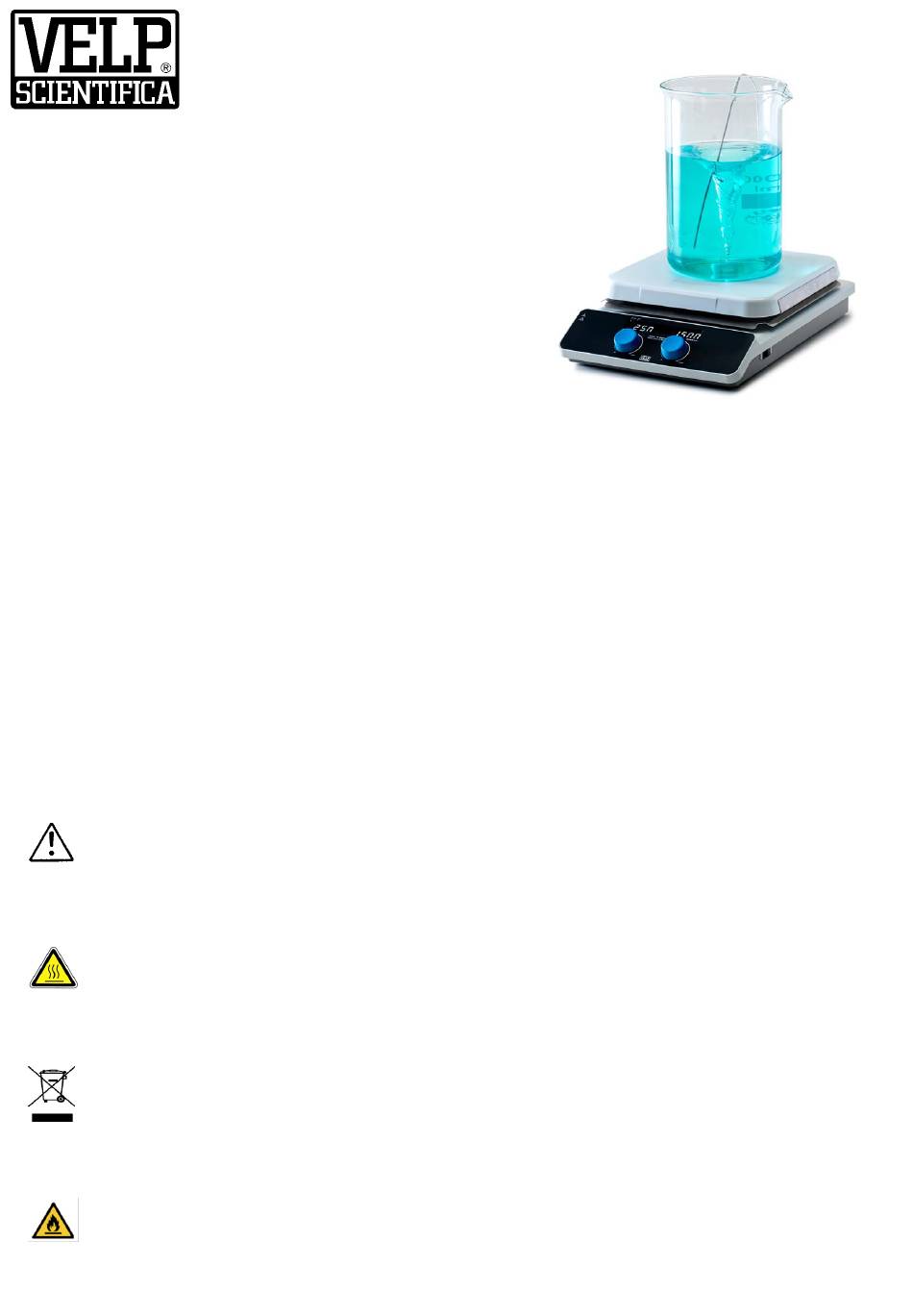

AREC 4 Digital Heating Magnetic Stirrer
F20500670, F20510671
AREC 10 Digital Heating Magnetic Stirrer
F20500691, F20510691, F20580691
REC 10 Digital Heating Plate
F20700693, F20710693, F20780693
General Information / Informazioni Generali / Informations Générales / Información General / Allgemeine Hinweise / 基本信息
Before using the unit, please read the following instruction manual carefully.
Prima dell'utilizzo dello strumento si raccomanda di leggere attentamente il seguente manuale operativo.
Avant d'utiliser l'instrument, il est recommandé de lire attentivement le présent manuel d'instructions.
Antes de utilizar el instrumento, le recomendamos que lea con atención el siguiente manual de instrucciones.
Bitte lesen Sie vor Inbetriebnahme des Geräts diese Bedienungsanleitung sorgfältig durch.
使用前请仔细阅读以下使用说明书。
Caution, hot surface!
Attenzione, superficie calda!
Attention, surface chaude!
Prudencia, superficie caliente!
Vorsicht, heiße Oberfläche!
注意:加热面高温
Do not dispose of this equipment as urban waste, in accordance with EEC directive 2012/19/UE.
Non smaltire l'apparecchiatura come rifiuto urbano, secondo quanto previsto dalla Direttiva 2012/19/UE.
Ne pas recycler l'appareil comme déchet solide urbain, conformément à la Directive 2012/19/UE.
No tirar el equipo en los residuos urbanos, como exige la Directiva 2012/19/UE.
Dieses Gerät unterliegt der Richtlinie 2012/19/UE und darf nicht mit dem normalen Hausmüll entsorgt werden.
按照 EEC 指令 2002/96/CE,不要将该设备作为城市垃圾处理。
The product can be used with flammable liquids.
Il prodotto può essere utilizzato con liquidi infiammabili.
Le produit peut être utilisé avec des liquides inflammables.
El producto puede utilizarse con líquidos inflamables.
Das Produkt kann mit brennbaren Flüssigkeiten verwendet warden.
本产品可与易燃液体混合使用。

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AREC 10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Velp Scientifica AREC 10

  • Page 1 Bedienungsanleitung 操作指南 AREC 4 Digital Heating Magnetic Stirrer F20500670, F20510671 AREC 10 Digital Heating Magnetic Stirrer F20500691, F20510691, F20580691 REC 10 Digital Heating Plate F20700693, F20710693, F20780693 General Information / Informazioni Generali / Informations Générales / Información General / Allgemeine Hinweise / 基本信息...
  • Page 2 This unit must be used for indoor laboratory applications only. The manufacturer declines all responsibility for any use of the unit that does not comply with these instructions. If the product is used in a way not specified by the manufacturer or with non specified accessories, product's safety may be compromised. Questo strumento deve essere utilizzato solo per applicazioni di laboratorio per uso interno.
  • Page 3 Safety Regulations / Norme di Sicurezza / Consignes de Securité / Advertencias de Seguridad / Sicherheitshinweise / 安全法规 The plug disconnects the instrument. Therefore, place the instrument where it can be quickly disconnected. La spina è il mezzo di disconnessione dell’apparecchio. Pertanto, non posizionare l’apparecchio in modo che sia difficile azionare il mezzo di disconnessione.
  • Page 4 Do not use with explosive or dangerous materials for which the equipment is not designed. The stirrer must not be used in explosive atmospheres, in bain-marie or to stir combustible liquids that have a low combustion temperature. The product is intended for use with very small quantities of flammable liquids or flammable liquids that have a fire point higher than 625°C and a flash point higher than 600°C.
  • Page 6: Table Of Contents

    Contents / Indice / Index / Índice / Inhalt / 目录 INTRODUCTION ................................1 INSTALLATION ................................2 OPERATION ..................................2 SETTING MODE ................................4 ERROR AND WARNING MESSAGES ..........................5 MAINTENANCE ................................5 TECHNICAL DATA ................................6 INTRODUZIONE ................................9 INSTALLAZIONE ................................
  • Page 7: Introduction

    1. Introduction The AREC 4 / AREC 10 Digital heating magnetic stirrer and the REC 10 Digital heating plate is used to heat and mix (not available on REC 10 Digital) liquids inside a suitable container placed on the ceramic plate. The stirring (not available on REC 10 Digital ) is possible thanks to a magnetic drive stir bar placed into the vessel.
  • Page 8: Installation

    ➢ Check the integrity of the unit after unpacking • The box includes ➢ AREC 4 / AREC 10 Digital heating magnetic stirrer / REC 10 Digital heating plate ➢ Instruction manual ➢ Power cable ➢ Magnetic stir bar Ø 8 x 40 mm (A00000356) (not for REC 10 Digital) •...
  • Page 9 Place the external temperature probe into the clamp (optional); then place it into the sample contained inside the flask • Plug the probe into the dedicated socket on the back of the instrument. The AREC4 / AREC 10 / REC 10 Digital automatically recognizes the type of temperature probe (Pt100 or Pt1000) •...
  • Page 10: Setting Mode

    4. Setting mode Press both knobs for 3 seconds when heating and stirring are OFF to access the setting mode. Turn the left knob to browse through the available menus, listed below. Press the right knob to see the set parameter. Then, turn the knob to modify the value of the parameter (when it is possible). Press the knob to confirm.
  • Page 11: Error And Warning Messages

    Fast decrease in temperature read by the external probe To remove the error message, restart the instrument from the main switch. If the alarm persists on the display, please contact VELP Scientifica’s technical assistance service. 6. Maintenance No routine or extraordinary maintenance is required except periodic cleaning.
  • Page 12: Technical Data

    7. Technical data AREC 4 DIGITAL Model F20500671 F20510671 230 V – 50/60 Hz 115 V – 60 Hz Voltage Power input 280 W Current consumption 1,2 A 2,4 A 160x100x270 mm (6,3x3,9x10,6 in) Dimensions (WxHxD) 1,9 kg (4,2 lb) Weight Aluminium body –...
  • Page 13 AREC 10 DIGITAL F20500691 F20510691 F20580691 Model 230 V – 50/60 Hz 115 V – 60 Hz 100 V – 50/60 Hz Voltage Power input 1530 W 1520 W 1320 W Current consumption 6,7 A 13,2 A 13,2 280x100x420 mm (11x3,9x16,5 in)
  • Page 14 REC 10 DIGITAL F20700693 F20710693 F20780693 Model 230 V – 50/60 Hz 115 V – 60 Hz 100 V – 50/60 Hz Voltage Power input 1510 W 1500 W 1300 W Current consumption 6,6 A 13 A 280x100x420 mm (11x3,9x16,5 in) Dimensions (WxHxD) 5,3 kg (11,6 lb) Weight...
  • Page 15: Introduzione

    è la A00000356 (8 x 40 mm). L’AREC 4 / AREC 10 Digital / REC 10 Digital può funzionare in combinazione con la sonda esterna Pt100 o Pt1000 o con il termoregolatore VTF per consentire una precisa ed accurata termoregolazione del campione.
  • Page 16: Installazione

    ➢ Controllare l’integrità dello strumento dopo averlo rimosso dall’imballo • La scatola include ➢ AREC 4 / AREC 10 Digital agitatore magnetico riscaldante / REC 10 Digital piastra riscaldante ➢ Manuale di istruzioni ➢ Cavo di alimentazione ➢ Ancoretta magnetica Ø 8 x 40 mm (A00000356) (non inclusa nel modello REC 10 Digital) •...
  • Page 17 Collocare la sonda esterna nel morsetto (facoltativo); dopodiché, posizionarla all’interno del campione contenuto in un apposito contenitore. • Inserire il connettore della sonda nella presa dedicata posta sul retro dello strumento. L’AREC 4 / AREC 10 Digital REC 10 Digital riconosce automaticamente il tipo di sonda inserita (Pt100 o Pt1000). •...
  • Page 18: Modalita Impostazione Parametri

    4. Modalità impostazione parametri Premere entrambe le manopole per 3 secondi quando riscaldamento e agitazione non sono attivi per accedere alla modalità impostazione parametri. Ruotare la manopola di sinistra per scorrere tra i menù disponibili, elencati in seguito. Premere la manopola di destra per vedere il parametro impostato. Dopodiché, ruotare la manopola per modificare il valore del parametro (quando possibile).
  • Page 19: Messaggi Di Errore E Attenzione

    Rapida diminuzione di temperature letta dalla sonda esterna Per rimuovere gli allarmi è necessario riavviare lo strumento tramite l’interruttore generale Se l’allarme persiste sul display, contattare il servizio di assistenza tecnica di VELP Scientifica. 6. Manutenzione La manutenzione ordinaria e straordinaria non è prevista salvo la pulizia periodica.
  • Page 20: Caratteristiche Tecniche

    7. Caratteristiche tecniche AREC 4 DIGITAL F20500671 F20510671 Modelli 230 V – 50/60 Hz 115 V – 60 Hz Alimentazione Potenza assorbita 280 W Corrente assorbita 1,2 A 2,4 A Dimensioni (LxLxH) 160x100x270 mm (6,3x3,9x10,6 in) 1,9 kg (4,2 lb) Peso Corpo in alluminio –...
  • Page 21 AREC 10 DIGITAL F20500691 F20510691 F20580691 Modelli 230 V – 50/60 Hz 115 V – 60 Hz 100 V – 50/60 Hz Alimentazione Potenza assorbita 1530 W 1520 W 1320 W Corrente assorbita 6,7 A 13,2 A 13,2 280x100x420 mm (11x3,9x16,5 in)
  • Page 22 REC 10 DIGITAL F20700693 F20710693 F20780693 Modelli 230 V – 50/60 Hz 115 V – 60 Hz 100 V – 50/60 Hz Alimentazione Potenza assorbita 1510 W 1500 W 1300 W Corrente assorbita 6,6 A 13 A 280x100x420 mm (11x3,9x16,5 in) Dimensioni (LxLxH) 5,3 kg (11,6 lb) Peso...
  • Page 23: Accessories / Accessori / Accessoires / Accesorios / Zubehör / 配件

    1. Accessories / Accessori / Accessoires / Accesorios / Zubehör / 配件 MULTI Magnetic disc stir bar, Ø 20 x 10 mm / Ancoretta magnetica a disco, Ø20x10 mm / Barreau d’agitation magnétique, Ø 20 x 10 mm / Agitador Magnético Disco, Ø 20 x 10 mm / A00000355 Magnetische Rührscheibe Ø...
  • Page 24: Wiring Diagram / Schema Elettrico / Schéma Électrique / Esquema Eléctrico / Schaltplan / 线

    2. Wiring diagram / Schema elettrico / Schéma électrique / Esquema eléctrico / Schaltplan / 线 路图 Panel socket / Presa di alimentazione / Prise de courant du panneau / Toma de corriente / Steckdose /电源插座 Main switch / Interruttore generale / Interrupteur général / Interruptor general / Netzschalter / 电源 主开关 Electric motor / Motore elettrico / Moteur électrique / Motor eléctrico / Elektromotor / 电动机...
  • Page 25: Declaration Of Conformity / Dichiarazione Di Conformita / Declaration De Conformite

    3. Declaration of conformity / Dichiarazione di conformità / Déclaration de conformité / Declaración de conformidad / Konformitätserklärung / 符合性声明 We, the manufacturer VELP Scientifica, under our responsibility declare that the product is manufactured in conformity with the following standards: Noi, casa costruttrice VELP SCIENTIFICA, dichiariamo sotto la ns.
  • Page 26: Declaration Of Conformity

    4. Declaration of conformity We, the manufacturer VELP Scientifica, under our responsibility declare that the product is manufactured in conformity with the following regulations: S.I. 2016/1101 Electrical Equipment (Safety) Regulations 2016 S.I. 2016/1091 Electromagnetic Compatibility Regulations 2016 according to the relevant designated standards:...
  • Page 28 Turbidimeter Torbidimetro Open Circulating Baths Bagni Termostatici Pumps Pompe 10009630/A1 www.velp.com VELP Scientifica Srl 20865 Usmate (MB) ITALY Distributed by: Via Stazione, 16 Tel. +39 039 62 88 11 Fax. +39 039 62 88 120 We respect the environment by printing our manuals on recycled paper.
