Summary of Contents for Drive Medical Sentra EC

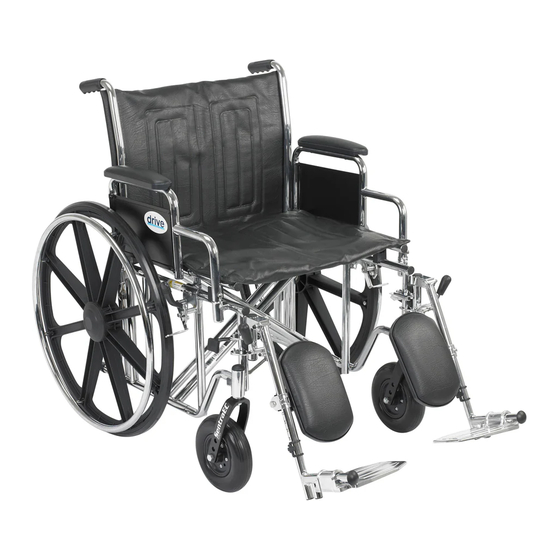

- Page 1 Sentra Wheelchair Range...
-
Page 2: Table Of Contents
12. Warranty Introduction The Drive Medical Sentra wheelchairs are available in chrome or black, and are available with self propel or transit wheels. They are designed for a single occupant up to 32 stone (200kg) and are suitable for in indoor and most outdoor environments. -
Page 3: Brake Operation
Brake Operation Parking Brakes To apply the parking brakes, push the handle on the brake unit until locked in place (see diagram). To release the brake, push the handle in the opposite direction. Note: the model of brake on the wheelchair may be visually different from that shown. -
Page 4: Leg Rest Removal
Leg Rest Removal To remove the leg rest, press the chrome lever on the leg rest whilst swinging the leg rest out (as shown left). This will now allow the leg rest to be lifted up and removed. To attach the leg rest, place the leg rest on the two receiver posts on the wheelchair frame. - Page 5 Operation and Propulsion The wheelchairs with self propel wheels can be propelled by the wheelchair user using the rear wheel handrims or by an attendant using the push handles. The wheelchairs with transit wheels can only be propelled by an attendant using the push handles.
-
Page 6: Using The Stepper Tube
Using the Stepper Tube Use the stepper tube to raise the front castors (when mounting a kerb for example). To use, push down on the stepper tube with a foot. Do not raise the front castors by pushing down on the push handles as this could result in damage to the wheelchair. - Page 7 Maintenance and Tyre Pressure The Sentra wheelchair is installed with puncture proof solid tyres that will not require inflation. Proper care and maintenance is important in order to keep your wheelchair in good working order. Be sure that your chair is in proper working order at all times.
- Page 8 Warranty Your Drive branded product is warranted to be free of defects in materials and workmanship for one year from date of purchase. This device was built to exacting standards and carefully inspected prior to shipment. This warranty is an expression of our confidence in the materials and workmanship of our products and our assurance to the customer.
