Drive Medical S1 Manual

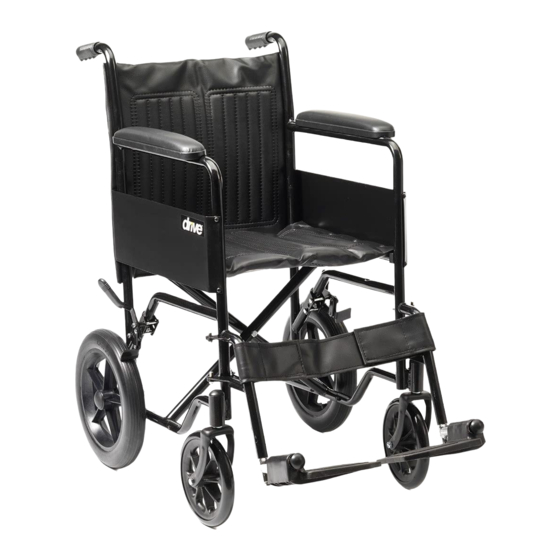

Steel wheelchair
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Drive Medical S1

Summary of Contents for Drive Medical S1

  • Page 2: Table Of Contents

    7. Using the Stepper Tube Introduction The Drive Medical S1 steel wheelchair is designed for use indoors and outdoors, but should not be used on rough terrain. The wheelchair is designed for a single user of up to 115kg (18 stone). Models with either 24”...

  • Page 3: Brake Operation

    Brake Operation Parking Brakes BRAKE To apply the parking brakes, push the handle on the brake unit until locked in place (see diagram). To release the brake, push the handle in the opposite direction. Note: the model of brake on the wheelchair may be visually different from that shown. Leg Rest Adjustment For optimum comfort it is important to attain the correct leg position.

  • Page 4: Leg Rest Removal

    Leg Rest Removal To remove the leg rest, press the chrome lever on the leg rest whilst swinging the leg rest out. This will now allow the leg rest to be lifted up and removed. To attach the leg rest, place the leg rest on the two receiver posts on the wheelchair frame (1).

  • Page 5: Using The Stepper Tube

    Using the Stepper Tube Use the stepper tube to raise the front castors (when mounting a kerb for example). To use, push down on the stepper tube with a foot. Do not raise the front castors by pushing down on the push handles as this could result in damage to the wheelchair.

  • Page 6: Using The Wheelchair As A Seat In A Motor Vehicle

    However, there are circumstances and situations where such a transfer may not be possible and that the S1 Wheelchair can be used as a seat within a vehicle.

  • Page 7: Maintenance And Tyre Pressure

    Wheelchair Restraints Occupant Restraints Maintenance and Tyre Pressure This S1 wheelchair is installed with puncture proof solid tyres that will not require inflation. Proper care and maintenance is important in order to keep your wheelchair in good working order. Be sure that your chair is in proper working order at all times.

  • Page 8: Specification

    Specification 18” Wheelchair Self Propel Transit Overall dimensions 106 x 61 x 90cm 88 x 60 x 91cm L x W x H (cm / in) (42” x 24” x 35”) (35” x 24” x 36”) Width Closed (cm / in) 26cm (10”) 26cm (10”) Seat dimensions...
