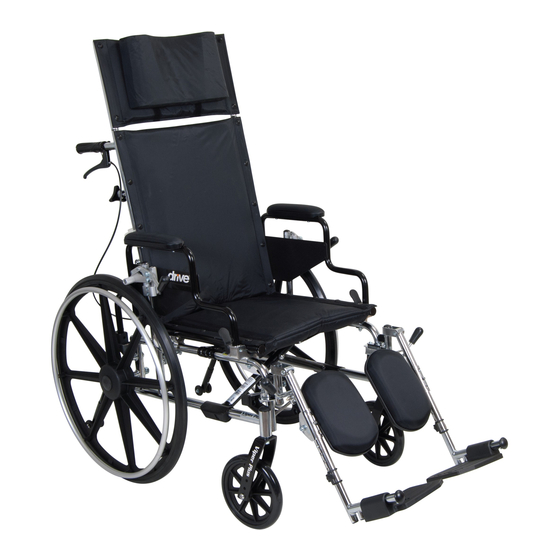

Summary of Contents for Drive Medical Drive viper plus gt
- Page 1 EU Authorized Representative Drive Medical LTD Ainley’s Industrial Estate Elland, West Yorkshire, United Kingdom HX5 9JP www.drivemedical.com www.drivemedical.com Rev4.1.5.18 Rev4.1.5.18...
-
Page 2: Weight Capacity
Please read this manual carefully to insure safe usage Back Upholstery and understanding of maintenance instructions. Armrest Pad Hand Armrest Congratulations on your purchase of a Drive wheel- Grip chair. Drive wheelchairs are a product of quality Side Panel Rear Wheel engineering and are manufactured to meet our own Seat Upholstery highly rigid specifications and will surpass all your... - Page 3 TO CLOSE/FOLD CHAIR - First fold foot plates to REMOVAL OF SWING-AWAY FOOT RESTS/LEG vertical position. Grab seat with both hands at front RESTS - Release lock by pushing on the front rigging and back edge and lift. Or, tilt chair to one side and lever.
- Page 4 Do not lean over or apply weight to the top of wheelchair back. This can cause wheelchair to tip over. When trying to extend arms over back, only reach as far as your arm can extend without having to alter your seating position. DO NOT stand on wheelchair.
- Page 5 adjusting height of adjusting back angle front riggings The Viper Plus GT Full Reclining features an adjust- able angle back that adjusts from 5 degrees to 20 To extend the length of the foot plate on the front degrees in 5 degree increments. To adjust the angle, riggings, locate the tool free lock release (figure locate the adjustment flange located at the rear of 4).
- Page 6 seat extension instructions Your Viper Plus GT Full Reclining Wheelchair comes with an adjustable depth seat that has been factory set at the shortest position. Follow the instructions below to extend the seat depth of your chair. 3. The seat extension post is located inside the seat frame.
- Page 7 lifetime limited warranty Your Drive branded product is warrantied to be free of defects in materials and workmanship for the lifetime of the product for the original consumer purchaser. This device was built to exacting standards and care- fully inspected prior to shipment. This Lifetime Limited 6.
- Page 8 www.drivemedical.com www.drivemedical.com...
Need help?
Do you have a question about the Drive viper plus gt and is the answer not in the manual?
Questions and answers
Wheel locks are extremely difficult to engage. I tried adjusting them by loosening the Allen screws but can’t get the bar to slide.
To fix the wheel locks on a Drive Medical Viper Plus GT that are difficult to engage, adjust them by loosening or tightening the nut on the carriage bolt. Proper adjustment ensures at least 1/8" engagement when locked. Locks should be engaged by pushing the handle completely forward.
This answer is automatically generated
How to fix brakes on Viper plus GT wheel Chair
To fix the brakes on a Drive Medical Viper Plus GT wheelchair, follow these steps:
1. Identify the Brake Type: The wheelchair uses a Push to Lock Brake system.
2. Inspect the Brakes: Check if the brake is loose, misaligned, or damaged.
3. Adjust the Position: Loosen the bolts holding the brake using an Allen wrench. Do not remove them completely.
4. Align and Secure: Adjust the brake position so it properly contacts the wheel when engaged.
5. Tighten the Bolts: Once aligned, securely tighten the bolts with the Allen wrench.
6. Test the Brakes: Engage and disengage the brake to ensure it locks the wheel properly.
7. Replace if Necessary: If the brake is damaged, consider replacing it with a new Push to Lock Brake for Drive Viper Plus GT Wheelchair.
Ensure all adjustments are secure before using the wheelchair.
This answer is automatically generated
