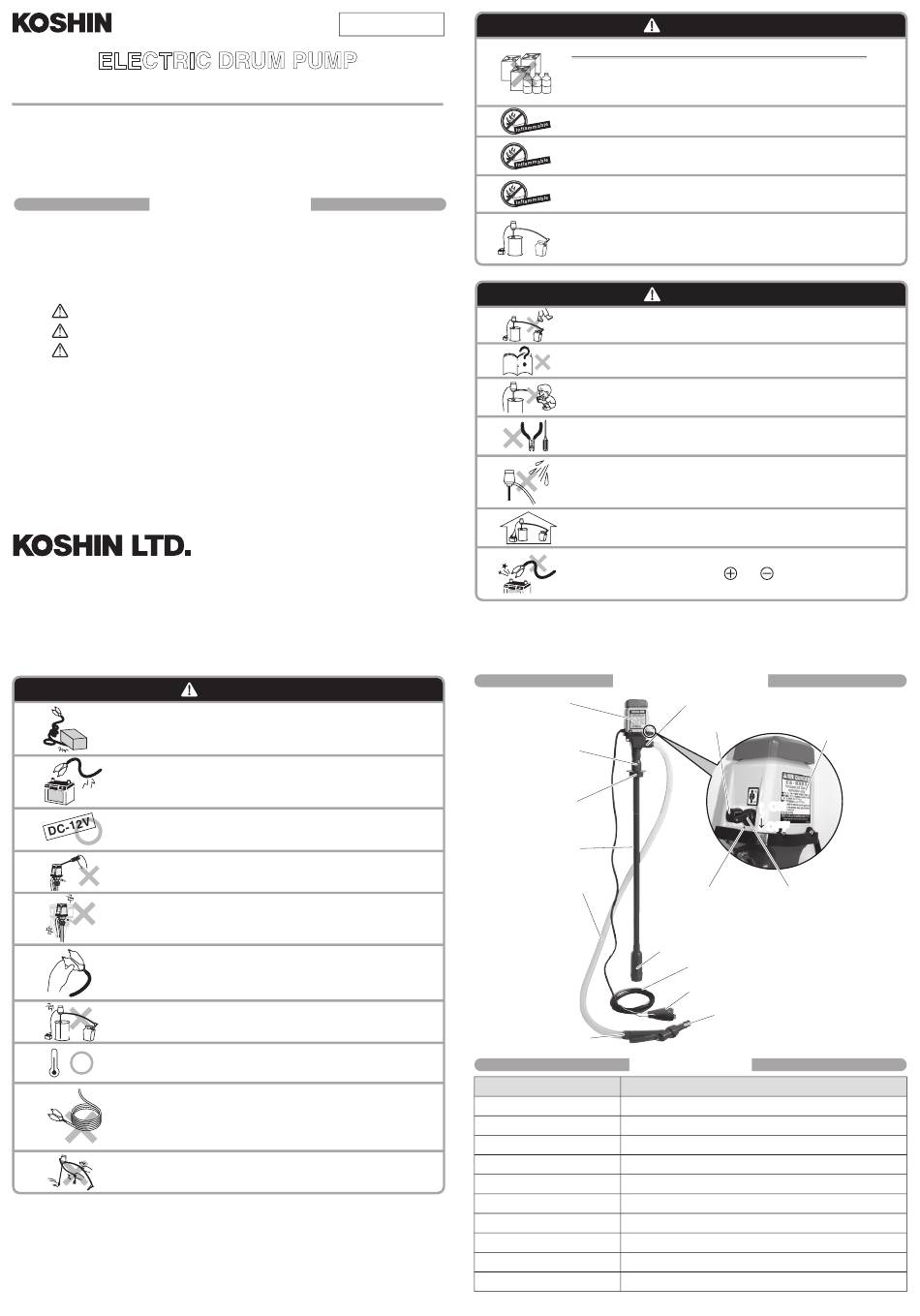

Koshin FP-2512 Operation Manual

ELECTRIC DRUM PUMP ELECTRIC DRUM PUMP
FP-2512 OPERATION MANUAL
●
Please read carefully before use and understand how to operate.
Wrong usage may cause accident or injury.
●
Please keep this manual for future reference.
SAFETY CAUTION
Read this "SAFETY CAUTION" carefully before use.
These following cautions are for correct usage of product and prevent you
or others from injury or harm.
Each article contains important contents. Following are the articles:
DANGER
： may cause death or serious injury on high level.
WARNING
： may cause death or serious injury.
CAUTION
： may cause serious injury or major damage.
www.koshinpump.com
TEL.: +81-75-953-2499 FAX.: +81-75-954-6119
E-mail: info@koshin-ltd.co.jp
12 Kami-Hachinotsubo Kotari, Nagaokakyo City,
Kyoto 617-8511 JAPAN
Do not harm, damage, twist or break electric cable. Do not
put heavy objects on the cable. This may cause damage
to the cable and may cause fire, electric shock.
Do not use this product if electric cable or clip is damaged
or inadequate connection with power supply.
It may cause electric shock, short-circuit or fire.
Besides rated voltage, do not use this product.
It may cause fire, electric-shock.
Do not dismantle the product.
It may cause electric-shock or injury.
Do not give any shock to the product during operation.
It might cause fire by electric-shock, short-circuit or
electric leakage.
If the product does not operate or looks like an abnormal
run, take of the clip power source immediately, and ask for
checking or repair with your local distributor/dealers.
Please do not run dry. (Operation without liquid in drum)
It may cause damage to the product.
Empty
Use this product with liquid temperature between 0-40
0~40℃
degrees centigrade.
If you use extension cable, please use the length as
minimum. Use cable with isolation treated to avoid
short-circuit. Thin or long cable may lead to inferior
performance or even damage of the product.
When lifting the product, please do not pull power cord or
hose. It may damage the power cord or hose.
* All these important safety instructions described by this operation
manual may not cover all the conditions and cases of usage.
We pay careful attention about safety of the product. Please pay
careful attention by user, operator, technician for maintenance as well.
For Kerosene and Diesel
application only
It is necessary to follow the article.
22-03 004059301
CAUTION
This product is for kerosene or diesel application only.
This product cannot be used for petroleum grade liquid, such as
gasoline, A-crude, solvents, Chemicals, water.
( Danger - may cause explosion, fire, or damage)
This product does not use flame-proof motor.
Do not use this product near inflammable objects such as
petrol.
Do not use fire when you operate this product.
It may cause fire.
This product is exclusively designed for transfer of kerosene
or diesel only. Do not use for other applications.
Kerosene
kerosene
or
or
Diesel
diesel
Do not leave the pump unattended during operation.
Do not operate this product without understanding the
Operation
operation manual.
Manual
Operate this product in a safe place away from children.
Besides trained technician of repair, do not dismantle,
repair, rebuild. It may cause damage.
Do not wet the product with water or oil. It may cause
serious accident, injury, or damage to the product due to
electric shock, short-circuit, or electric leakage.
Please do not use outdoor.
This product may be damaged if wet by rain or water.
When you put the clip with power source (battery) avoid
short-circuit, by touching
It may cause fire or accident.
THE NAME OF PARTS
Name Plate
Drum Nut
Drum Screw
Suction Pipe
Delivery Hose
Hose Cap
SPECIFICATIONS
Model
Connection dia
Total head
Discharge volume
Voltage
Continuous operating time
Power cord
Fuse
Discharge hose
Nozze
Net weight
※ We offer 1.5 m delivery hose as option item. 1.5 m delivery hose is replacement type.
DANGER
WARNING
and .
Hose Cap
Fuse Holder
Caution Label
↑ ↑
ON ON
OFF OFF
Power Lamp
Power Switch
Electric Plug
Pump
Power Cord
Electric Plug
Nozzle
FP-2512
25 mm (1")
2.8 m
18 L/min
DC 12 V
30 min
4 m
4 A
1.5 m
Gun type
2.0 kg
