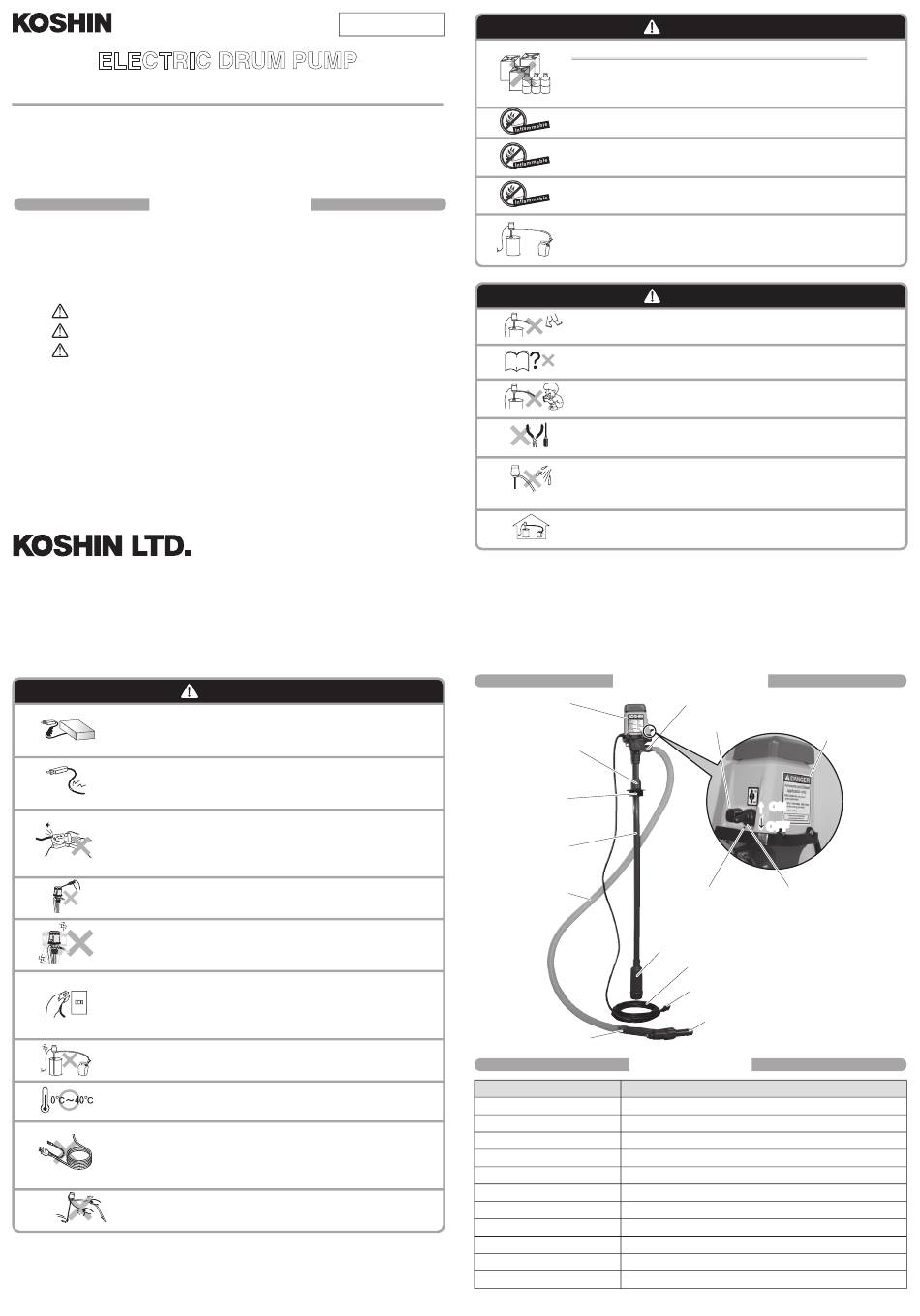

Koshin FP-25 Operation Manual

ELECTRIC DRUM PUMP ELECTRIC DRUM PUMP
FP-25 OPERATION MANUAL
●
Please read carefully before use and understand how to operate.
Wrong usage may cause accident or injury.
●
Please keep this manual for future reference.
SAFETY CAUTION
Read this "SAFETY CAUTION" carefully before use.
These following cautions are for correct usage of product and prevent you
or others from injury or harm.
Each article contains important contents. Following are the articles:
DANGER
： may cause death or serious injury on high level.
WARNING
： may cause death or serious injury.
CAUTION
： may cause serious injury or major damage.
www.koshinpump.com
TEL.: +81-75-953-2499 FAX.: +81-75-954-6119
E-mail: info@koshin-ltd.co.jp
12 Kami-Hachinotsubo Kotari, Nagaokakyo City,
Kyoto 617-8511 JAPAN
Do not harm, damage, twist or break electric cable. Do not
put heavy objects on the cable. This may cause damage
to the cable and may cause fire, electric shock.
Do not use this product if electric cable or electric plug is
damaged or inadequate connection with power supply. It
may cause electric shock, short-circuit or fire.
Besides rated voltage, do not use this product. It may
★ cause fire, electric-shock.
Please do not allow too many wiring from one socket. It
may cause overheat or cause voltage power to be reduced.
Do not dismantle the product. It may cause electric-shock
or injury.
Do not give any shock to the product during operation. It
might cause fire by electric-shock, short-circuit or electric
leakage.
If the product does not operate or looks like an abnormal
run, take off electric cable immediately from socket, and
ask for checking or repair with your local
distributor/dealers.
Please do not run dry. (Operation without liquid in drum)
It may cause damage to the product.
Use this product with liquid temperature between 0-40
degrees centigrade.
In case of extension power cord, please use cable with
more than 1.25 mm
length. If thin or long power cord is used, it may lead to
inferior performance or even damage the product.
When lifting the product, please do not pull power cord or
hose. It may damage the power cord or hose.
* All these important safety instructions described by this operation
manual may not cover all the conditions and cases of usage.
We pay careful attention about safety of the product. Please pay
careful attention by user, operator, technician for maintenance as well.
For Kerosene and Diesel
application only
It is necessary to follow the article.
22-03 004034204
CAUTION
(for 15 A) and use only necessary
2
This product is for kerosene or diesel application only.
This product cannot be used for petroleum grade liquid, such as
gasoline, A-crude, solvents, Chemicals, water. ( danger - may cause
explosion, fire, or damage)
This product does not use flame-proof motor.
Do not use this product near inflammable objects such as
petrol.
Do not use fire when you operate this product. It may cause
fire.
This product is exclusively designed for transfer of kerosene
or diesel only. Do not use for other applications.
kerosene
or
diesel
Do not leave the pump unattended during operation.
Do not operate this product without understanding the
operation operation
manual manual
operation manual.
Operate this product in a safe place away from children.
Besides trained technician of repair, do not dismantle,
repair, rebuild. It may cause damage.
Do not wet the product with water or oil. It may cause
serious accident, injury, or damage to the product due to
electric shock, short-circuit, or electric leakage.
Please do not use outdoor.
This product may be damaged if wet by rain or water.

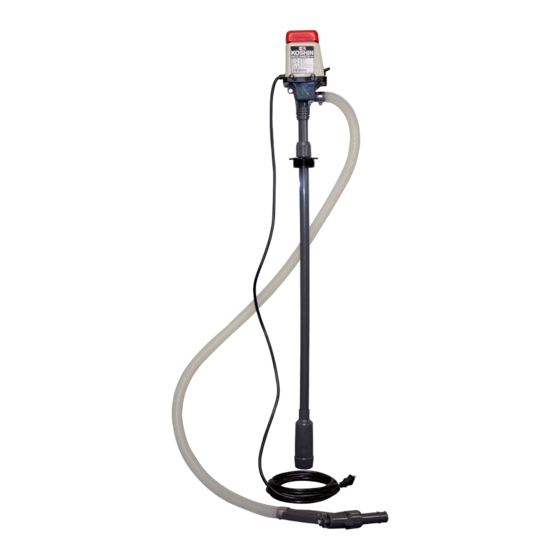

THE NAME OF PARTS
Name Plate
Drum Nut
Drum Screw
Suction Pipe
Discharge Hose
Hose Cap
SPECIFICATIONS
Model
Type
Connection dia
Total head
Discharge volume
Voltage
Continuous operating time
Power cord
Fuse
Discharge hose
Nozze
Net weight
※ We offer 1.5 m discharge hose as option item. 1.5 m discharge hose is replacement type.
DANGER
WARNING
Hose Cap
Fuse Holder
Caution Label
↑ ↑
ON ON
OFF OFF
Power Lamp
Power Switch
Pump
Power Cord
Electric Plug
Nozzle
FP-25
FP-25-BAA
25 mm (1")
3.5 m
20 L/min
AC 220 V 50 / 60 Hz
30 min
4 m
4 A
1.5 m
Gun type
2.7 kg
