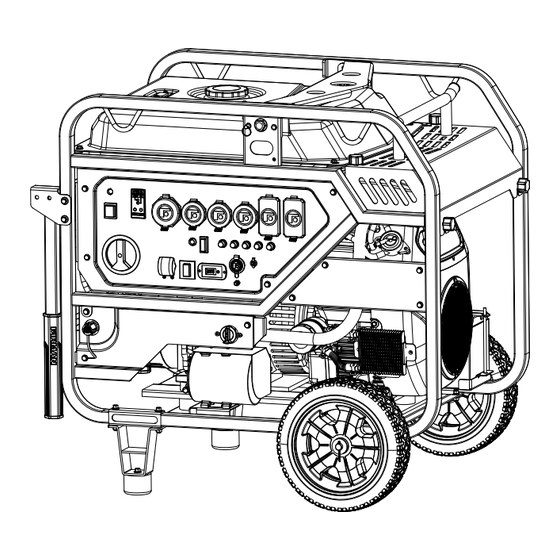

Firman T12071 Operator's Manual

Gasoline portable generator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

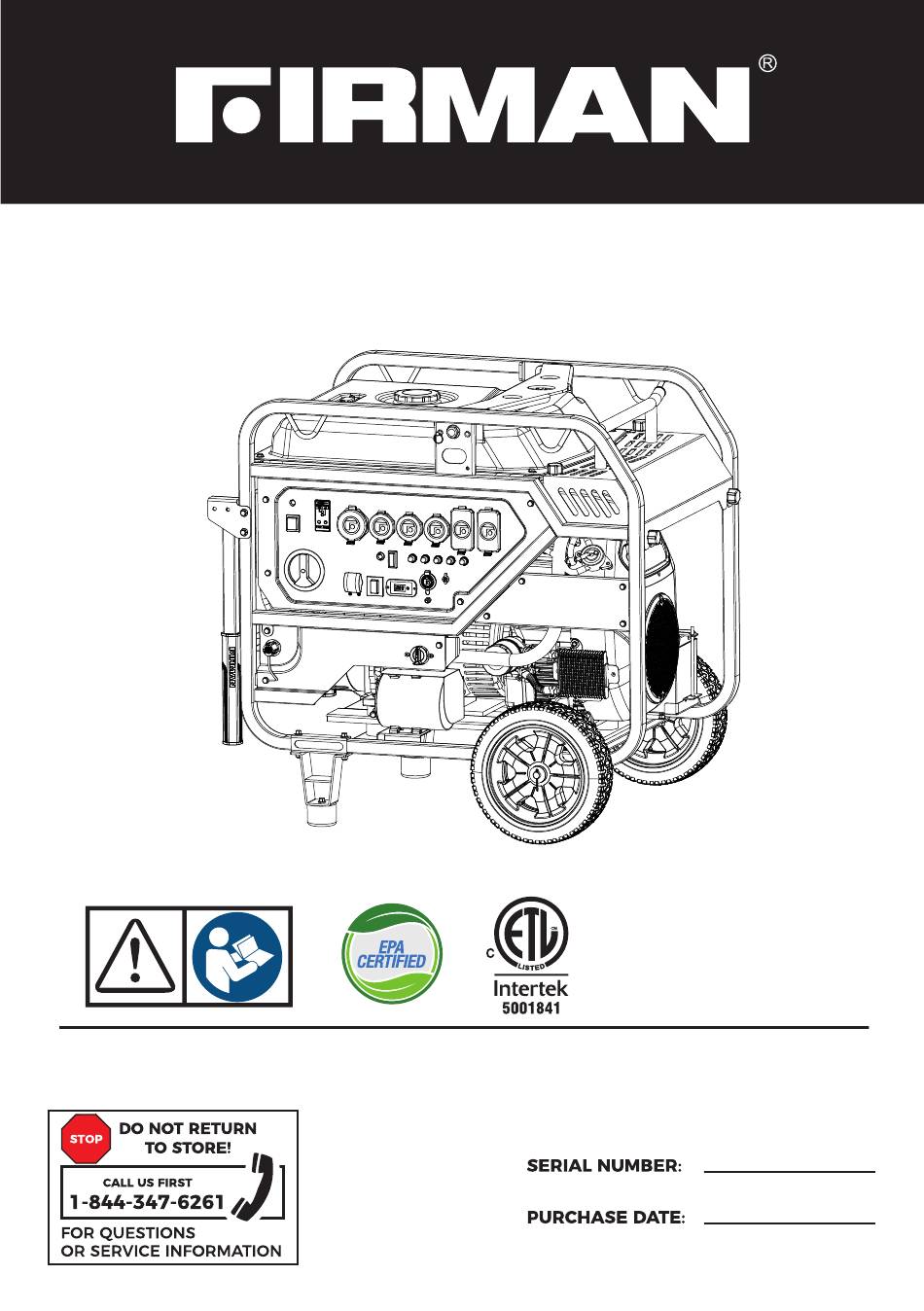

OPERATOR'S MANUAL
GASOLINE PORTABLE GENERATOR
MODEL NUMBER
T12071
Rev Level:01
Record product information to reference when ordering parts or
obtaining warranty coverage.
P/N:399745571 Rev:03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T12071 and is the answer not in the manual?

Questions and answers

Related Manuals for Firman T12071

Summary of Contents for Firman T12071

  • Page 1 OPERATOR’S MANUAL GASOLINE PORTABLE GENERATOR MODEL NUMBER T12071 Rev Level:01 Record product information to reference when ordering parts or obtaining warranty coverage. P/N:399745571 Rev:03...

  • Page 2: Table Of Contents

    . INTRODUCTION Thank you for purchasing a FIRMAN generator. You have selected a high-quality, precision engineered generator set designed and tested to give you years of satisfactory service. This generator is designed to run only on unleaded gasoline. This generator is not intended to be run unattended or to supply power to life safety support.

  • Page 3: Introduction

    INTRODUCTION SIGNAL WORDS DANGER WARNING CAUTION NOTICE Indicates a hazard Indicates a hazard Indicates information Indicates a hazard which, if not avoided, considered Important, which, if not avoided, which, if not avoided, could result in minor or but not hazard-related. will result in death or could result in death moderate injury.
  • Page 4 Install a listed transfer switch as soon as possible if this generator will be used to restore power to your home. NOTICE If you have questions about intended use, contact FIRMAN customer service. This portable generator is designed to be used only with FIRMAN authorized parts.
  • Page 5 INTRODUCTION 1. Only use grounded cords marked for outdoor use rated for your loads. To provide power using extension cords Minimum Gauge, Outdoor Rated Total Amperage Up to 50 FT (15m) Up to 13A Up to 15A Up to 20A Up to 30A Up to 50A 2.

  • Page 6: Features And Controls

    FEATURES AND CONTROLS ② ① ③ ⑩ ⑤ ⑥ ④ ⑧ 1- 13.3 Gallon(50 L) Capacity Fuel Tank 2- Fuel Cap 3- Fuel Gauge 4- 12.0"(30.5cm) Flat Free Wheel 5- Control Panel 6- 760cc V-TWIN Engine 7- Muffler & Spark Arrester 8- Lifting Hook 9- Handle ⑪...
  • Page 7 FEATURES AND CONTROLS ⑥ ⑤ ④ ③ ② ① ⑦⑧⑨⑩ English Customer Service: 1-844-FIRMAN1...
  • Page 8 FEATURES AND CONTROLS ⑤ English Customer Service: 1-844-FIRMAN1...
  • Page 9 FEATURES AND CONTROLS ⑥ ⑦ ⑧ ⑨ ⑩ English Customer Service: 1-844-FIRMAN1...
  • Page 10 FEATURES AND CONTROLS Control Panel Total power drawn from all receptacles must not exceed the data decal rating. NOTICE 1. Engine Start Switch – To start engine, press and hold the switch in the START (ll) position, the engine will crank and attempt to start. When the engine starts, release the switch to the RUN (l) position. 2.
  • Page 11 FEATURES AND CONTROLS 9. Circuit Breakers – The receptacles are protected by AC circuit protectors. If the generator is overloaded or an external short circuit occurs, a circuit protector may trip. If tripping occurs, disconnect all electrical loads and determine the cause before attempting to continue using the generator.

  • Page 12: Operation

    OPERATION 1. Location DANGER! Engine exhaust contains carbon monoxide, a poisonous gas that could kill you in minutes. You CANNOT smell it, see it, or taste it. Even if you do not smell exhaust fumes, you could still be exposed to carbon monoxide gas. Operate portable generator only outdoors and downwind at least 20 ft.(6 m) from occupied spaces with exhaust pointed away to reduce the risk of carbon monoxide accumulating.
  • Page 13 OPERATION Reduce Risk of Fire WARNING! Exhaust heat/gases could ignite combustibles, structures or damage fuel tank causing a fire, resulting in death or serious injury. Keep portable generator at least 5 ft. (1.5m) from any structure, trees or vegetation over 12 in.
  • Page 14 OPERATION 2. Oil and Gasoline Add Engine Oil We recommend using SAE 10W-30 API SL or higher oil for best performance. Do not use special additives. Ambient temperature determines the proper oil viscosity for the engine. Use the chart to select the proper oil for the outdoor temperature range expected.
  • Page 15 OPERATION 5. Using oil funnel, slowly pour contents of provided oil bottle into oil fill opening until oil reaches upper limit "H" mark on the dipstick. Be careful not to overfill. Overfilling could cause engine starting problems or engine damage. 6.Replace oil fill cap/dipstick and fully tighten.
  • Page 16 High altitude may cause hard starting, increased fuel consumption and spark plug fouling. To operate at high altitudes FIRMAN can provide a high altitude carburetor main jet. The alternative main jet and installation instructions can be obtained by contacting Customer Support.
  • Page 17 OPERATION Connecting LPG/ NG Fuel WARNING! Liquid Petroleum gas (LPG) and Natural Gas (NG) are extremely flammable which could cause burns or fire resulting in death or serious injury. The fuel supply line must always be shut off when the engine is not running. Failure to shut off fuel may allow fuel to leak at the generator.
  • Page 18 Connect the locally approved flexible fuel supply line (not included) to the LPG/NG connector (inlet 3/4" connector) on the control panel and the fuel Source. We recommend you use FIRMAN 25ft (7.62m) Quick Connect Hose Kit (Model 1820) for Natural Gas (NG) connection (This item is not included). Hose requirements may vary in different regions depending on local codes.
  • Page 19 OPERATION 3. Starting the Generator on Gasoline 1. Before starting the generator, check for loose or missing parts and for any damage which may have occurred during shipment. Ensure spark plug, muffler, fuel cap, and air cleaner are all in place. 2.Operate portable generator only outdoors and downwind at least 20 ft.
  • Page 20 OPERATION 7. Allow portable generator to run at no load for a few minutes to stabilize before plugging in any electrical devices. NOTICE If engine starts but fails to run, or if portable generator shuts down during operation, check oil level. See Low Oil Pressure (Shutdown Alarm) section for more information. 4.
  • Page 21 OPERATION 6. Turn the LPG/NG selector switch to LPG position. 7. Disconnect all electrical loads from the generator. Never start or stop the generator with electrical devices plugged in. 8. Flip the engine switch to the START (ll) position for a few seconds and then release. 9.
  • Page 22 OPERATION 5. Starting the Generator on NG 1. Before starting the generator, check for loose or missing parts and for any damage which may have occurred during shipment. Ensure spark plug, muffler, fuel cap, and air cleaner are all in place. 2.
  • Page 23 OPERATION 8. Flip the engine switch to the START (ll) position for a few seconds and then release. 9. Allow portable generator to run at no load for a few minutes to stabilize before plugging in any electrical devices. NOTICE If engine starts but fails to run, or if portable generator shuts down during operation, check oil level.
  • Page 24 Press the reset button . If the fault LED indicator light does not turn off. Do not connect electrical loads. Call FIRMAN customer service. If GFCI trips while in use, disconnect the loads, reset and test the GFCI controller. Electric cords laying on the ground with worn insulation may trip the GFCI, only use cords in good condition.
  • Page 25 OPERATION Do not use generator with electrical cords which are worn, frayed, bare or otherwise damaged. Do not operate generator in the rain or wet weather. Do not run indoors to avoid wet conditions. Do not handle generator or electrical cords while standing in water, while barefoot, or while hands or feet are wet.
  • Page 26 Call emergency services. You may have carbon monoxide poisoning. CO Alert fault occured*. Yellow See FIRMAN authorized service dealer. * Yellow light will blink for five seconds at the startup of generator to show CO ALERT is functioning properly. Economy Control Switch...
  • Page 27 OPERATION 7. Stopping the generator 1. Turn off and remove all electrical loads. Never stop the generator with electrical devices plugged in and turned on. Never stop the engine by moving the choke to the start position. Let the generator run at no-load for one minute to stabilize internal temperatures of the engine and generator.

  • Page 28: Maintenance - Storage

    Maintenance - Storage MAINTENANCE SCHEDULE Every Daily(Before Initial Every Every 100 hours ITEM NOTES operation) 25 hours 50 hours 250 hours (or annual) Check condition. Adjust gap √ Spark Plug and clean. Replace if necessary. Check oil level. √ Engine Oil Replace.
  • Page 29 (a) Turn on the drain oil plug A and drain oil by the drain hose B. Removing oil filler cap while the engine is warm. Oil Filter: FIRMAN P/N 399715751, BOSCH 0986AF0062 or FRAM PH4967F. (b) Change the Oil filter. Turn close the drain oil plug and fill the engine with oil until it reaches the HIGH(H) level on the oil filler dipstick.
  • Page 30 Maintenance - Storage Air Filter Maintenance (a) Carefully remove foam air filter element and wash it with liquid detergent and water only. Squeeze dry in a clean cloth. AIR CLEANER COVER AIR FILTER ELEMENT (b) Saturate foam air filter element with clean engine oil and squeeze in a clean cloth to remove excess oil.
  • Page 31 (f) Tighten plug with provided wrench and put the spark plug boot back on spark plug. 0.020-0.024 in (0.5-0.6 mm) SPARK PLUG: FIRMAN P/N 330723001 or CHAMPION N9YC Maintenance Valve Clearance Intake: 0.004 – 0.006 in. (0.10 – 0.15 mm) Exhaust: 0.004 –...
  • Page 32 3. Carefully remove the carbon deposits from the spark arrester screen with a wire brush. 4. Replace the spark arrester if it is damaged. If replacement parts are required, make sure to use only FIRMAN original equipment replacement parts. 5. Position the spark arrester in the muffler and attach with the screw.
  • Page 33 Maintenance - Storage Battery Replacement A(M6) 1. Remove the spark plug boot from spark plugs. 2. Remove the nut and bolt from the negative(-) post first, then the positive(+) post. 3. Loosen and remove the wing nuts (A) on the battery holding bracket. 4.
  • Page 34 Maintenance - Storage Long Term Storage It is important to prevent gum deposits from forming in essential fuel system components such as the carburetor, fuel hoses or tank during storage. Alcohol-blended fuels (called gasohol, ethanol or methanol) attract moisture, which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage.

  • Page 35: Troubleshooting- Specifications

    3. Low oil level. running. generator on level surface. 1. Contact authorized FIRMAN Engine shuts down and 1. CO system fault yellow CO fault light blinking. service facility. For all other issues, contact authorized dealer or Firman customer service. English Customer Service: 1-844-FIRMAN1...
  • Page 36 Troubleshooting – Specifications SPECIFICATIONS Model T12071 Starting Watts 15000(GASOLINE)/13750(LPG)/12500(NG) 12000(GASOLINE)/11000(LPG)/10000(NG) Running Watts* Rated AC Voltage 120/240V Rated Fequency 60Hz Phase Single Voltage Regulator Power Factor Alternator Type Brushed Engine FIRMAN V-twin, 4-Stroke OHV Air Cooled Engine Type Displacement 760cc Low Oil Pressure Shutdown...
  • Page 37 PARTS DIAGRAM AND PART LIST T12071 PARTS DIAGRAM English Customer Service: 1-844-FIRMAN1...
  • Page 38 760cc ENGINE PARTS DIAGRAM English Customer Service: 1-844-FIRMAN1...

  • Page 39: Parts Diagrams - Parts Lists - Wiring Diagram

    Parts Diagrams - Parts Lists - Wiring Diagram T12071 Portable Generator Description Qty. Description Qty. Part Number Part Number 399465503 Engine Subassembly 336713549 Fuel tank Cap 399455503 Alternator Assy 392715522 Screw M5×14 399755506 Rotor Comp 399725530 Hose, Fuel 399755507 Stator Assy 330713508 Clamp Ø10.5×8...
  • Page 40 Parts Diagrams - Parts Lists - Wiring Diagram Description Qty. Part Number Description Qty. Part Number Isolator Assy. II 399725699 336713827 Switch Beam Frame 399715700 336713828 Indicator Light 399715701 Handle Assembly 336713824 Fuel Valve Assy. Cover, Handle 357713519 336755002 Indicator Light The Flange Nut M8 336718318 399715591...
  • Page 41 Parts Diagrams - Parts Lists - Wiring Diagram FIRMAN 760cc Engine Part Number Part Number Description Qty. Description Qty. Air filter 399425500 399715766 Crankcase Grommet 399725523 Air filter cover nut 336723610 Pin Ø8 × 10 399725524 Air filter cover 399415768...
  • Page 42 Parts Diagrams - Parts Lists - Wiring Diagram Description Qty. Part Number Description Qty. Part Number 399715827 Crankcase Assembly 399715509 Ignition Coil (right) Leading Broad Assembly 399715829 399755504 Control Module 399715831 Flywheel Assembly Cooling Fan 399715832 399715833 Fan Block 399715834 Flange Nut M20 ×...
  • Page 43 Parts Diagrams - Parts Lists - Wiring Diagram Wiring Diagram English Customer Service: 1-844-FIRMAN1...

  • Page 44: Service - Warranty

    FIRMAN will also register the warranty upon receipt of your Warranty Registration Card and a copy of your sales receipt from one of FIRMAN’s retail locations as proof of purchase. Please submit your warranty registration and your proof of purchase within ten(10) days of the date of purchase.

  • Page 45: Www.firmanpowerequipment.com

    Limits of Implied Warranty and Consequential Damage FIRMAN disclaims any obligation to cover any loss of time, use of this product, freight, or any incidental or consequential claim by anyone from using this product. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANT ABLILITY OR FITNESS FOR A PARTICULAR PURPOSE.
  • Page 46 If any such part fails during the period of warranty coverage, the part will be repaired or replaced by FIRMAN at no charge to the owner. Any such part repaired or replaced under the warranty will be warranted for the remaining warranty period.
  • Page 47 Service – Warranty (8) Throughout the emissions warranty period defined in Subsection (b)(2), FIRMAN will maintain a supply of warranted parts sufficient to meet the expected demand for such parts. (9) Any replacement part may be used in the performance of any warranty maintenance or repairs and must be provided without charge to the owner.
  • Page 48 FIRMAN POWER EQUIPMENT INC. 8644 W. LUDLOW DR. WWW.FIRMANPOWEREQUIPMENT.COM PEORIA, AZ 85381 All rights reserved. Any reprinting or unauthorized use without the written permission is expressly prohibited. 1-844-347-6261 P/N:399745571 Rev:03...
