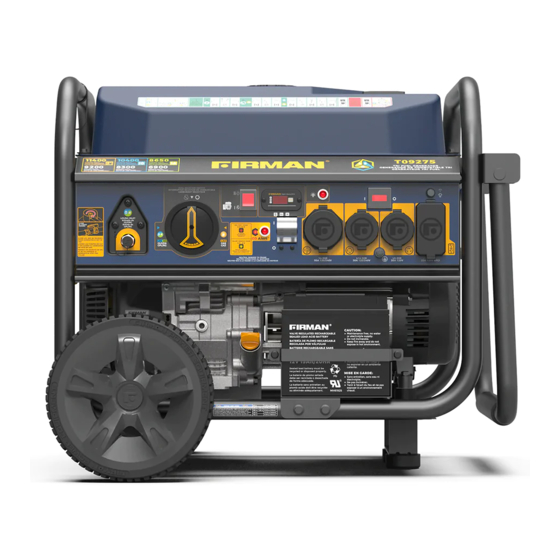

Firman T09275 Operator's Manual

Tri-fuel portable generator
Hide thumbs

Advertisement

Quick Links

OPERATOR'S MANUAL
TRI-FUEL PORTABLE GENERATOR
MODEL NUMBER
T09275
Record product information to reference when ordering parts or
obtaining warranty coverage.
:
P/N
392745475 Rev:02

Advertisement

loading

Related Manuals for Firman T09275

Summary of Contents for Firman T09275

  • Page 1 OPERATOR’S MANUAL TRI-FUEL PORTABLE GENERATOR MODEL NUMBER T09275 Record product information to reference when ordering parts or obtaining warranty coverage. 392745475 Rev:02...

  • Page 2: Table Of Contents

    . INTRODUCTION Thank you for purchasing a FIRMAN generator. You have selected a high-quality, precision engineered generator set designed and tested to give you years of satisfactory service. This generator is Tri-Fuel and capable of running on gasoline, liquid petroleum gas (LPG), and natural gas (NG). This generator is not intended to be run unattended or to supply power to life safety support.

  • Page 3: Introduction

    INTRODUCTION SIGNAL WORDS DANGER WARNING CAUTION NOTICE Indicates a hazard Indicates a hazard Indicates information Indicates a hazard which, if not avoided, considered Important, which, if not avoided, which, if not avoided, could result in minor or but not hazard-related. will result in death or could result in death moderate injury.
  • Page 4 Install a listed transfer switch as soon as possible if this generator will be used to restore power to your home. NOTICE If you have questions about intended use, contact FIRMAN customer service. This portable generator is designed to be used only with FIRMAN authorized parts.
  • Page 5 INTRODUCTION 1. Only use grounded cords marked for outdoor use rated for your loads. To provide power using extension cords Minimum Gauge, Outdoor Rated Total Amperage Up to 50 FT (15m) Up to 13A Up to 15A Up to 20A Up to 30A Up to 50A 2.

  • Page 6: Features And Controls

    3- Fuel Cap 14- Data Decal / Serial Number 4- Choke Lever(behind air filter box) 15- LPG/NG Selector Switch 5- Air Filter 6- 459cc FIRMAN OHV Engine 7- Recoil Starter 8- 11.0" Flat Free Wheel 9- Oil Filler Cap 10- Battery *We are always working to improve our products.
  • Page 7 FEATURES AND CONTROLS ③ ① ⑤ ⑥ ② ④ ⑧ ⑨ ⑦ ⑩ English Customer Service: 1-844-FIRMAN1...
  • Page 8 FEATURES AND CONTROLS ① ② ③ ④ ⑤ English Customer Service: 1-844-FIRMAN1...
  • Page 9 FEATURES AND CONTROLS ⑥ ⑦ ⑧ ⑨ ⑩ English Customer Service: 1-844-FIRMAN1...
  • Page 10 FEATURES AND CONTROLS Control Panel NOTICE Total power drawn from all receptacles must not exceed the data decal rating. 1. LPG/NG Hose Connector (Inlet: 3/8" Flare Male) – Used to connect LPG/NG hose to generator. 2. Main Fuel Selector Switch/Engine Switch – Use to select and turn on gasoline (GAS) or LPG/NG fuel source.

  • Page 11: Operation

    OPERATION 1. Location DANGER! Engine exhaust contains carbon monoxide, a poisonous gas that could kill you in minutes. You CANNOT smell it, see it, or taste it. Even if you do not smell exhaust fumes, you could still be exposed to carbon monoxide gas. Operate portable generator only outdoors and downwind at least 20 ft.(6 m) from occupied spaces with exhaust pointed away to reduce the risk of carbon monoxide accumulating.
  • Page 12 OPERATION Reduce Risk of Fire WARNING! Exhaust heat/gases could ignite combustibles, structures or damage fuel tank causing a fire, resulting in death or serious injury. Keep portable generator at least 5 ft. (1.5m) from any structure, trees or vegetation over 12 in.
  • Page 13 OPERATION 2, Oil and Gasoline / LPG/ NG Add Engine Oil We recommend using SAE 10W-30 API SL or higher oil for best performance. Do not use special additives. Ambient temperature determines the proper oil viscosity for the engine. Use the chart to select the proper oil for the outdoor temperature range expected.
  • Page 14 Make sure the sump is completely full of oil to the upper limit (H). Do not operate engine until oil level issue is corrected. Contact Firman customer service. Add Gasoline WARNING! Fuel and its vapors are extremely flammable which could cause burns or fire resulting in death or serious injury.
  • Page 15 High altitude may cause hard starting, increased fuel consumption and sparkplug fouling. To operate at high altitudes FIRMAN can provide a high altitude carburetor main jet. The alternative main jet and installation instructions can be obtained by contacting Customer Support.
  • Page 16 OPERATION Connecting LPG/ NG Fuel WARNING! Liquid Petroleum gas (LPG) and Natural Gas (NG) are extremely flammable which could cause burns or fire resulting in death or serious injury. The fuel supply line must always be shut off when the engine is not running. Failure to shut off fuel may allow fuel to leak at the generator.
  • Page 17 Connect the locally approved flexible fuel supply line (not included) to the LPG/NG connector (inlet) on the control panel and the fuel Source. We recommend you use FIRMAN 25ft (7.62m) Quick Connect Hose Kit (Model 1815) or 10ft (3m) Quick Connect Hose Kit (Model 1805) for Natural Gas (NG) connection (This item is not included).
  • Page 18 OPERATION 4. Turn the main fuel selector switch to “GAS” position. NOTICE When the main fuel selector switch is turned to the GAS position, the indicator light will turn RED for up to 4 minutes (before going off). Starting the engine successfully anytime during the 4 minutes will turn the indicator light GREEN.
  • Page 19 OPERATION 9. Do not over-choke. As soon as engine starts and warms up, slowly move the choke lever to the RUN position. 10. Allow portable generator to run at no load for a few minutes to stabilize before plugging in any electrical devices.
  • Page 20 OPERATION 5. Turn the LPG/NG selector switch to LPG position. 6. Turn the main fuel selector switch to LPG/NG position. NOTICE When the main fuel selector switch is turned to the LPG/NG position, the indicator light will turn RED for up to 4 minutes (before going off). Starting the engine successfully anytime during the 4 minutes will turn the indicator light GREEN.
  • Page 21 OPERATION 10.For recoil start only - Move the choke lever to the “RUN” position. 11. For recoil start only - PULL-TO-RUN Pull the starter cord slowly until resistance if felt and pull rapidly to run the portable generator. If the engine fails to start in 1-2 pulls with choke in the RUN position, move choke lever to START position and repeat the PULL-TO-PRIME step (9).
  • Page 22 OPERATION Exchanging fuel cylinders to allow the first cylinder to warm up, repeating as necessary. Placing the LPG cylinder at the end of the generator near the handle, where engine fan air flows out from the generator. This air is slightly heated by air flowing over the engine. Do not place the LPG cylinder in the path of the muffler exhaust outlet.
  • Page 23 OPERATION 5. Turn the LPG/NG selector switch to NG position. 6. Turn the main fuel selector switch to LPG/NG position. NOTICE When the main fuel selector switch is turned to the LPG/NG position, the indicator light will turn RED for up to 4 minutes (before going off). Starting the engine successfully anytime during the 4 minutes will turn the indicator light GREEN.
  • Page 24 OPERATION 10.For recoil start only - Move the choke lever to the “RUN” position. 11. For recoil start only - PULL-TO-RUN Pull the starter cord slowly until resistance if felt and pull rapidly to run the portable generator. If the engine fails to start in 1-2 pulls with choke in the RUN position, move choke lever to START position and repeat the PULL-TO-PRIME step (9).
  • Page 25 Press the reset button until it locks in the depressed position. If the GFCI does not reset as described do not use the receptacles. Call Firman customer service. If GFCI trips while in use, reset and test the outlet. Electric cords laying on the ground with worn insulation may trip the GFCI, only use cords in good condition.
  • Page 26 OPERATION Do not use generator with electrical cords which are worn, frayed, bare or otherwise damaged. Do not operate generator in the rain or wet weather. Do not run indoors to avoid wet conditions. Do not handle generator or electrical cords while standing in water, while barefoot, or while hands or feet are wet.
  • Page 27 Call emergency services. You may have carbon monoxide poisoning. CO Alert fault occured*. Yellow See FIRMAN authorized service dealer. *Yellow light will blink for five seconds at the startup of generator to show CO ALERT is functioning properly. 7. Stopping the generator 1.
  • Page 28 OPERATION 2. Turn the main fuel selector switch to OFF (O) position. 3. Fully close the LPG cylinder knob and NG source valve. CLOSE English Customer Service: 1-844-FIRMAN1...

  • Page 29: Maintenance - Storage

    Maintenance - Storage MAINTENANCE SCHEDULE Every Daily(Before Initial Every Every 100 hours ITEM NOTES operation) 25 hours 50 hours 250 hours (or annual) Check condition. Adjust gap √ Spark Plug and clean. Replace if necessary. Check oil level. √ Engine Oil Replace.
  • Page 30 Maintenance - Storage When Transporting Generator Transport with fuel tank EMPTY or with main fuel valve in OFF position. Do not tip generator at an angle which causes fuel to spill. Disconnect LPG/ NG fuel hose and securely stow away. ENGINE MAINTENANCE To prevent accidental starting, remove and ground spark plug wire before performing any service.
  • Page 31 Maintenance - Storage Air Filter Maintenance (a) Carefully remove foam air filter element and wash it with liquid detergent and water only. Squeeze dry in a clean cloth. (b) Saturate foam air filter element with clean engine oil and squeeze in a clean cloth to remove excess oil.
  • Page 32 (d-1) For spark plug FIRMAN P/N 330723001 - Adjust the electrode gap to 0.020 - 0.024 in. ( 0.5 - 0.6 mm). (d-2) For spark plug CHAMPION N9YC - Adjust the electrode gap to 0.028 - 0.031 in. ( 0.7 - 0.8 mm).
  • Page 33 3. Carefully remove the carbon deposits from the spark arrester screen with a wire brush. 4. Replace the spark arrester if it is damaged. If replacement parts are required, make sure to use only FIRMAN original equipment replacement parts. 5. Position the spark arrester on the muffler and attach with the screws.
  • Page 34 Maintenance - Storage Battery Replacement A(M6) 1. Remove the spark plug boot from spark plug. 2. Remove the nut and bolt from the negative(-) post first, then the positive(+) post. 3. Loosen and remove the fasteners(A) on the battery holding bracket. 4.
  • Page 35 Maintenance - Storage Long Term Storage It is important to prevent gum deposits from forming in essential fuel system components such as the carburetor, fuel hoses or tank during storage. Alcohol-blended fuels (called gasohol, ethanol or methanol) attract moisture, which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage.

  • Page 36: Troubleshooting- Specifications

    3. Low oil level. running. generator on level surface. 1. Contact authorized FIRMAN Engine shuts down and 1. CO system fault yellow CO fault light blinking. service facility. For all other issues, contact authorized dealer or Firman customer service. English Customer Service: 1-844-FIRMAN1...
  • Page 37 Troubleshooting – Specifications SPECIFICATIONS Model T09275 Starting Watts 11400(GASOLINE)/10400(LPG)/8650(NG) 9200(GASOLINE)/8300(LPG)/6900(NG) Running Watts* Rated AC Voltage 120/240V Rated Fequency 60Hz Phase Single Voltage Regulator Power Factor Alternator Type Brushed Engine FIRMAN Engine Type Single Cylinder, 4-Stroke OHV Air Cooled Displacement 459cc...
  • Page 38 PARTS DIAGRAM AND PART LIST T09275 PARTS DIAGRAM English Customer Service: 1-844-FIRMAN1...
  • Page 39 459cc TRI-FUEL ENGINE PARTS DIAGRAM English Customer Service: 1-844-FIRMAN1...

  • Page 40: Parts Diagrams - Parts Lists - Wiring Diagram

    Parts Diagrams - Parts Lists - Wiring Diagram T09275 Portable Generator Qty. Qty. NO. Part Number Description NO. Part Number Description 392465500 Engine Subassembly 38.4 Flange Bolt M6×25 336713561 357713501 Rubber Cap B Nut M8 336713558 336718308 Bolt M6×8 Fuel Tank Assy...
  • Page 41 Parts Diagrams - Parts Lists - Wiring Diagram Qty. Qty. NO. Part Number Description NO. Part Number Description Control Module&vf Module 357713553 Battery 12V 15AH 336718319 Receptacle GFCI 357713570 Sheath,connecter Red 357713547 392715520 Red Wire 393725501 Breaker Cover 336713611 Sheath 380713526 Double-pole Circuit Breaker 30A 357713571...
  • Page 42 Parts Diagrams - Parts Lists - Wiring Diagram FIRMAN 459cc Tri-fuel Engine NO. Part Number Qty. NO. Part Number Qty. Description Description 336718308 Flange Bolt M6×8 393713015 Valve Lifter 357423500 Starting Cover Assy 357723542 Push Rod 336728300 Handle Core 336723537...
  • Page 43 Parts Diagrams - Parts Lists - Wiring Diagram Wiring Diagram English Customer Service: 1-844-FIRMAN1...

  • Page 44: Service - Warranty

    FIRMAN will also register the warranty upon receipt of your Warranty Registration Card and a copy of your sales receipt from one of FIRMAN’s retail locations as proof of purchase. Please submit your warranty registration and your proof of purchase within ten(10) days of the date of purchase.

  • Page 45: Www.firmanpowerequipment.com

    Limits of Implied Warranty and Consequential Damage FIRMAN disclaims any obligation to cover any loss of time, use of this product, freight, or any incidental or consequential claim by anyone from using this product. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANT ABLILITY OR FITNESS FOR A PARTICULAR PURPOSE.
  • Page 46 If any such part fails during the period of warranty coverage, the part will be repaired or replaced by FIRMAN at no charge to the owner. Any such part repaired or replaced under the warranty will be warranted for the remaining warranty period.
  • Page 47 Service – Warranty (8) Throughout the emissions warranty period defined in Subsection (b)(2), FIRMAN will maintain a supply of warranted parts sufficient to meet the expected demand for such parts. (9) Any replacement part may be used in the performance of any warranty maintenance or repairs and must be provided without charge to the owner.
  • Page 48 FIRMAN POWER EQUIPMENT INC. 8644 W. LUDLOW DR. All rights reserved. Any reprinting or unauthorized use PEORIA, AZ 85381 without the written permission is expressly prohibited. 1-844-347-6261 P/N:392745475 Rev:02 WWW.FIRMANPOWEREQUIPMENT.COM...
