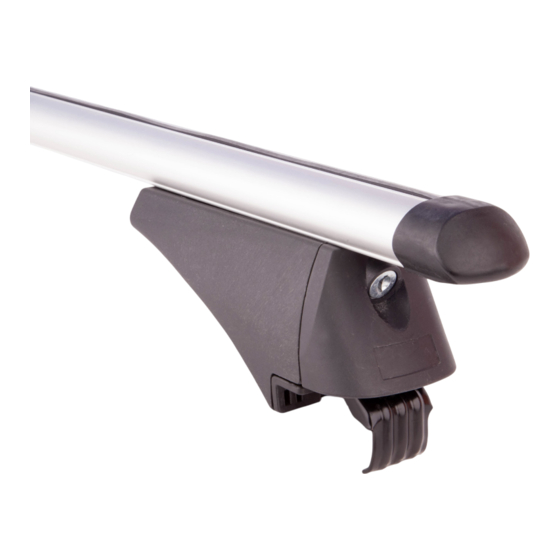

Aluminium integrated railing bars

Advertisement

Quick Links

ALUMINIUMINTEGRATED
RAILINGBARS
IMPORTANT
READ FULLY BEFORE FITMENT AND
SUM-004/005
KEEP INSTRUCTIONS FOR FUTURE REFERENCE
We do not recommend the use of roof top tents
or awnings with these roof bars

Advertisement

loading
Need help?

Need help?

Do you have a question about the SUM-004 and is the answer not in the manual?

Questions and answers

Summary of Contents for Summit SUM-004

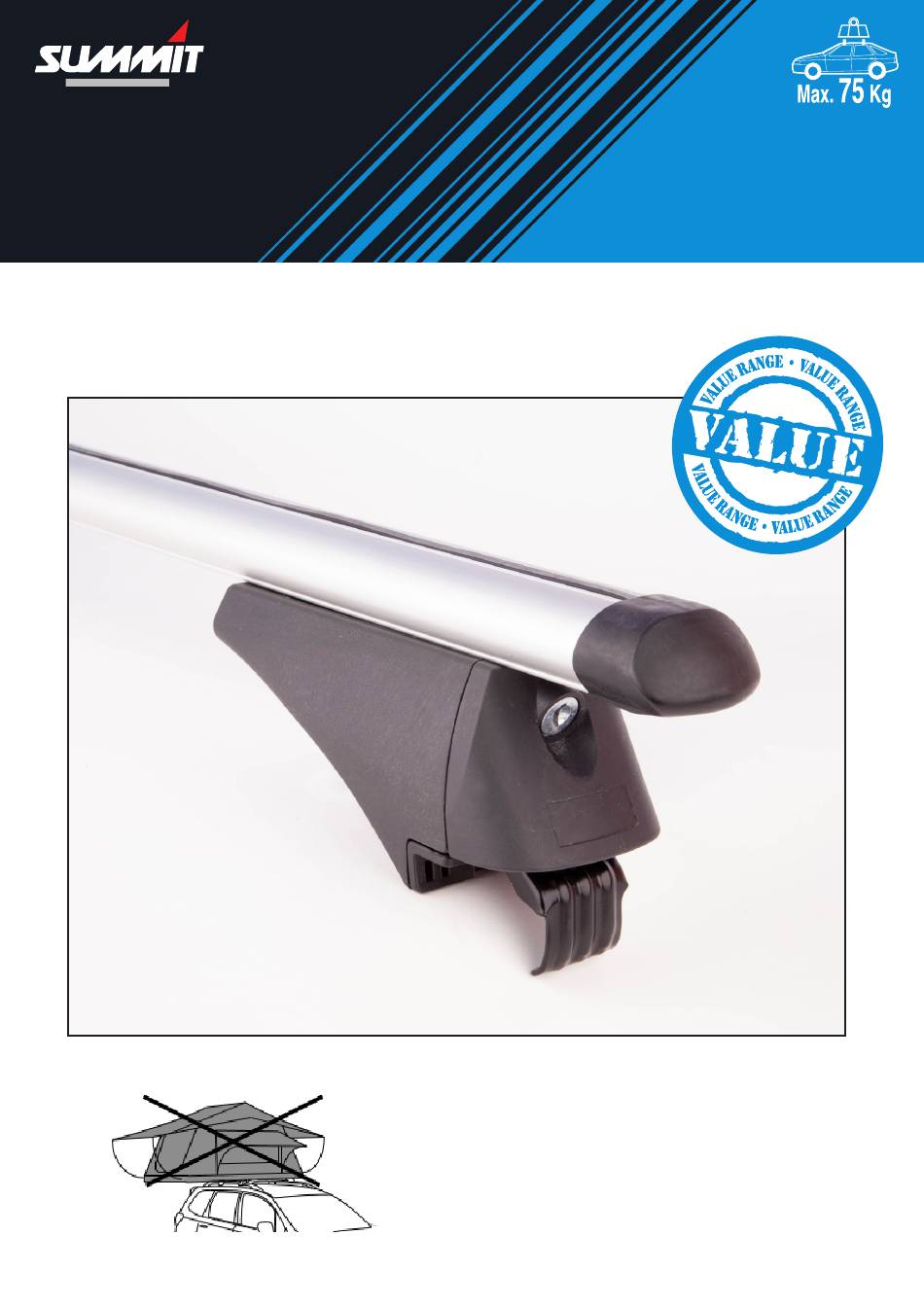

  • Page 1 ALUMINIUMINTEGRATED RAILINGBARS IMPORTANT READ FULLY BEFORE FITMENT AND SUM-004/005 KEEP INSTRUCTIONS FOR FUTURE REFERENCE We do not recommend the use of roof top tents or awnings with these roof bars...
  • Page 3 Pre Installation checks 1. Clean the rails before installation 2. Check that the rubber strip on the underside of the bars is fully inserted, this will reduce any noise caused by wind when driving Loosen the bolt on each foot slightly before you begin fitting...
  • Page 4 Vehicles without fix point Ensure bars are a minimum of 70cm apart Vehicles with fix point Example of predisposition If the vehicle is equipped with original fix points, place the bars in the middle of them...
  • Page 6 5 Nm PUSH!! OK!! Tighten your feet alternately on each side of the bar Lubricate the prongs before you replace and lock the foot cover with the key provided...
  • Page 7 Check! Check! 75Kg 75Kg...
  • Page 8: Installation Notes

    Installation Notes: • Fit the roof bars according to the instructions only. Do not • Please note that some antennas and sunroofs can interfere assemble or use this product unless you have understood with the roof bars or accessory when installed and should not the fitting instructions.

This manual is also suitable for:

Sum-005
