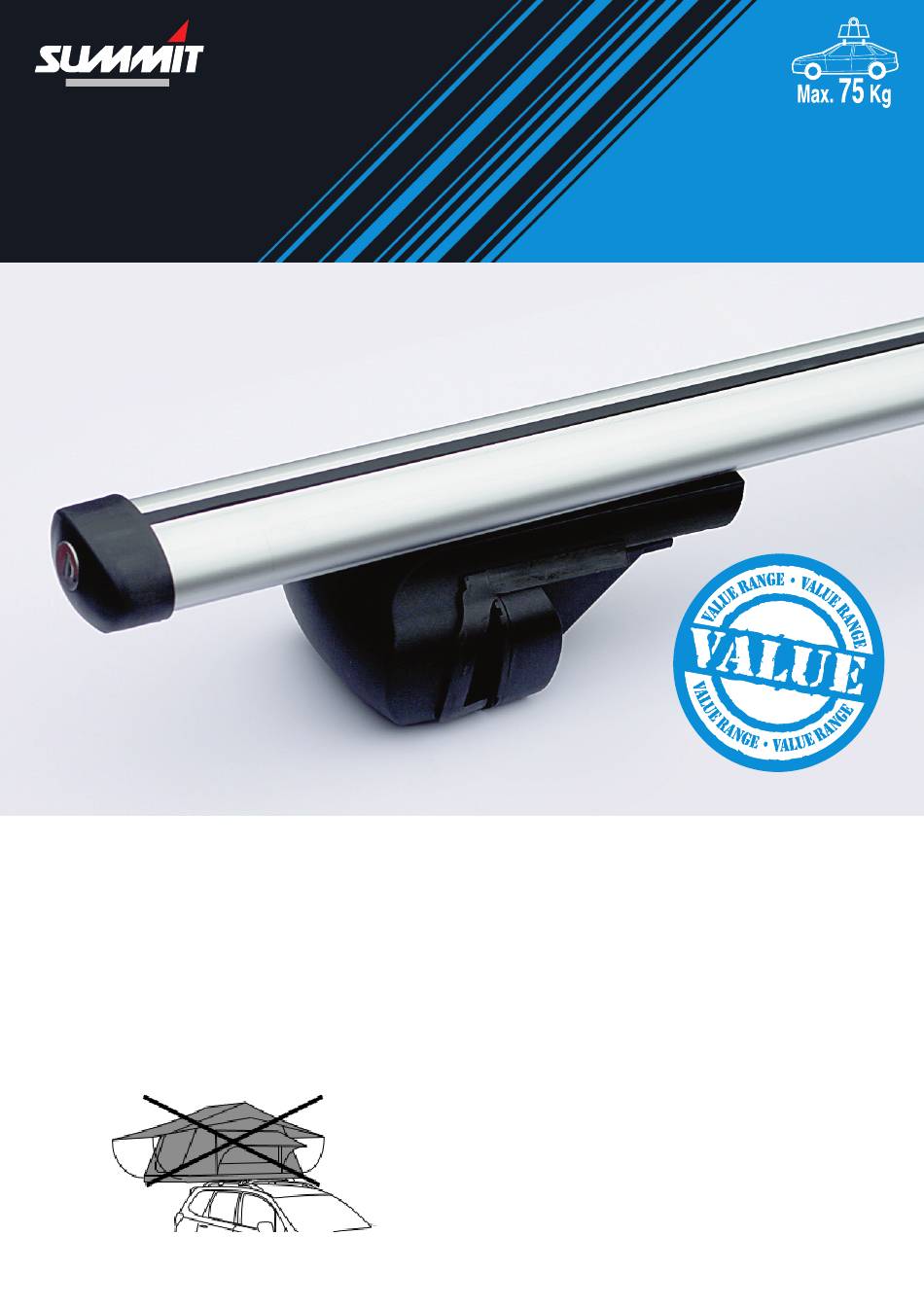

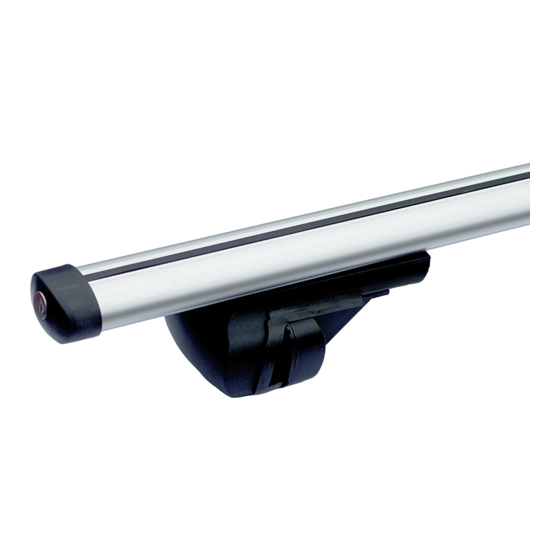

- Page 1 ALUMINIUMRAISED RAILINGBARS IMPORTANT READ FULLY BEFORE FITMENT AND SUM-002/003 KEEP INSTRUCTIONS FOR FUTURE REFERENCE We do not recommend the use of roof top tents or awnings with these roof bars...
-
Page 3: Pre-Installation Checks
Pre Installation checks 1. Clean the rails before installation 2. Check that the rubber strip on the underside of the Clean the running rails & your vehicle roof before fitting the roof bars bars is fully inserted, this will reduce any noise caused by wind when driving Unlock and carefully remove all four end caps from the roof bars. - Page 4 Vehicles without fix point Ensure bars are a minimum of 70cm apart Vehicles with fix point Example of predisposition If the vehicle is equipped with original fix points, place the bars in the middle of them...
- Page 5 Place the roof bars onto the vehicles original rails, ensuring the positional guidance in step 2 is followed. Centralise the roof bars on the vehicle and if needed slide the foot clamps along the bars to ensure they are positioned correctly and there is an equal length of bar on each side of the feet.
- Page 6 Using the Allen key, tighten the foot clamps alternately onto each side of the roof bar. Once you have tightened each foot, replace the end caps and lock them into place.
- Page 7 Check! Check! 75Kg 75Kg...
-
Page 8: Installation Notes
Installation Notes: • Fit the roof bars according to the instructions only. Do not • Please note that some antennas and sunroofs can interfere assemble or use this product unless you have understood with the roof bars or accessory when installed and should not the fitting instructions.
