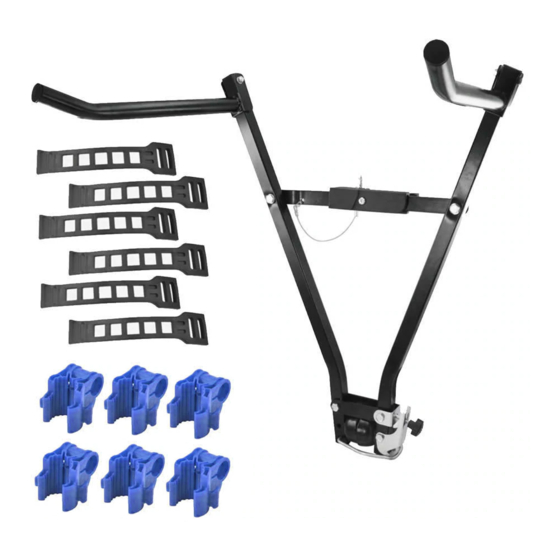

Summit SUM-608 Fitting Instructions

Sissor towball cycle carrier

Fitting Instructions

Please read fully before attempting to install onto vehicle

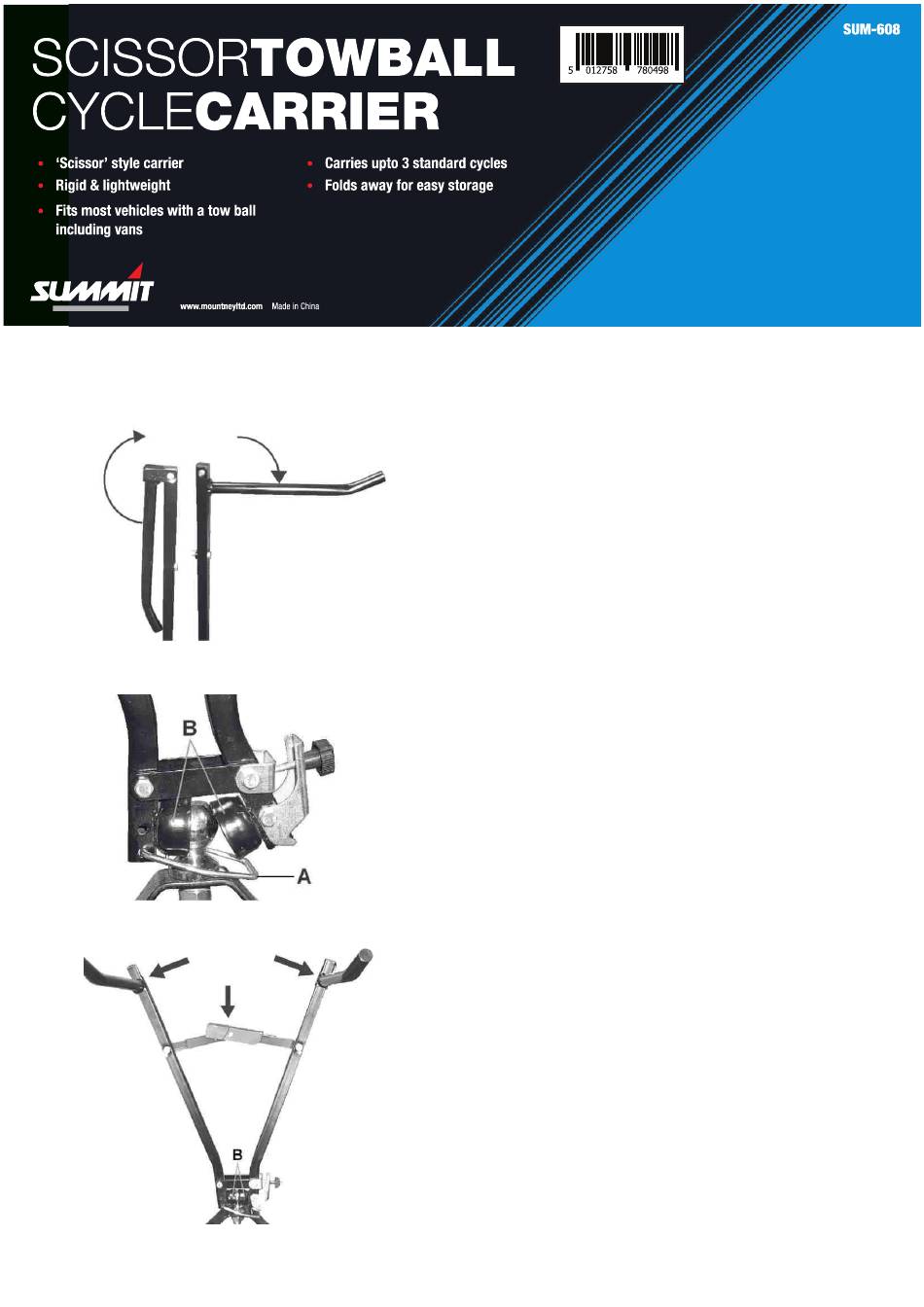

1. Extend both arms of the carrier

2. Place the circlip (a) over the tow ball of the vehicle.

Place the two pieces (b) either side of the ball of the car.

3. Open the uprights, to adjust the two parts (b)

around the tow ball of the car.

Press the arm hard until the handle (c) locks

Table of Contents

Need help?

Do you have a question about the SUM-608 and is the answer not in the manual?

Page 1 Fitting Instructions Please read fully before attempting to install onto vehicle 1. Extend both arms of the carrier 2. Place the circlip (a) over the tow ball of the vehicle. Place the two pieces (b) either side of the ball of the car. 3.
Page 2 4. Lock the handle by inserting the safety pin (d) into the hole in the handle (c) Place the ring (a) in the hooks (e) and tighten the thread (f) in a clockwise direction. Insert the adjustable holders for the bicycles frames (g) onto the arms and tighten with a screwdriver Install the bicycle and secure it with the retainers (g) ADVICE Fix the wheels of the bicycles frame with a strap (not supplied) to prevent their rotation...
