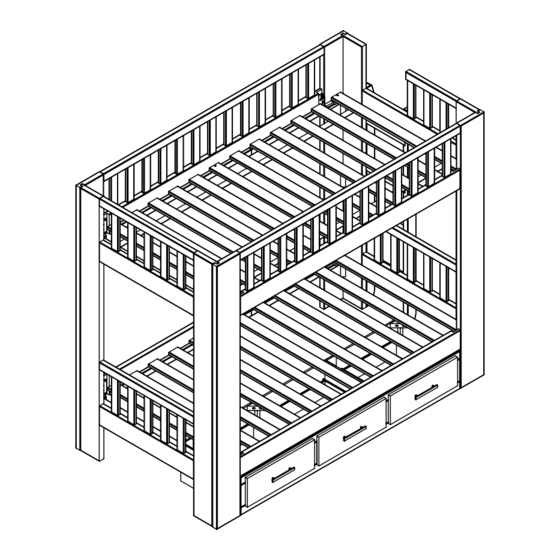

TWIN BUNKBED
Important: Be sure to check all packing material carefully for small parts which may come
loose inside carton during shipment. Separate, identify and count all parts and metal
hardware.
Compare with parts list and hardware illustrations to be sure all parts are present.
If any part(s) are missing or damaged, contact your dealer's customer service deparment.
For efficient and fast service, please indicate the model number and the parts needed.
Note: Assembly will require 2 People.
TOOLS REQUIRED
(Not included)
Phillips Screwdriver
ASSEMBLY INSTRUCTIONS
30 min
LS-MOR70
LS-MOR71
HARDWARE BAG
CONTENTS
HB-1420
1/4" x
1 1/2" METAL PIN (4)
HCPF-080
SCREW FLAT HEAD
#6x 1 1/4" (12)
Page 1
Advertisement
Related Manuals for Living Spaces LS-MOR70
Summary of Contents for Living Spaces LS-MOR70
- Page 1 ASSEMBLY INSTRUCTIONS LS-MOR70 LS-MOR71 TWIN BUNKBED Important: Be sure to check all packing material carefully for small parts which may come loose inside carton during shipment. Separate, identify and count all parts and metal hardware. Compare with parts list and hardware illustrations to be sure all parts are present.
- Page 2 PARTS LIST LS-MOR70 LS-MOR71 TWIN BUNKBED BOX: HOM70 HEADBOARD FOOTBOARD BOX:LS-HOM71 GUARDRAIL LOWER RAIL BOX: SB-1384B SLAT ROLLS X 2 Page 2...
- Page 3 ASSEMBLY INSTRUCTIONS LS-MOR70 LS-MOR71 TWIN BUNK BED Step 1 Assemble LOWER RAILS to the HEADBOARD and FOOTBOARD by inserting the male hook plate rails (C) into the female plate (B) of the headboard and footboard, repeat the same process for the guard rails. Be sure to insert all 8 safety hook locks (D) into the plate as shown in diagram below.
- Page 4 ASSEMBLY INSTRUCTIONS LS-MOR70 LS-MOR71 TWIN BUNK BED Step 2 Place the drawer storage under the bunk bed as shown in diagram. Use two metal brackets (B) and screws HCPF-073(A) to attach the drawer storage behind the bed rails as shown in diagram.
- Page 5 ASSEMBLY INSTRUCTIONS LS-MOR70 LS-MOR71 TWIN BUNK BED Step 3 Install the SLAT ROLLS and secure using 12 HCPF-080 screws. SCREW (HCPF-080) SLAT Page 5...
- Page 6 This Bunk Bed complies with the voluntary Bunk Bed Safety Guidelines published by the American Furniture Manufacturers Association and F1427 and 16CFR-1513 by American Standard and Testing Association. To ensure the safe use of our product observe the following safety precautions. SAFETY 8.
