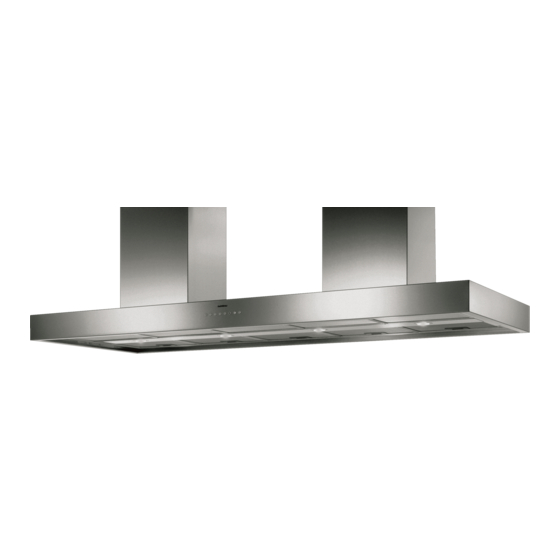

- Page 1 Gaggenau Operating Instructions Island ventilation hood AI 480...
-
Page 3: Table Of Contents
Contents Safety notes Operating for the first time About use Features of your new appliance Island ventilation hood AI 480 Control panel Accessories Special accessories Accessories for installation Operation Light Fan levels Special functions Intensive time Delayed shut-off Interval ventilation... -
Page 4: Safety Notes
Adequate incoming air must be ensured if a wood, must not be extracted! coal, gas or oil heater or an open hearth is operated in the same room as the one in which the hood is The user is responsible for expert use and the installed. -
Page 5: Operating For The First Time
The appliance is intended solely for use in the please pay attention to the following notes: household and must not be put to any other uses. The appliance must be installed and connected by a In the event of malfunctions, first of all check the specialist before it is operated for the first time. -
Page 6: Features Of Your New Appliance
Features of your new appliance Island ventilation hood AI 480 Ventilation duct Control panel Lighting Grease filters Control panel Grease filter saturation display Lighting Delayed shut-off Extraction level intensive Extraction level 3 Extraction level 2 Extraction level 1 Motor off... -
Page 7: Accessories
You can order the following accessories for installation: Installation accessories for exhaust air mode: • AD 480-016 for ceiling heights of 2.30 – 2.54 m • AD 480-026 for ceiling heights of 2.53 – 2.77 m • AD 480-036 for ceiling heights of 2.76 – 3.00 m Installation accessories for circulating air mode: •... -
Page 8: Operation
When you briefly press the key, the lighting is increased up to the maximum level. You can dim the lighting to the required level by keeping the key pressed. Fan levels Three fan speeds and one intensive speed are available. - Page 9 If you press the Int key while the hood is running at fan level 1, 2 or 3, the electronic control will switch back automatically to the previously selected fan level after 5 minutes. If you would like to end the intensive level before the five minutes have elapsed, press the 0 key (“Motor off”) or select a different level.
-
Page 10: Special Functions
You can set the intensive level running time to 3, 5 or 10 minutes by simultaneously pressing the Int key and the 1, 2 or 3 key and you can store this setting. When delivered, the appliance is set to five minutes, i.e. -
Page 11: Cleaning And Care
Cleaning the grease filters The grease filter saturation display F flashes after an operating time of 30 hours to you indicate to you that you should clean the grease filter. The grease filters can of course be cleaned at any time, even if the grease filter saturation display has not started to flash. -
Page 12: Circulating Air Mode
They can be disposed of through the household refuse collection.1. Cleaning the extractor hood Clean the exterior of your extractor hood with a soft cloth and mild detergent solution. Do not use any strong, caustic or abrasive cleaning agents. Do not... -
Page 13: Maintenance
Maintenance Disconnect the appliance from the mains before carrying out any repairs. In the event of malfunctions, first of all check the household fuses. If the power supply is in proper working order, but the appliance is nevertheless not functioning, then please contact your specialist dealer or Gaggenau after-sales service. -
Page 14: Lamp Replacement
Inserting the lamp Insert the lamp in the lampholder. Note: do not touch the halogen lamps with your hands. Use a cloth and touch the lamp only on its edges. Engage the lamp cover. Connect the appliance to the mains again.
