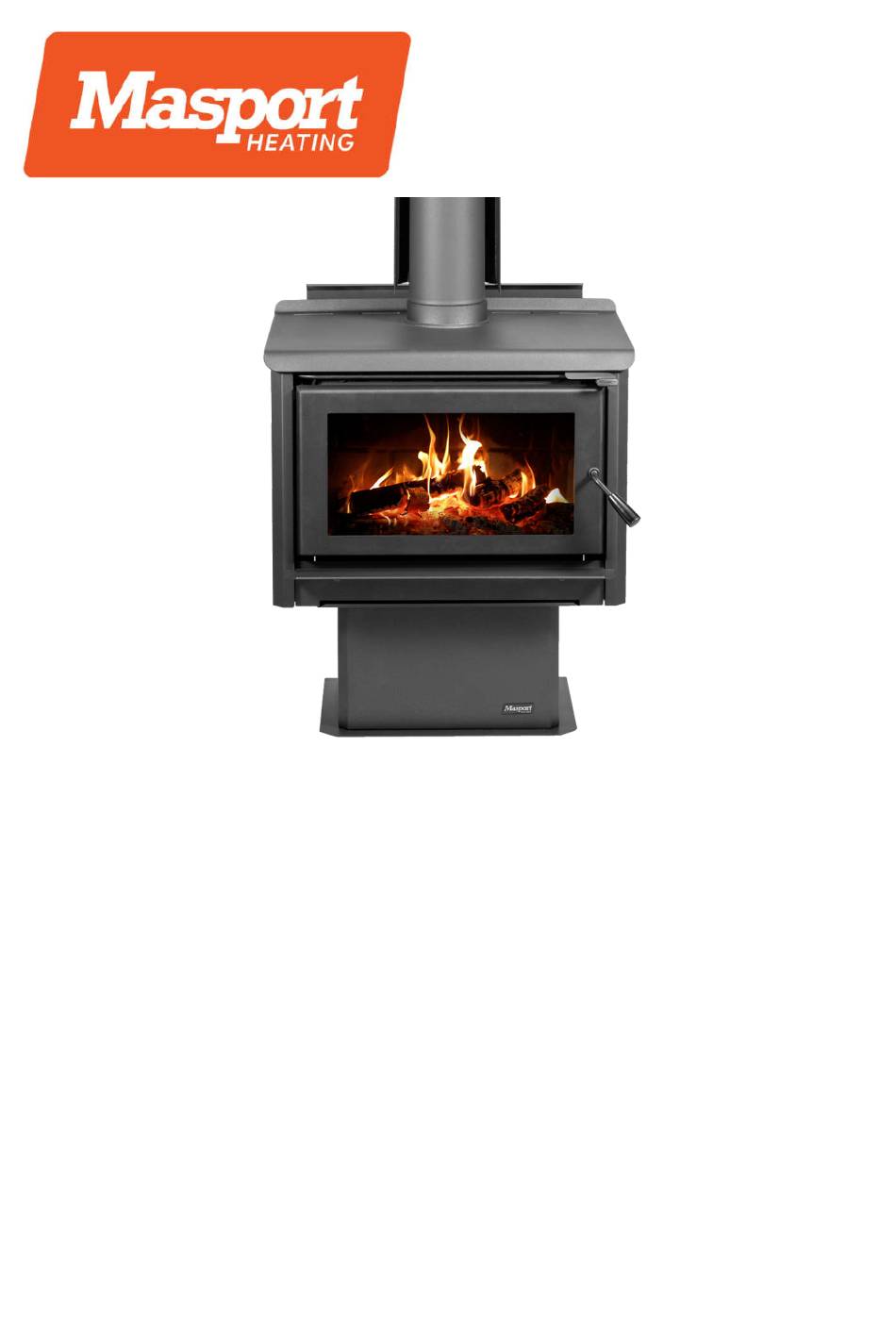

HURUNUI
Ultra-low Emission Burner
Installation & Operation Manual
THIS MANUAL CONTAINS IMPORTANT INFORMATION.
PLEASE KEEP IT IN A SAFE PLACE FOR FUTURE REFERENCE.
Manufactured in New Zealand by:
GLEN DIMPLEX NEW ZEALAND LIMITED
P.O. Box 58473, Botany, Manukau - 2163
Ph: 0800 666 2824
Fax: 09 274 8472
Email: sales@glendimplex.co.nz
Web: www.glendimplex.co.nz
th
10
Jun 2022
Part No. 583728 V1.0
*Glen Dimplex New Zealand Ltd reserves the right to change specifications, the content of this manual, or the design of its product without prior notice.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Masport HURUNUI
Summary of Contents for Masport HURUNUI
- Page 1 HURUNUI Ultra-low Emission Burner Installation & Operation Manual THIS MANUAL CONTAINS IMPORTANT INFORMATION. PLEASE KEEP IT IN A SAFE PLACE FOR FUTURE REFERENCE. Manufactured in New Zealand by: GLEN DIMPLEX NEW ZEALAND LIMITED P.O. Box 58473, Botany, Manukau - 2163...
-
Page 2: Table Of Contents
3.4 FLOOR PROTECTOR REQUIREMENTS 3.5 REDUCING CLEARANCES 3.6 SEISMIC RESTRAINT 3.7 BRICK AND BAFFLE LAYOUT 4.0 OPERATIONAL INSTRUCTIONS FOR THE HURUNUI ULEB 4.1 PREPARING THE BURNER FOR FIRST LIGHT-UP 4.2 PERMITTED FUELS 4.3 TESTING YOUR WOOD MOISTURE 4.4 RECOMMENDED FUEL LOG SIZES 5.0 OPERATIONAL SEQUENCE... -
Page 3: Introduction
Glen Dimplex, New Zealand. Thank you for purchasing a Masport appliance. The Hurunui ULEB is a new generation wood fire designed to provide you with all the warmth and comfort of a fireplace while having ULTRA LOW emissions to dramatically reduce the impact on the environment. -
Page 4: Warnings
AS/NZS 2918 safety standards. The Hurunui ULEB should be installed with a Masport flue system or a flue system that has been tested and comply with AS/NZS 918:2001 Appendix F. -
Page 5: Technical Specifications
2.0 Masport Hurunui ULEB PED - Technical Specifications (These instructions must be used in conjunction with the “Installation Instructions” for the Hurunui Fires) Hurunui burner model has been tested and complies with the following standards & tests: Environment Canterbury’s Real-life test - Canterbury test method CM1 NZ National Environmental Test Standards - AS/NZS 4012:2014 and AS/NZS 4013:2014. -
Page 6: Installation Of The Hurunui Uleb
(See Technical Specifications on page 5 of this manual) and checking the practicability of installing the flue system. No wall or other fixed objects should be closer to the front of the Hurunui burner than two meters. Regard heat-resistant walls with heat-sensitive surface treatments (e.g., wallpaper or heat-sensitive paints) as heat-sensitive walls. - Page 7 Low flue gas temperature can create flue draft issues in the colder environment. It is highly recommended that the 200 inner casing of Masport flue system be extended within 250~300mm below the flue termination. This is particularly important for installation in the colder areas of Canterbury and south of the Canterbury region. (Refer to Figure 3.3.2.
-
Page 8: Floor Protector Requirements
Please note that the Hurunui burner is heavy, having a total weight of 130 Kg. The floor and the materials used as floor protectors should be strong enough to bear this load. The minimum requirements for material to be used as floor protectors on a combustible material are 6mm fibre cement board (e.g., Hardies Tile &... -
Page 9: Brick And Baffle Layout
583717, which comes with the fire. 4.2 Permitted Fuels The quality of the firewood you burn can considerably affect the performance of the Hurunui ULEB. Moisture content, tree species, and log size are the main factors affecting the emissions produced by any wood burner. -
Page 10: Testing Your Wood Moisture
If you are cutting your firewood, only wood that has been air-dried in a sheltered, well-ventilated stack, preferably for at least 12 months, may be burned in the Hurunui ULEB. To ensure that the wood has a 25% or less moisture content, store it under a roof and protect against heavy rain. -
Page 11: Operational Sequence
5.0 Operational Sequence 5.1 Before First Light-up Ensure that all the packing material has been removed from the combustion chamber. Make sure the St/St baffle and ceramic bricks are installed correctly and the baffle is pushed back. Please note that the special high-temperature paint used on the heater will go through a curing process; as the paint heats up, it will firstly soften and can be easily marked;... -
Page 12: Main Load
5.2.3 Main load and controlling output 8. Around 40~45 mins, when the intermediate load 2 is burnt more than 50%, open the main fuel loading door. 9. Add 3 large size logs and close the main fuel loading door. 10. Once the large size logs are fully alight, the burner is ready to adjust the output by operating the air slide. 11. -
Page 13: Operating Hints For Clean Burning & Best Efficiency
After a season, adjust the door to eliminate any minor leakage if required. For the fire to draw correctly, air must be able to enter the room where your Hurunui ULEB burner is installed. You may have to leave a room door slightly open and perhaps a window elsewhere in the house if your home is of modern airtight construction. - Page 14 Door seals of the main door should be checked and, if required, will need replacement periodically depending upon the usage of the Hurunui burner. Over the period, the door and glass seals will become hard and cause air to leak into the firebox. This excess air can lead to the 'over-firing' of the burner and damage the burner parts.
-
Page 15: Hurunui Replacement Parts
& rear baffle, both the air tubes and the bricks. 8.0 Hurunui Replacement Parts Some parts of the Hurunui burner are considered consumable. These parts will wear out or degrade over time. The life of these parts will vary upon How frequently fire is used Type of fuel. - Page 16 6. Rust issues - Rust will only form when there is moisture present; please note that the stove bright paint is porous and will allow moisture through to the steel underneath it. Masport does not recommend cleaning your heater with damp/wet clothes or cleaning agents. Only the use of dry lint-free cloth is advised. If rust does form, please have the unit inspected by your local dealer/installer, and they can best advise how to remedy this.
-
Page 17: Hurunui Warranty Registration
GLEN DIMPLEX WARRANTY REGISTRATION HURUNUI ULTRA LOW EMISSION BURNER Thank you for purchasing a Masport Fire. We ask you to complete the following information and return it to the Glen Dimplex Warranty Registration Department at the following address: New Zealand :... -
Page 19: Hurunui Warranty Terms & Conditions
Australia by Glen Dimplex Australia Pty Ltd. (together referred to as “Glen Dimplex”) This warranty is provided to the first domestic purchaser of a Masport Hurunui Ultra-Low Emission Burner. It applies from the date of purchase from or through an authorized Masport Fire Distributor in relation to each product or component for the period below. - Page 20 Damage caused by incorrect use or the burning of treated or painted wood, driftwood or other fuels which are not recommended; Travel costs for a distance greater than 50 km from the nearest approved Masport Heating Service Agent. (The location of the Wood Fire must be advised to Glen Dimplex or its sales agents at the time of purchase or using warranty registration form) ...
