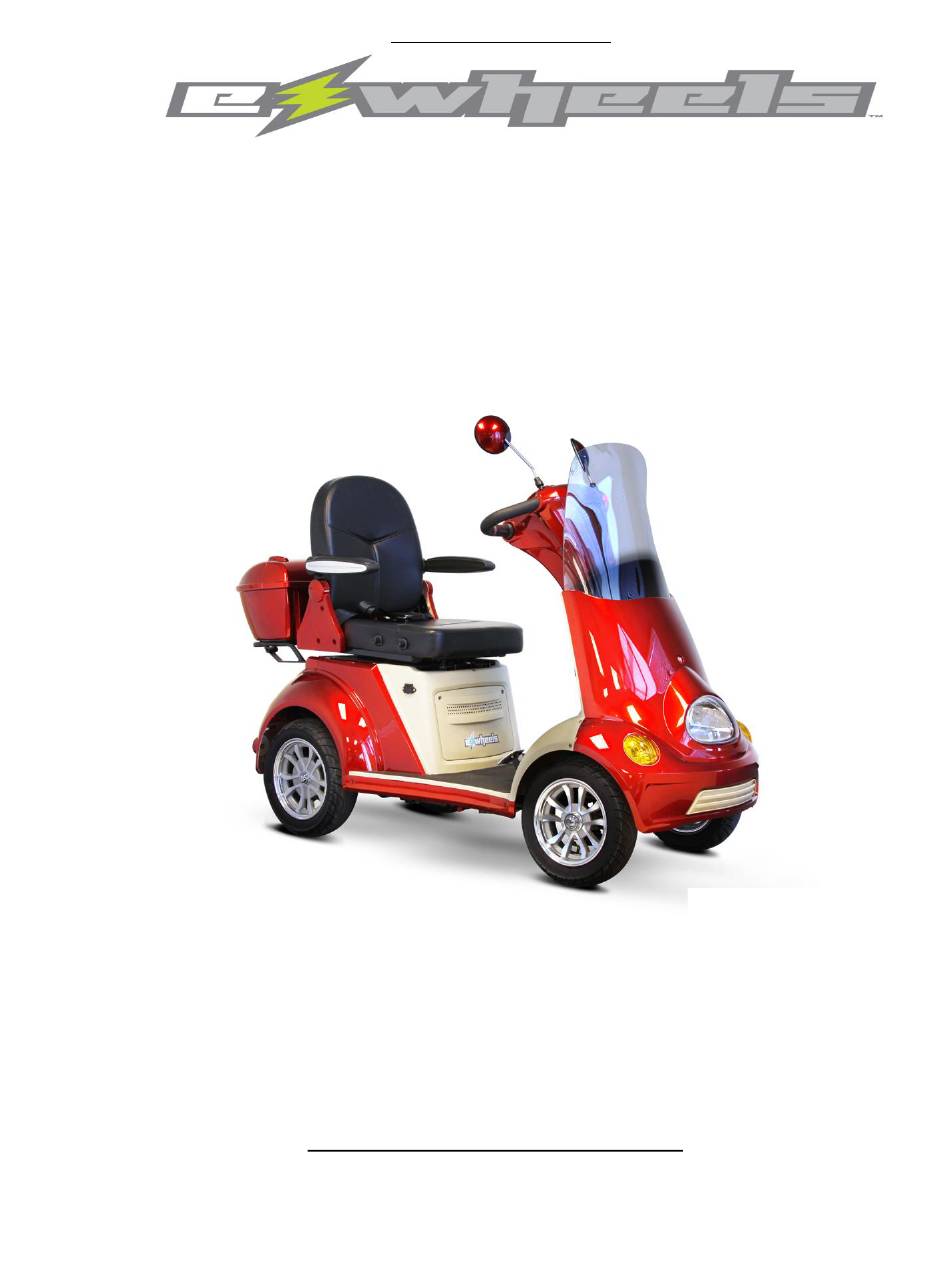

EW-52
Owner's Manual
www.ewheelsdealers.com
(888) 305-0881 Customer Service
(888) 571-2845 Service
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EW-52 and is the answer not in the manual?

Questions and answers

Herm Auch
July 4, 2025

How to replace the batterys onE-Wheels EW-52 What do i need to remove to get to the batterys

User image 686829880a8f3
B. Rode
June 27, 2025

How to change to MPH & F degrees?

B. Rode
June 27, 2025

How do I change to MPH & F degrees

B. Rode
June 27, 2025

How do I change to MPH & F degrees

Thomas McHenry
May 3, 2025

It says my scooter ew-52 is fully charged but it will not run. Alarm sounds only

Summary of Contents for ewheels EW-52

  • Page 1 EW-52 Owner’s Manual www.ewheelsdealers.com (888) 305-0881 Customer Service (888) 571-2845 Service...
  • Page 2: Table Of Contents

    Table of Contents Instrument Panel………………………………………………. Music system operation……………………………………. Before you operate your scooter…………………..….. Scooter initial operation………………………….…...….. Technical specification……………………………….…….. Cruise Control…………………………………………………… Mirror Assembly……………………………………………….. Variable Speed Control……………………………………… Twist Throttle……………………………………………………. 10. Emergency Brake handle ………………………………….. 11. Seat Latch Release ……………………………………………. General /Safety Instruction…………….………………… 13.
  • Page 3: Instrument Panel

    Turn Signal Indicator Hazard lights Clock Function Speed (KPH) Turn Signal Indicator Temperature Battery Indicator Cruise Control Reverse Bright Light Indicator Left Turn Signal Horn High Bean Light Horn Right Turn Signal Drive 1 Drive 2 Slow Speed Drive 3 Low Beam...
  • Page 4: Music System Operation

    LED Indicator indicating Radio is on Volume up Power Volume Down Previous Song / Previous Station Play / Pause Song Next song or station...
  • Page 5: Before You Operate Your Scooter

    Before you operate the scooter Locate the below listed materials in rear cargo box:  Set of mirrors  Electric charger  Scooter Key (1: In Charger Box 2: Underneath seat)  Owner’s manual IT IS VERY IMPORTANT TO READ OWNER’S MANUAL BEFORE SCOOTER OPERATION Scooter Initial Operation ...
  • Page 6: Technical Specification

    Technical Specifications Model EW-52 Scooter Weight Capacity 500Lbs. Speed: Up to 15mph Distance: 43 miles per charge (distance varies on terrain, riders weight and road surface etc.) Front Seat: Type Adjustable chair with backrest Front seat: Size 22 ½”x17 ½”x23” (LxWxH) Front Seat: 27”...
  • Page 7: Cruise Control

    Cruise Control The Cruise control is located just under the digital dash, indicated by the “Cruise” button. Simply reach your desired speed while driving the scooter and press the “Cruise” button and the scooter speed will be fixed at your current speed until the brake pedal is pressed.
  • Page 8: Variable Speed Control

    Always check that the variable speed control is set to the desired speed setting. Variable Speed Control The EW-52 has several speed setting capabilities: 1. The “S” button located just under the digital dash can be pressed and the scooter will function at a slow speed.
  • Page 9: Twist Throttle

    Twist Throttle To operate the twist throttle simply place your hand on the throttle and twist the throttle towards you. The scooter speed is determined by how much you turn the throttle. Twist Throttle Ramps and Curbs Check that ramp surface is roughened to prevent slipping. Never drive across a slope or turn sharply on a slope.
  • Page 10: Emergency Brake Handle

    Emergency Brake Handle To activate the emergency brake, first start by depressing the foot pedal to alleviate tension from the brake lines. Keep the brake pedal depressed while activating or releasing the emergency brake. Pull the handle out towards you while the handle is in the vertical position to activate. To deactivate, push the foot brake down again, and follow the instructions on the handle "Push Button and Turn"...
  • Page 11: Seat Latch Release

    Seat Latch Release To release the seat latch, you need to start by inserting the key into the ignition. Without pushing inwards, turn the key counter clockwise (left). You should feel resistance while turning the key, until it hits a stopping point where it cannot turn anymore.
  • Page 12: General /Safety Instruction

    General 1. Always use a seatbelt, and keep your feet on the scooter all the time. 2. Do not exceed maximum weight capacity of 500lbs. (including accessories and carry on) 3. Do not attempt to lift or move a power scooter by any of its removable parts.
  • Page 13: Environment Condition

    Environment Condition Rain, Sleet and Snow If exposed to water, your power scooter is susceptible to damage to electronic or mechanical components. Water can cause electronic malfunction or promote premature corrosion of electrical components and frame. Warranty For valid warranty claims E-Wheels will, at their discretion, replace/repair/refund items mutually agreed to be defective.
  • Page 14: Seat Adjustment

    Seat Adjustment 1. Locate forward/reverse seat push knob located on side of the seat 2. Seat arm rest can be in an upright position or a down position. Trunk To open trunk simply insert ignition key while turning the key counter clockwise, place your hand on the seat back and pull seat forward.
  • Page 15: Key Fob

    Key Fob Press once to deactivate alarm Panic Button Press once to activate alarm Press twice – remote start Clock Adjustment Press the “reset button” and this function will change from hours to minutes. Once at the desired location press the “select” button to change the digits.
  • Page 16: Batteries And Charger

    Batteries and Charger We recommend that you use deep-cycle batteries that are sealed and maintenance free for your power scooter. Both are lead acid (SLA) and gel cell are Deep cycle batteries that are similar in performance. Deep-cycle batteries are specifically designed to provide power, drain down, and then accept a relatively quick charge.
  • Page 17: Charger Use

    Charger Use 1. Plug charger into Electric wall outlet 2. Insert charger port into scooter charging plug which is located on the front/side of scooter main body directly under seat. 3. Red charger light indicates scooter is charging 4. Green charger light indicated scooter is fully charged. 5.
