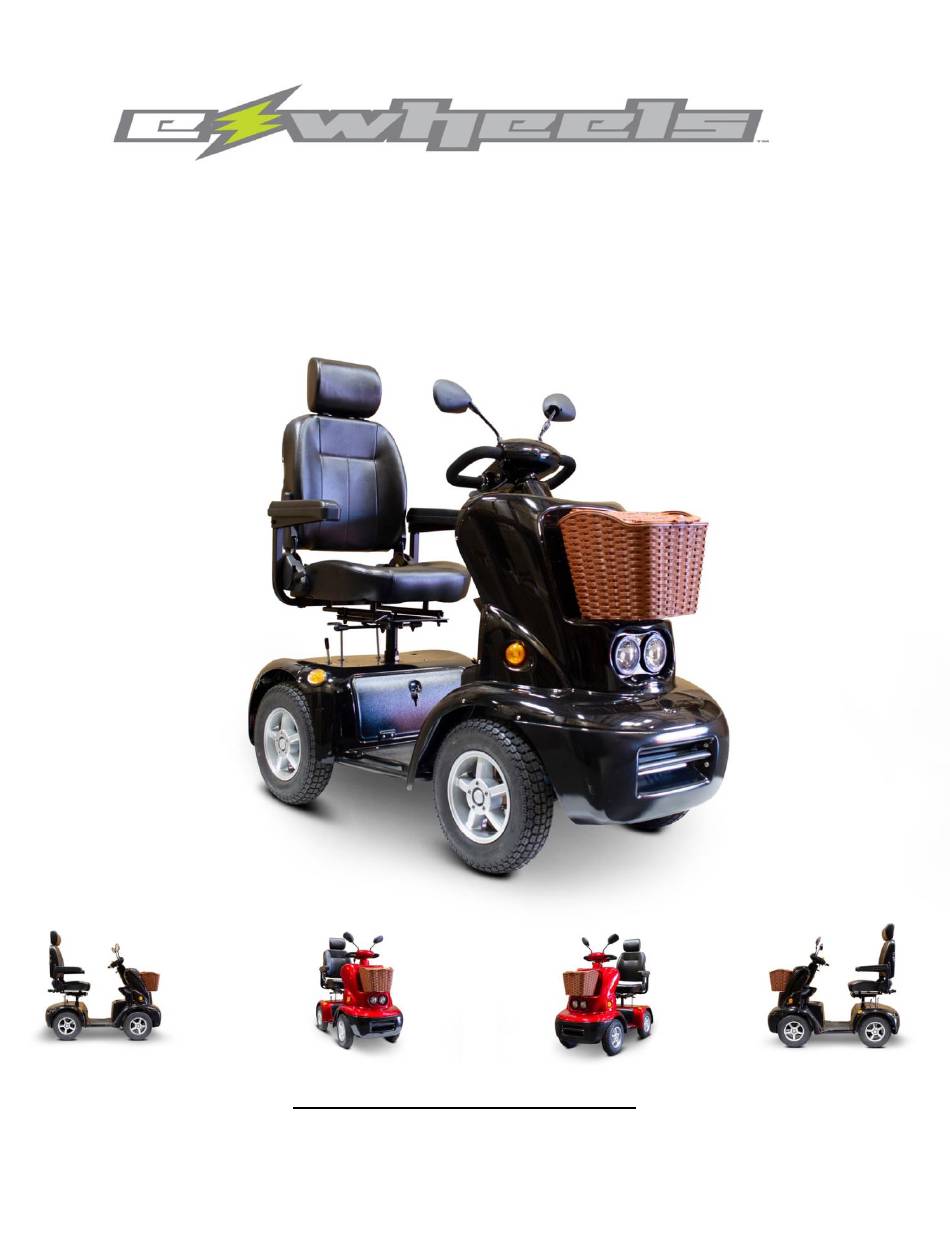

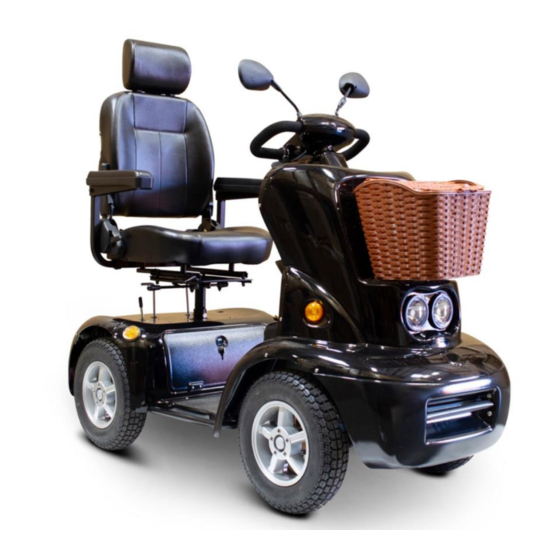

- Page 1 EW-79 Owner’s Manual www.ewheelsdealers.com (888) 305-0881 Sales (888) 571-2845 Service...
-
Page 2: Table Of Contents
Table of Contents Page 2 - Feature Guide Page 3 - Technical Specifications Page 4-8 - Operation of Scooter Page 9-10 - Charging and Battery Information Page 10 - Ramps and Curbs Page 11 - General Page 11 - Use While Under Influence Page 12-13 - Safety Requirements Page 14-15 –... - Page 3 Rear View Mirrors Removable Headrest Large Front Basket Lockable Storage Compartment Freeroll / Drive Lever Front Headlights...
-
Page 4: Technical Specifications
Technical Specifications Model: EW-79 Weight Capacity: 575 LBS Speed: Up to 10 MPH Distance: Up to 37 miles per charge (distance varies on terrain, riders weight, road surface, etc.) Front Seat: Type: Adjustable Comfort Seat With Headrest Front seat: Size: 18”... -
Page 5: Operation Of Scooter
Operation of Scooter 1. Turning on The Scooter Insert key into ignition and turn clockwise to turn the scooter on. The battery indicator bars will display the current charge level when on. Turn the key counter- clockwise to power off when stopped. - Page 6 3. Tiller Controls See below for all tiller functions labeled below. Status lights on the top of the tiller will illuminate or flash when the feature is activated. Emergency Flashers High/Low Headlight High/Low Speed Button Switch Left Turn Signal Right Turn Signal Hold To Horn Button Temporarily...
- Page 7 5. Electromagnetic and Free Rolling Lever There is a lever to engage either the electromagnetic braking system, or allows the machine to be free rolling. Push the lever towards the back of the scooter until you hear a click to activate the electromagnetic brakes.
- Page 8 7. Delta Multi-Directional Variable Throttle The forward and reverse movements are controlled by the Delta variable throttle. To drive forward, pull the lever on the right hand-side towards you. To drive reverse, pull the lever on the left hand-side towards you. How fast the machine accelerates determines on how far back pull the throttle lever is pulled.
- Page 9 9. Seat Adjustment Handles There are three different seat adjustments handles. There is a handle to swivel the seat, a handle to slide the seat forwards and backwards, and a handle to fold or adjust the backrest. Forward/Reverse Swivel Lever Backrest Lever Lever 10.
- Page 10 Charging Instructions: The smart charger included with your scooter will shut off its high current mode when the scooter is fully charged. When the light on the charger is orange, the scooter is still charging. When the light turns green, this means the scooter is fully charged.
-
Page 11: Ramps And Curbs
Note: - Do not use automotive starter batteries. They are not designed to handle long deep discharge and are unsafe for use in your scooter. - The useful life of a battery is quite often a reflection of the care it receives. -
Page 12: General
General: 1. Always keep your feet on the scooter while riding. 2. Do not exceed the weight capacity of 575 LBS. 3. Do not attempt to lift or move the scooter by any of its removable parts. Personal injury and damage to the scooter may result. 4. -
Page 13: Safety Requirements
Safety Requirements: Driving Surface The EW-79 has the best stability and performs the best under the normal driving conditions (dry, level ground with concrete or asphalt). Extra care must be taken when riding on other surfaces (grass, gravel, etc.). DO NOT exceed the specified climbing angle. Do not operate the scooter before you have fully read and understood the manual. - Page 14 • Hold the handlebar with both hands and put both feet on the floorboard while driving the scooter. • Never sit on the scooter in a moving vehicle. • Do not drive on uneven slopes or uneven ground; be careful when passing over slopes.
-
Page 15: Warranty
Warranty: Three Year Limited Warranty Three (3) years from the date of purchase on all structural frame components; Seat post and frame. One Year Limited Warranty One (1) Year from the date of purchase, if any part or electronic component of the scooter is found upon examination to be defective in material and/or workmanship, it will be replaced at E- Wheels’... - Page 16 Consumable items which may need replacing due to normal wear and tear (tires, tubes, belts, bulbs, upholstery and seating, throttle, brakes, motor brushes, fuses, plastic shrouds and footrest covers) Damaged caused by: battery fluid spillage or leakage, abuse, misuse, accident, negligence, improper operation, excessive loading, maintenance, storage, commercial use, or use other than normal.
- Page 17 • Do not use any battery which is not approved by eWheels for use with your scooter. • Do not allow children to play on the scooter or use it without supervision.
- Page 18 General Operation – Driving Outdoors Your scooter is designed to be driven on clean, even, dry surfaces. eWheels does not recommend you store your scooter outdoors. Your scooter is susceptible to damage to electronic, mechanical, or other components if exposed to water.
- Page 19 slipping.
- Page 20 Do not use automotive batteries with your scooter. Always charge your scooter’s batteries in a well-ventilated area. eWheels recommends that you periodically charge your batteries, such as once a month, when your scooter is not in regular use. Ensure the switch is in the off position when the batteries are charged. Ensure that the power plug is inserted and plugged firmly into the battery during charging.
- Page 21 scooter.
